car hauler trailer used u haul car trailers for sale
- Category: >>>
- Supplier: Shandong Haoyue Vehicle Co. Ltd.
Share on (60562291788):
Product Overview
Description
car hauler trailer used u haul car trailers for sale
Specification
General | ||||||
Overall Dimension | 15000mm*2500mm*3800mm(Dimensions can be designed) | |||||
Number of Car | 6(car quantity can be optional,6-12 cars) | |||||
Total Weight | 11000kg | Pay Load | 40ton | |||
Tell us the car outside dimensions,car carrier trailers can be designed | ||||||
Running Gear | ||||||
Suspension | Tri-axle 10-pcs leaf spring suspension with equalizer beam (Air suspension) | |||||
Tires | 10.00R20/8.25R20/1100R20, 12units | |||||
Axles | FUWA axle, 13T capacity(BPW,YORK,SAF optional) | |||||
Brakes | Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake | |||||
Under Frame | ||||||
Main Beam | Q345B steel,Height 500, upper 18mm, lower 18mm. Mid web 10mm | |||||
Cross Beam | Mild Alloy Q235 | |||||
King Pin | Size: 50# (2'') or 90#(3.5’’); Type: welded or assembled | |||||
Landing Gear | Single side operation or double side operation, Static capacity 28Ton | |||||
Appendix | 1 tool box, length 1.0m | |||||
Electrical & Paint | ||||||
Electrical | Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light | |||||
Lights & Reflectors | 24V, 7 lines | |||||
Wiring | ISO standard air connector, 24V 7 pin plug socket | |||||
Air/Elec. Connector | Color upon request | |||||
Paint | According to your requirements | |||||

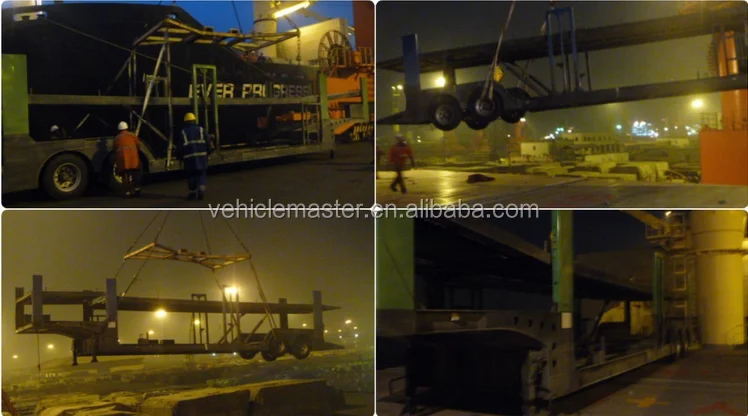

Packaging & Shipping
Nude packing
1.3 sets stacked(by Bulk cargo ship,Ro-or ship,or Land Transportation);
2.Dismantle the rear part which can load two sets in one 40 ft container;
3.Keep the trailer original but load two sets in one 45 ft container;
Product Show
After-Sales Service
car hauler trailer/car trailers/used u haul car trailers for sale
1). Traning of trailer operating and normal maintenance .
2). Regularly callback to know the vehicle's working status.
3). Supply the service of regular repair.
4). Solve the customer’s advisory.
5). The overseas engineers are always ready to deal with unexpected needs.
6). 24 hours hotline.
7). CKD and SKD are available.
8). Faster, better and more professional.
Contect person
Contact person: Bowen Liu
Tel: +86 18866100060
WhatsApp: +86 18866100060
Email: bowen @ vehiclemaster.com
