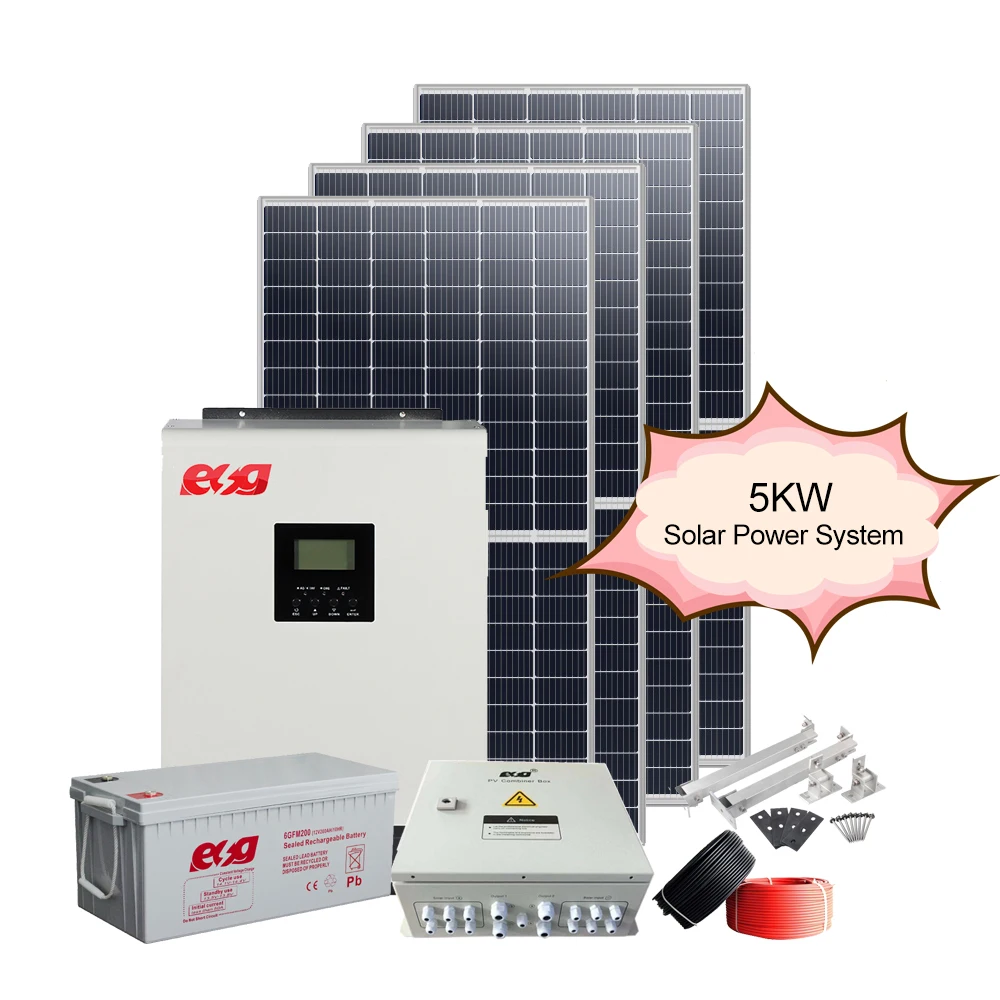

ESG Complete 5KW Off grid solar panel Lead acid battery High frequency inverter home energy system Solar Power System
- Category: Solar Energy Systems >>>
- Supplier: Guangzhou ESG New Energy Technology Co. Ltd.
Share on (60562342890):
Product Overview
Description
Why Choose Us?
Why Choose Us?
Why Choose Us?
Solar System Series
System Configuration
| Items | Description | Quantity |
| Solar panel | 450W 31V Mono Solar Panel | 12 |
| PV array box | 8 strings input PV array combiner box | 1pc |
| Inverter with MPPT 80A Solar controller | HYB5032MN 5KW 48V hybrid solar inverter | 1pc |
| Battery | Deep Cycle battery 12V 200Ah | 4 |
| Solar mounting brackets | Aluminium brackets can mount 2pcs solar panels | 8sets |
| Solar cable & connectors | 100m 4mm2 solar cable & 8sets MC4 connectors | 100m+8sets |

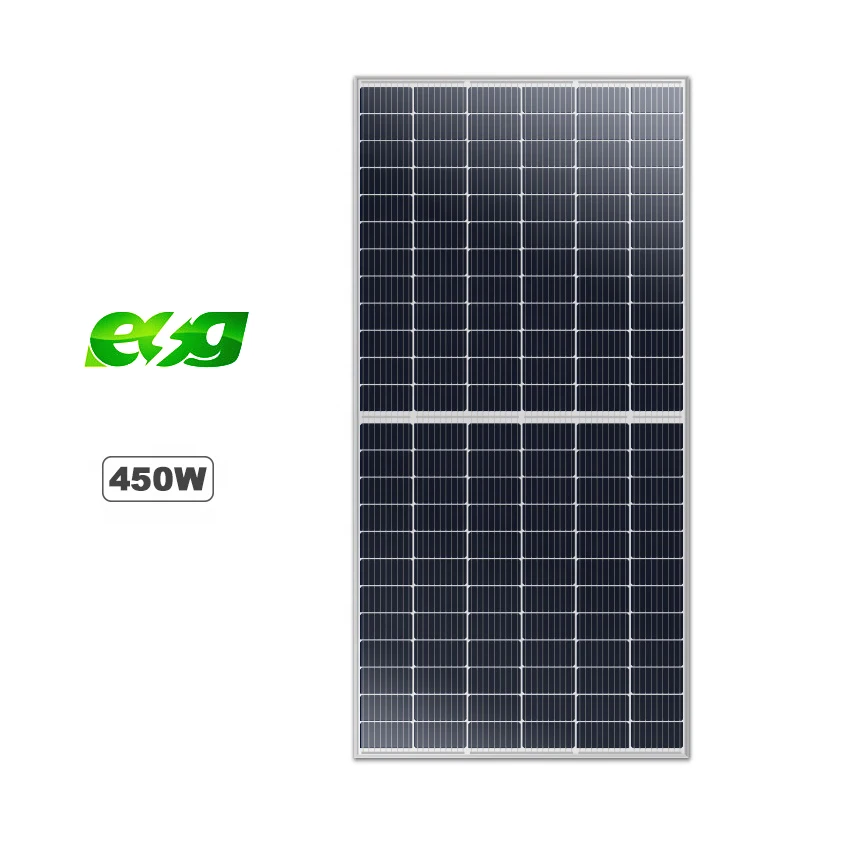

Solar panel parameters
| TYPE | 450M10-72HPH | 460M10-72HPH | 470M10-72HPH | 480M10-72HPH | 490M10-72HPH | 500M10-72HPH |
| Rated Maximum Power(Pmax) [W] | 450 | 460 | 470 | 480 | 490 | 500 |
| Open Circuit Voltage(Voc) [V] | 49.15 | 49.3 | 49.45 | 49.6 | 49.75 | 49.9 |
| Maximum Power Voltage(Vmp) [V] | 41.15 | 41.31 | 41.47 | 41.64 | 41.8 | 41.96 |
| Short Circuit Current(lsc) (A] | 13.65 | 13.72 | 13.79 | 13.86 | 13.93 | 14 |
| Maximum Power Current(lmp) [A] | 12.76 | 12.83 | 12.9 | 12.97 | 13.04 | 13.11 |
| Module Efficiency [%] | 20.3 | 20.5 | 20.7 | 20.9 | 21.1 | 21.3 |
| Power Tolerance | 0~+5W | |||||
| STC | Irradiance 1000W/m2, cell temperature 25C, AM1.5G | |||||

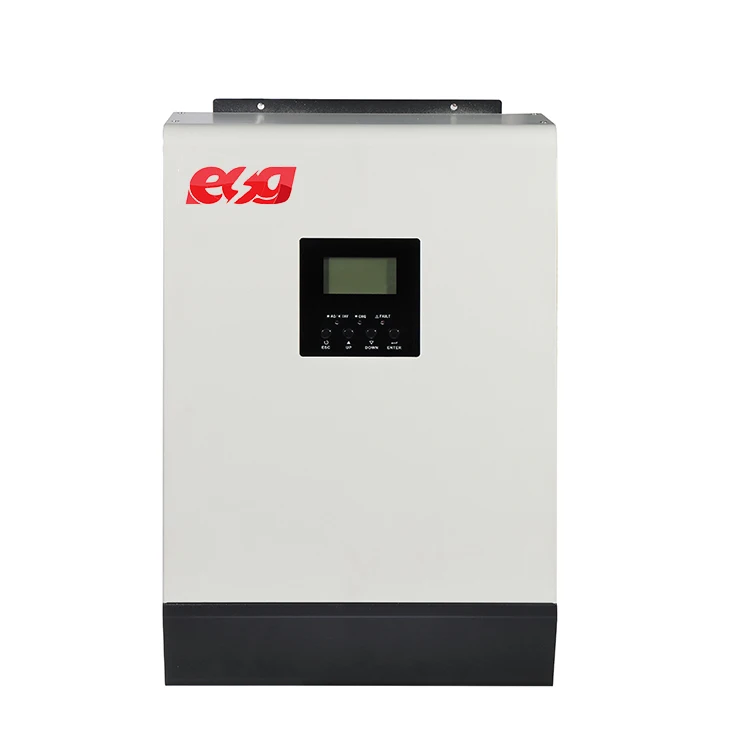

Inverter parameters
| Model | ESHYVM-3000 | ESHYVM-5000 |
| RATEDPOWER | 3000VA / 3000W | 5000VA / 5000W |
| INPUT | ||
| Voltage | 230 VAC | |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliance) | |
| Frequency Range | 50 Hz/60 Hz (Auto sensing) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | 230 VAC 5% | |
| Surge Power | 6000VA | 10000VA |
| Efficiency (Peak) | 90%~93% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24 VDC | 48 VDC |
| Floating Charge Voltage | 27 VDC | 54 VDC |
| Overcharge Protection | 32 VDC | 63 VDC |

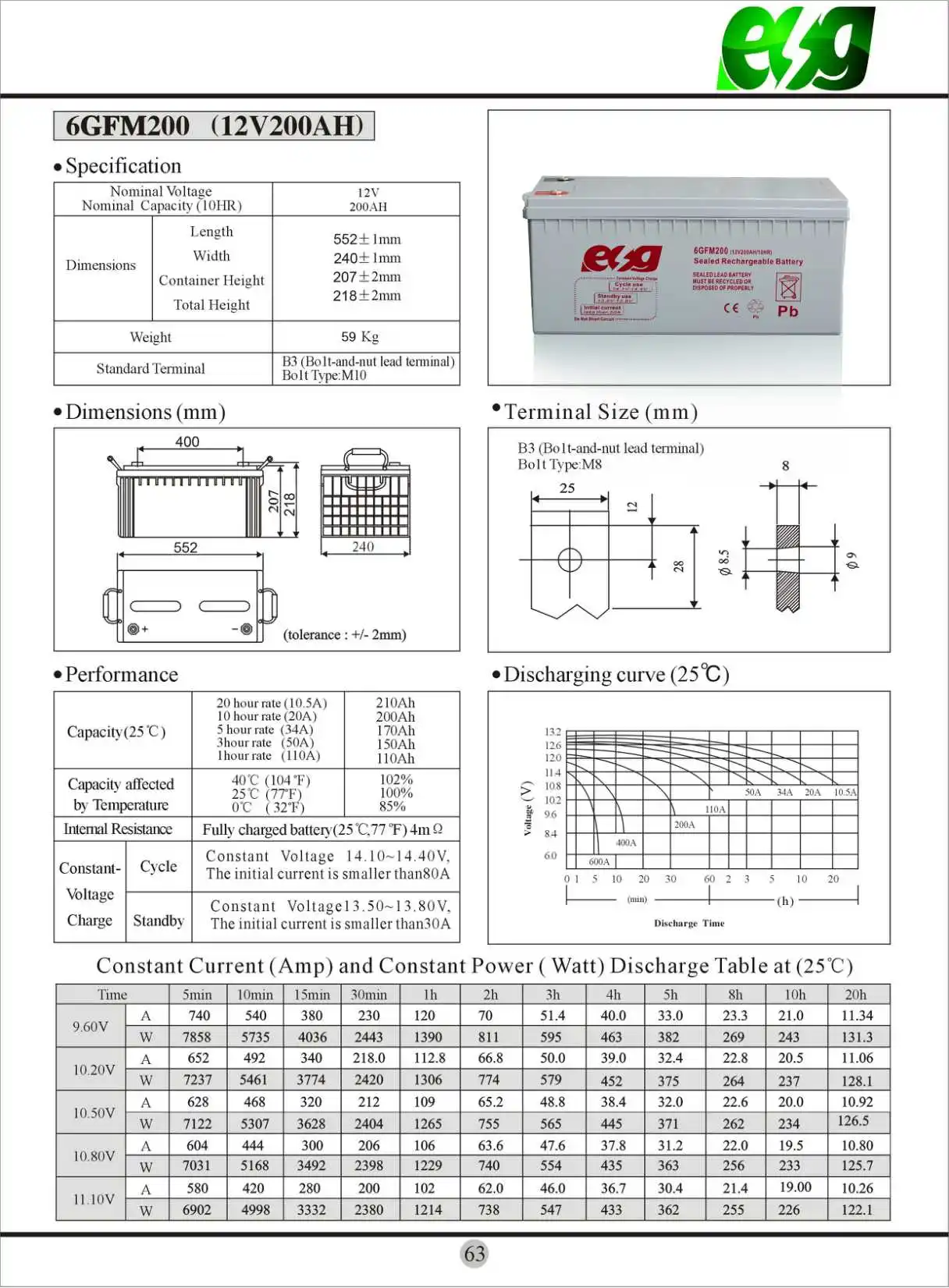

Battery parameters

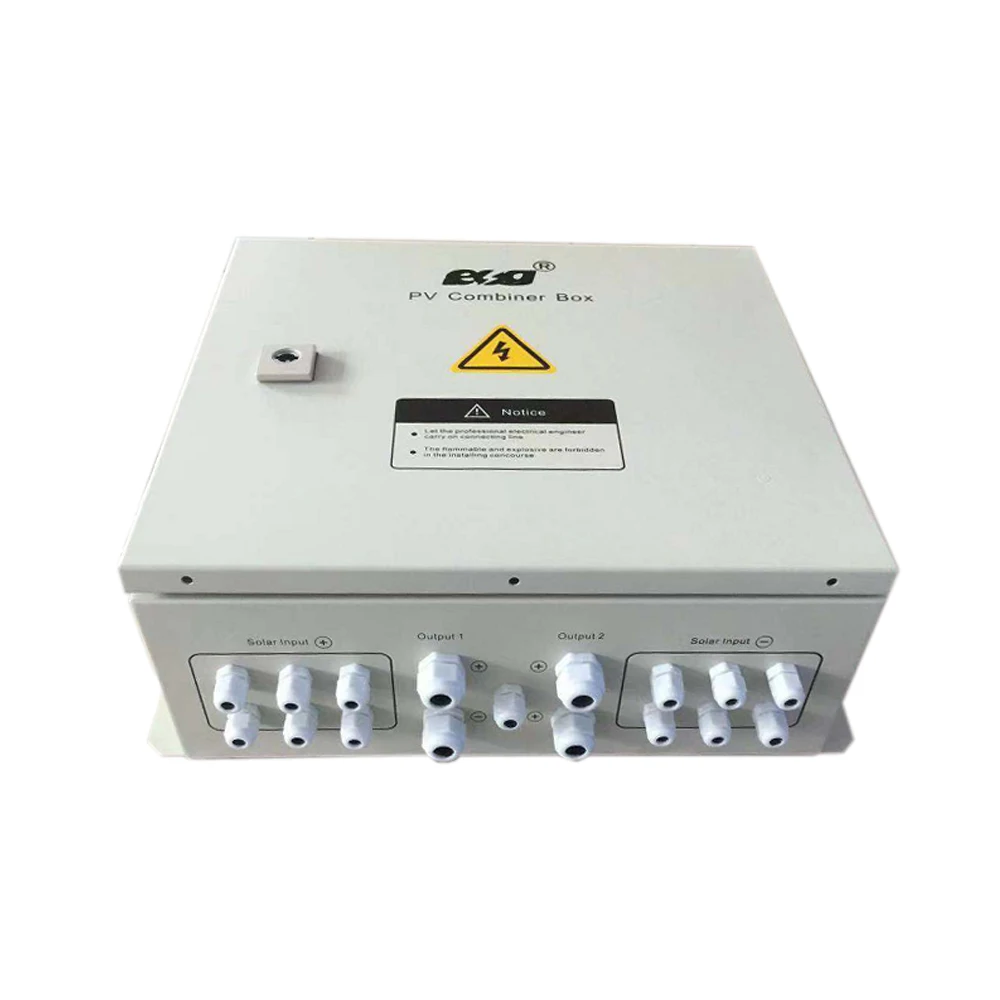

Combiner box parameters
| Name | DC combiner box |
| System maximum dc voltage | 1000 |
| Maximum input current for each string | 15A |
| Maximum input strings | 10 |
| Maximum output switch current | 160A |
| Number of inverter MPPT | N |
| Number of output strings | 1 |
| Category of test | 2 grade protection |
| Nominal discharge current | 20ka |
| Maximum discharge current | 40ka |
| Voltage protection level | 3.8kv |
| Maximum continuous operating voltage Uc | 1050V |
| Poles | 3P |
| Structure characteristic | Plug-push module |
| Protection grade | IP65 |
| Output switch | DC isolation switch(standard)/DC circuit breaker(optional) |
| SMC4 Connectors/dc fuse/dc surge protector | Standard |
| Monitoring module/Preventing diode | Optional |
| Box material | Metal |
| Installation method | Wall mounting type |
| Operating Temperature | -25ºC--+55ºC |
| Elevation of temperature | 2km |
| Permissible relative humidity | 0-95%, no condensation |
CE

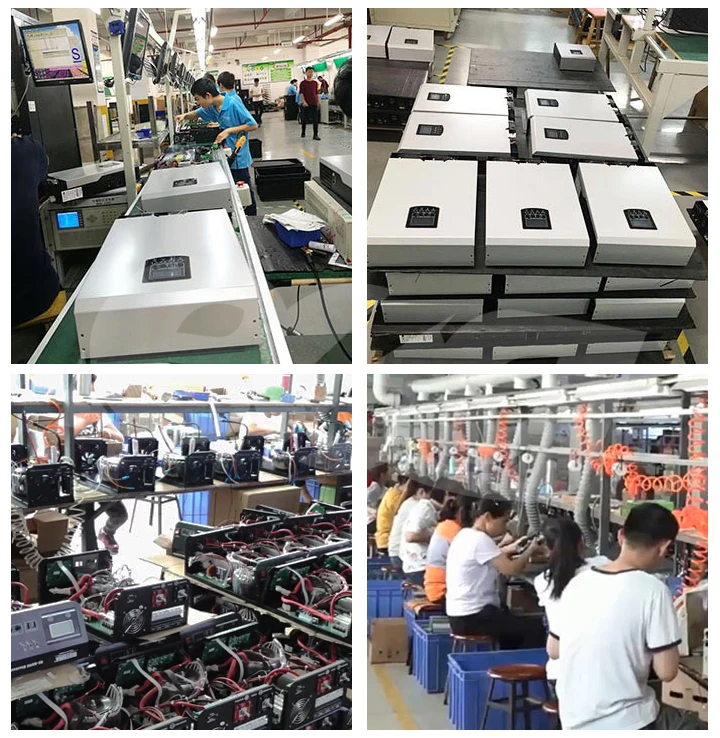

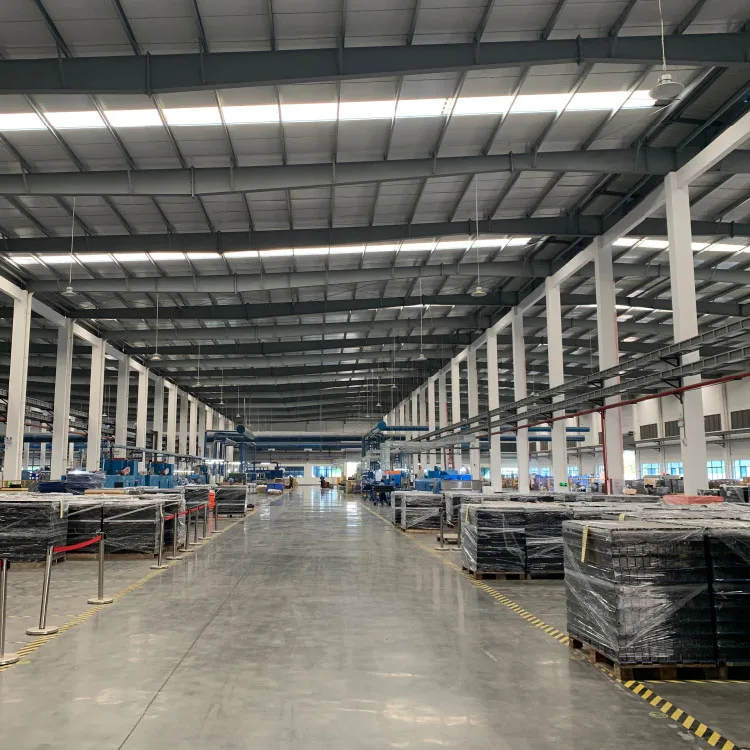

Factory
