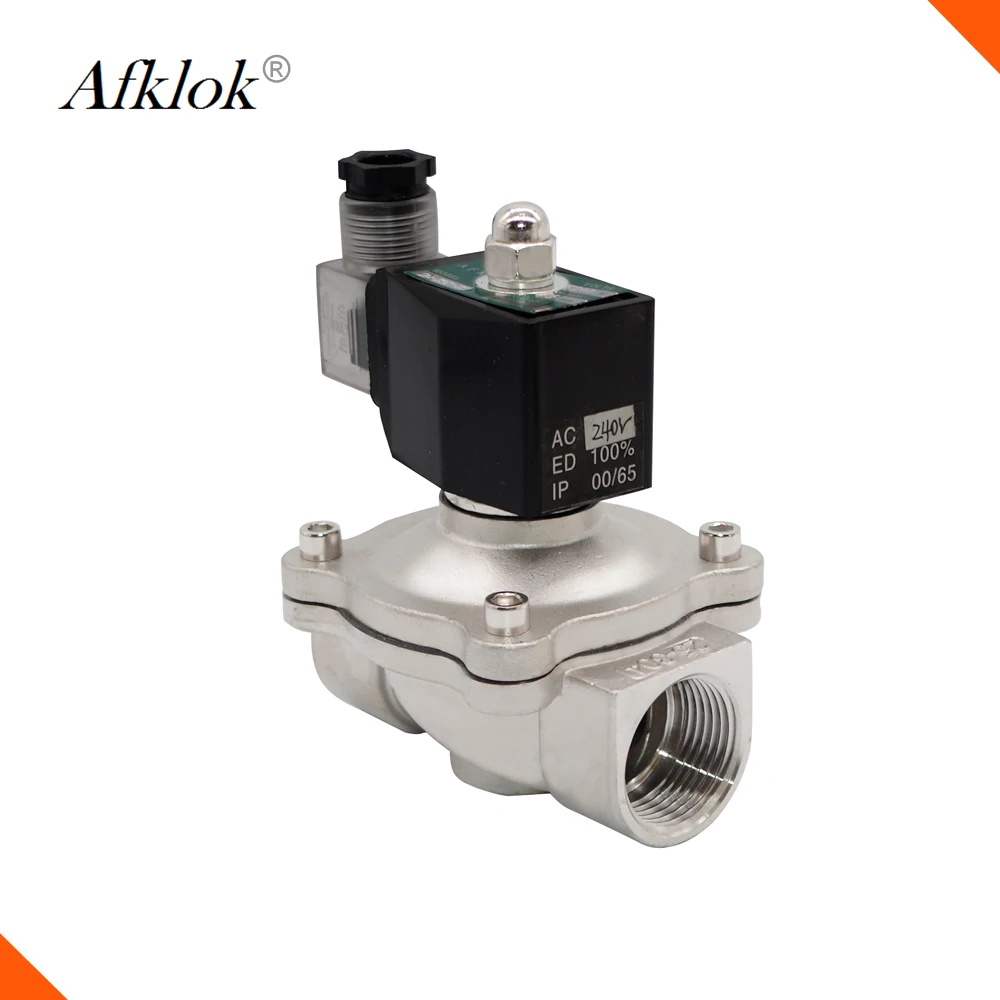

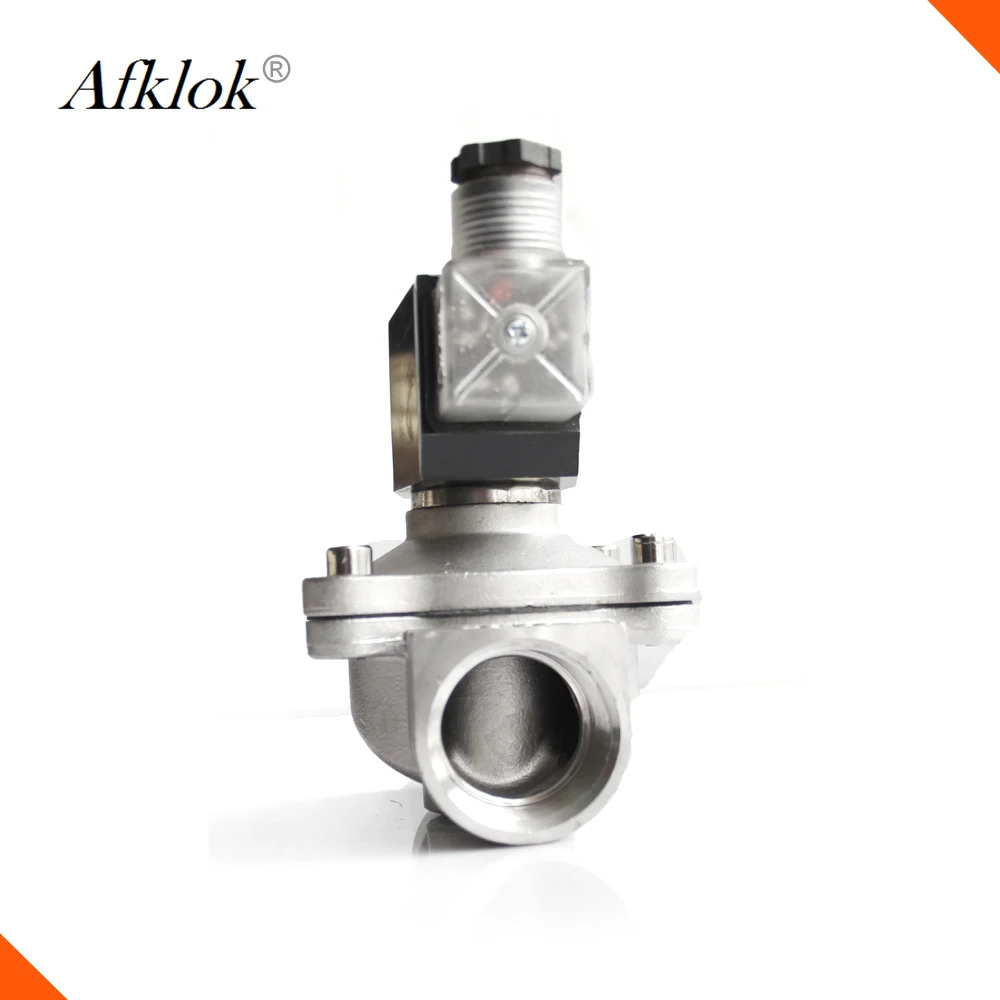

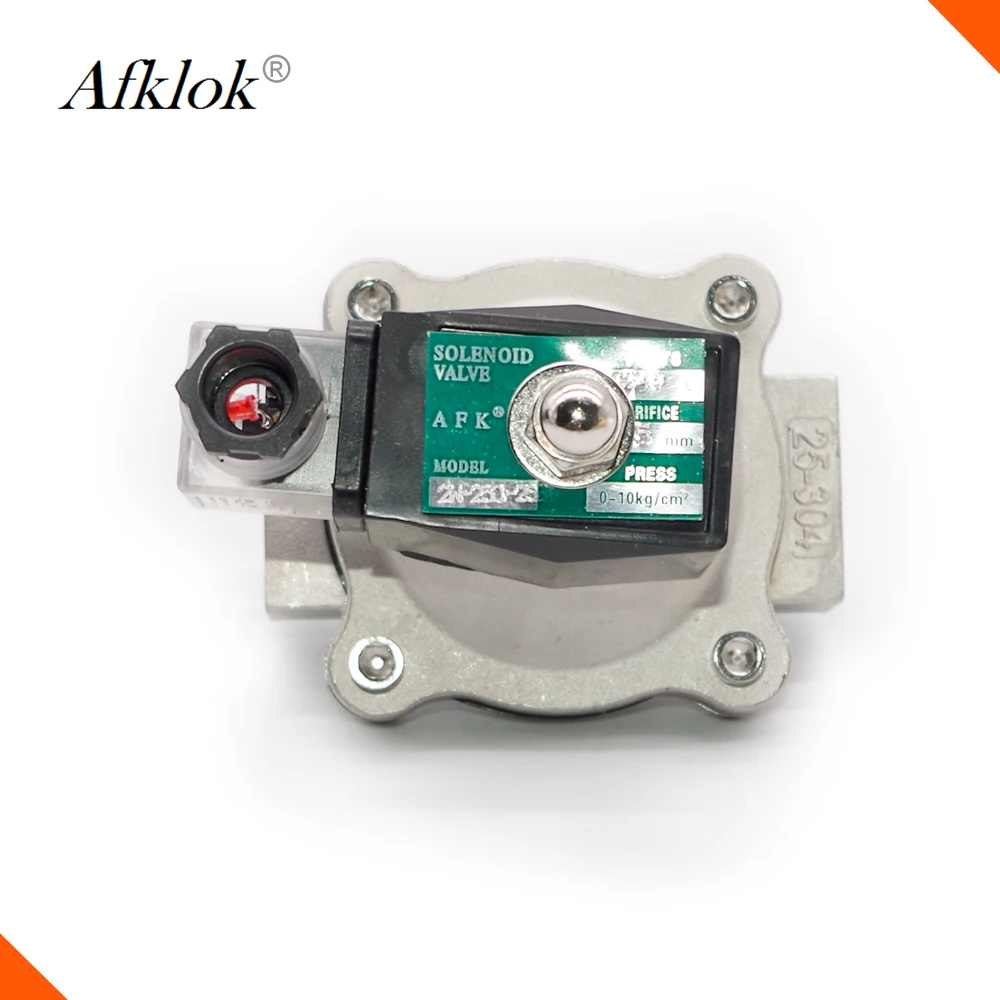

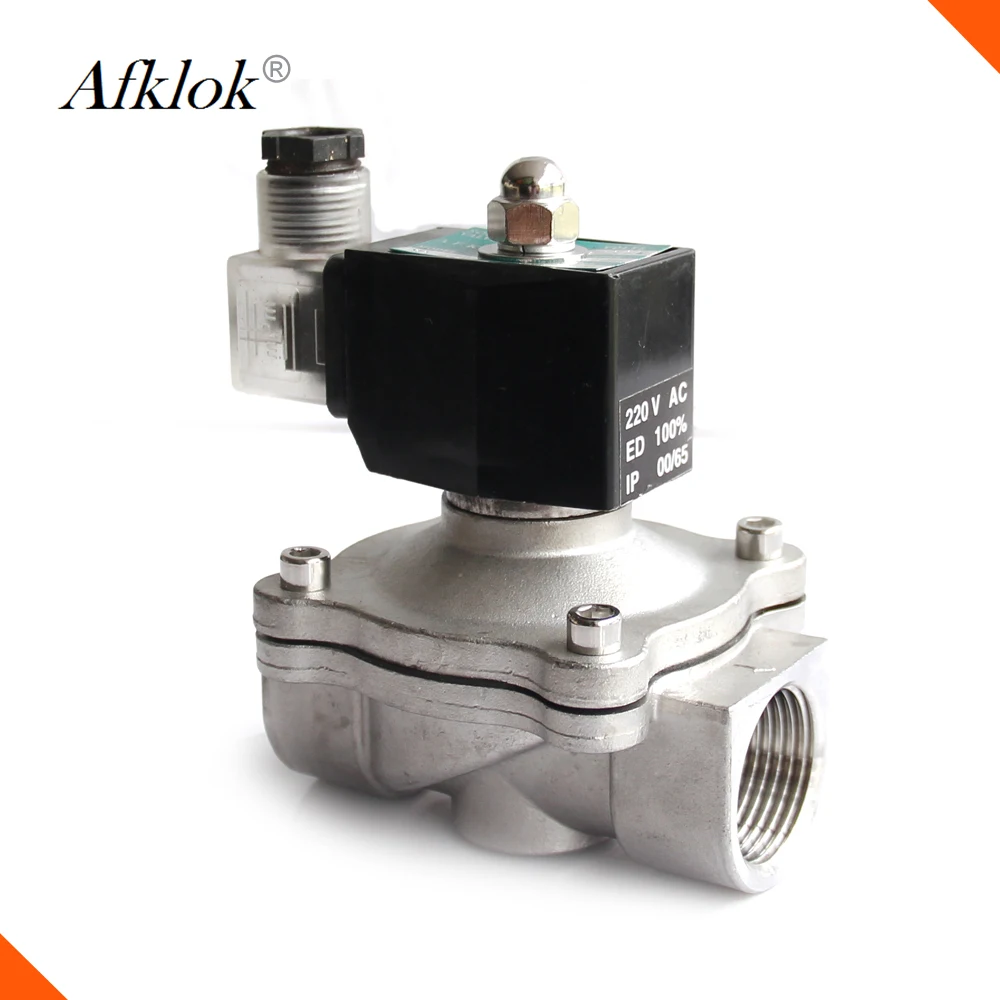

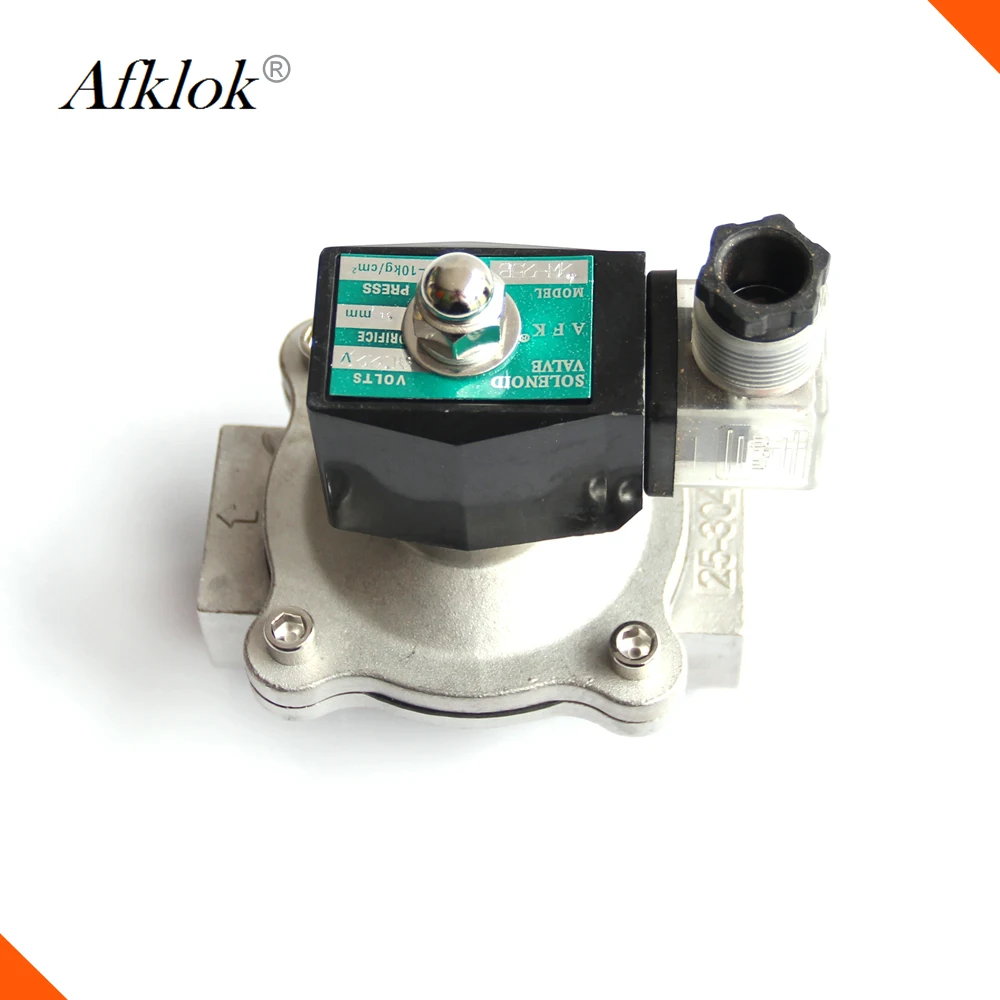

2 Way Normally Closed 12v DC water Air Gas Stainless Steel solenoid valve for water
Specification
Pipe size
3/8
1/2”
3/4”
1”
1 1/4“
1 1/2”
2”
Orifce size
16mm
16mm
20mm
25mm
32mm
40mm
50mm
CV valve
4.8
4.8
7.6
12
24
29
48
fuild
Air, water, ol, the neutral gas,liquid
Service voltage
AC380V,AC220V,AC110V,AC24V,DC24V, (allow)±10%
Operating
Pilot operating
Type
Normally closed
Body Material
stainless teel 304
viscosity
(Below)20CST
Working pressure
Water, air;0-10kgf/m2 ;oil:0-7kgf/m2
Material of seal
Standard: below 80 °C fuild temperature use NBR below 120°C use EPDM below 150 °C use VITONSEAL
Product Dimension
Model NO.
A
B
C
2W-160-10B
69
57
107
2W-160-15B
69
57
107
2W-200-20B
73
57
115
2W-250-25B
98
77
125
2W-320-32B
115
87
153
2W-400-40B
124
94
162
2W-500-50B
168
123
187
