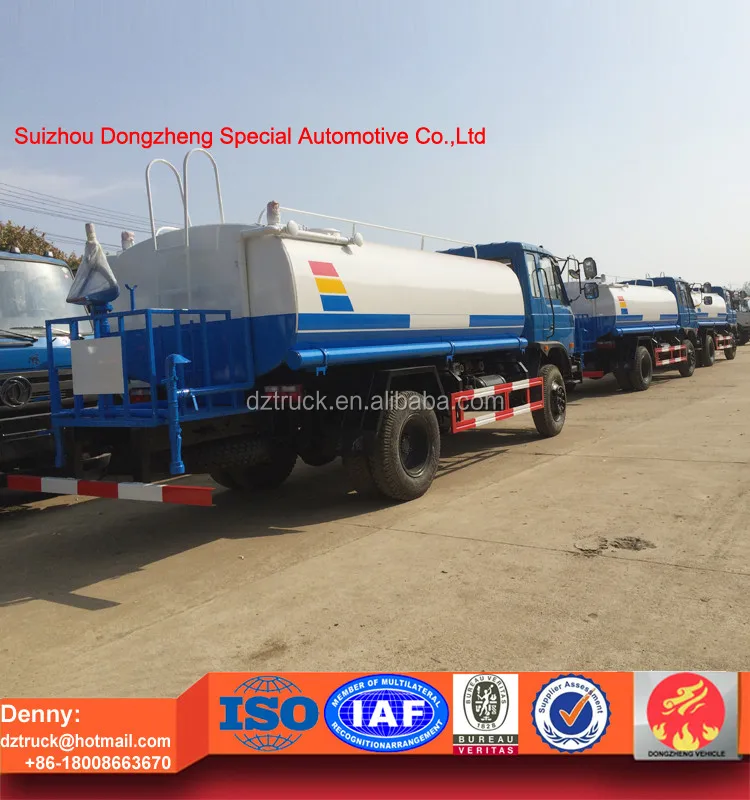

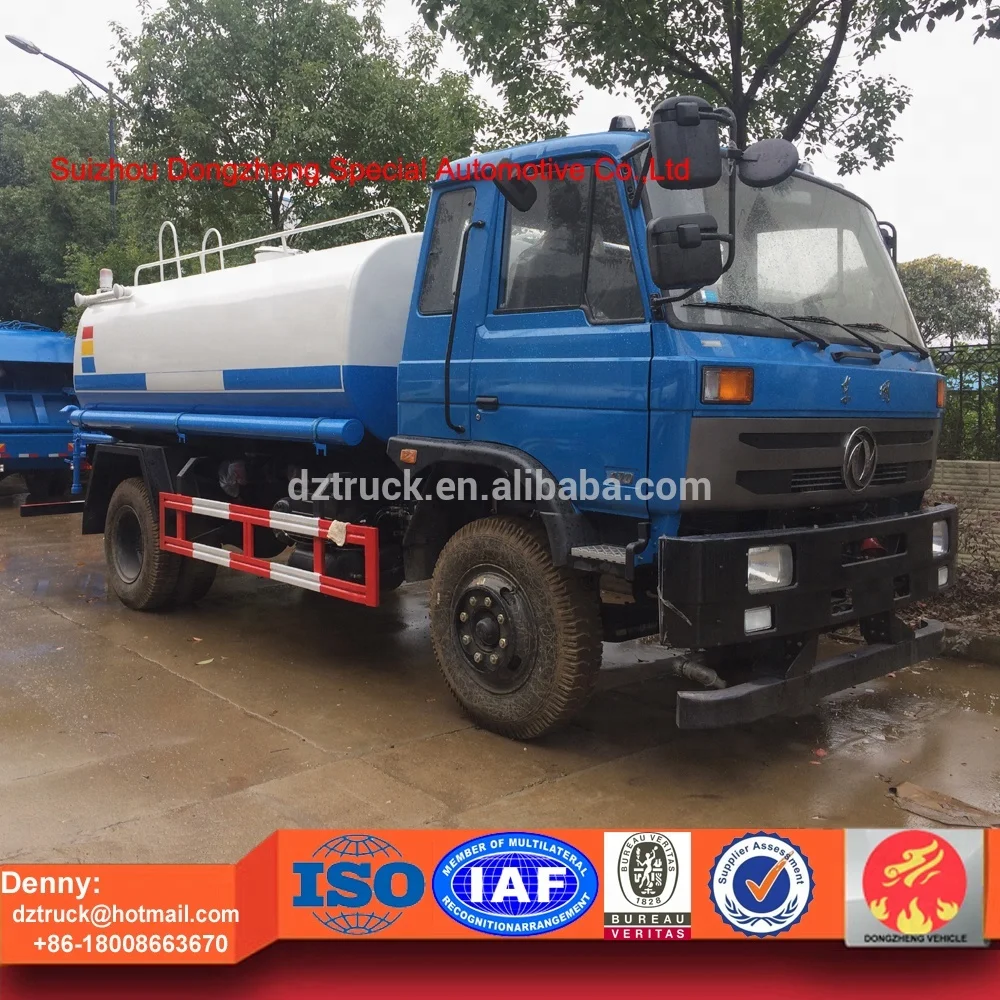

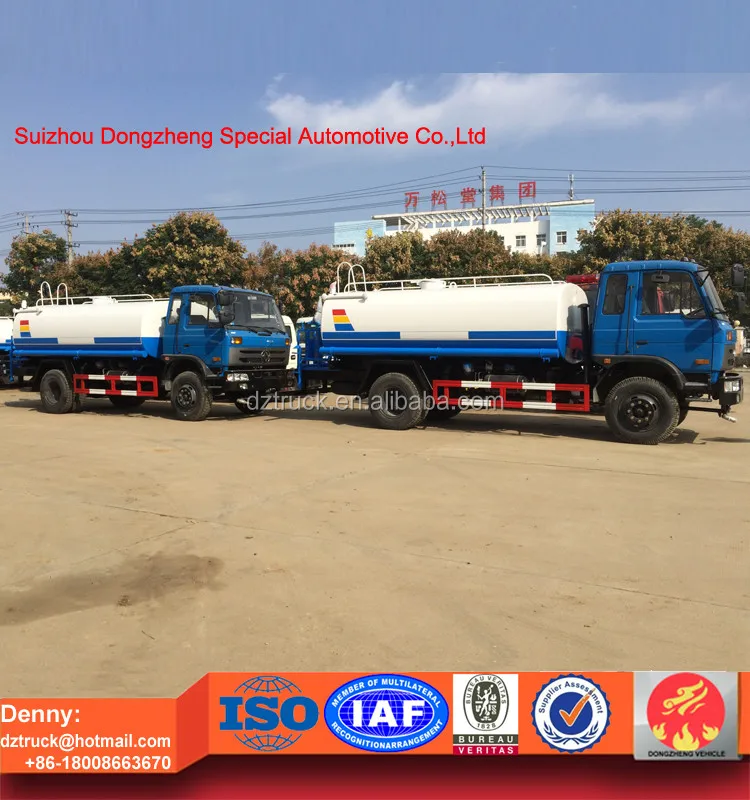

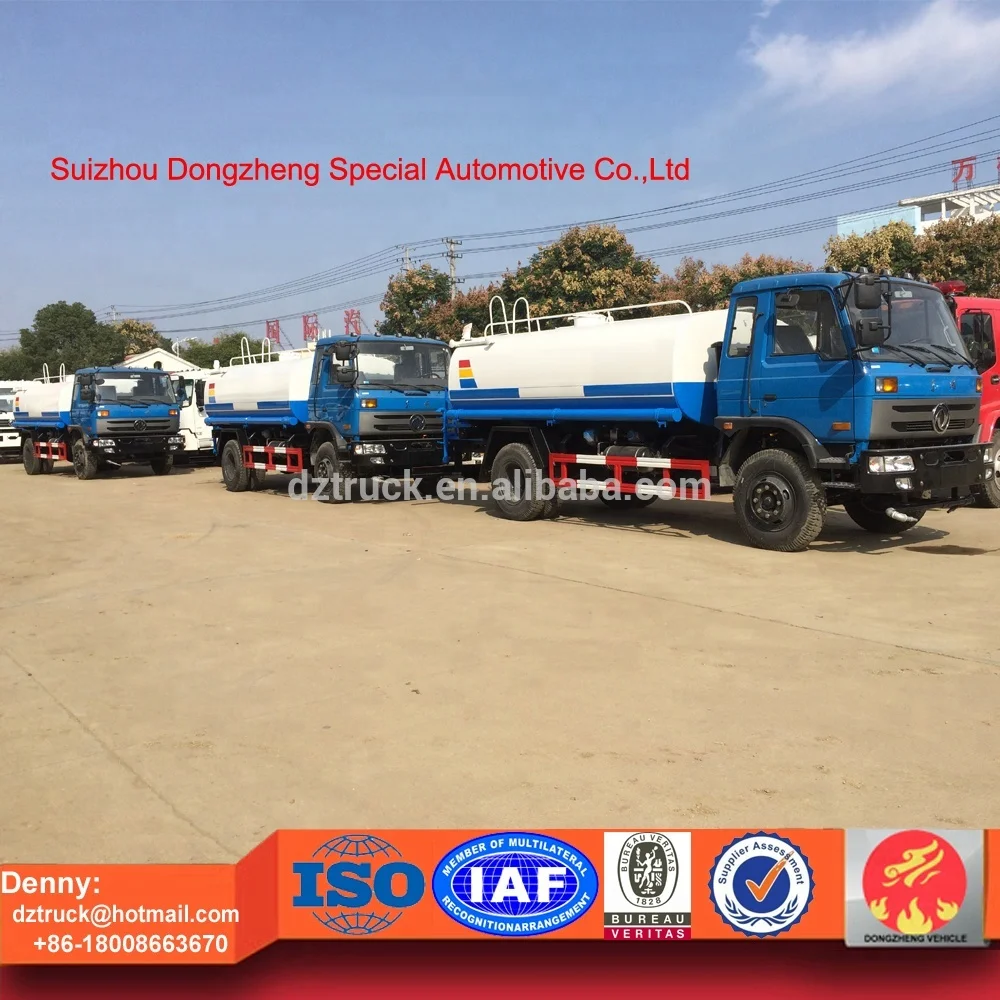

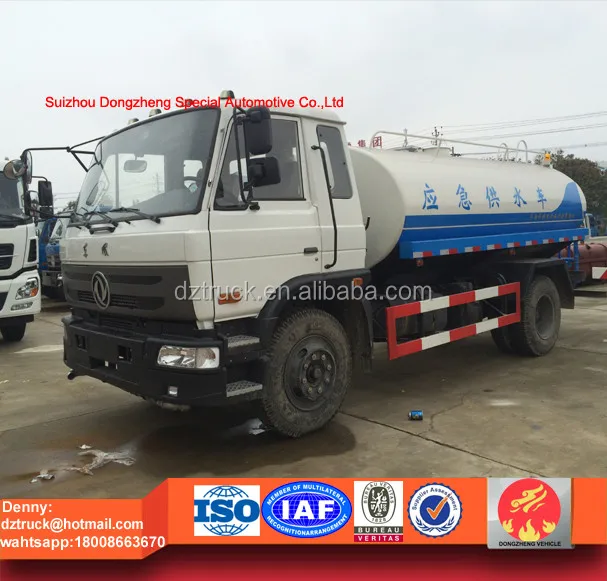

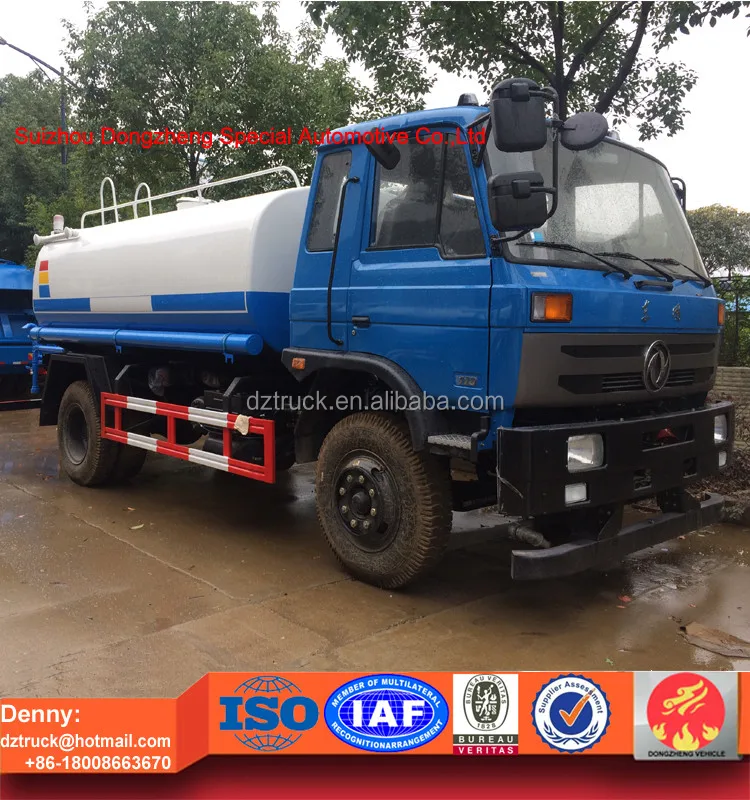

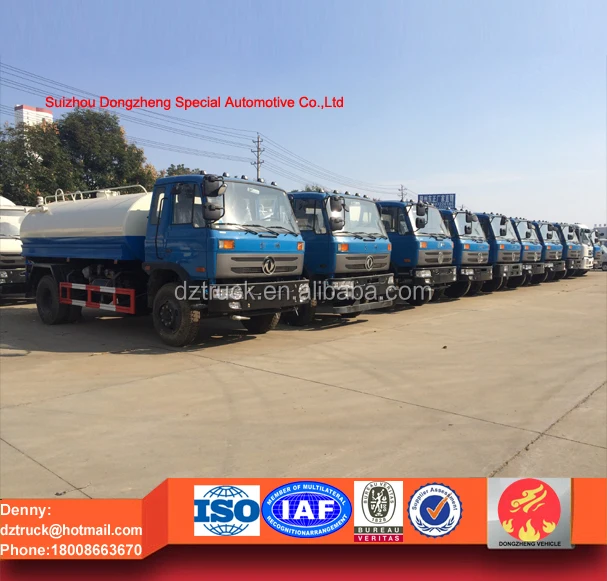

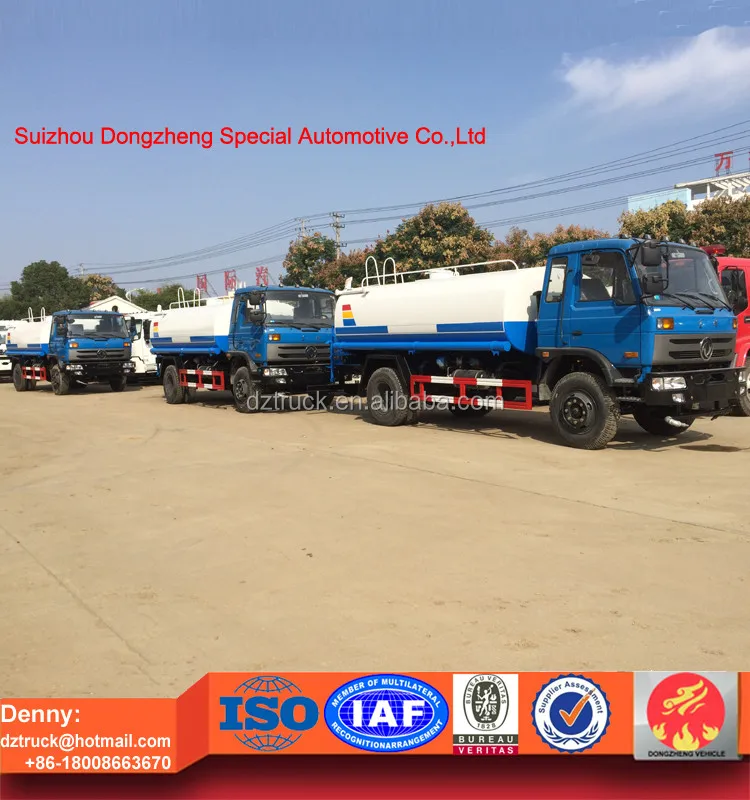

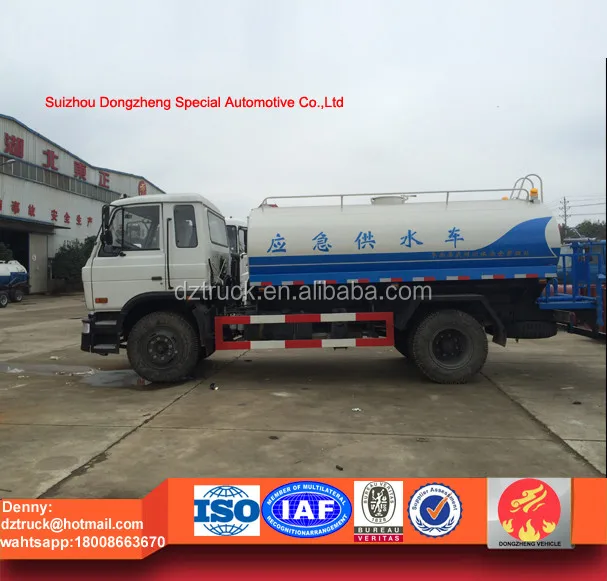

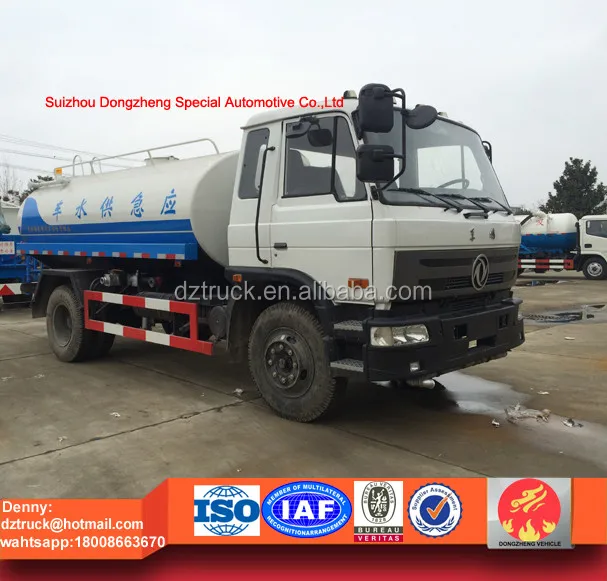

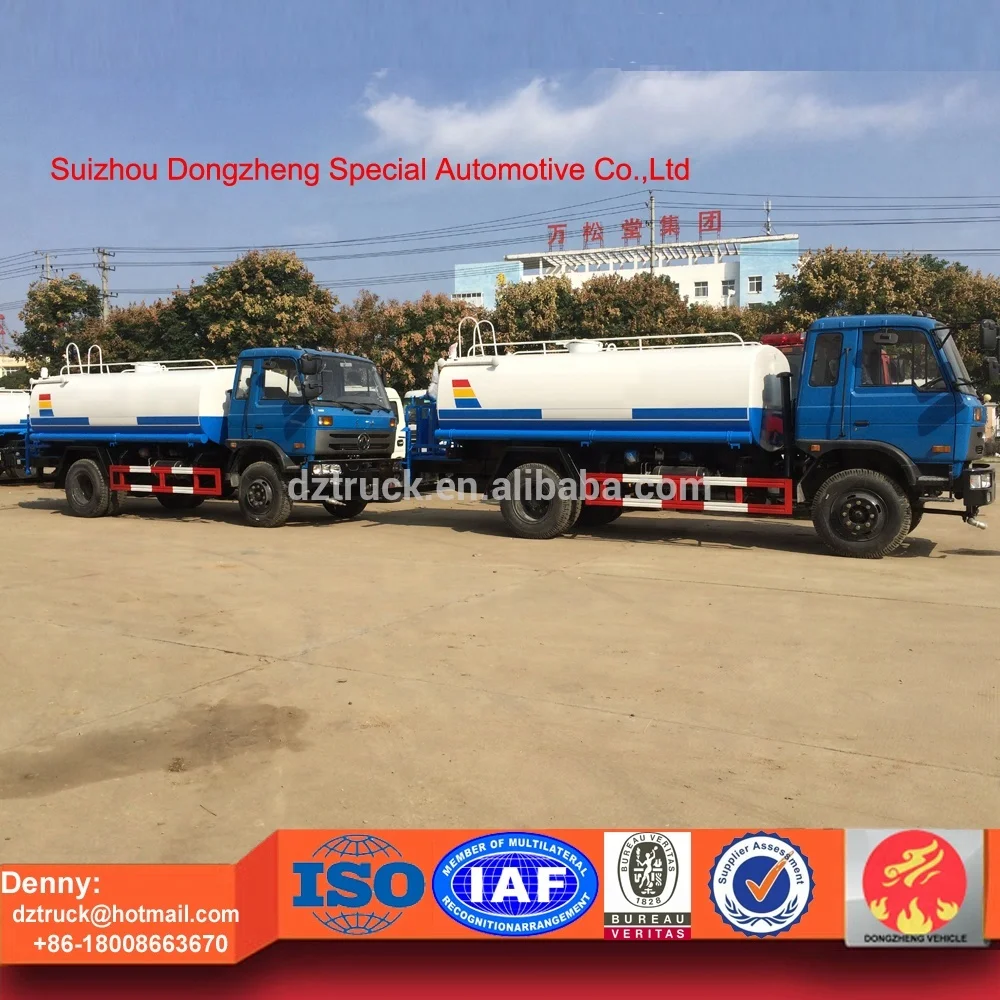

10000 liters 12000 liters 15000 liters truck mounted water tank

Main specification

Product model and name

SZD5120GPS  12 ton water transport truck for sale

Gross weight(Kg)

12490

Drive type

4X2,LHD,RHD

Curb weight(Kg)

5095

Overall dimension(mm)

7500X2480X3050

Approach/departure angle(°)

25/18

Cab seats

3

Axle No.

2

Front/rear hang(mm)

1250/2300

Axle load(Kg)

4990/7500

Wheelbase(mm)

3950

Max speed(Km/h)

90

Chassis specification

Chassis model

EQ1108KJ

Manufacturer

Dongfeng Motor Co., Ltd

Brand name

Dongfeng

Dimension(mm)

6500×2462×2740

Tire specification

9.00-20

Tire No.

6+1(One spare tire)

Steel spring number

9/11+8

Front track base(mm)

1940

Fuel type

Diesel

Rear track base(mm)

1810/1800

Emission standard

Euro 3

Transmission

6 forward gear

Cab

One and half row,3 person allowed with power steering,A/C

Engine model

Engine manufacturer

Displacement(ml)

Power(Kw)

B 170 33

Dongfeng Cummins Engine Co.,Ltd

5900

125(170HP)

Tanker body

Tank capacity(m³)

10-12

Tank material

QB235 Carbon steel

Water pump model

80QZB(F)-60/90S(N)

Water pump flow(m³/h)

60

Watering width(M)

≥14

Water cannon range (M)

≥28

Main feature

1).Equipped with high power self-suction water pump that characterized by high-pressure and fast speed suction.

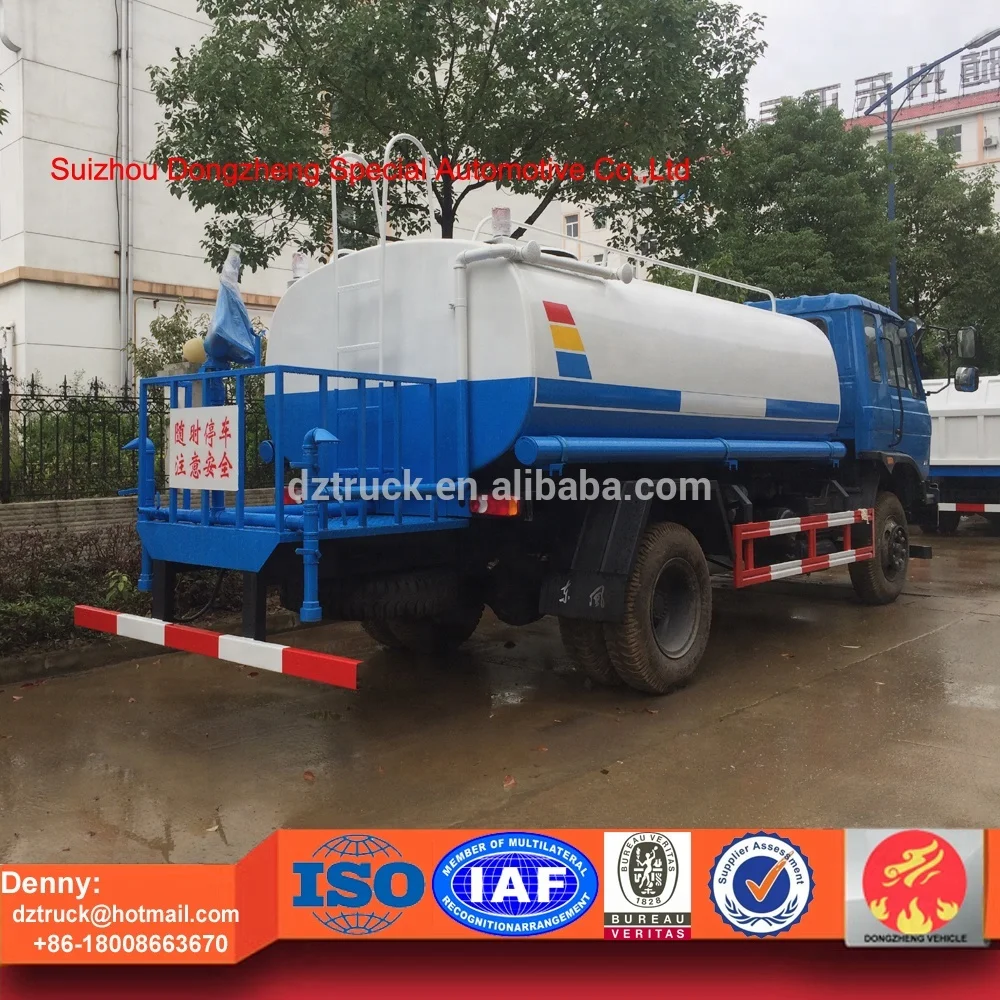

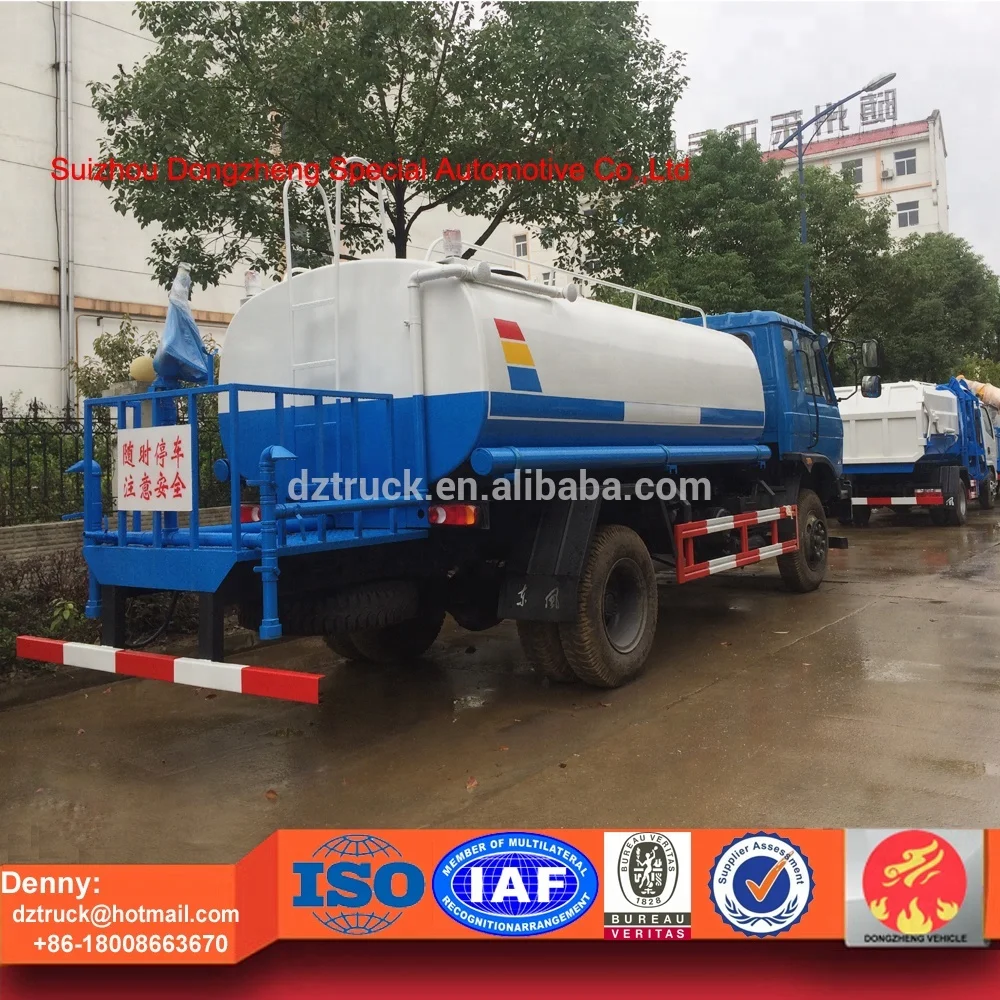

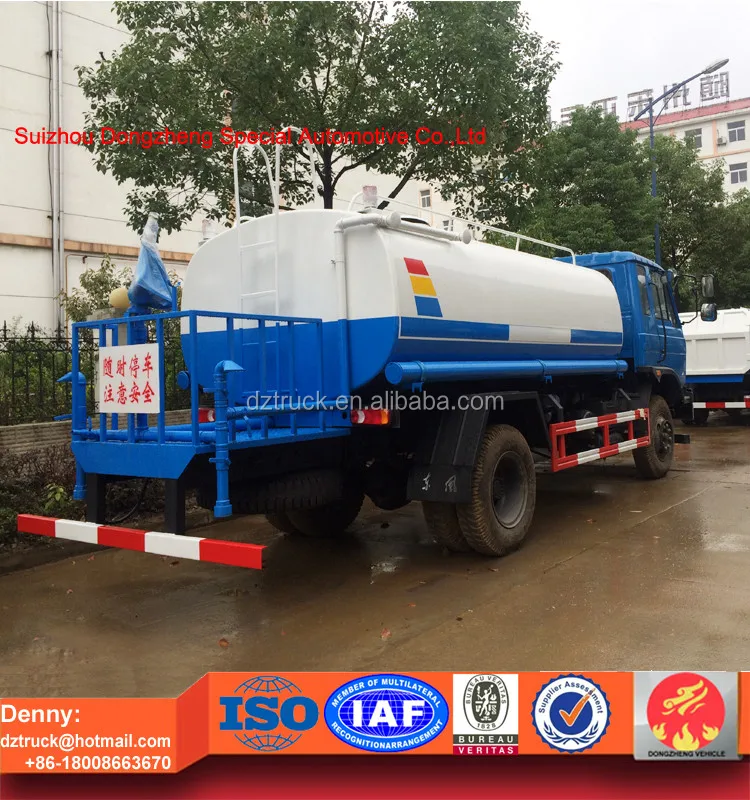

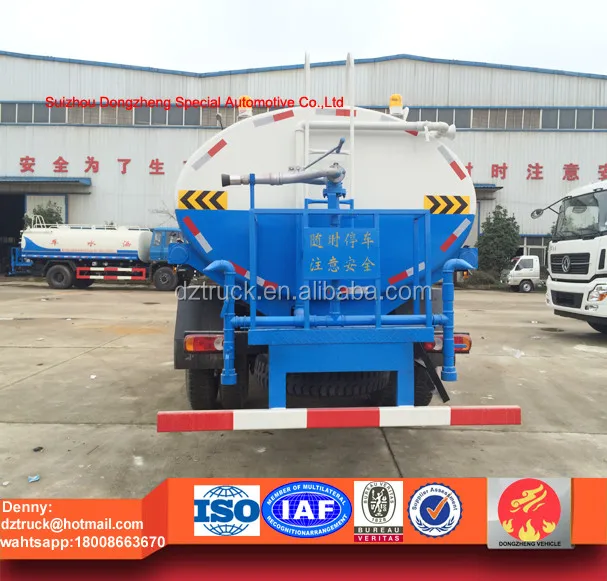

2).Equipped with front, rear and side sprinklers and high position sprinkler, and rear working platform.

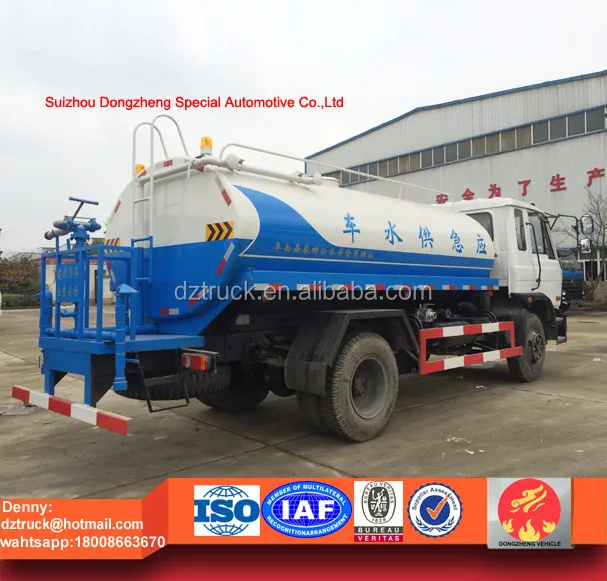

3).The water cannon which is installed on the working platform can rotate by 360 degree and the water flow can be adjusted into various rain shape. There are straight shape, heavy rain, moderate rain and drizzle etc. The max range can reach 30M.

4).Equipped with fire coupling, flow valves, filter screen and water level gauge.

5).According to customers’ request, the crane, high working platform and spraying machine also can be equipped.

6).Mainly used for washing on urban roads, watering and greening on trees, green belts and lawn and dust full of construction sites. And also used for drinking water delivery and fire fighting function etc.
