Light gauge steel villa making machine for prefabricated house with profiles auto changed
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Xiamen Zhengliming Metallurgical Machinery Co. Ltd.
Share on (60563663601):
Product Overview
Description
| All details below could be customized | |

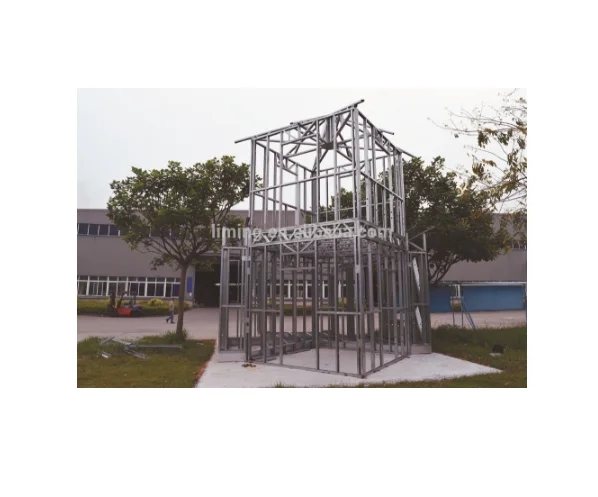

| Function | Used to produce truss for villa |
| Size (L*W*H) | about 11m*2.1m*1.5m |
| Weight | about 10T |
| Thickness of Coil | 0.8-2.0mm, other thickness make price different |
| Operating System | Liming operating system in both Chinese and English |
| Main motor power--Forming | 60KW Frequency speed control |
| Driven | Gear & Sprocket |
| Max. speed of roll forming | 30m/min (Higher speed available) |
| Electric Standard | 380V /50HZ/3PH or as the customer's requirements |
| Touch Screen | Siemens |
| PLC | Siemens |
| Inverter | Schneider |
| Encoder | Omron |
| Profile | Customer's draw or our profiles |
| 5T*1250mm Hydraulic De-coiler included; Safe Guard included | |
| Pre punch & pre cutting, with 13 molds to punch & notch | |
| Options | Stacker |
| CE certificate | |
