Price:$25.50

Quantity:


Product Overview

Description


Product Description

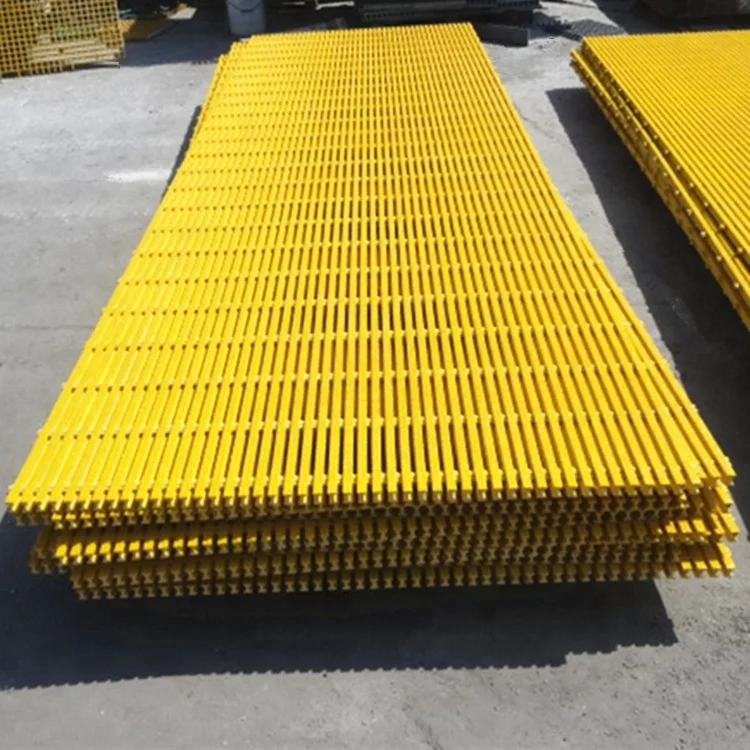

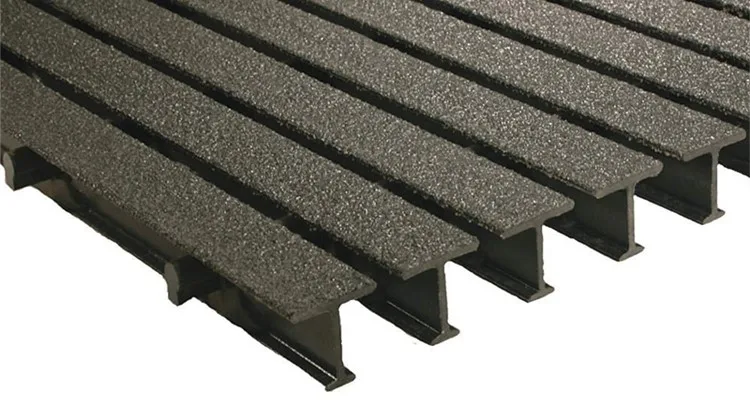

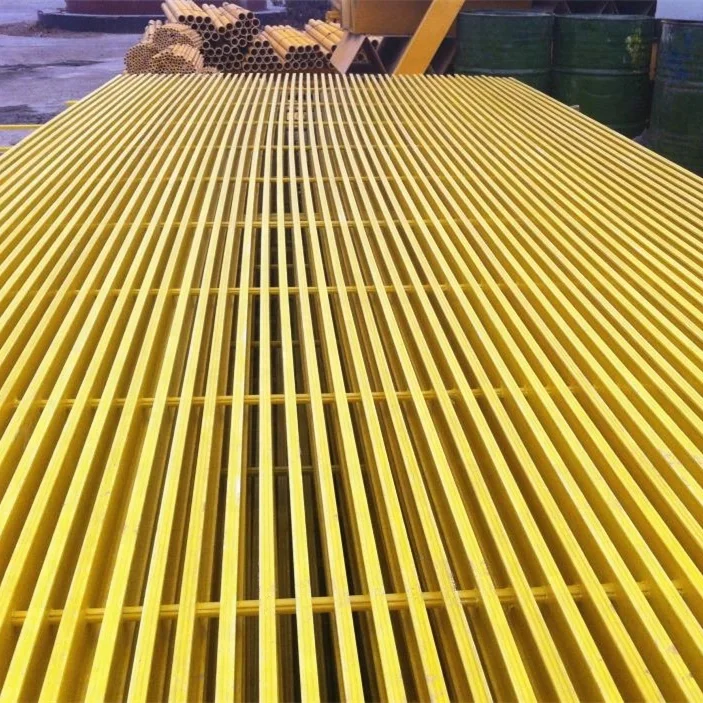

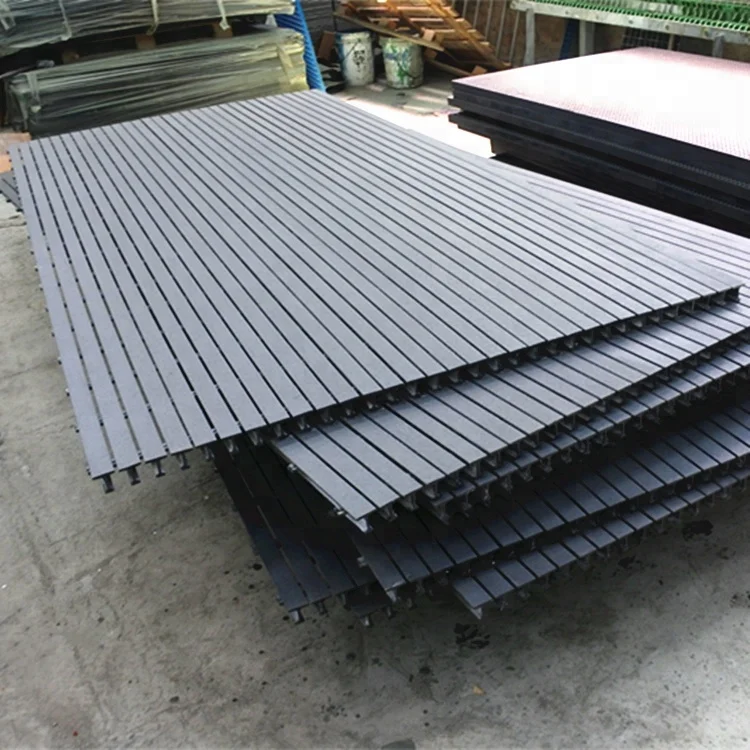

Pultruded Fiberglass Dock Grating, FRP Fiberglass Decking Material


Parameters

Type
Pultruded Fiberglass Dock Grating, FRP Fiberglass Decking Material
Material
ECR Glass Fiber + Resin  (ORTHO,ISO,VE,PHENOLIC)+Filling (ATH)
Size
I-1410，I-6015, etc. can be customized (pls check detail as below form)
Color
According to RAL Book.Yellow, Orange, Blue, Green, Grey, etc. can be cutomized
Surface

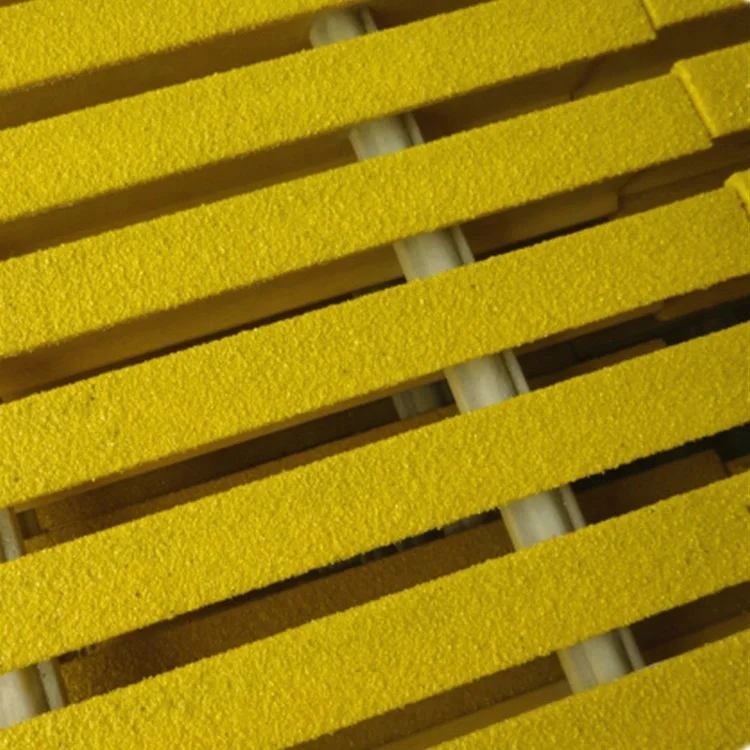

Gritted,  Smooth, Solid Top Covered

Properties

Light Weight / High Strength

Low Density (about 1.8), 1/4 of steel ,2/3 of aluminum.Specific strength

Anti-Fire / Safety
Good performance of electric insulation,10KV no voltage breakdown. No electro-magnetic behavior. No electric spark. Oxygen index≥32, Anti-fire and Pass test of ASTM-E84.
Anti-Corrosion
No rust, resistance to acid, alkali, organic dissolvent and other gas and liquid mixture.
Anti-skid
Different process mode on surface, concave, gritted, increase friction factor.
Anti-aging
Have more than 20 years effective service life under normal outdoor working condition.
Anti-fatigue
Moderate flexibility reduces the workers` pressure on legs and waist
Easy maintenance
have alternative and bright colors. Non-fading. Easily for clean.
Excellent economic benifits
Excellent comprehensive economic benefits
Size-Pultrud Grating
Item
Height(mm)
Upper Width(mm)
space distance(mm)
gap width(mm)
I-1410
25
15
25
10
I-5010
25
15
30
15
I-6010A
25
15
38
23
I-6010B
25
8
19.8
11.8
I-4015
38
15
25
10
I-5015
38
15
30
15
I-6015
38
15
38
23
I-4012
30
15
25
10
I-5012
30
15
30
15
I-6012
30
15
38
23
I-40125
32
15
25
10
I-50125
32
15
30
15
I-60125
32
15
38
23
I-4020
50
15
25
10
I-5020
50
15
30
15
I-6020
50
15
38
23
T-1210
25
38
43.4
5.4
T-1810
25
38
50.8
9.5
T-2510
25
38
50.8
12.7
T-3310
25
41.3
19.7
61
T-3810
25
38
61
23
T-1215
38
38
43.3
5.2
T-2515
38
38
50.8
12.7
T-3815
38
38
61
23
T-3320
50
25.4
38.1
12.7
T-5020
50
25.4
50.8
25.4
HL-4020
50
15
10
10
HL-5020
50
15
15
15
HL-6020
50
15
23
23
Applications-Grating

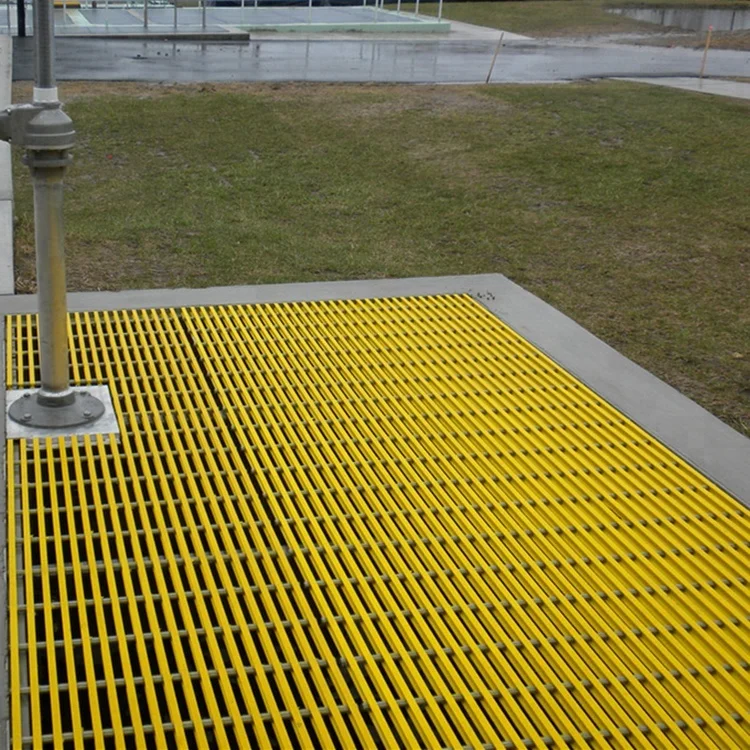

Walkway / Platform Grating

Decking Grating

Stair Grating

Floor Grating

Marine Industry Platform Grating

Drain Grating

Process Flow
Packing & Delivery
