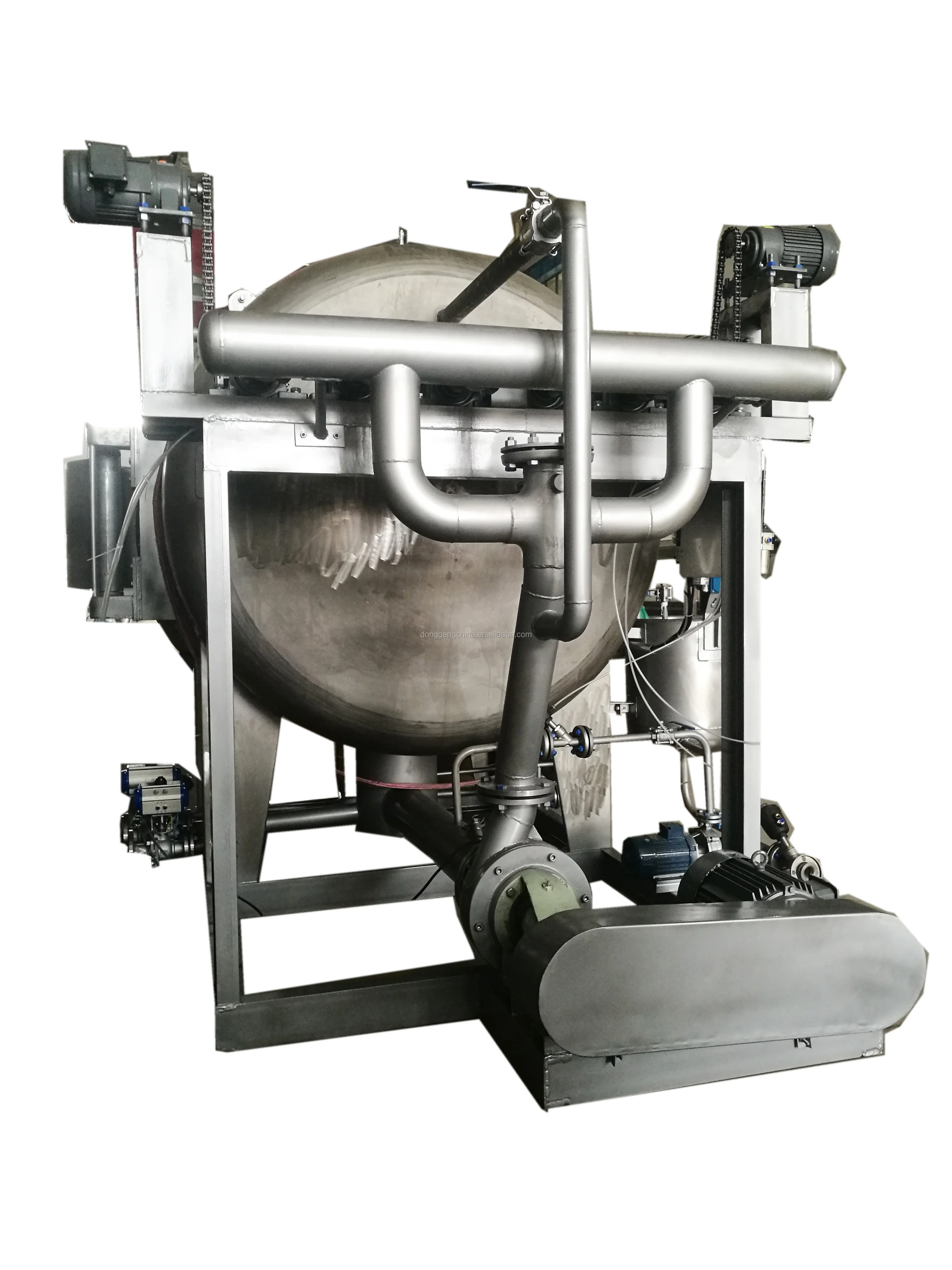

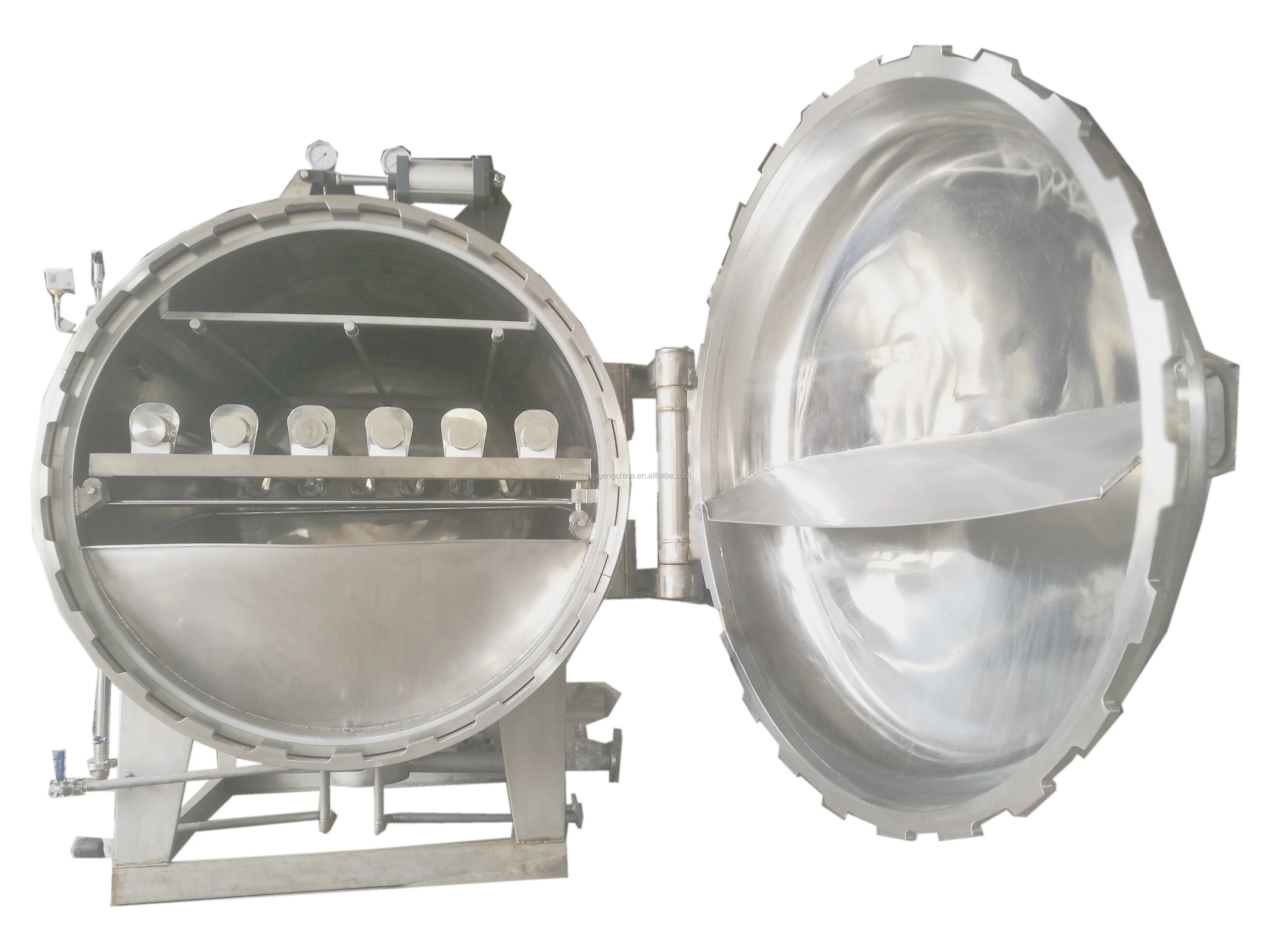

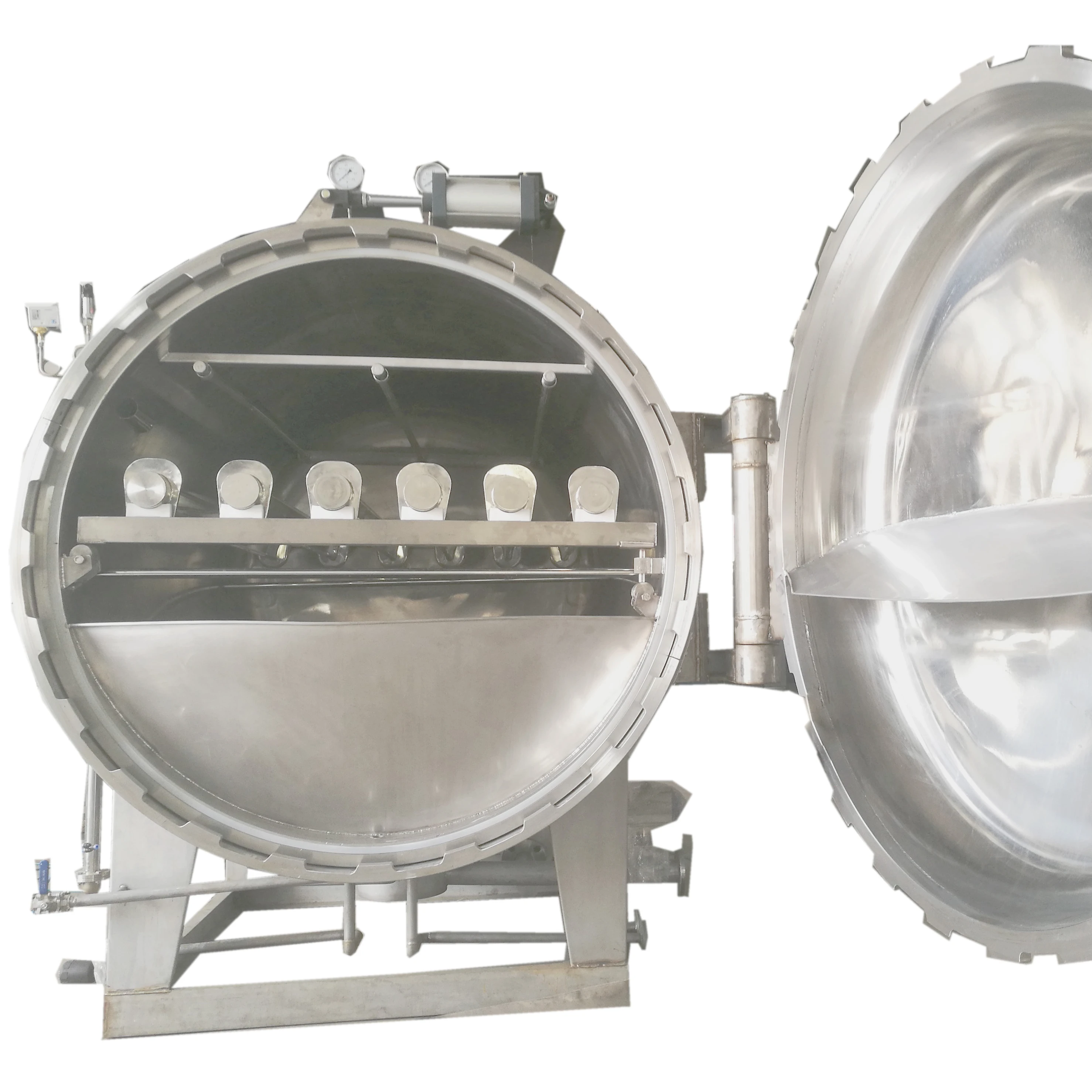

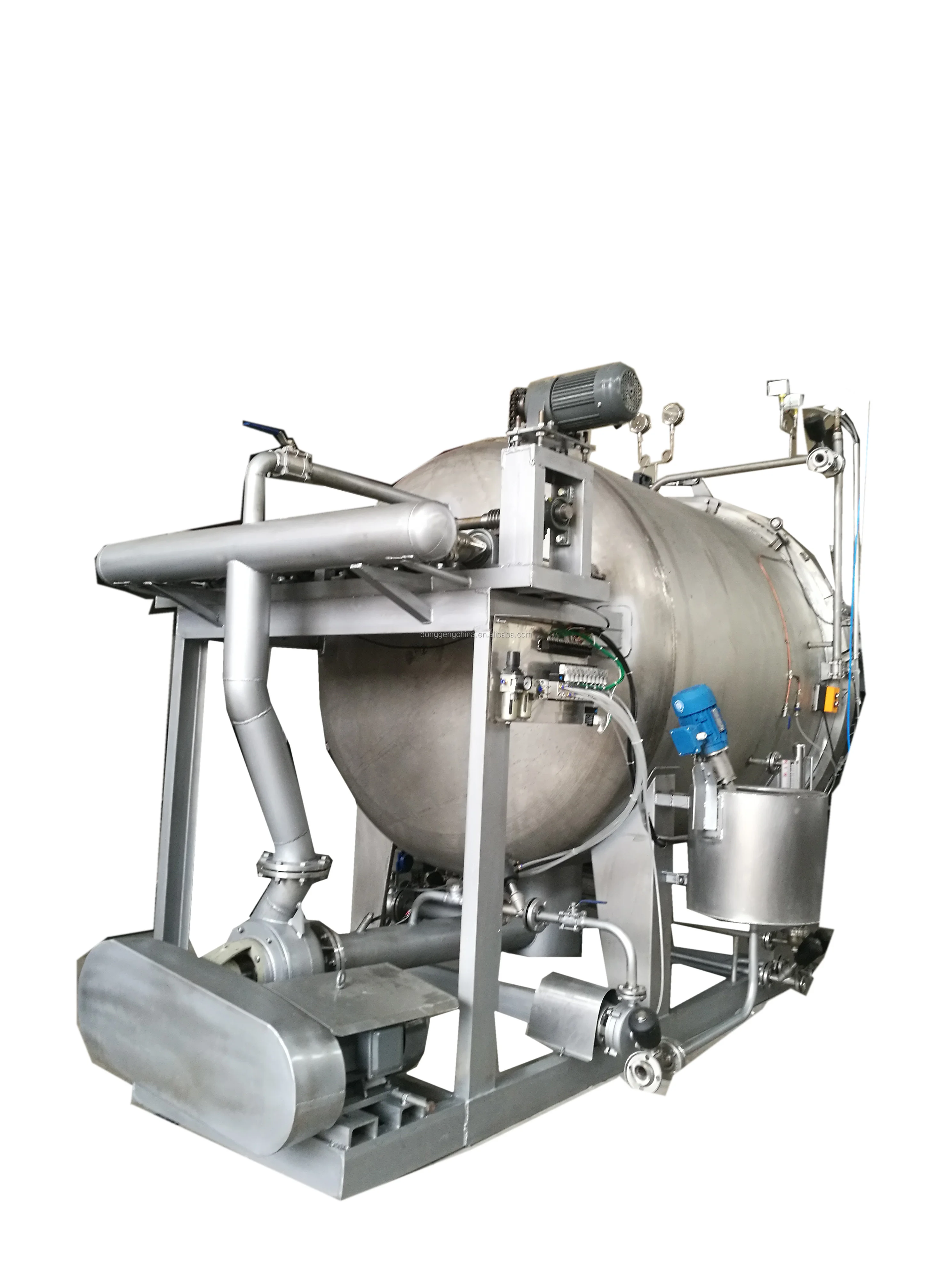

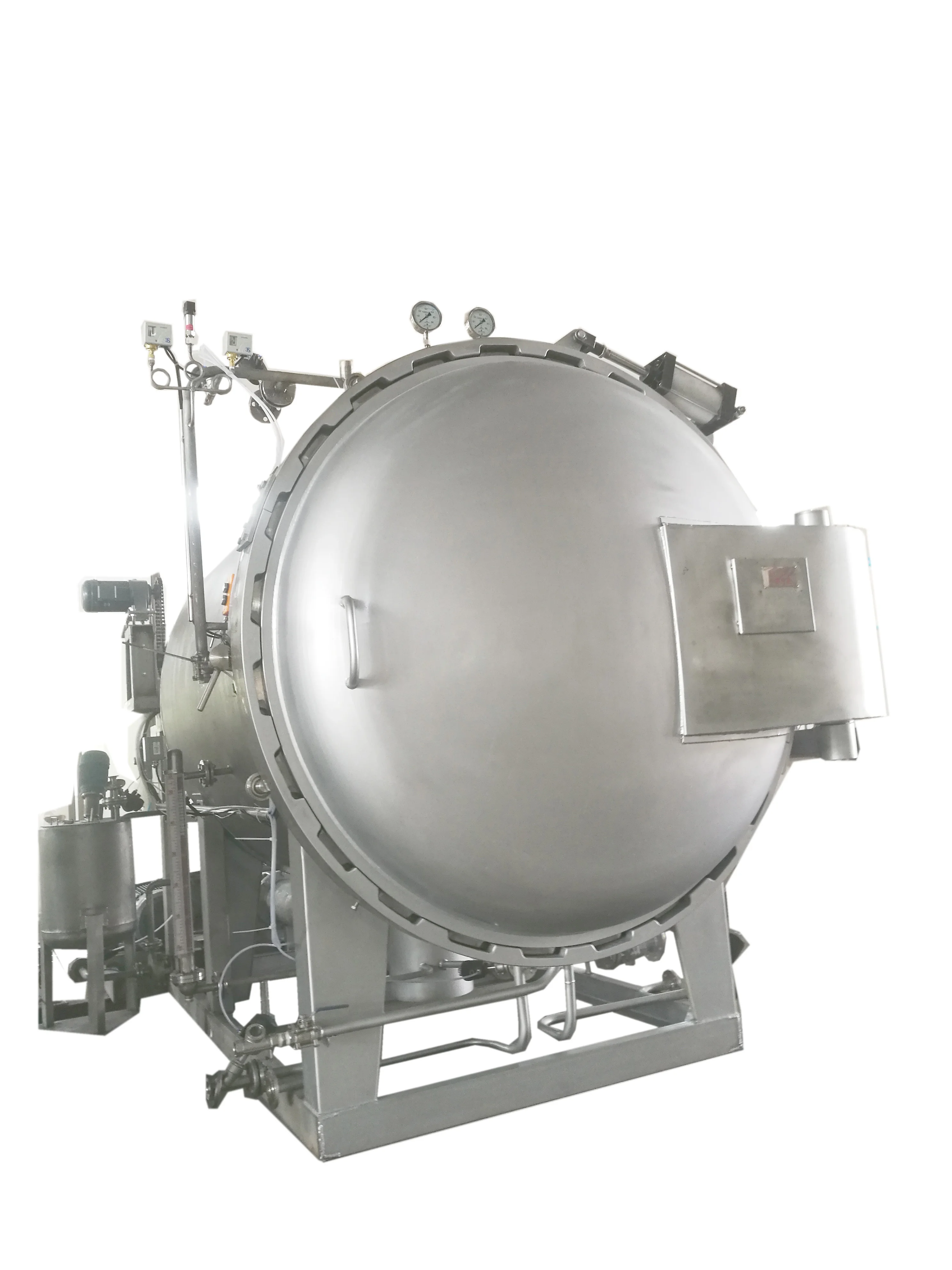

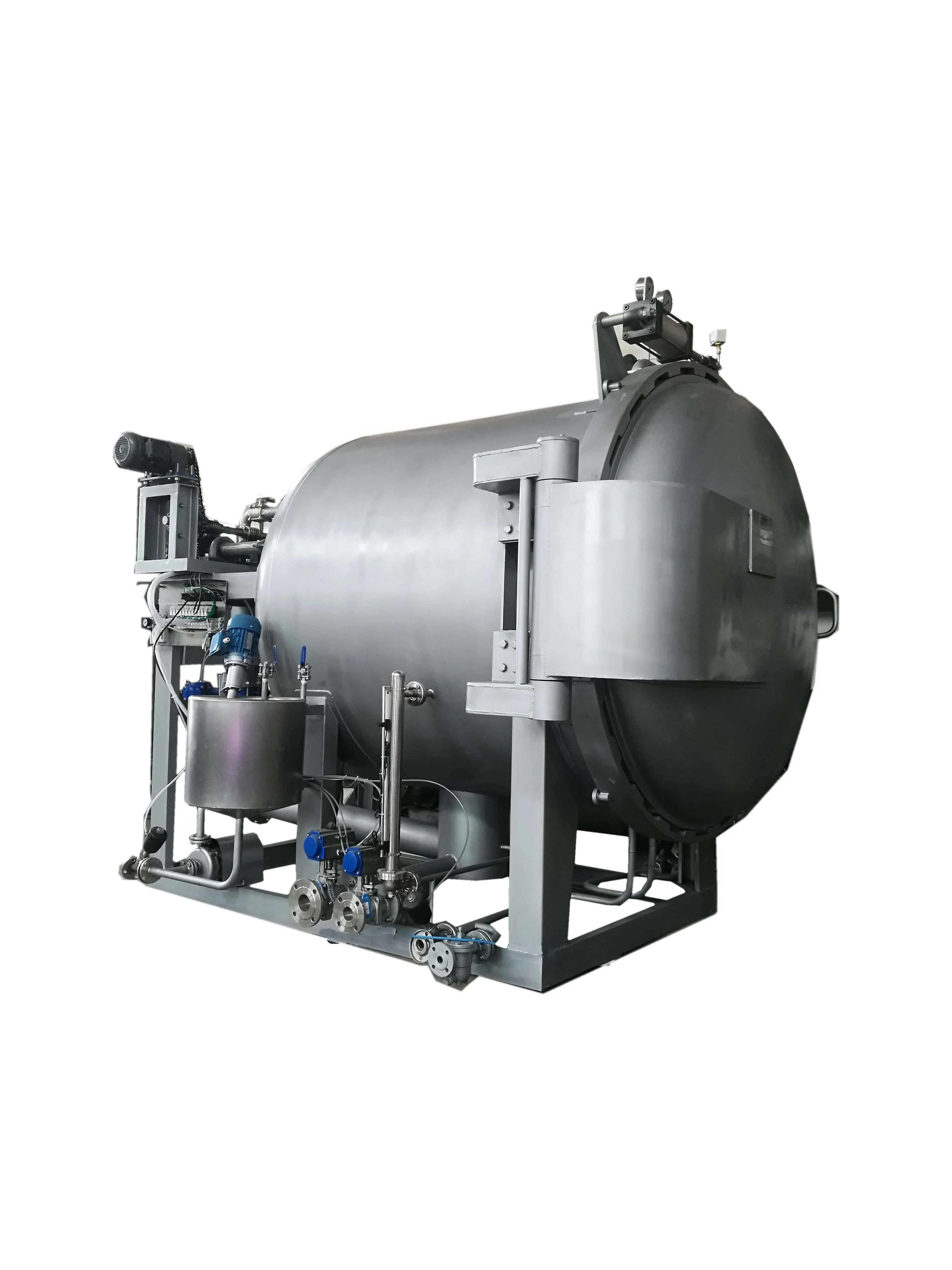

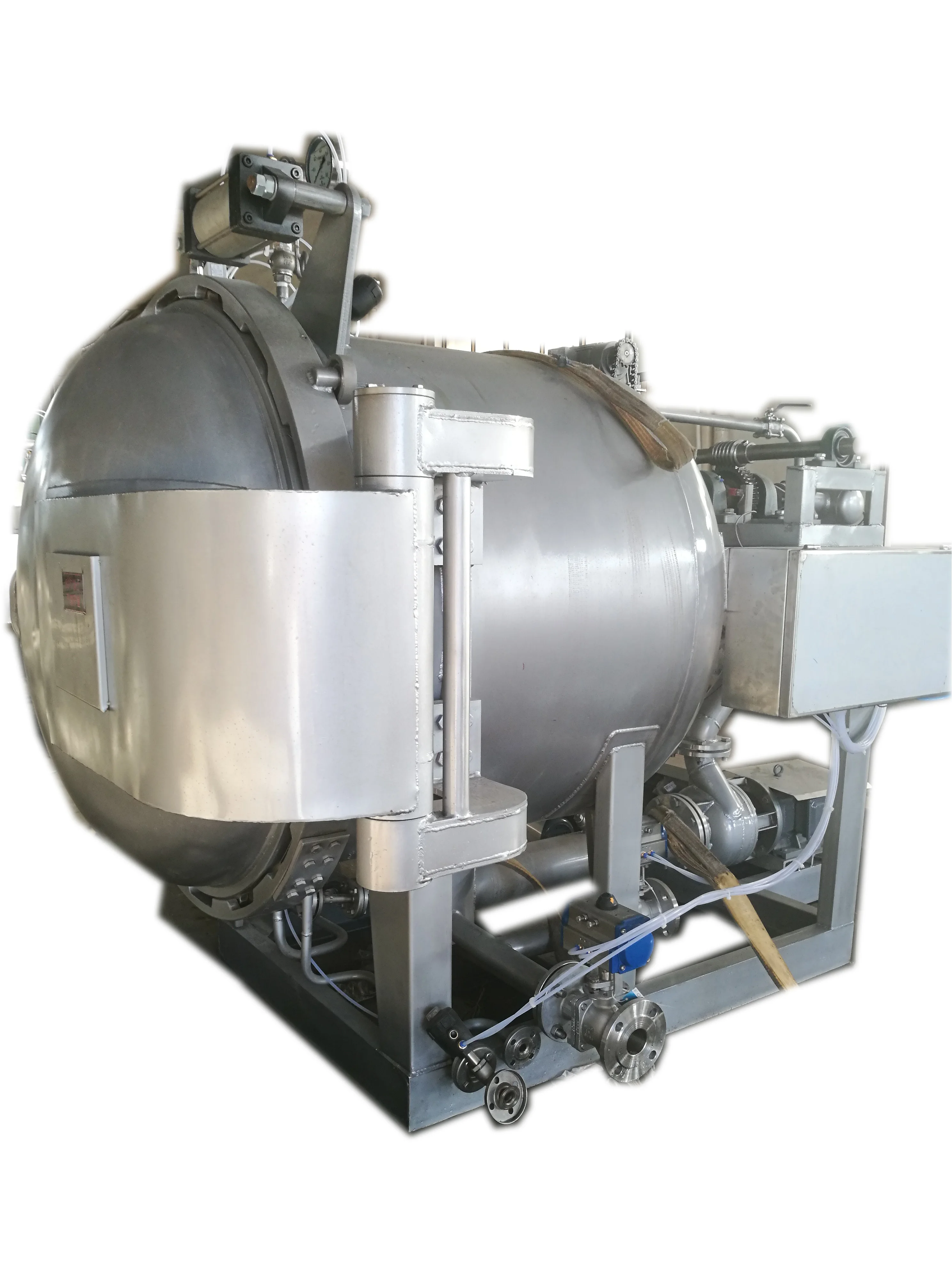

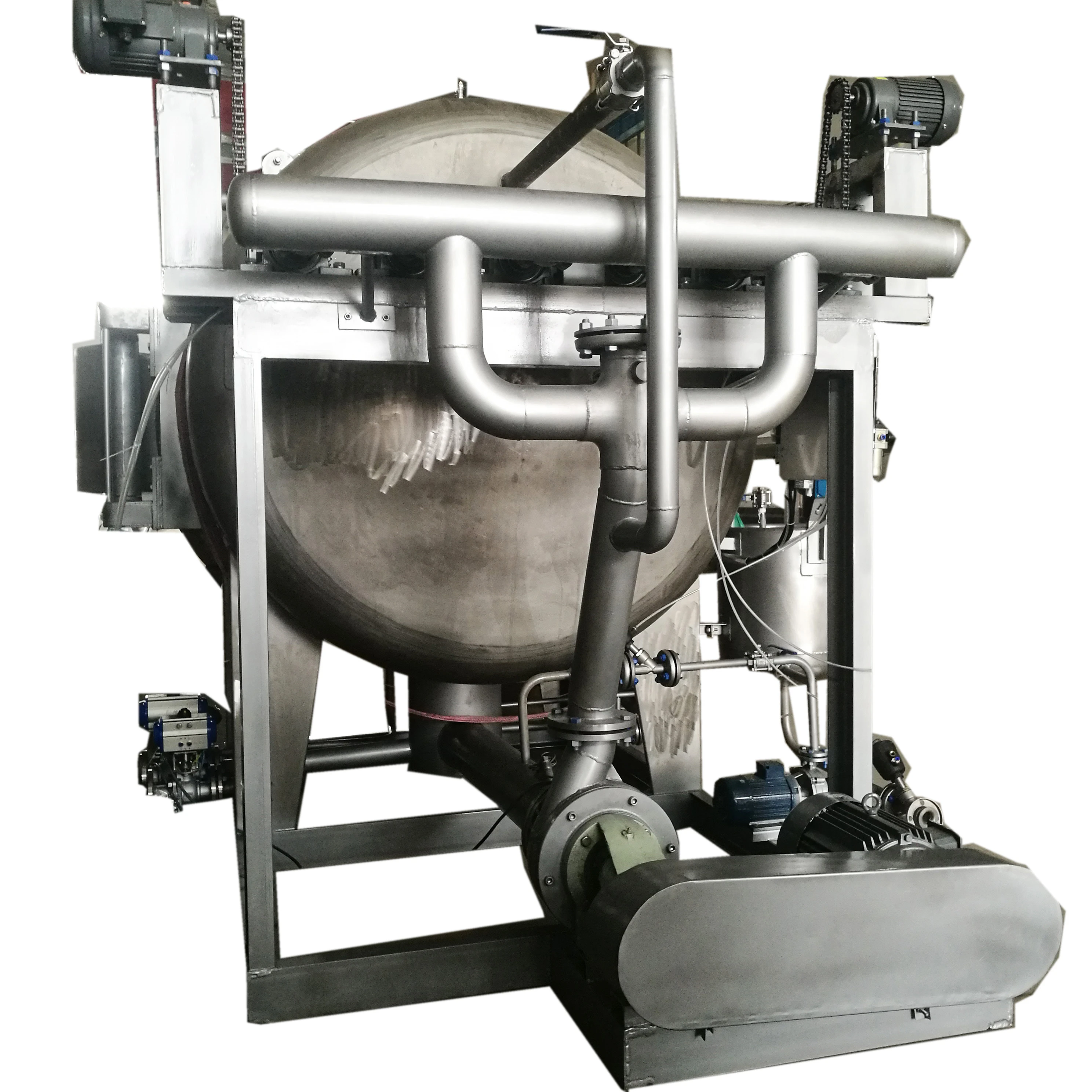

DONGGENG High Temperature High Pressure Jet Dyeing Machine
Modern dyeing factory in the 21st century must have efficient energy-saving low bath ratio at room temperature and pressure hank yarn jet dyeing machine. Based on the consideration of environmental protection and energy conservation, Our company has developed a unique double transmission system dyeing machine based on the existing dyeing technology. Its bath ratio is reduced by 35% on the traditional basis. With the precise intelligent control, the stainless steel 316 is adopted. By the way, you have a durable and advanced equipment experience, but also to make your production process of cutting-edge world.
Technical Data
1) Design pressure: 0.44Mpa 2) Maximum working pressure: 0.4Mpa 3) Design temperature: 140 ℃ 4) Maximum operating temperature: 135 ℃ 5) Effective length of hanging yarn: 1200-1500mm 6) Suitable length of hank: 820mm 7) Bath ratio: 1: 8-12 8) Heating rate: 20 ℃ ~ 130 ℃ for about 30 minutes (saturated steam pressure value of 0.7Mpa) 9) Cooling rate: 130 ° C to 80 ° C for about 20 minutes
Standard Structure
1) Body: high-quality high-corrosion-resistant stainless steel 2) Spray tube: high corrosion-resistant stainless steel plate manufacturing 3) High-performance stainless steel axial flow pump 4) Reliable PLC program controller 5) Automatic opening system 6) Machine design of multiple sets of security operating system 7) Easy to install yarn, yarn, cleaning nozzle tools
Specification
Optional accessories
1. The feeding auxiliary cylinder has the functions of stirring and heating, water inlet, reflux and feeding
2. Automatically control heating, heat preservation and cooling.
3. Fully automatic computer control system.
4. The main pump adopts frequency conversion control.
5. Quantitative feeding control system.
6. Effective yarn hanging length of jet tube: 300-2000mm
7. Automatic water level display
Model
DGHKS-806
DGHKS-812
DGHKS-824
DGHKS-836
Capacity(kgs)
90kg
180kg
360kg
540kg
Spray tube(pcs)
6
12
24
36
Pump motor（kw）
7.5
15
30
45
Driving motor（kw）
0.75
1.5
2.2
1.5×2
Packing & Delivery

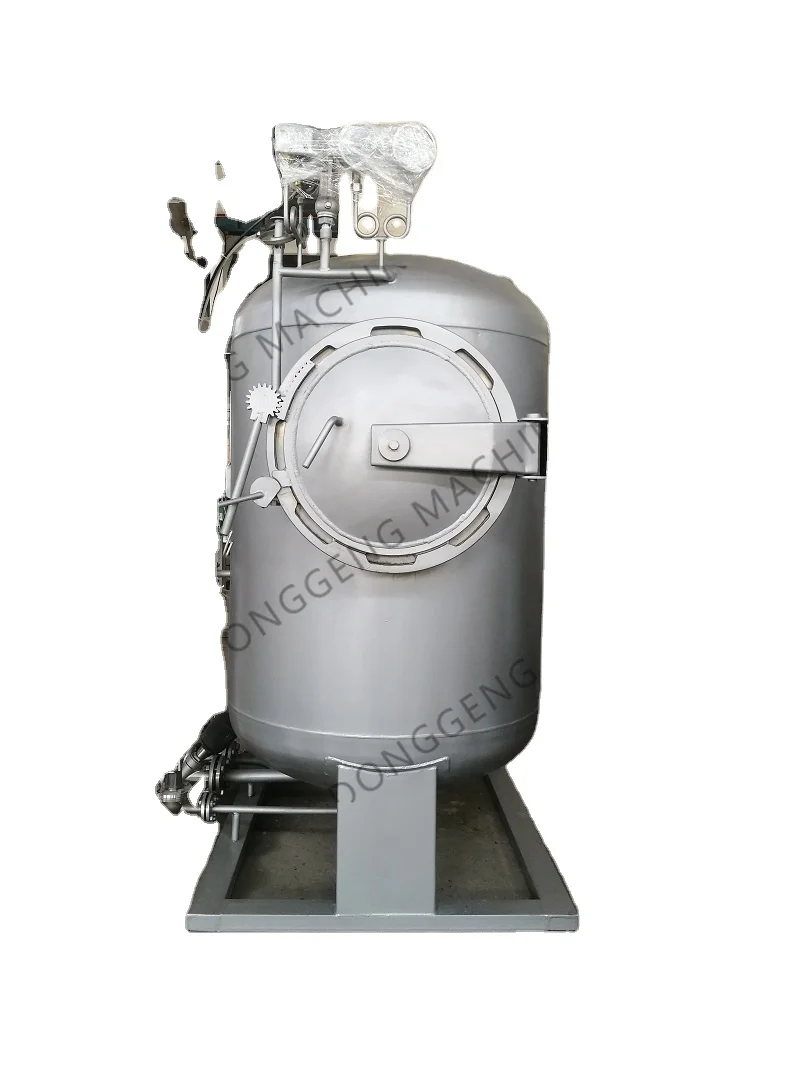

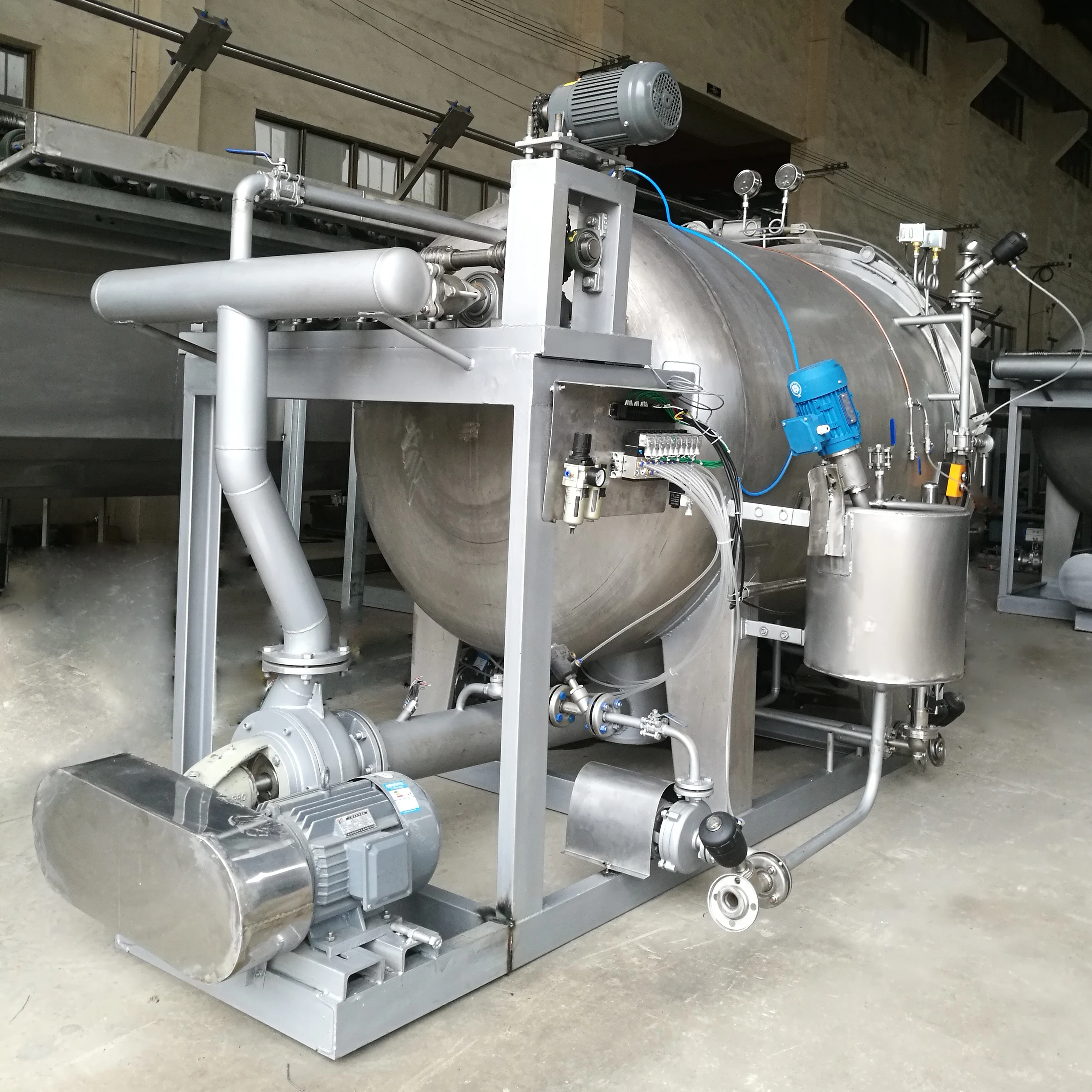

Small high temperature jet dyeing machine
Our Advantages
●It is suitable for later dealing with terylene. Pure silk, nylon and so on. It is also suitable them being bleached, refined, dyec and washed in wate.
●This machine is specially designed mixing pump to be low enery-consuming, low life, and large quantity fowing. When working under high temperature. it could keep its character-ristics. ●It combines the features of new-mode weir loating a djutage, dyeing pipe and moving yarns pipe. It is completely free twist ing and knotting on the pant of the dyed materials while easy emptying and low waste are guaranteed ●The water adjutage with special design is able to adjus water flow according to the quantity of dyeing yarns and the number and quality of the yarns under process ●The improvement of its structure offers low bathing-ratio, which makes it possible to save materials and reduce cost ●patent number: ZL 201510276761.4: ZL201520349197.X, low water ratio diyeing (1:5-8) saves dye auxiliaries and steam. Using high performance motor motor, low speed, low noise, low power consumption, energy saving, achieve the highest economic benefits.
