SSM type High speed spandex covering machine for making intermingle thread

Product Overview

Description

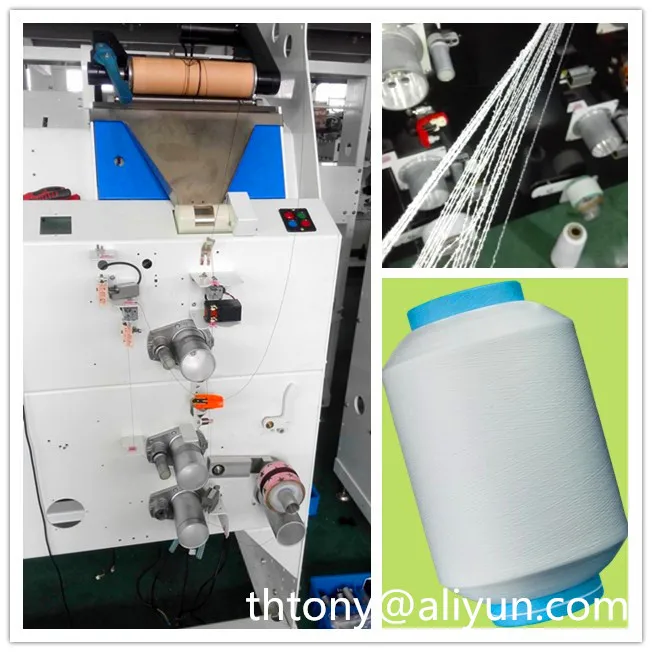

TH-18 Air covering machine( Spandex covering machine), it's a high speed precision type air covering machine, the machine can do spandex covering, also can used as intermingled machine, all controlled by the computer, so the operating will more conveniently. also the working speed can be 700-900 Meter/min, it's almost the twice production than the ordinary type air covering machine.

  the spandex draft time also controlled by computer with the servo motor, so any draft times you wanted all can be done, its no limited.

Types of winding	precision winding
Mechanical speed	up to 1200m/min (process speed depending on process parameters)
Package shape	freely programmable
Traverse length	155-250mm
Take-up package diameter	up to 280mm
Package weight	up to 2-4kg (depend on which bobbin using)
Supply package diameter	up to 320mm
Yarns	Spandex/lycra, polyester, Nylon, cotton and etc.
Take-up tubes	0-3°30' bobbin
Layout	single sided machine
Number of spindles per section	4 spindles
Max. number of spindles	48 spindles
Gauge	400mm
Rolling numbers	3 pcs
Oiling device	Each spindle has the oil yarn device
Driving	Each spindle working separately
Installed power	~400w per spindle
Power consumption	~50w per spindle
Density of winding	Freely setting
Volume per section (L*W*H)	2000*600*2000 mm
