57J1880EC-1000 Two phase Closed Loop Step Servo Motor
US $35.00-$38.00
25BYZ выпрямитель постоянного тока Серии ПМ шаговый двигатель с постоянным магнитом, линейный привод мотора
- Category: Stepper Motor >>>
- Supplier: Ningbo,Jant,Electrical,Appliance,Co.,Ltd.
Share on:
Product Overview
Description
Description:
25BYZ linear motor with a simple mechanism, low noise, high precision and long life characteristics. Widely used in the banking and office equipment, telecom equipment, printers, copiers, fax machines,
scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and
stage lighting, automotive, surveillance systems, electric advertising, electric curtains, science and
education equipment, air conditioning and other fields.

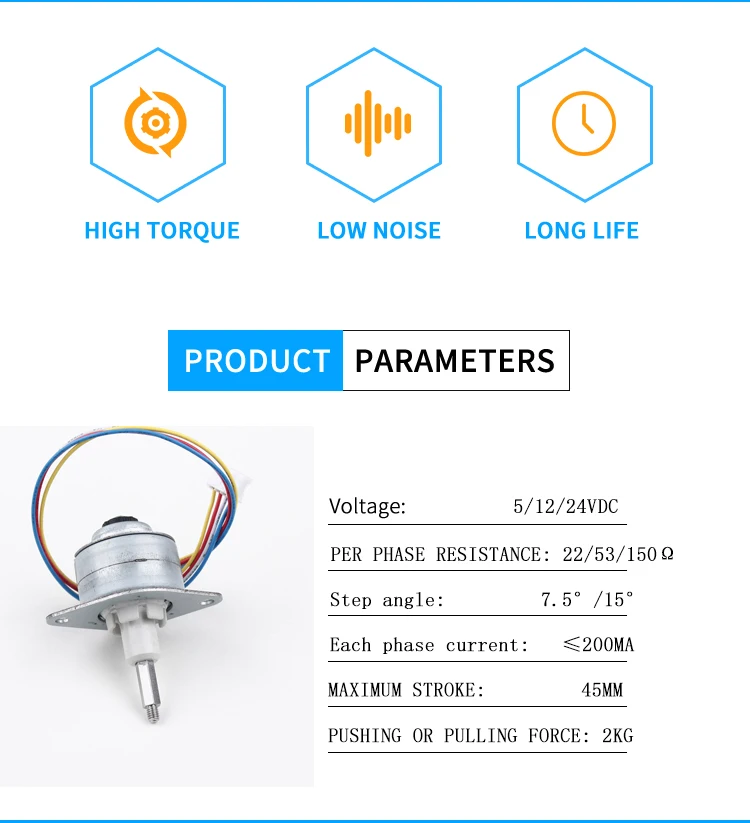

| Rated voltage | DC/V | 5 | 12 | 24 |
| Per phase resistance | Ω | 22 | 53 | 150 |
| Each phase current | Ma | <200 | ||
| Modes of distribution | 2-2 | |||
| Step angle | Deg | 7.5°/15° | ||
| Stepping distance | mm | 0.0417 | ||
| Starting frequency | PPS | 500 | ||
| Operating frequency | PPS | 600 | ||
| Maximum stroke | mm | 45 | ||
| Pushing or pulling force | Kg | 2 | ||
| Ambient temperature | ℃ | -40-125 | ||
| Life of | cycle | 5*105 | ||
Description:
25BYZ linear motor with a simple mechanism, low noise, high precision and long life characteristics. Widely used in the banking and office equipment, telecom equipment, printers, copiers, fax machines, scanners, textile machinery, medical, automatic control, building automation valves, massage chairs and stage lighting, automotive, surveillance systems, electric advertising, electric curtains, science and education equipment, air conditioning and other fields.
Rated voltage | DC/V | 5 | 12 | 24 |
Per phase resistance | Ω | 22 | 53 | 150 |
Each phase current | Ma | <200 | ||
Modes of distribution |
| 2-2 | ||
Step angle | Deg | 7.5°/15° | ||
Stepping distance | mm | 0.0417 | ||
Starting frequency | PPS | 500 | ||
Operating frequency | PPS | 600 | ||
Maximum stroke | mm | 22 | ||
Pushing or pulling force | Kg | 2 | ||
Ambient temperature | ℃ | -40-125 | ||
Life of | cycle | 5*105 | ||
 |  |  |
 |  |  |
