Machinery for making furniture wood board multi blade saw machine

Product Overview

Description

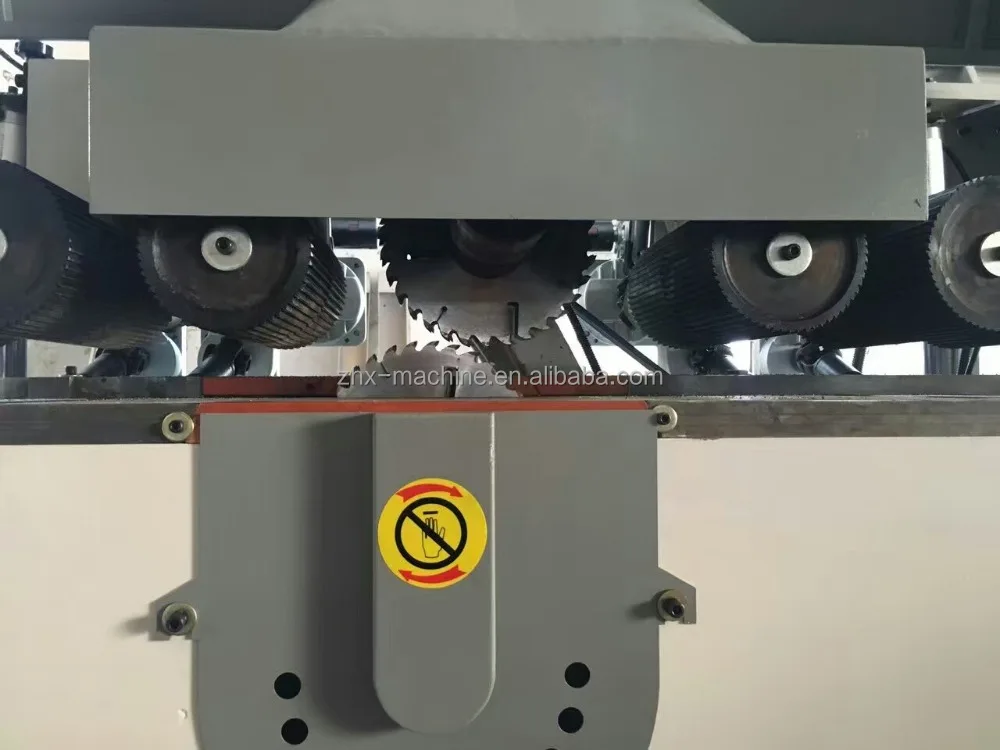

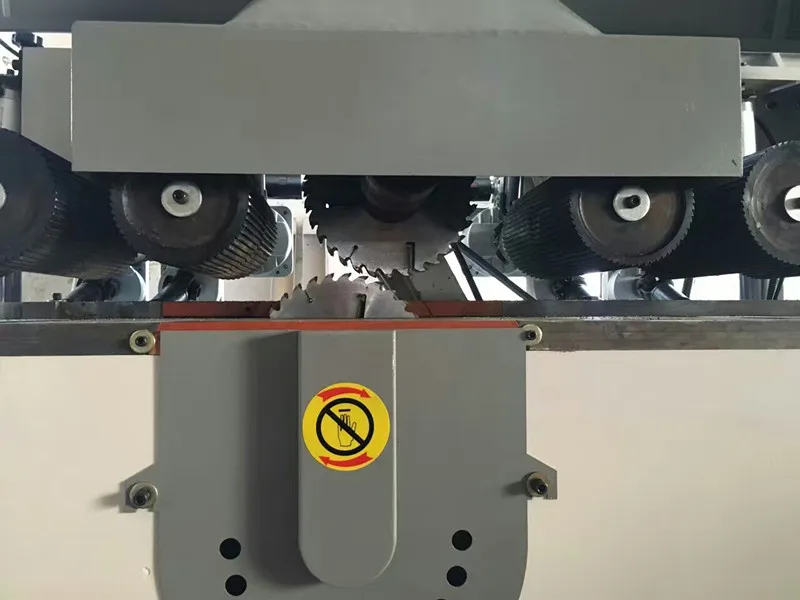

 Up and Down table saw

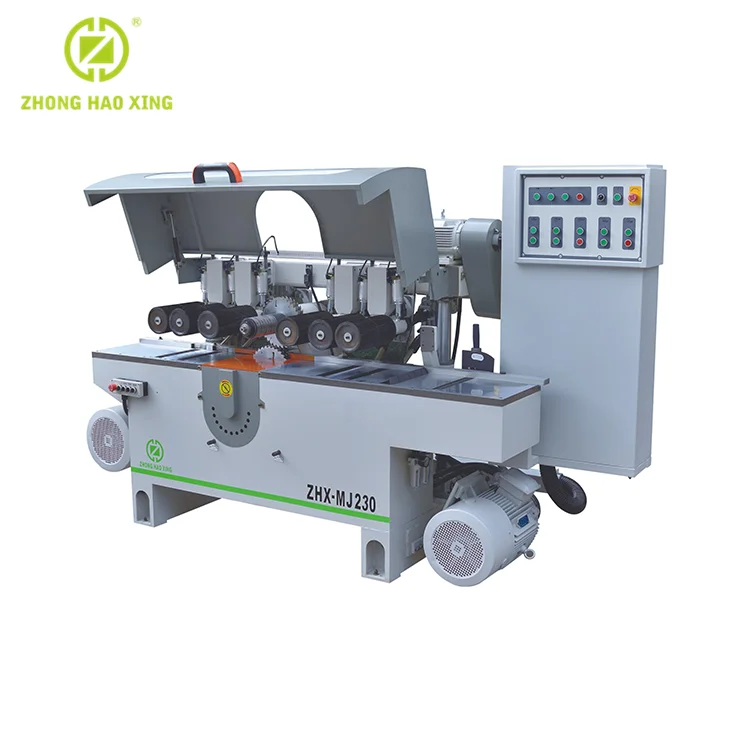

Model:ZHX-MJ230

Main Feature:

1) This saw blades with narrow rip make output efficient and profitable.



2) This machine planes wood at two surfaces to reach a certain thickness, and then divide with multiple rip saw blades into specified pieces



3) Using saw as planer, it has high machining quality.



4) Ideal equipment for molding laminated veneer, high precision and small panels.

Technical Data
Max working width 300mm
Max working thickness 180mm
Feeding speed 5-18m/min
Max saw diameter 300mm
Saw shaft speed 4000r/min
Up spindle motor power 22kw/30HP
down spindle motor power 22kw/30HP
Gas pressure 0.5Mpa
Saw shaft diameter 50mm
Saw shaft keyway 16×5mm
Transport lift motor power 2.2kw/3HP
Conveyor motor power 0.55kw/0.75HP
Total motor power: 47.5kw/64.75HP
Dimensions: 2800×1100×1600mm
