Китайская фабрика обеспечивает DM556D Драйвер шагового двигателя 24 50VDC, 2,1 5.6A

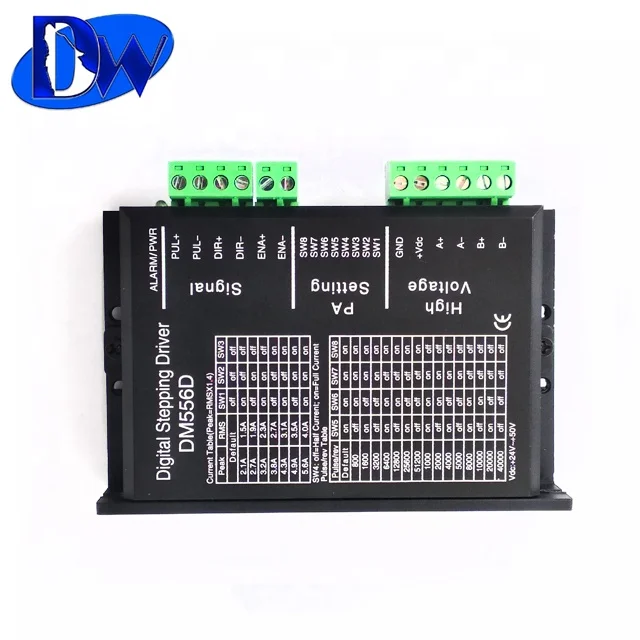

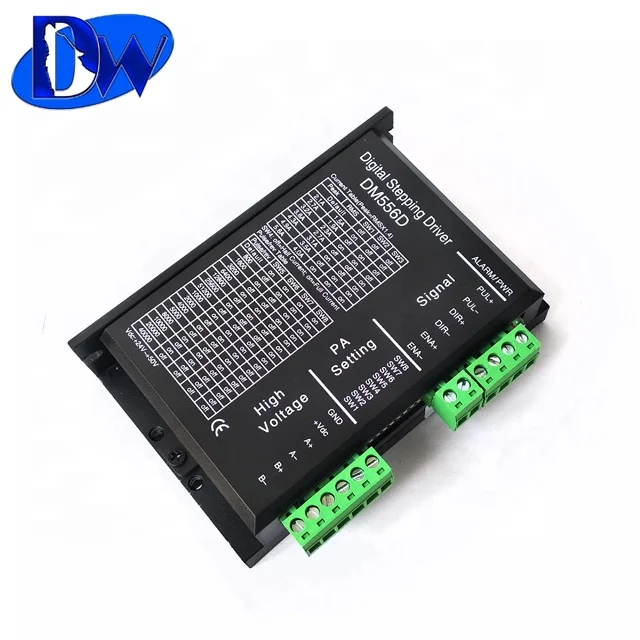

DM556d 2-Phase Digital Hybrid Stepper Driver

Product Features:

1. A high performance digital stepper motor driver based on 32-bit DSP and pure sine wave subdivision technology.

2. Low-noise, Low-vibration and Low temperature rising.

3. Voltage 24-50VDC.

4. With 8 stalls output current setting, peak current is 5.6A.

5. Demension: 118*75*33mm

6. Suitable for current range 2.1-5.6A 2 or 4 phase nema23, nema34 Hybrid stepper motor.

7. With 16 stalls microstep subdivision setting.

8. Automatic half current, self-test, over voltage, under voltage and over current protection.

9. Internal optical isolation, highest frequency response 200KHZ.

Current selection

Microstep selection

                                                  Note:The pulse can be customized according to customers’ requirements.

Common indicator

Driver functions descriptions

Dimension:(Unit=mm)

Produce process

Different specification of stepper motor with competitive price for your choice:

A wide range of application:

    Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

First-class service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us                               without any hestation. It's a pleasure to serve you.

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

 We have standard package for our products. We can also make it as per your special requirements.

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

    Changzhou Dewo Motor Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.

    Till now, Dewo has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low  failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.

    If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!
