Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
Steel Buildings Sheet Metal Steel Beam Straightening Machine
- Category: Metal Straightening Machinery >>>
- Supplier: Wuxi Zhouxiang Complete Set Of Welding Equipment Co. Ltd.
Share on (60567992487):
Product Overview
Description
Parameter
Model | YJZ60B | YJZ80B | YJZ80C | YJZ60C | ||||
Flange width | 200~800mm | 200~1000mm | 200~1000mm | 200-800mm | ||||
Flange thickness | ≤60mm | ≤80mm | ≤60mm | ≤40mm | ||||
Minimum web height | 350mm | 350mm | 350mm | 350mm | ||||
Material of plate | Q345(16Mn) | Q345(16Mn) | Q345(16Mn) | Q345(16Mn) | ||||
Straightening speed | 6.15m/min | 6.1m/min | 6.3m/min | 9.8m/min | ||||
Total Power | 37kW | 22kW | 27.5kW | 20.5kw | ||||
Above are our standard model, it can be designed and manufactured according to customer’s request. | ||||||||

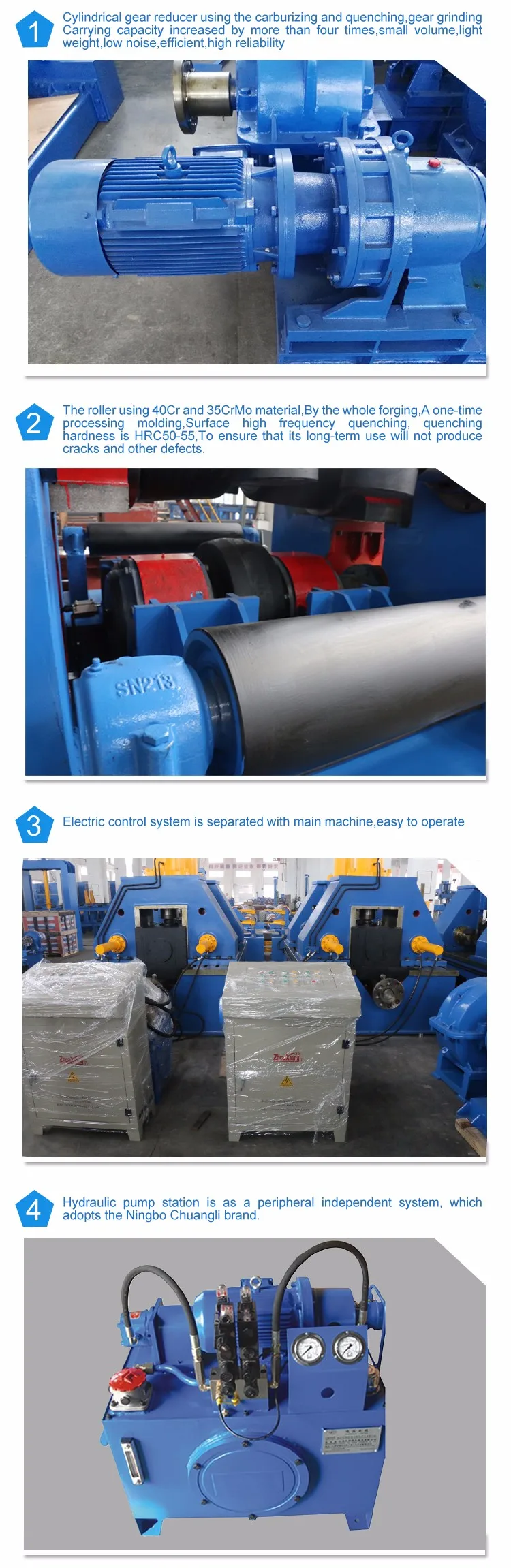

Product Advantages
1.The mainframe is integral frame structure with stress relief, it is processed and shaped in one step by CNC floor type boring and milling machine, with the advantages of compact structure, strong strength and enough rigidity.
2.The main cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There’s fine filter equipped on the pump station which can ensure electromagnetic valve is more e for long-term use
3.There’s dial for all the adjusting motion which can ensure convenience and accuracy.
4.The straightening roller adopts shaft box structure, so it have big loading capacity. There have hydraulic cylinder in shaft
box, it can adjust the distance of two upper straightening rollers, which is stable
2.The main cylinder adopts high quality sealing ring with good sealing performance, which can ensure long service time. There’s fine filter equipped on the pump station which can ensure electromagnetic valve is more e for long-term use
3.There’s dial for all the adjusting motion which can ensure convenience and accuracy.
4.The straightening roller adopts shaft box structure, so it have big loading capacity. There have hydraulic cylinder in shaft
box, it can adjust the distance of two upper straightening rollers, which is stable
Related Products
Main Products
Customers of Zhou Xiang
Why Choose Us
Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including Europe,America,Southeast Asia,Middle East and other countries.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
Zhouxiang products mainly include cnc cutting machine,H beam production line,box beam production line, welding manipulator, welding rotator, welding positioner, milling machine, shot blasting machine, plate rolling machine, profile bending machine and fiber laser cutting machine etc.We have high sincerity to do business with customers all over the world and establish good friendships.
We actively participate in and hold exhibitions, and reach friendly cooperation with foreign friends. Our cooperation is not only our progress but also the world's progress!
Our Service
FAQ
1.Q: What is the minimum order quantity?
A: 1PCS.
2.Q: What are the payment terms?
A: L/C; T/T.
3.Q: How long is the delivery time?
A: 30 Days.
4.Q:How long is the warranty period?
A: 1 Years.
