Super brightness bridgelux 45mil high power led 3W warm white with PCB star
- Category: High Power LED >>>
- Supplier: Ningbo Junsheng Electronics Co. Ltd.
Share on (60569154604):
Product Overview
Description
Super brightness bridgelux 45mil high power led 3W warm white with PCB star
Product Description
Highest Flux warm white
low voltage DC operated
high reliability and long life time
soon delivery
RoHs&CE
Super brightness bridgelux 45mil high power led 3W warm white with PCB star
Electrical and optical characteristics (Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | ||
Min. | Typ. | Max. | ||||
Forward Voltage
| VF | IF = 700mA | ---- | 3.6 | 4.0 | V |
Luminous Flux
| Φv | IF = 700mA | 200 | 220 | ---- | lm |
Viewing Angle
| 2θ1/2 | IF = 700mA | ---- | 120 | ---- | Deg. |
Color Temperature
| CCT | IF = 700mA |
| 3000 | ---- | K |

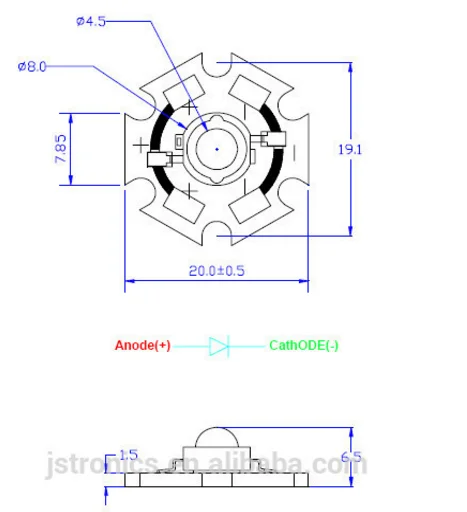

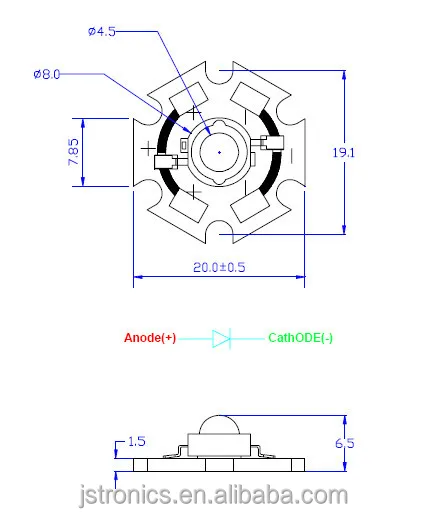

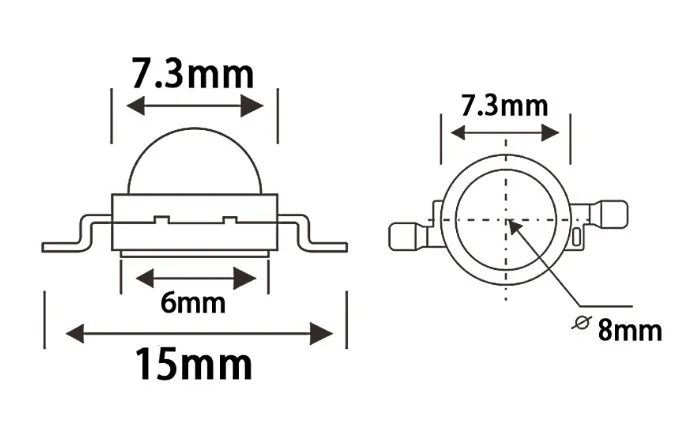

package dimension
bridgelux 45mil high power led 3W warm white with PCB star dimension
Absolute maximum ratings(Ta = 25℃)
Parameter | Symbol | Test Condition | Value | Unit | |
Min. | Max. | ||||
DC Forward Current
| IF | ---- | ---- | 700 | mA |
Peak Pulse Current
| Ipeak | Duty=0.1,1kHz | ---- | 1000 | mA |
Power Dissipation
| Pd | ---- | ---- | 3.0 | W |
LED Junction Temperature
| Tj | ---- | ---- | 120 | ℃ |
Operating Temperature
| Topr | ---- | -25 | +100 | ℃ |
Storage Temperature
| Tstr | ---- | -40 | +120 | ℃ |
ESD Sensitivity
| --- | HBM | 8000 | ---- | V |
Soldering Temperature
| --- | ---- | 260℃ for 5 Seconds max | ||
