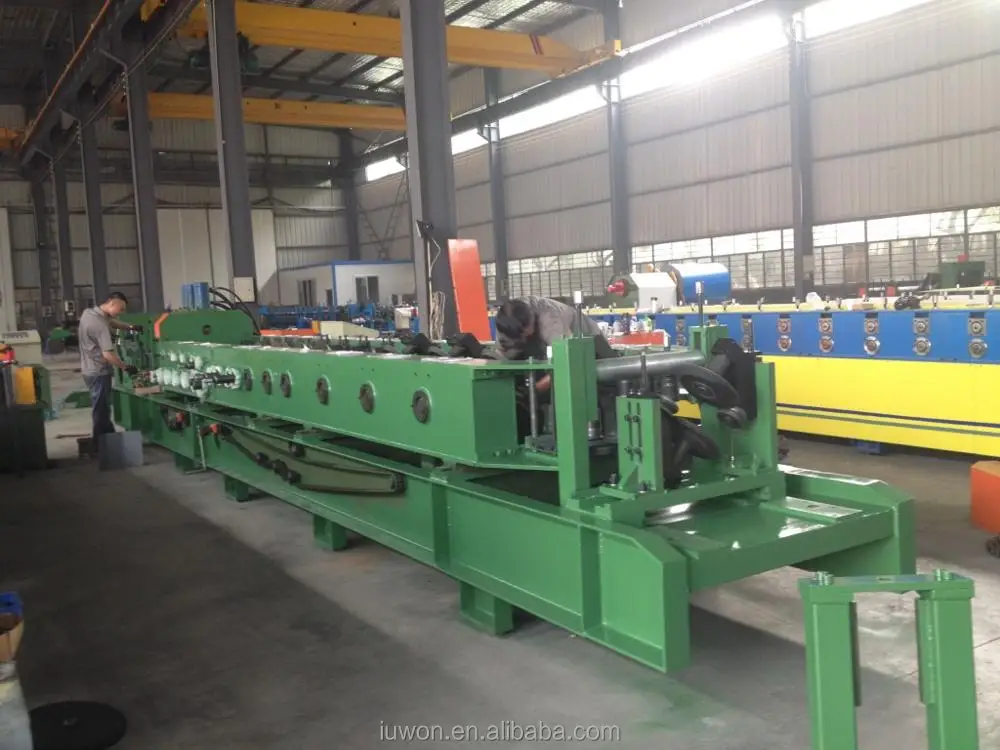

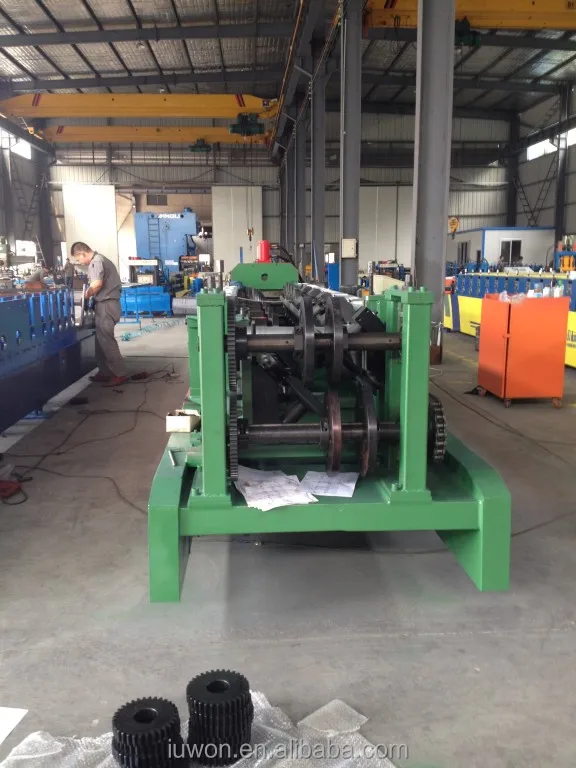

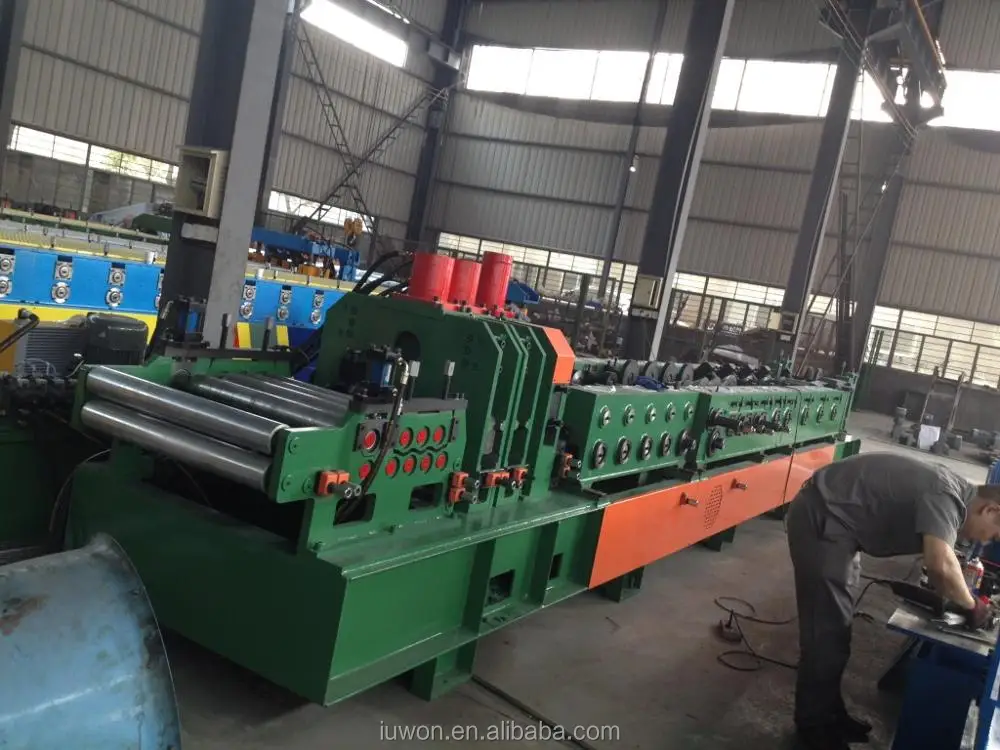

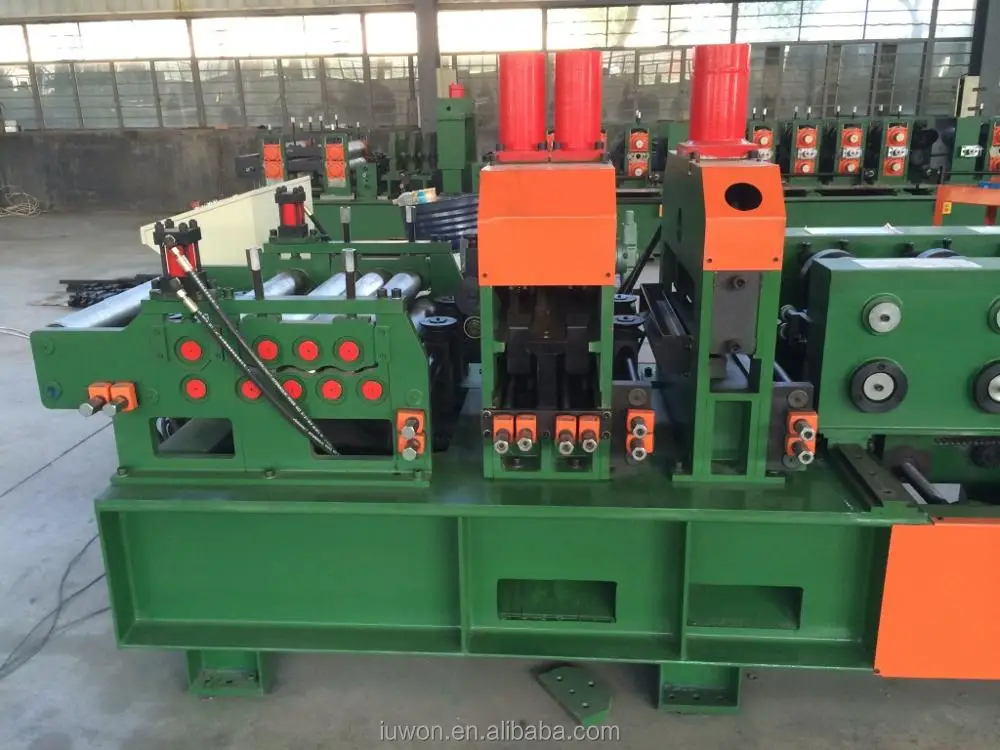

Iuwon Machinery U C Z Shape Bending Channel Roll Forming Machine

Share on (60569401811):


Price:RUB 2,653,630.00 - RUB 3,639,264.00

Quantity:


Product Overview

Description

Iuwon Machinery U C Z Shape Bending Channel Roll Forming Machine

CZ purlin machine iuwon



Parameter of c z roll forming machine



Item

Parameters

Profile

C & Z purlin

Material

Type

Q345-Q235 Galvanized Sheet

Thickness(mm)

Yield strength: 230-300 (Mpa)

1.6-3.2

Yield strength: 300-350 (Mpa)

1.6-2.6

Max. forming speed (m/min)

30

Roller material

GCr15/Cr12/D2

Roller driven type

Hydraulic or motor

Controller

CNC or Windows2000/PLC



Profile Specification of  c z roll forming machine

 YCZ-350S C Z PURLIN PROFILE.png





Advantages:

1). The Newest and the World's Only  Box Type CZ Purlin Roll Forming Line.

2).  Five Patents for Utility Model and Two Patents for Invention.

3).  Double Bearings, More CNC Processing Technic.

4).  Faster and Easier to Change C Z Shape.

5)  .More Stable and safe

       Less Errors, LowerNoises

       Lower Consumption,Longer Life





We Promise :



1).Take the EUROPEAN Quality Standard;



2). Choose the Best Material and Components.



3). Over 30-Year-Experienced Experts and Top International Sales to Care Your Needs.



4). Offer The Highest Quality but The Best Price in Prevailing Market.



5). Customize for You.
