.Modern dyeing factory in the 21st century must have efficient energy-saving low bath ratio at room temperature and pressure hank yarn jet dyeing machine. Based on the consideration of environmental protection and energy conservation, Our company has developed a unique double transmission system dyeing machine based on the existing dyeing technology. Its bath ratio is reduced by 35% on the traditional basis. With the precise intelligent control, the stainless steel 316 is adopted. By the way, you have a durable and advanced equipment experience, but also to make your production process of cutting-edge world.
Technical Data
1)Capacity: 8-25kgs/tube 2) Length of tube: 1200-2000mm 3) Length of hank: 820mm 4) Liquor ratio: 1:5-8 5) Max.working temperature:98℃ 6) Steam working pressure：0.3Mpa 7)Heating：Direct steam/indirect steam
Standard Structure
Model
DGAKS-830
DGAKS-820
DGAKS-810
DGAKS-805
Capacity（kgs）
240
160
80
40
Spray tube（pcs）
30
20
10
5
Pump motor（Kw）
15
7.5
4
2.2
Driving motor（KW）
15
0.75
0.37
0.2
Our Advantages
●This model is suitable for the dyeing of cotton, polyester, acrylic, nylon, wool, hemp yarn.
●This series of models of innovative design, compact and energy efficient Cheese dyeing machine, under the conditions of the same heating area, the unique design of heat exchangers heating and cooling can achieve the best results.
●The main pump and heat exchanger compact, heat loss, can improve the efficiency of dye flow. ●Compared with conventional dyeing machine, the overall circuit arrangement is simple, effective space-saving area ●Precise flow control so that the yarn ito the dyeing of the roving can achieve Jligh quality results. ●The inverter control of the main pumpmotor, stepless flow control,saving start and load shedding to run the energy consumption.
Recommend Products

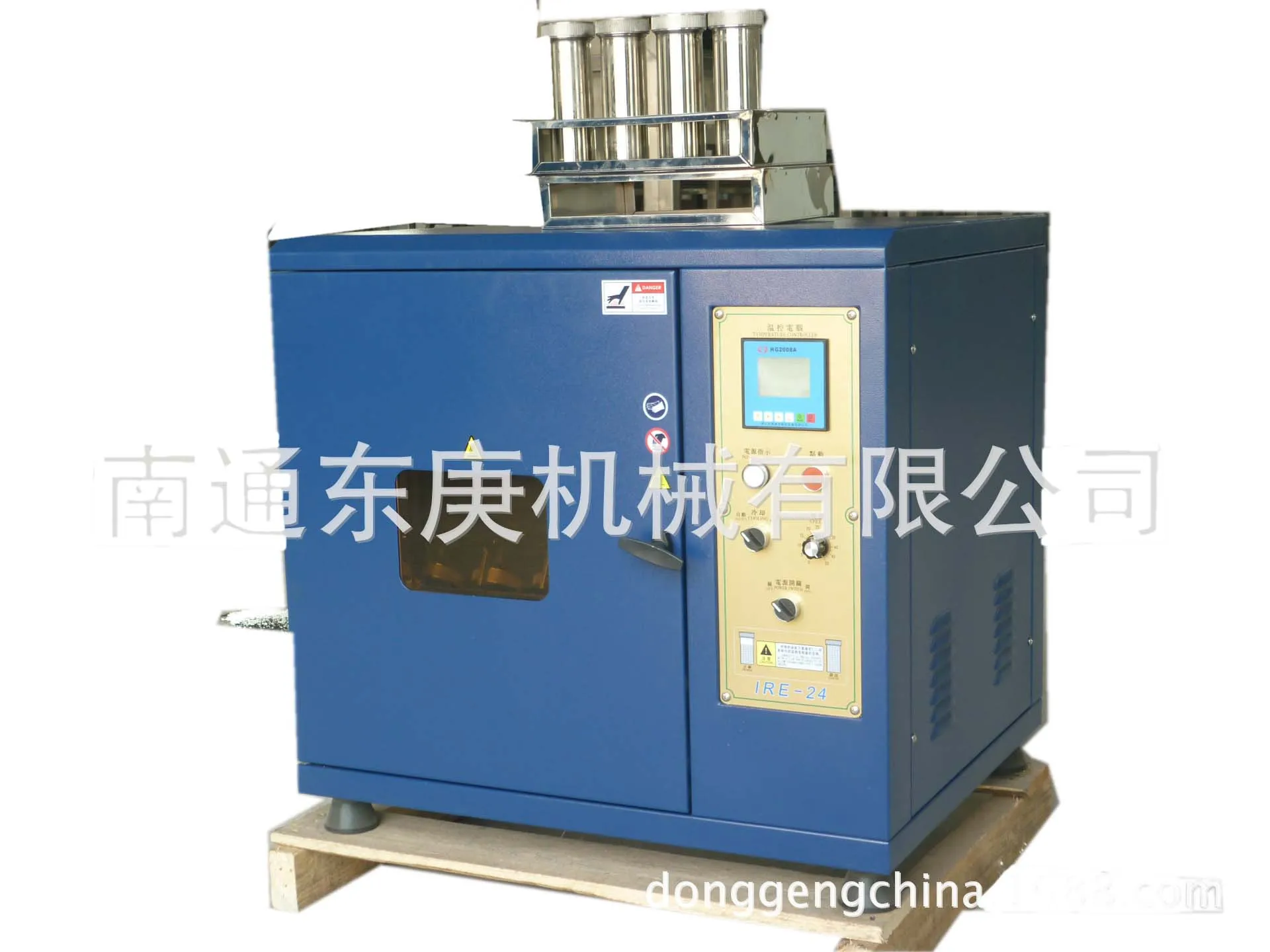

Small prototype

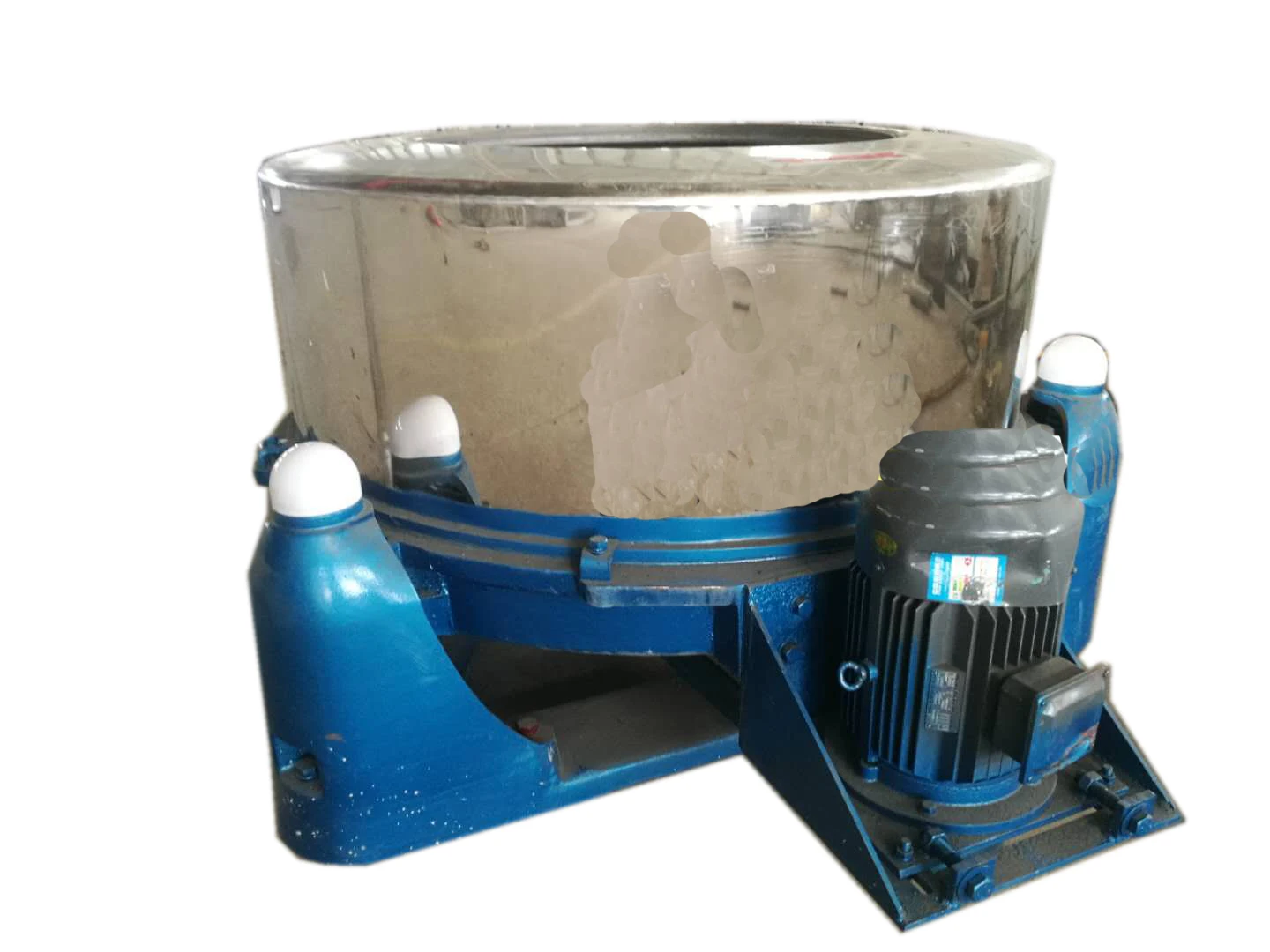

Washing and drying machine
Certifications
Why Choose Us
Company Profile
Nantong East HeptanoicMachinery Co., Ltd. is located in taoyuan industrial zone, rugao software park, the longevity town, located in nantong city, north of the Yangtze river in the Yangtze river delta.The company specializes in the manufacture and development of textile printing and dyeing machinery equipment, is a private scientific and technological enterprise in jiangsu province and a high-tech enterprise in jiangsu province, enjoying a good reputation among peers in the industry.
Company has dyeing and mechanical industry more than technical staff, strong technical force, excellent processing equipment, advanced product technology, detection means complete, stable quality, reliable performance, products in addition to satisfy the masses of customers at home and abroad, also exported to other countries and regions of the world, with excellent quality, high-quality perfect after-sales service, wins the general customers trust and praise.
Specialized in high temperature, room temperature yarn dyeing machine development and manufacturing enterprises.Engaged in this field has more than 30 years of history, the main products are series of high temperature and high pressure DGHKS jet Hank dyeing machine, DGCKS series high temperature and high pressure cheese dyeing machine, DGAKS series of atmospheric pressure jet Hank dyeing machine, the bobbin DGRDKS high-speed dryer, DGSKS high temperature and high pressure vacuumalready set machine DGTYD tunnel Hank dryers and other products, is the domestic and foreign dyeing manufacturers the ideal choice.
The company is willing to first-class products and excellent after-sale service for new and old customers at home and abroad.
