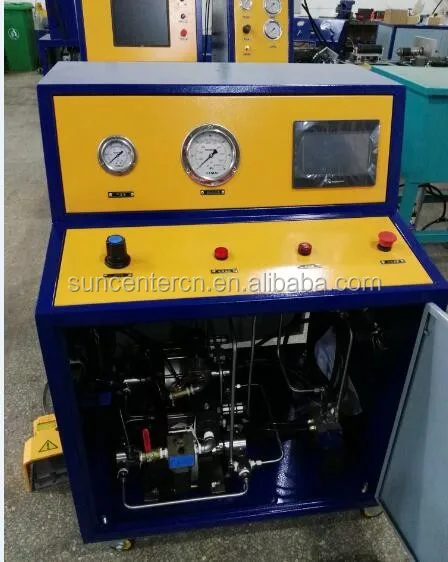

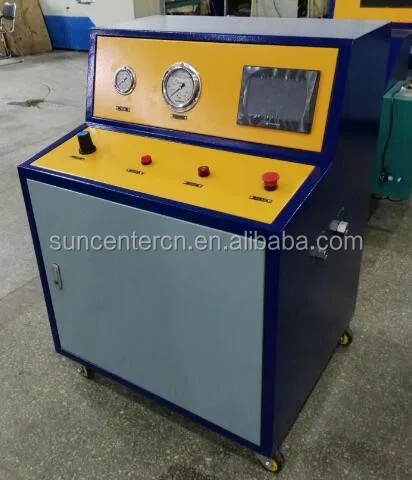

Suncenter hydraulic pressure pipe tube expander for heat exchanger

Hydraulic tube expanding machine

1.Machine name: hydraulic tube expanding machine

2.Model No.:STE-400

3. Application: heat exchangers; boiler pressure vessels; condenser, manufacturing; installation and maintenance of the connection tube and tube plate of the special expansion equipment

4. Equipment description

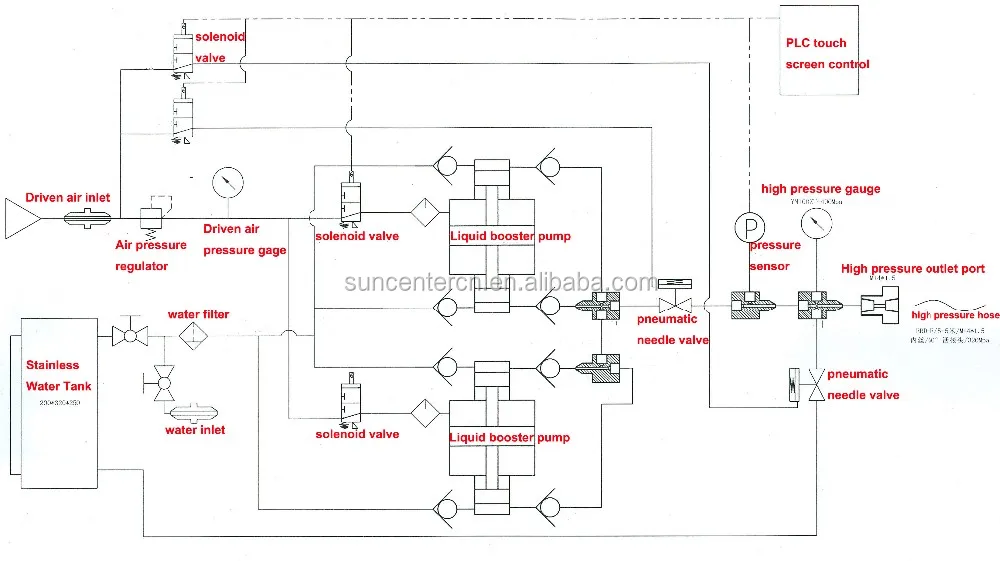

Pneumatic hydraulic tube expander pneumatic is composed by hydraulic system, control system, expanding lumen, expanding rod and other components, which has the advantages of low labor intensity, high production efficiency; expanding quality uniform and reliable; expanding medium without pollution to the expansion pipe joint; residual stress; tube plate heat exchanger can be arbitrary for full thickness expansion; hydraulic expansion can not only ensure the expansion quality, prolong the life of the heat exchanger, but also improves the work efficiency, reduce labor costs. In the overhaul and installation of the heat exchanger, the pneumatic hydraulic tube expander is used to solve the problem of long time and high labor cost.

5. Main technical performance index

7. Obvious advantages

1, can be arbitrarily set the the pressure holding time to ensure the expanding quality;

2, step up, unloading speed is fast, expansion joint speed increased exponentially;

3, the 10-400mm thickness of the tube plate for the full thickness of a one-time uniform expansion;

4, can be arbitrary depth of the middle tube plate or multi tube plate heat exchanger for full thickness expansion;

5, tube expanding of tube or seam welding;

6. The residual stress of the device is low, and the gap corrosion is not easy to be produced;

7, heat exchanger expansion after the axial not long and slightly shrink, it is conducive to reduce the running noise;

8, the hole diameter of the pipe is large, and the diameter of the expanding head can be adjusted appropriately;

9, the expansion joint is free of pollution, the first expansion after welding is not affected;

10, with the tube box of the heat exchanger at the edge of the expansion can be directly expanded (the maximum grinding head is 0.3mm) is very convenient;

11, a single person can operate continuously , each minute can expand to 5-10 tube head;

Suncenter Fluid Control Equipment Co., Ltd is the memeber company of Suncenter Group,which is located in Dongguan city of Guangdong province in China.With more than 15 years experiences in fluid pressure exchange and controlling field, we provide various kinds of pneumatic and hydraulic booster pumps, systems and solutions to the customers all over the world. Due to our best product quality,competitive price as well as excellent after-sales service, we have win a great reputation in the field.

Our main products including:

High Pressure Booster Pumps (Air Driven Gas Booster Pump, Air Driven Liquid Pump, Air Amplifiers)

High Pressure Systems (Gas/Liquid Booster Stations,FM200 filling machine, Tube Expanding Machine)

High Pressure Test Equipment(Hydraulic Pressure Test Machine, Burst/Hydrostatic test machine, Safety Valve Test Bench,Impulse Testing Machine, etc.)

If you are interested in any of our products, please feel free to contact us, we could also make the customized products according to your special requirements.
