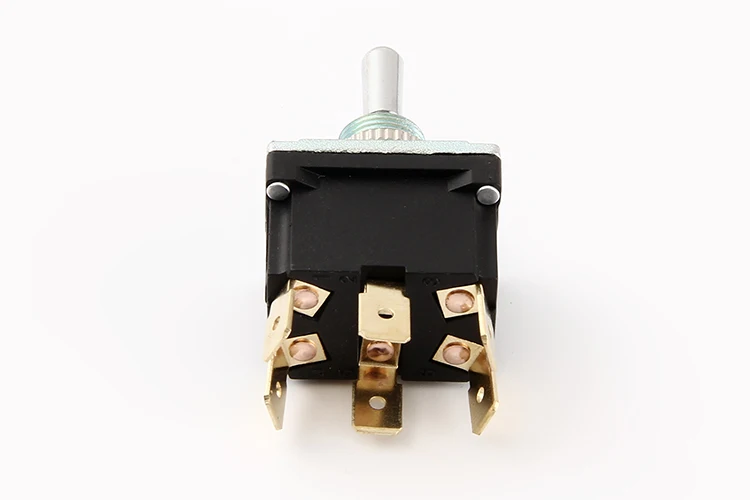

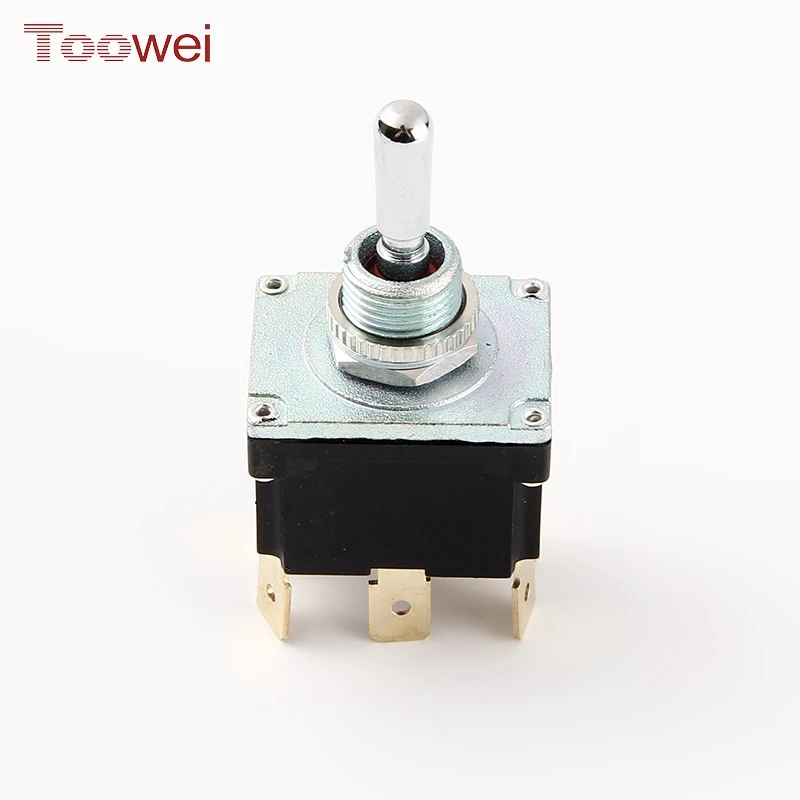

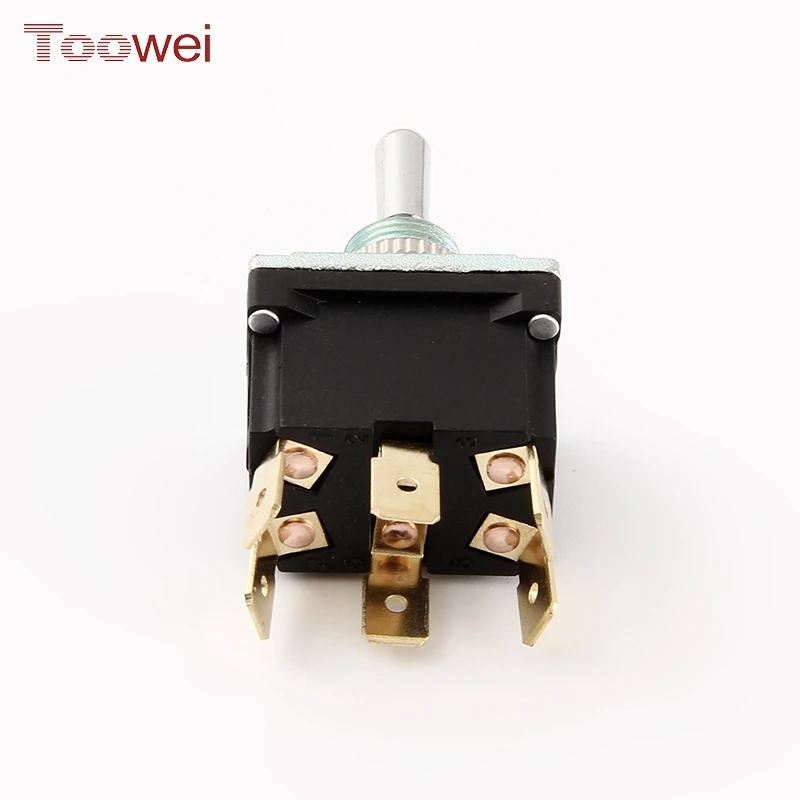

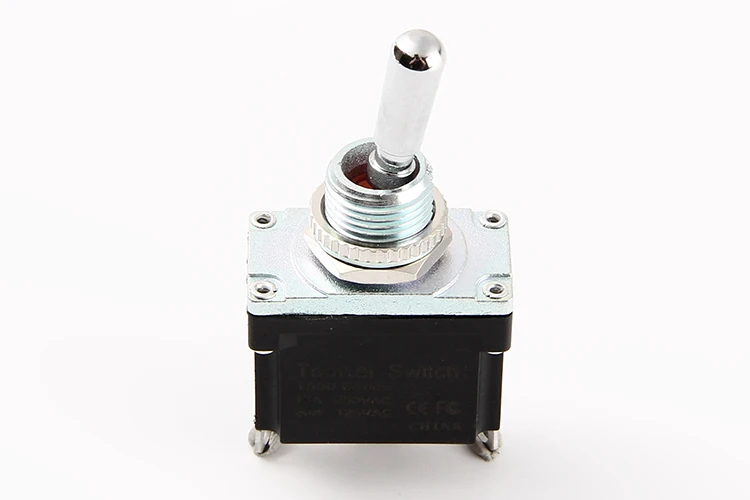

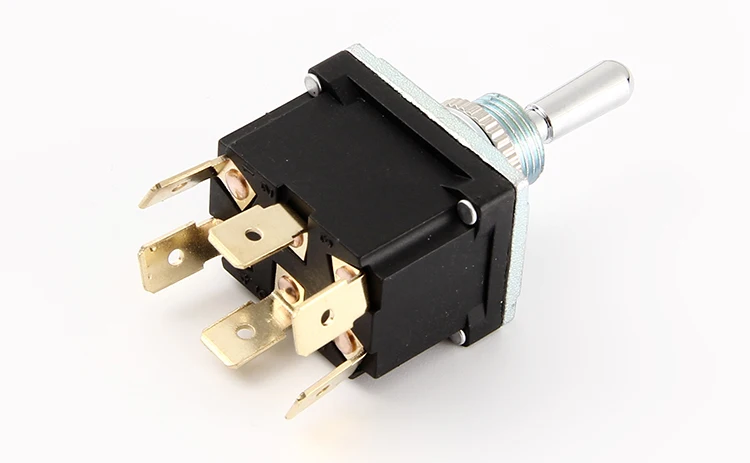

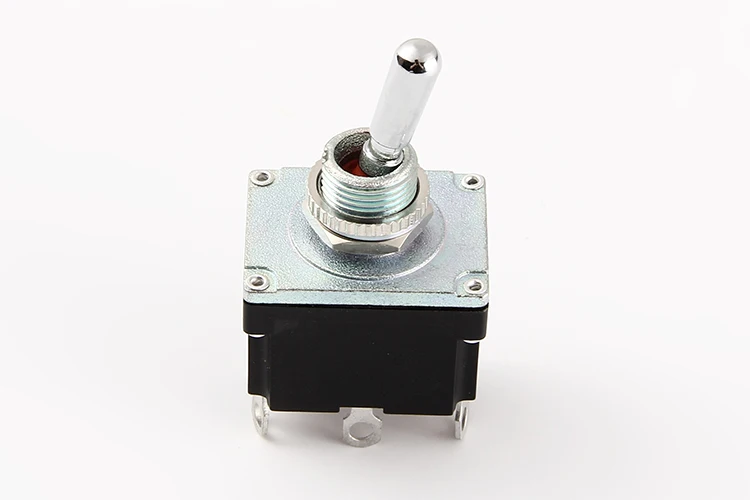

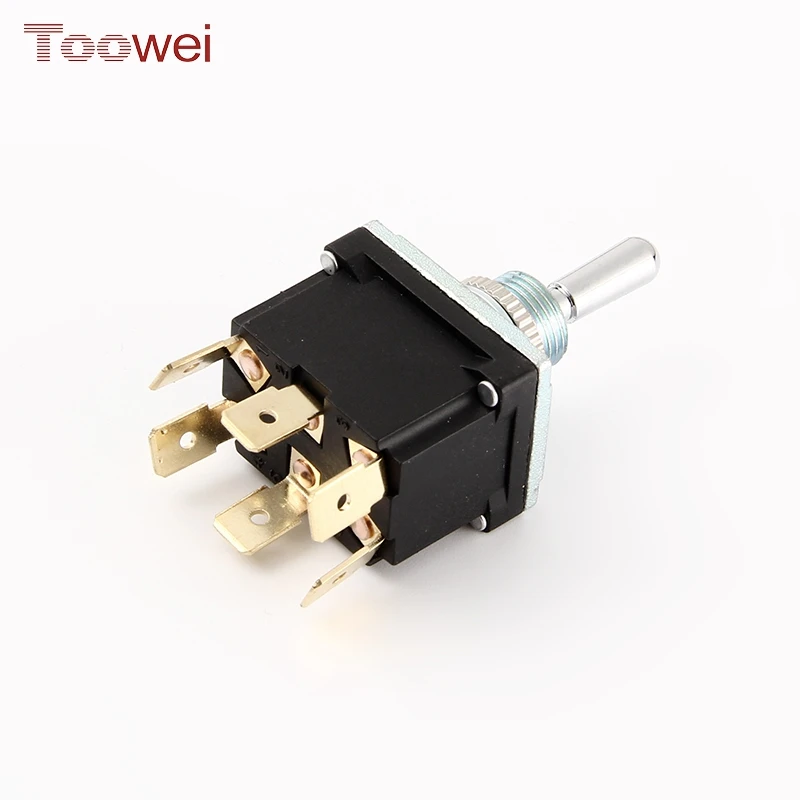

Toowei factory price ip67 25A 250VAC 6 Pin brass toggle switch
- Category: Toggle Switches >>>
- Supplier: Yueqing Toowei Electronic Switch Manufacturer
Share on (60573607545):
Product Overview
Description
Product Description

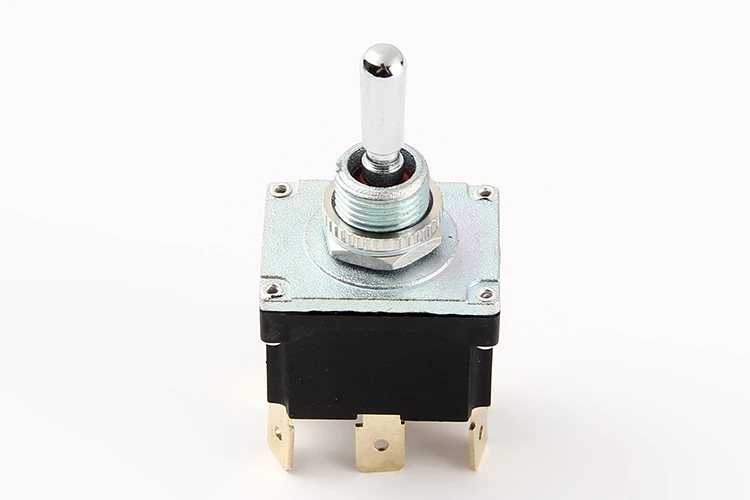

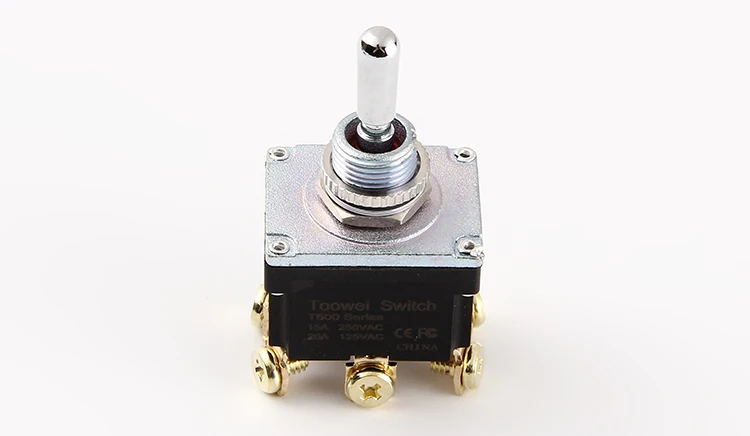

T500 series toggle switch is suitable for 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. The waterproof level reaches IP67 with dustproof, waterproof and oil proof functions.
Rating value | 15A 250VAC/20A 125VAC |
Dimensions | 12mm+0.2 |
Pole code | 6Pins |
Function code | (ON)-OFF-(ON) |
Terminal form | Quick plug terminal |
Base material | DuPont nylon |
color | Black |

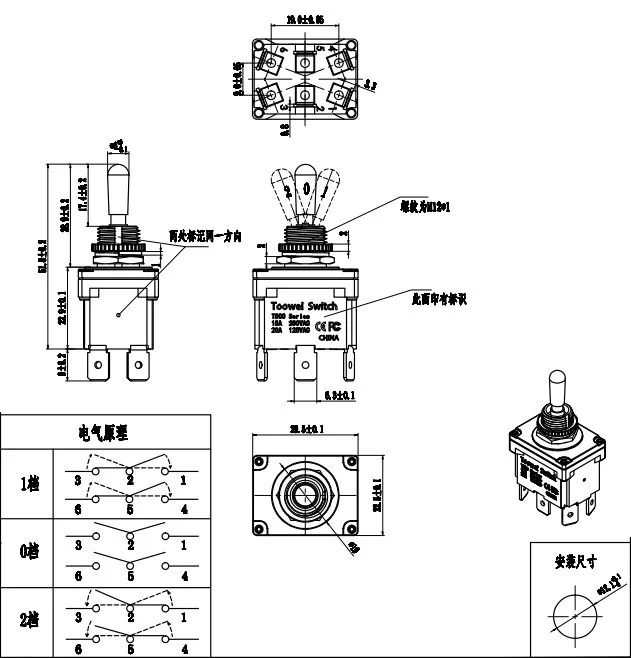

Model Size
Technical parameters
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Quick plug terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Quick plug terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67
