1. Brief

KYN28A-12(Z) armored moving type A.C.high-voltage metal-enclosedswitchgear, with asingle busbarof 3.6-12kV, three-phase AC 50Hz and complete setsof equipment of single­ busbar power distribution sub-system, it can be used in power station, small and medium electric generator's power transmission, power distribution of industrial and mining enterprises.power receiving and transmission of the electrical util ities' secondarysubstations,including the start of large high -voltage electric motor.

For the purposes of controlling, protecting, monitoring, the switchgear totally meets IEC298, GB3906, DL/404 standards. It can prevent such situations: use circuit breaker with a load sliding, breaking or closing circuit- breaker by wrong, closing circuit -breaker when the earthing switch is in the closed position, strayed intothelive interval, closing the earthing switch with electrification.It can equipped with ABB's VD4 circuit breaker or Chinese-made VS1 vacuum circuit breakers, certainly is a power distribution equipment of superior performance.

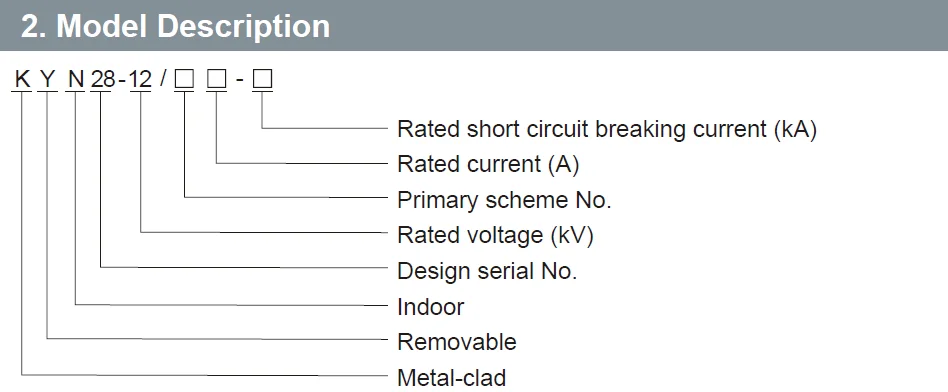

2. Mode description

3. Environmental Conditions:

Suitable Temperature: -40℃ ~ +45℃

Suitable Altitude: < 4000m

Relative Humidity: Daily mean ≤95%, monthly mean ≤90%

Gradation of Earthquake Damage: ≤ Level 8

The switchgear is applicable to category II contaminated environment.

4. Technical Data:

5. Manufacturing special request (OEM and ODM):

Our XIGAO Group company is group company in china, As a manufacturer and factory for 30 years, our production can be custimized. so welcome to your official inquiry, OEM and ODM are our advantage.
