Continuous Flow Centrifuge For Salt

Product Overview

Description

Continuous Flow Centrifuge For Salt

Industrial Pusher Centrifuge (HR 500)

HR Two-Stage Pusher Centrifuge

Introduction and Working Principle

Introduction :HR series is full automatic  and continous  filtering centrifuge used for solid-liquid separation in the kinds of  industries. It has a unique design that minimizes moisture, impurity and crystal breakage in discharged cake, can perform feeding, filtration, washing and discharging in sequence at their full-speed running.

Working principle:The main motor drives the inner and outer baskets to rotate at the full speed, then feed the material through the feed pipe. Under the centrifugal force, the liquid is discharged out of the basket through filter screen and the holes of the basket, then out of the machine through the liquid discharge pipe, while the solid deposits in the basket as a ring layer of cake.



Features

Continuous operation with large capacity

Ideal washing effect

Low moisture content of cake

Less solid content loss and crystal broken

Suitable for abrasion filtering cake

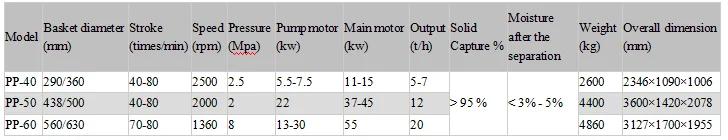

Technical parameter



Application

Apply separate the suspension( solid lliquid ) , the solid can be powder, granular, crystal and fibrous. and the diameter of the solid larger than 0.05 mm. with the concentration rate of over 40%.like chemical,fertilizer,alkali,salt and other industries.

Typical separation

1.Chemical Industry: gypsum, thiamin, salt, ferric sulfate, boric acid, borax, rubber additive, dye, heavy oil and other chemical products.

2.Food industry: kitchen salt, sodium glutamate, food additive, Chemical seasonings, sugar

3.Pharmaceutical:Extraction of vitamin, biotic, traditional Chinese medicine and other various drugs

4.Mine and Metallurgy: Copper, zinc, minerals, and metal refining

5. Environmental Protection: with acid discharge, pure water sludge and sewage sludge, etc
