Automatic high quality shoes box corner pasting machine
- Category: Boxing Machines >>>
- Supplier: Dongguan Longxingjian Intelligent Equipment Co. Ltd.
Share on (60575117574):
Product Overview
Description
Products Description

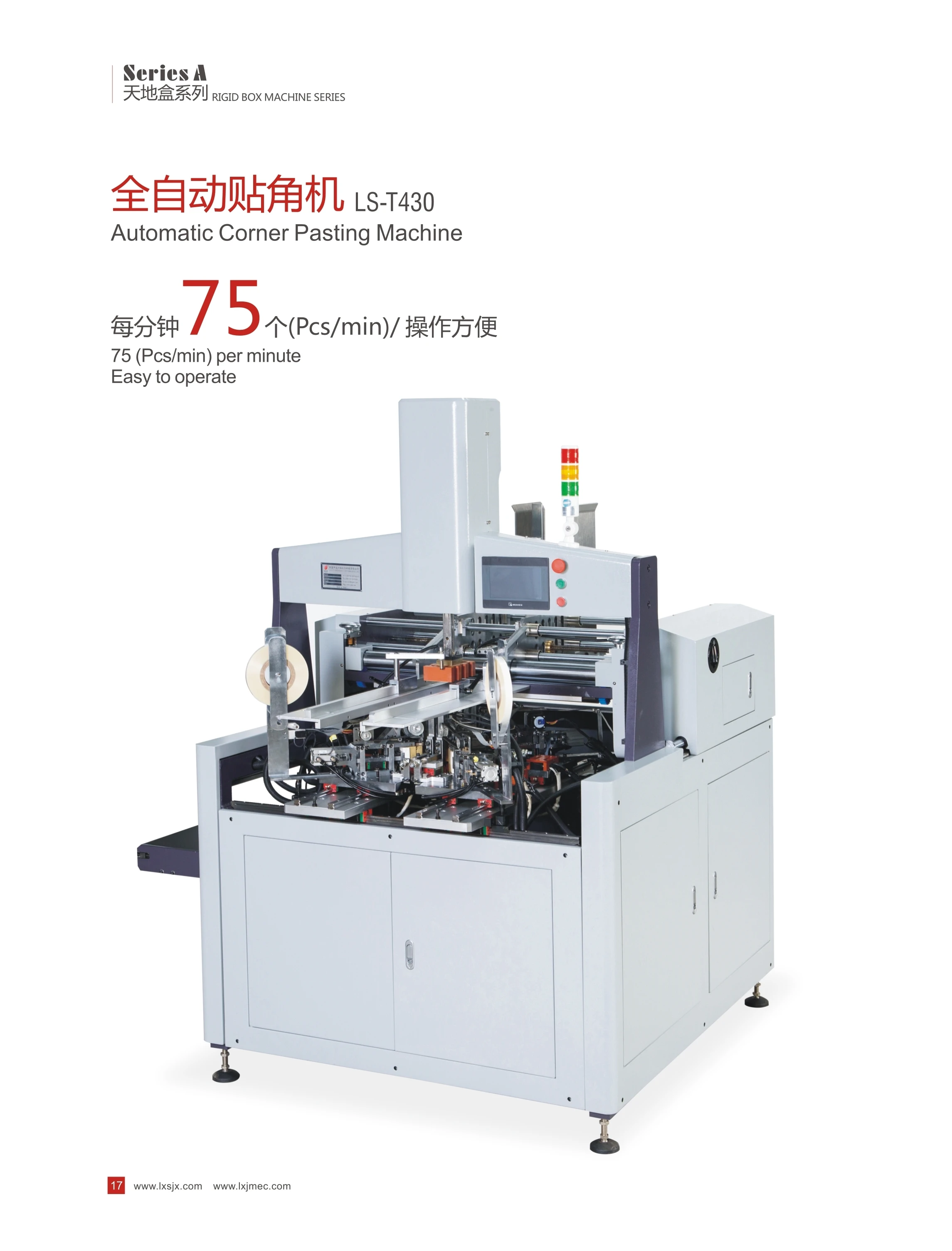

LS-T430 Automatic corner pasting machine
LS-T430 Automatic corner pasting machine is applied to pasting the four corners of die cutting cardboard and v-slots grooving cardboard. This machine use belt feeding way to convey coardboard to punching area. Shorten feeding distance and increase the working speed. It can use paper tape, plastic tape and kraft tape. The max working speed is 75 pcs/min, it able to paste normal rigid box and slant side box, paste twice for high box. Whole machine is 1650*1300*1960mm. Small and easy to be movement. It is suitable to combine with semi-automatic rigid box making line.
Price vary with raw material cost, please contact our sales for latest prices.
Specification of LS-T430 Automatic corner pasting machine | ||
Machine model | LS-T430 | |
Max box size | L430*W350*H120mm | |
Min box size | L80*W65*H15mm | |
Motor power | 2kw/380v | |
Working speed | 60 pcs/min | |
Air pressure | 10L/min 0.6 Mpa | |
Machine dimension | L1650*W1300*H1960mm | |
Machine weight | 920kg | |
1. Control table
2. Electric box
3. Cardboard feeding device.
Applied belt feeding the grooved cardboard or die cutting cardboard to the pasting area. It is feeding stable and faster.
4. Pasting area.
It including heater, tape feeding devices, cardboard guide rails. Whole machine has four same devices to paste four corners.
5. Punching rod.
.Pressing the cardboard and forming it is box shape then the four corner of box will be pasting hot melt tape
6. Holding rod
Hold box when box corner pasting.

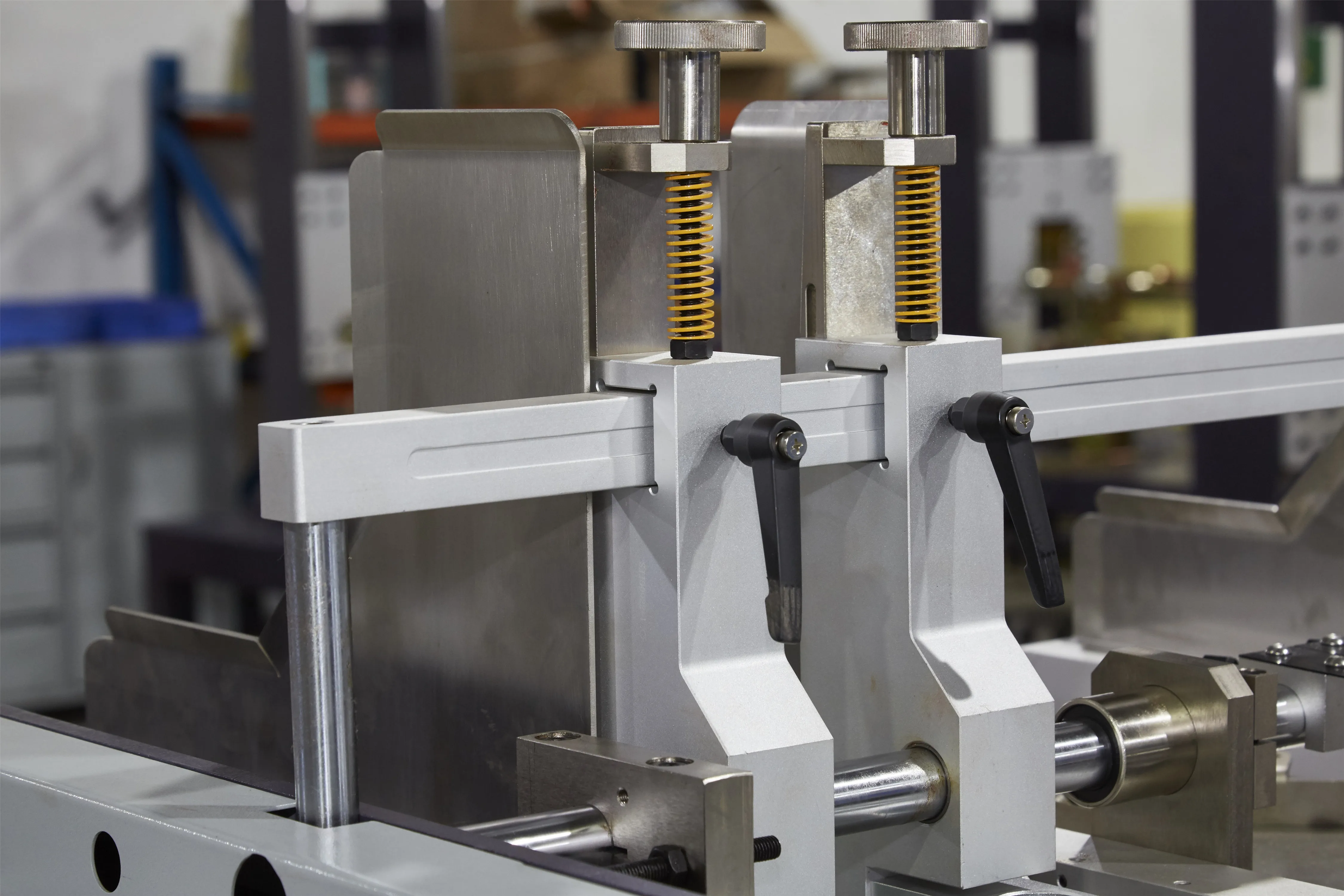

7. Guide rails
Guiding rails for pasting seat.
8. Tape feeding motor
Feeding the tape smoothly.
Optional function
Small size corner pasting device
Customization device for pasting the box size at 50*50*10mm.
Automatic combination configuration
Able to combine with positioning machine to upgrade whole line more automatic.
Working range of LS-T430

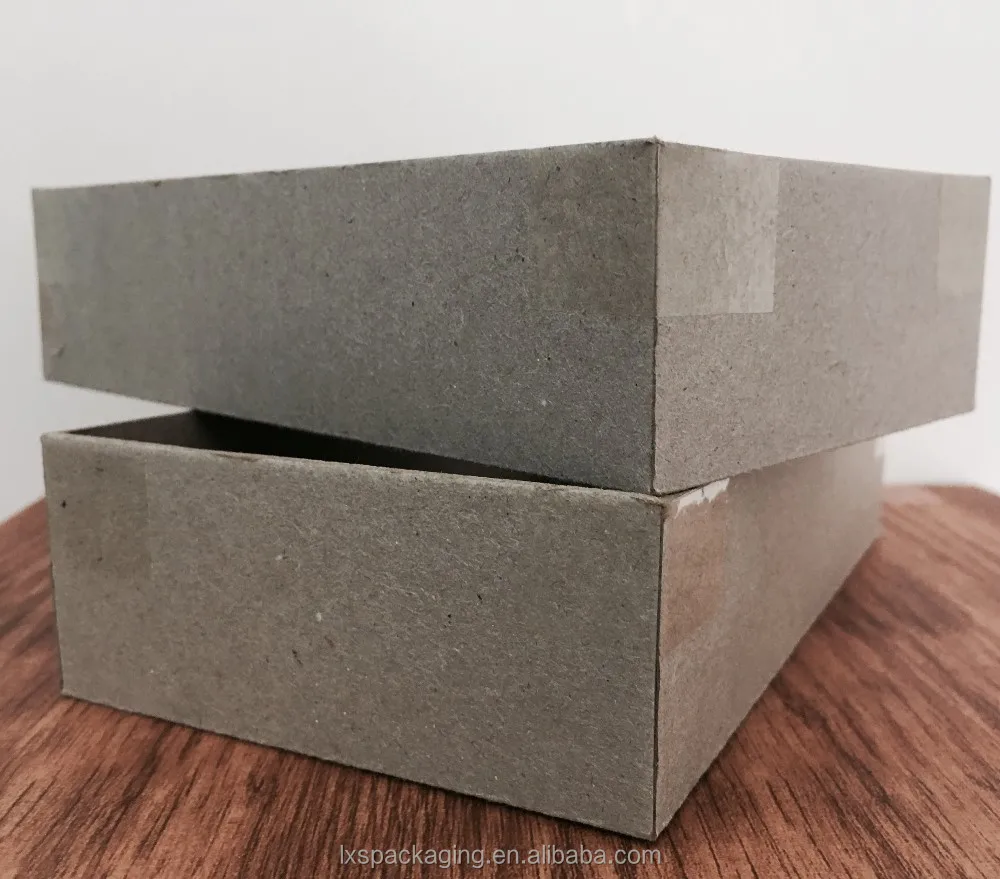

Normal rigid box
Slant side box
No need modification, just need setting paste twice.
High box
Pasting twice for high box.
Required material for box corner pasting
Die-cutted cardboard
Grooved cardboard
Plastic and wooden mold
Plastic tape
Kraft tape
Paper tape

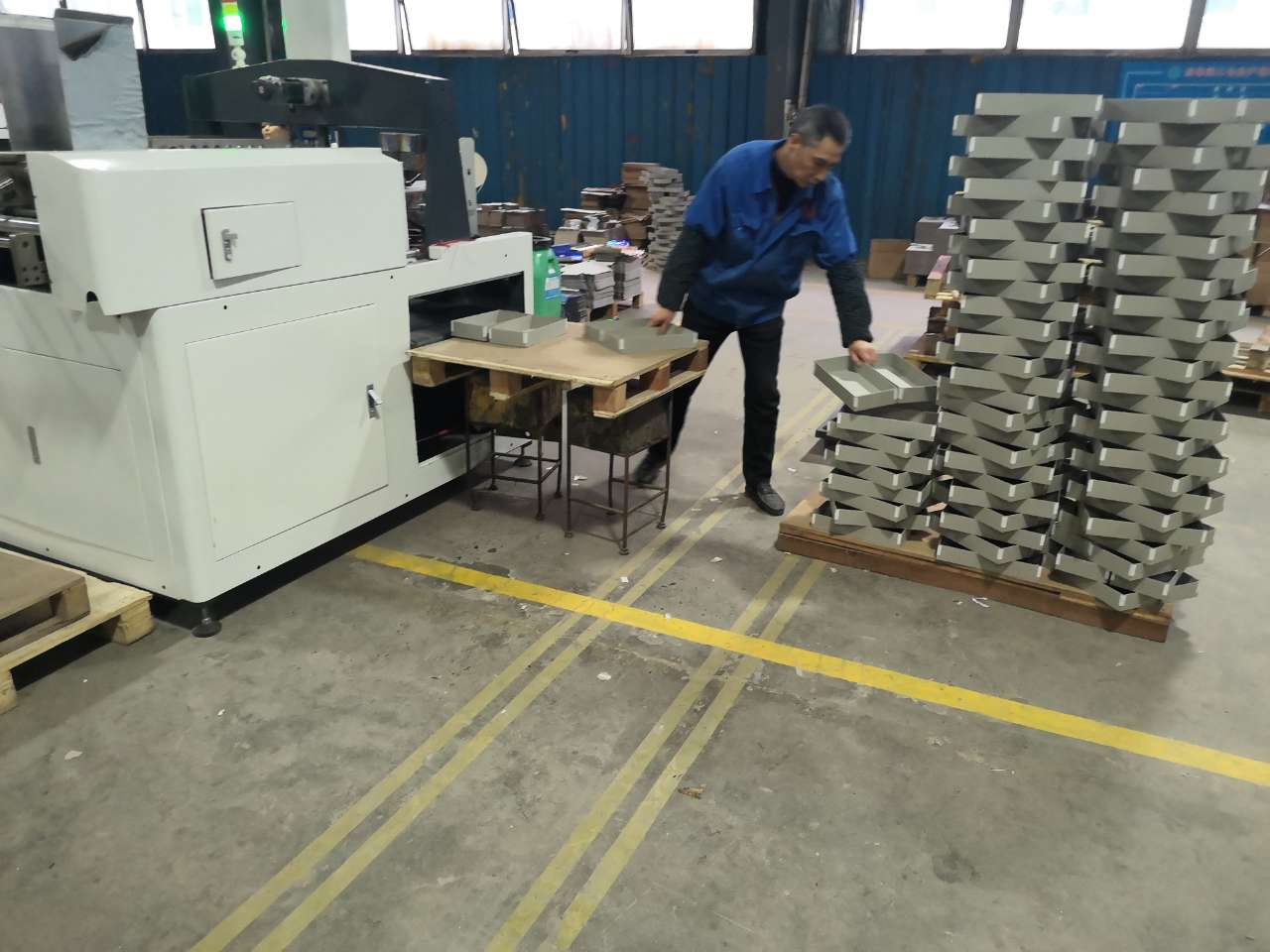

Machine installation
Certifications
\t\t\t\t\t\t\t\t\tCompany Profile \t\t\t\t\t\t\t
Company Introduction
Dongguan Longxingsheng Intelligent Equipment CO.,Ltd is located in world manufacturer city----Dongguan City, Guangdong Province. We have independent R&D department which is led by Tsinghua University Doctor. Up to now, We have got more than 10 patents including practice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery`s research, development, manufacturing and selling for more than 10 years. Grooving machine series and rigid box forming series are our main products.
We have built good and long-term cooperation with several world-famous companies. Our market has been expanded to all over the world.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas on year.
Packing & Delivery
Packaging | ||
Size | 1680(L) * 1330 (W) * 2000 (H) | |
Weight | 1.00T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). | |
Packaging | ||
Size | 1680(L) * 1330 (W) * 2000 (H) | |
Weight | 1.00 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). | |
