Guangdong пневматическая полуавтоматическая машина для резки труб с углом 45 градусов Chittak
- Category: Metal Cutting Machinery >>>
- Supplier: Guangdong Chittak Intelligent Equipment Co. Ltd.
Share on (60575718834):
Product Overview
Description

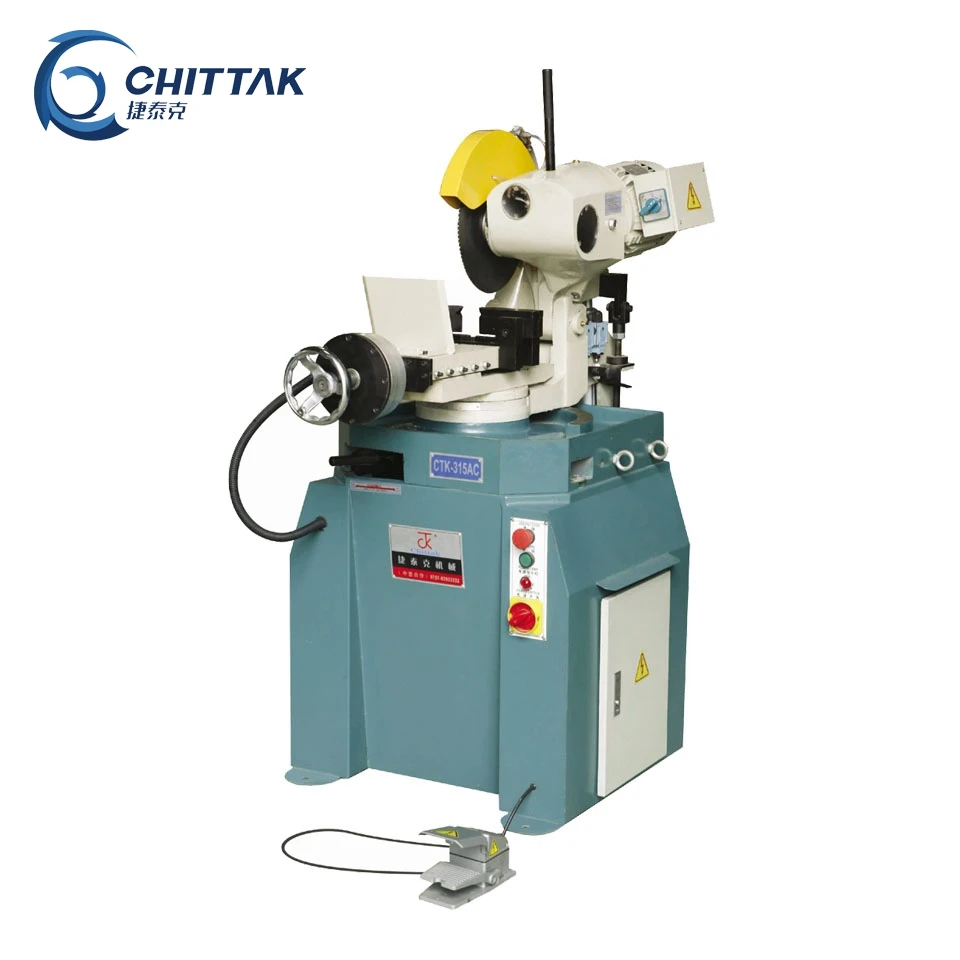

Guangdong pneumatic semi-automatic 45 degree angle pipe cutting machine Chittak CTK-315AC
Product Description
Main Features:
- The specially designed clamp features strong clamping, firmness, reliability and safety.
- Automatic circulation of coolant ensures smooth cut surface and longer service life for saw blade.
Standard Components:
1.Basic machine station
2.Air pressure syste
Specifications:
Model | CTK-315AC | |
Main Drive Motor | 2.4/3.0KW 380V 50HZ | |
Blade Speed(RPM) | 25/50(A series)Or 52/104(B series) | |
Saw Blade Size | Diameter (mm) | HSS250-325 |
Aperture (mm) | 32 | |
Pin hole(mm) | 2×11×PCD63 | |
Air Pressure(Kg/cm2) | 5-8 | |
Machine Size(L*W*H)(mm) | 680*1000*1400mm | |
Machine Net Weight (Kg) | 280(A series ) | |

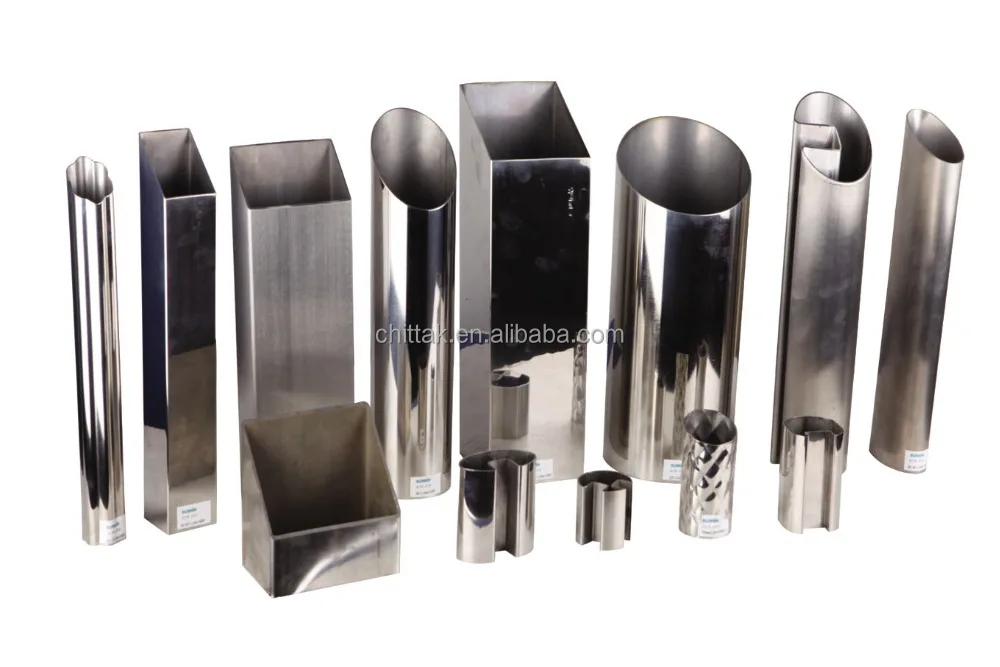

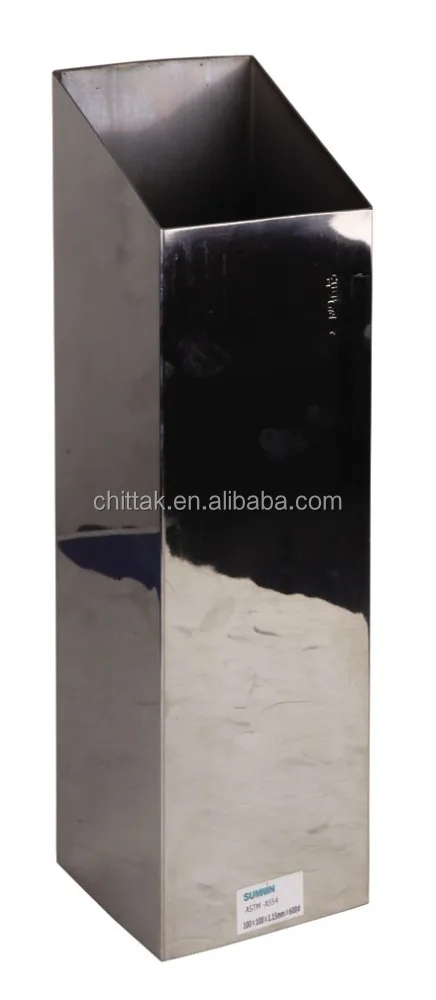

Cutting Capacity ( take mild steel as reference)
Model | CTK-315AC | |
Head Swivel | 90 | 45 |
Round tube | 90 | 80 |
Square tube | 80 X 80 | 76X76 |
Rectangle tube | 100 X 50 | 80X50 |
Angle Steel | 90 X 90 | 80 X 80 |
U-shaped Steel | 100X50 | 80X80 |
