Factory price concrete pump truck dimensions Concrete cantilever pump truck truck mounted concrete pump
- Category: >>>
- Supplier: Zhengzhou Sanqgroup Machinery And Equipment Co. Ltd
Share on (60577703661):
Product Overview
Description
Factory price concrete pump truck dimensions
Product Description
1-Introduction
Mobile concrete Pump Truck is a kind of concrete machinery which is transformed on the basis of truck chassis, uses continuous pressure to pump concrete along the pipeline. It is composed of the pump and delivery tube
Mobile concrete Pump Truck with Foldable Booms is developed by Sanq Group on the basis of drawing on advanced domestic and foreign experience and using advanced modern computer simulation techniques to systematically analyze the effect of changes in various parameters like stress, displacement and natural frequency on the boom’s fatigue life.
2-Advantage
SanqGroup optimized the design of the hydraulic system, adopted the latest free fluid technique and greatly lessened the impact of pumping commutation on the distributing boom. In the boom structure optimization and the hydraulic system design. The consummate control of product quality, perfect techniques of product manufacturing and strict procedures of quality inspection make Pump Truck a leading product in China and an advanced product in the world.
Sanq Group truck-mounted concrete pumps adopt 8 core technologies of one button stabilization, boom anti-vibration, energy saving, anti overswing, fault self diagnosis, safety, smart boom system and highly wear resistant parts to ensure smooth pumping and safe operation. Fine production, rigorous tests and reliable components of world-renown brands gurantee your concrete pump with reach of 30-66 meters a long service life.
Technical Parameter
| Model | SQBC33-30-120(33m) | |
| Chassis | Chassis | DongfengEQ5161TZZKJ Dongfeng EQ1168GSZ4DJ |
| Emission standards | National standard IV | |
| Engine | YUCHAI | |
| Power and rated speed of engine | 147kw/2000rpm | |
| Wheelbase(mm) | 5200 | |
| Max driving speed(km/h) | 80 | |
| Boom system | Max concrete placing height(m) | 33 |
| Max concrete placing radius(m) | 29.5 | |
| The leg longitudinal distance (mm) | 6300 | |
| Diameter of pipeline (mm) | 125 | |
| Electrical control system | Control Power Supply | 24v |
| Control model | PWM | |
| Working voltage | 24 | |
| Hydraulic system type | Hydraulic system type | Open circuit |
| Rated working pressure | 31.5Mpa | |
| Main oil pump | Rexroth | |
| Main oil pump capacity | 190 | |
| lectro-hydraulic directional control valve | Eaton | |
| Hydraulic hopper capacity(L) | 450 | |
| Hydraulic oil cooling | Air-cooling | |
| Slewing reducer | Domestic brand | |
| Hose connection | Eaton | |
| Cleaning system | Air pressure or plunger pump | Air pressure or plunger pump |
| Dimension/weight | Dimension (mm) | 10600*2350*3550 |
| Total weight of vehicle(t) | 22 | |
| Pumping system | The type of distribution valve | S valve |
| Concrete piston | Domestic | |
| Max. outlet pressure (H/L) | 10/5 | |
| Concrete cylinder Dia x Stroke | 230/1450 | |
| Max.Output (m3/h) | 120 | |
| Max. feeding height (mm) | 1450 | |
| Hopper capacity (m3) | 0.65 | |
| Concrete slump | 160-220 | |
| Allowable max diameter of aggregate (mm) | 40 | |
| Lubricating model | Centralized automatic | |

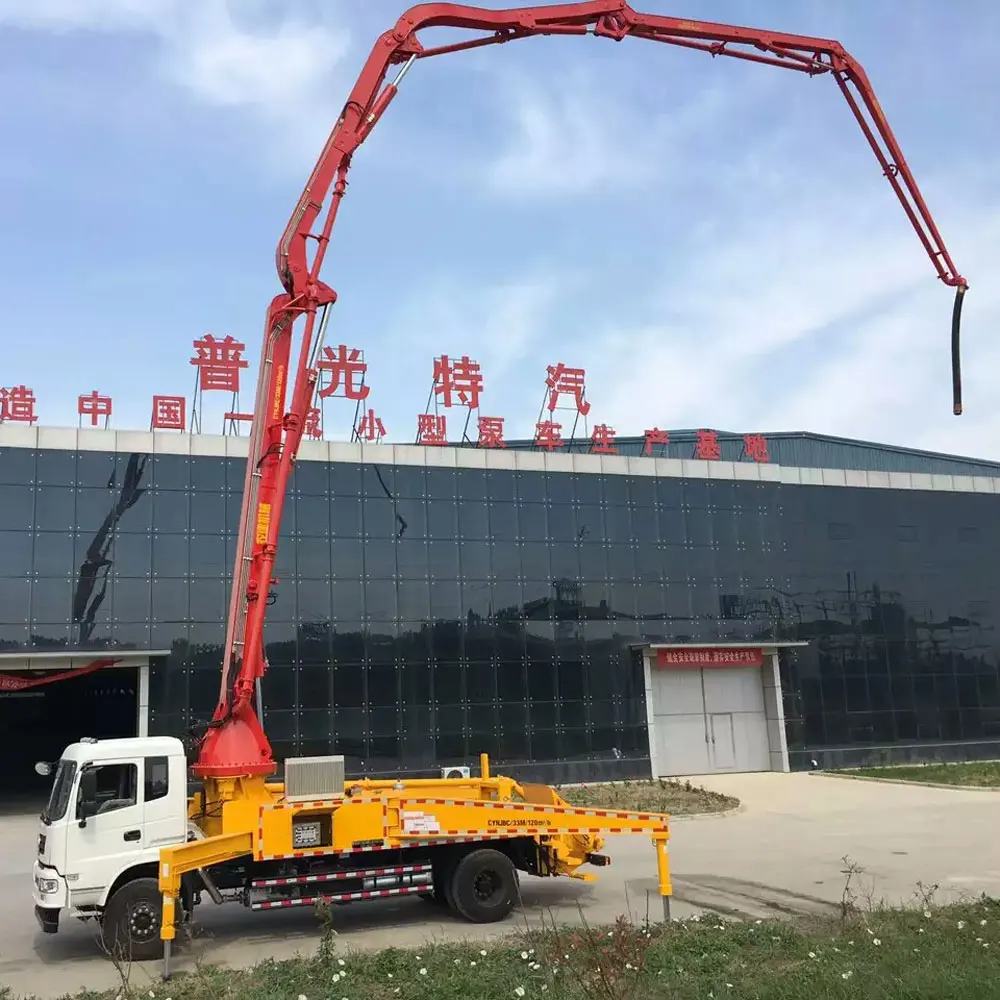

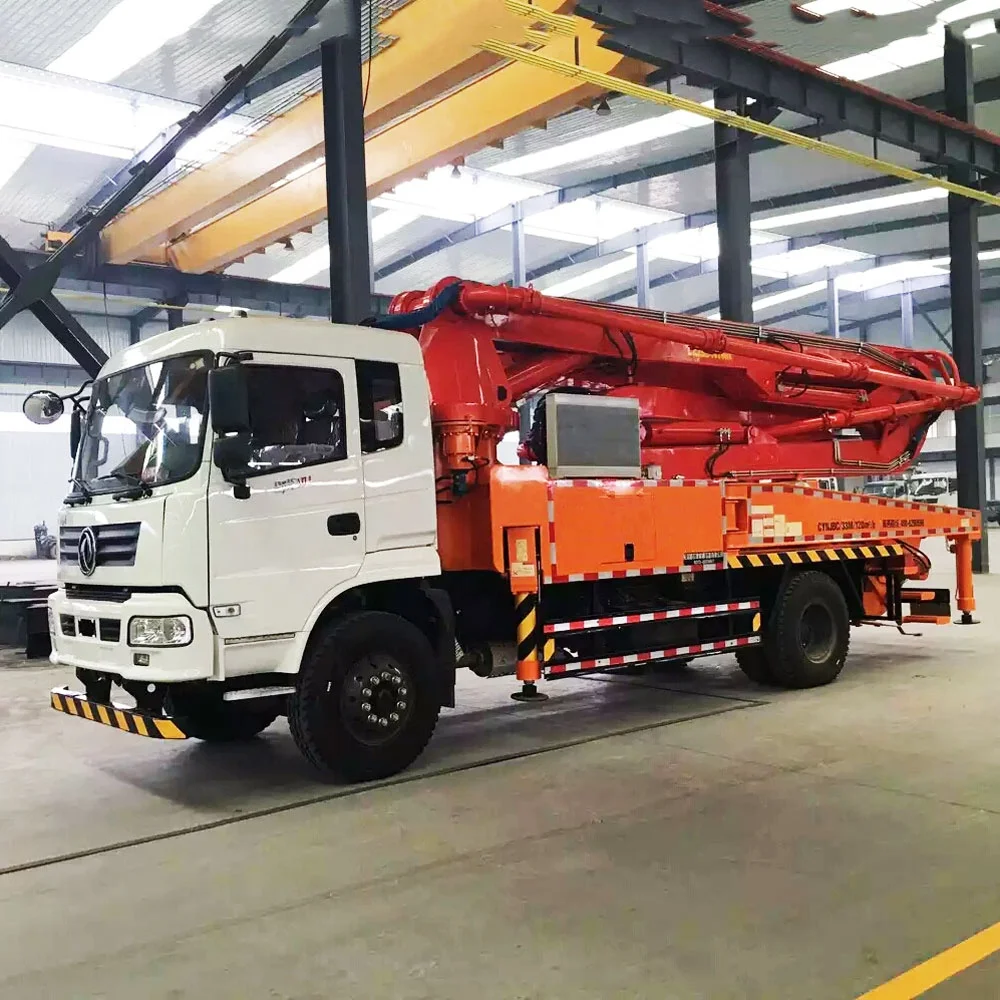

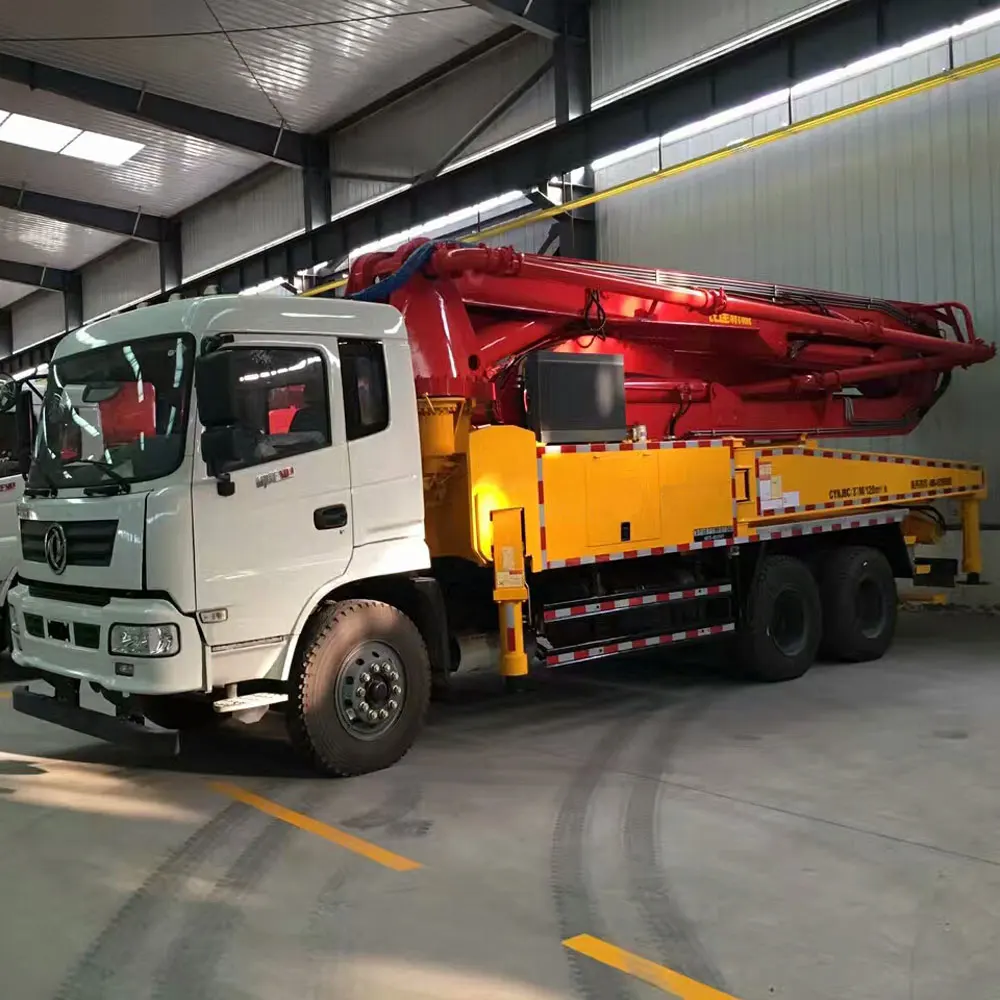

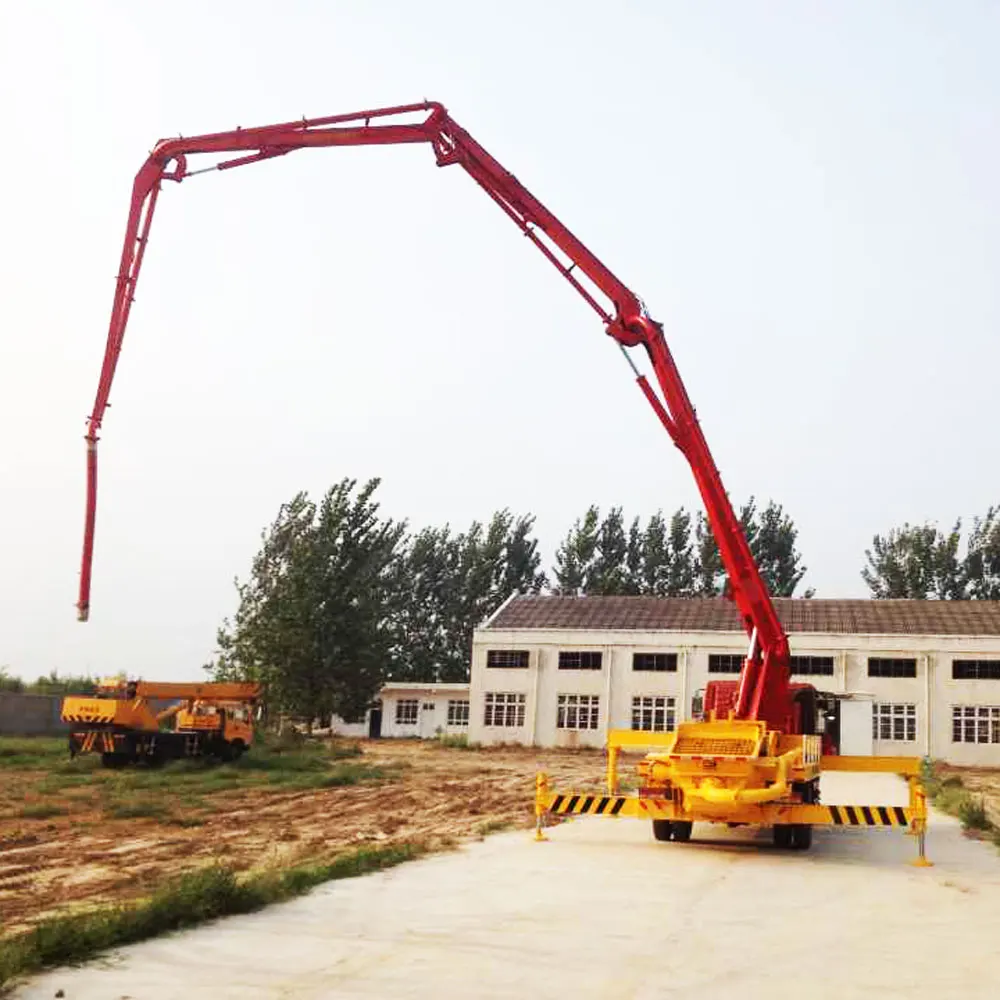

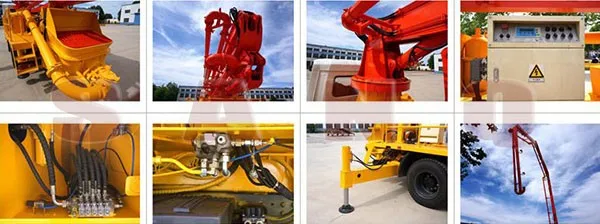

Detailed Images

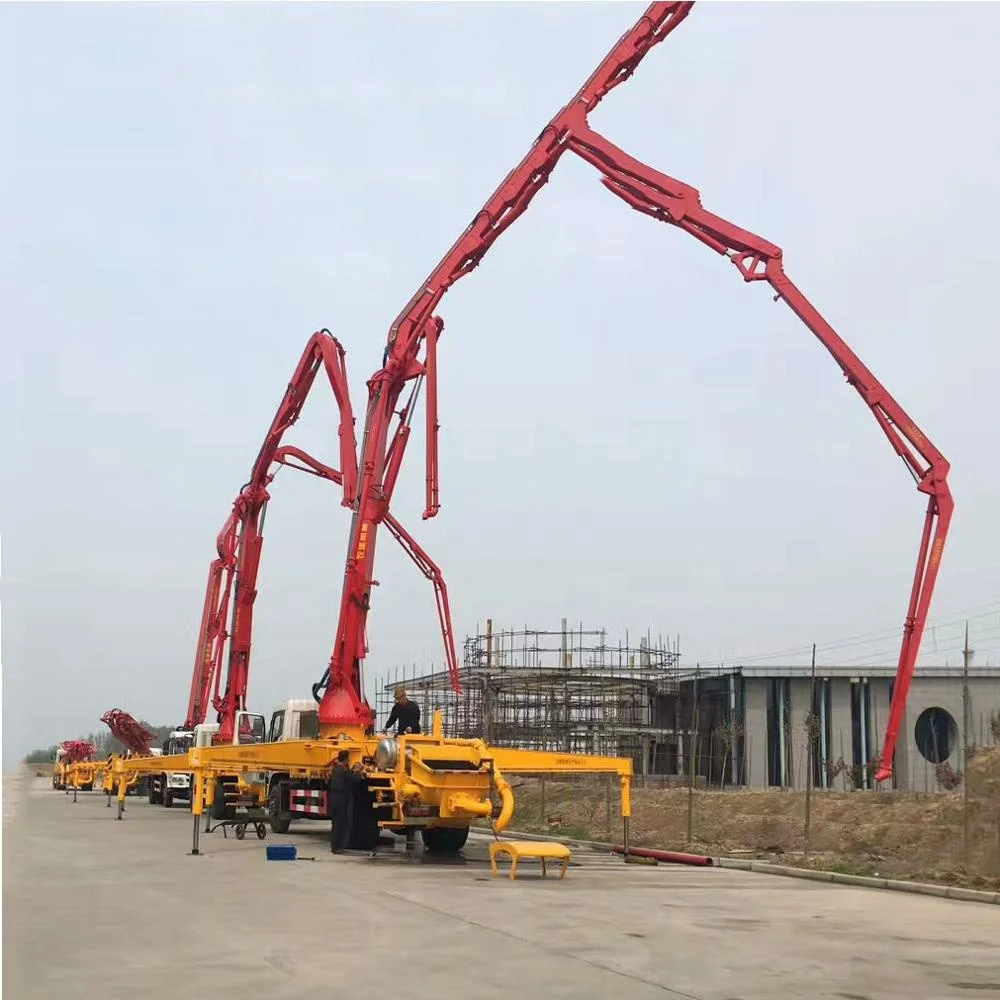

Successful Case
Certifications
About Sanqgroup
Zhengzhou Sanqgroup Machinery and Equipment Co., Ltdare professioanl manufacturer which specialize in R&D, production, distribution and services of concrete equipment. Sanqgroup are located in west of Zhengzhou, the capatial city of Henan province,Covers an area of 45000 square meters with more than 8000 square meters of morden workshop.
- Sanqgroup has absorbed Europe, Japan, the United States and other international advanced technology, with The world's leading batching plant electrical control system we are dedicate to manufacturing high qualtiy, high efficiency and High environmental protection products.
- Our main products are concrete mixing plant, JS series twin shaft mixer, concrete pump,concrete trailer pump and asphalt mixing plant. our products have been exported to Vietnam, Indonesia, Malaysia, India, UAE, Saudi Arabia, Yemen, Algeria, Nigeria, Togo, Benin, Russian, KZ, Mongolia, Chile and Peru etc.have owned favourable reputation in the international market.
Main Products :
Customer Visit :
Our Services
- 24 hours on line sercvice
- Regular after-sale visit
- All after -sale service problem will be solved in 72 hours
- Accessories gloabally supply
- Lifetime technique suport
- Enginnerserve overseas avaiable
