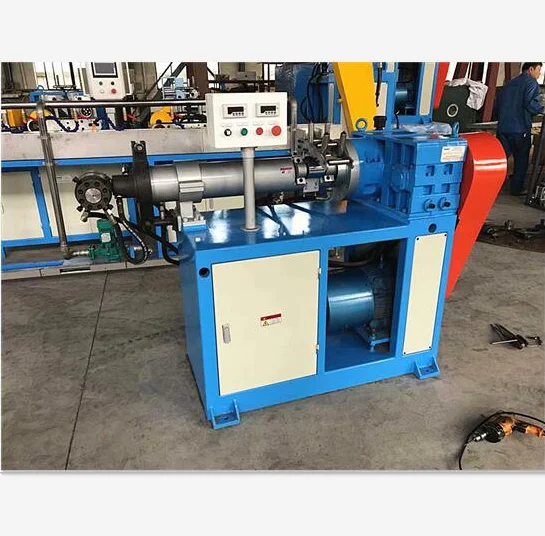

Higher efficiency XJG 75 cold feeding silicone tube extruder / silicone rubber pipe extruding machine

Product Overview

Description

Higher efficiency XJG-75 cold feeding silicone tube extruder / silicone                              rubber pipe extruding machine





Application

It is used for the efficient extrusion as well as continuous and short vulcanization of silicon-profiled bars such as silicon hose,composite silicon hose,silicon sealing strip and so on.The unique design of silicon extruder and successful application of feeding device have promoted production stability,reduced workers' dependence.The screw with high compression ratio and high length-diameter ratio has made extrusion compactness and mixing result much better.The extruded products have characteristics of smooth inside surface and outside surface,bubble-free,stable and unified dimensions.



Features

This kind of silicone rubber extruder adopts advanced screw with variable pitch and depth.The extruder can meet silicone rubber products requirement with synchronous opposite rotating feeding roll and new head.

Silicone rubber can be plasticized fully with high screw compression ratio.Filtering plate can improve uniformity and flow ability of material and decrease the impurities of silicone rubber material.



Main technical parameters

Screw diameter: 75mm

L/D Ratio:  14: 1

Screw speed: 0-55rpm

Material of screw and barrel: 38CrMoAI, Nitrogen treatment

Feeding type: cold feeding with feed roller

Feeding device: very convenient for cleaning materials

Motor power: 22kw, frequency conversion control

Cooling type of screw and barrel: water cooling

Output: 150kg/h

Weight: 1500kg

Overall size(L*W*H): 2200*1000*1520mm



Cold feeding silicone rubber extruder

Our packing way : Export standard wooden package or according to your requirement.



Our Services :

1. We will design,manufacture,install and test the machines according to customers' requirement. Relevant personnel  training for customers,ensure that customers fully grasp the use and maintenance of technology.

2. Our service department  listen to customers' feedback at any time and provide spare parts timely.

 Welcome to visit our factory and we can show you the machine in working condition:



If our products win your interest, please send us inquires and we will provide detailed information for you. We can also make non-standard machines according to your request.
