Electromagnetic Vibratory Feeder for Continuous and Intermittent Operation

Product Overview

Description

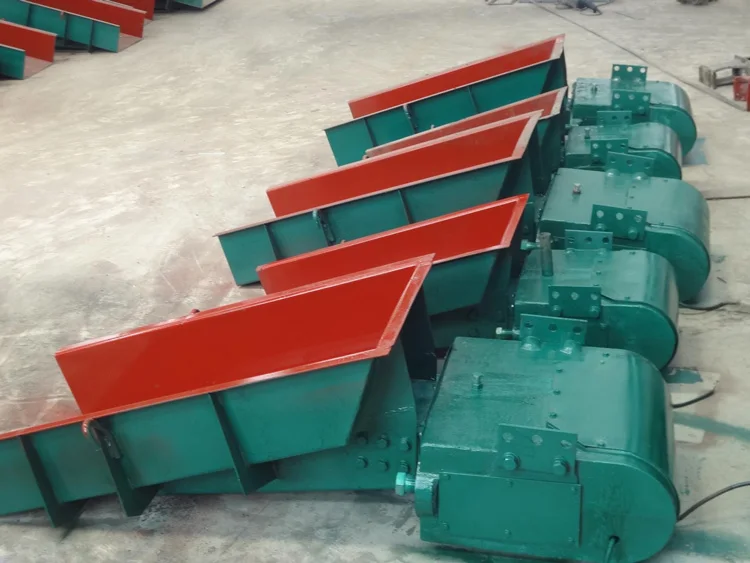

Electromagnetic Vibratory Feeder for Continuous and Intermittent Operation

• Application:

The GZ Electromagnetic Vibratory Feeder is designed for continuous and intermittent feeding of bulk material, e.g. powders, granules and lump. They are especially in different dosing functions, like feeding of belt conveyor, bucket elevator, screening equipment, crusher…

• Technical Parameters:

Type	Model	Capacity (t/h)		Max.feeding size	Amplitude (mm)	Voltage (V)	Effective power(Kw)
		0°	-10°
Standard	GZ1	5	7	50	1.75	220	0.06
	GZ2	10	14	50			0.15
	GZ3	25	35	75			0.2
	GZ4	50	70	100			0.45
	GZ5	100	140	150			0.65
	GZ6	150	210	200	1.5	380	1.2
	GZ7	250	350	250			3
	GZ8	400	560	300			4
	GZ9	600	840	350			5.5
	GZ10	750	1050	500			4*2
	GZ11	1000	1400	500			5.5*2
Closed	GZ1F	4	5.6	40	1.75	220	0.06
	GZ2F	8	11.2	40			0.15
	GZ3F	20	28	60			0.2
	GZ4F	40	56	60			0.45
	GZ5F	80	112	80			0.65
	GZ6F	120	168	80	1.5	380	1.5

• Advantages:

1.     Few moving parts and does not require lubrication

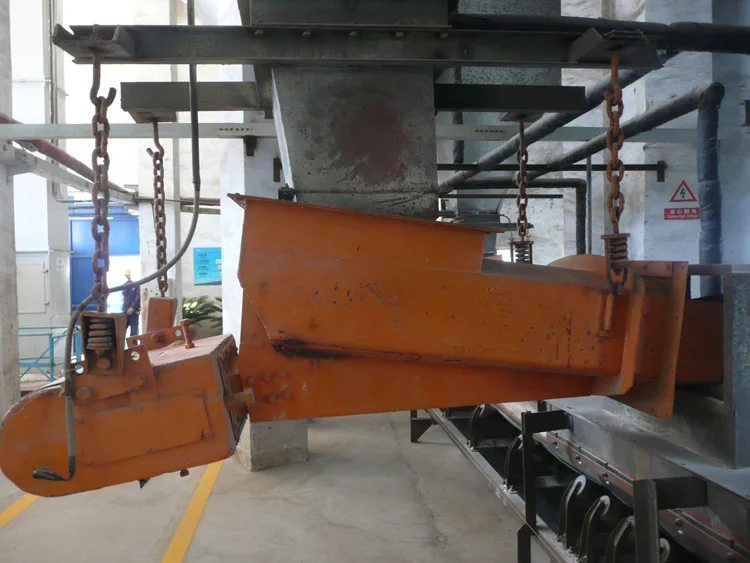

2.     Suspension or base mounting

3.     Drive can be under trough or overhead mounted

4.     Feed rate can be accurately controlled via a controller

5.     Instantaneous stops and starts

6.     Carbon steel or stainless steel trough
