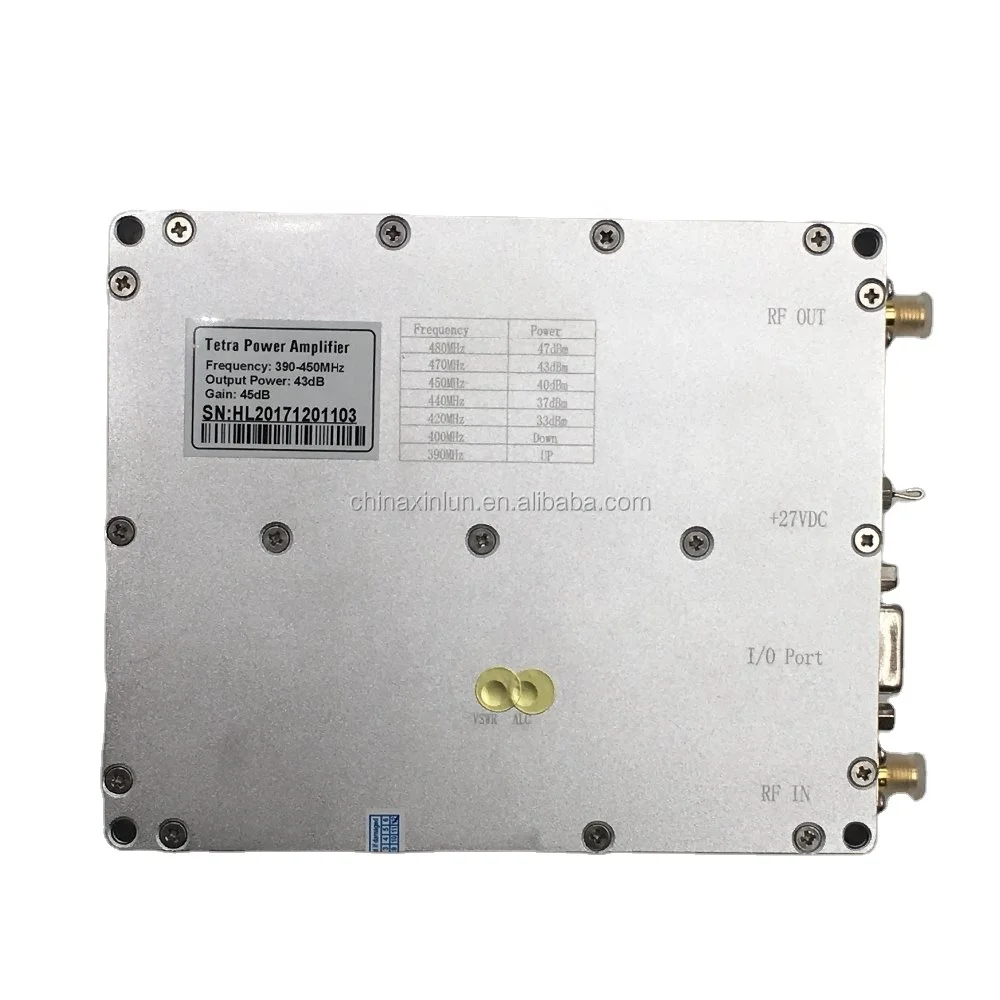

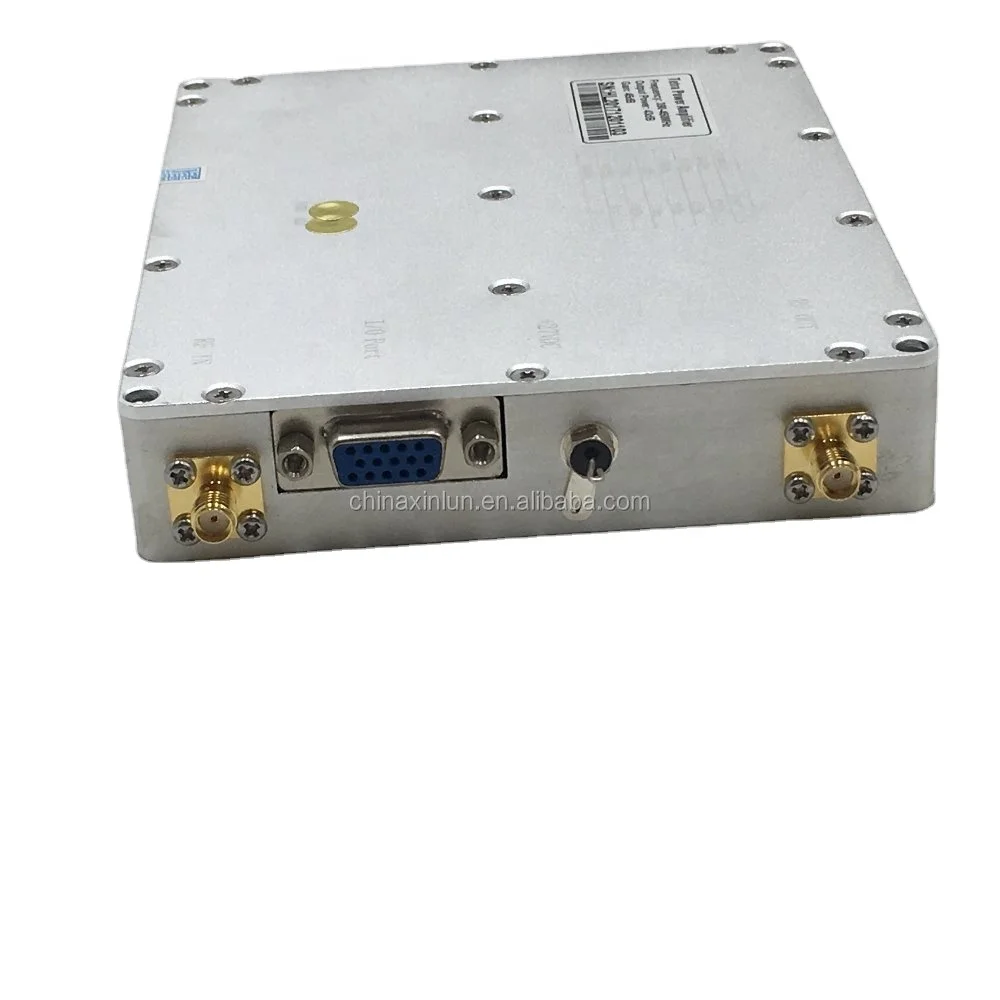

390~450MHz UHF 20W RF Linear Power Amplifier Module
Main Features:
1. High Efficiency, More than 50% Efficiency;
2. Bottom of Red Copper, for good radiation;
3.Shutdown over High-Temperature, over High-VSWR, Over High-Power;
4.Auto Reset after 30second from shutdown of over-temperature, over High-VSWR,Over High-power;
5. I/O Port is compatible with DB15 Serial Port and RS485;
6. Dimension, gain, and Output Power can be cutomized.
Technical Specifications:
Frequency Range | 390-450MHz |
Gain | 45dB |
Max RF Output Power | 43dBm(20W) |
In-Band Ripple | ≤2dB |
Input RF Signal Range | Shuld be 0-5dBm Please make sure that input RF signal range is 0-5dBm, if input RF signal is lees 0dBm, PA will not get enough output RF Power. if input RF signal is more 5dBm, maybe PA will be damaged |
Input/Output VSWR | ≤1.3 |
Working Voltage | 27VDC(27V-28V) |
Working Current | 3.5A |
RF Input/ Output Ports | SMA-Female |
Dimension | 180x90x25mm |
Power Supply Interface | Pull-core Capacitance |
To Monitoring function (DB15,Female) | PIN7: V/L, VSWR (reflected RF Power,Max voltage,4V) |
PIN10:P/L(Output RF Power; Max voltage,4V) | |
PIN11: LE :Enable, High Level: OFF; Low Level: ON | |
PIN14: T/LTemperature:0.02V/1 Celsius ,0.3V for 30 Celsius | |
PIN6, PIN8, PIN9, PIN12, PIN13 : NC | |
PIN15: GND | |
Weight | 1kg |
Operatiing Temperature | -300C~+600C |

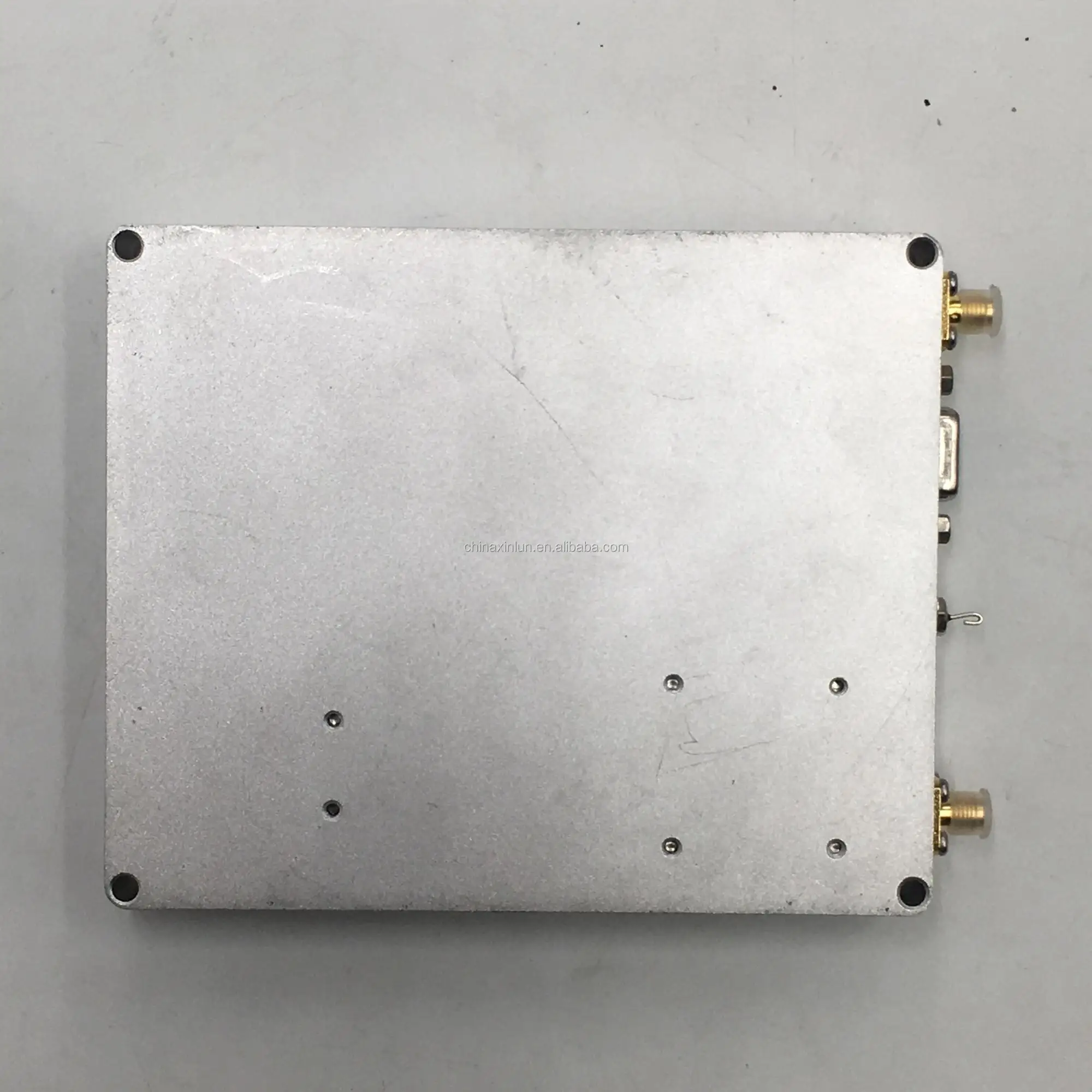

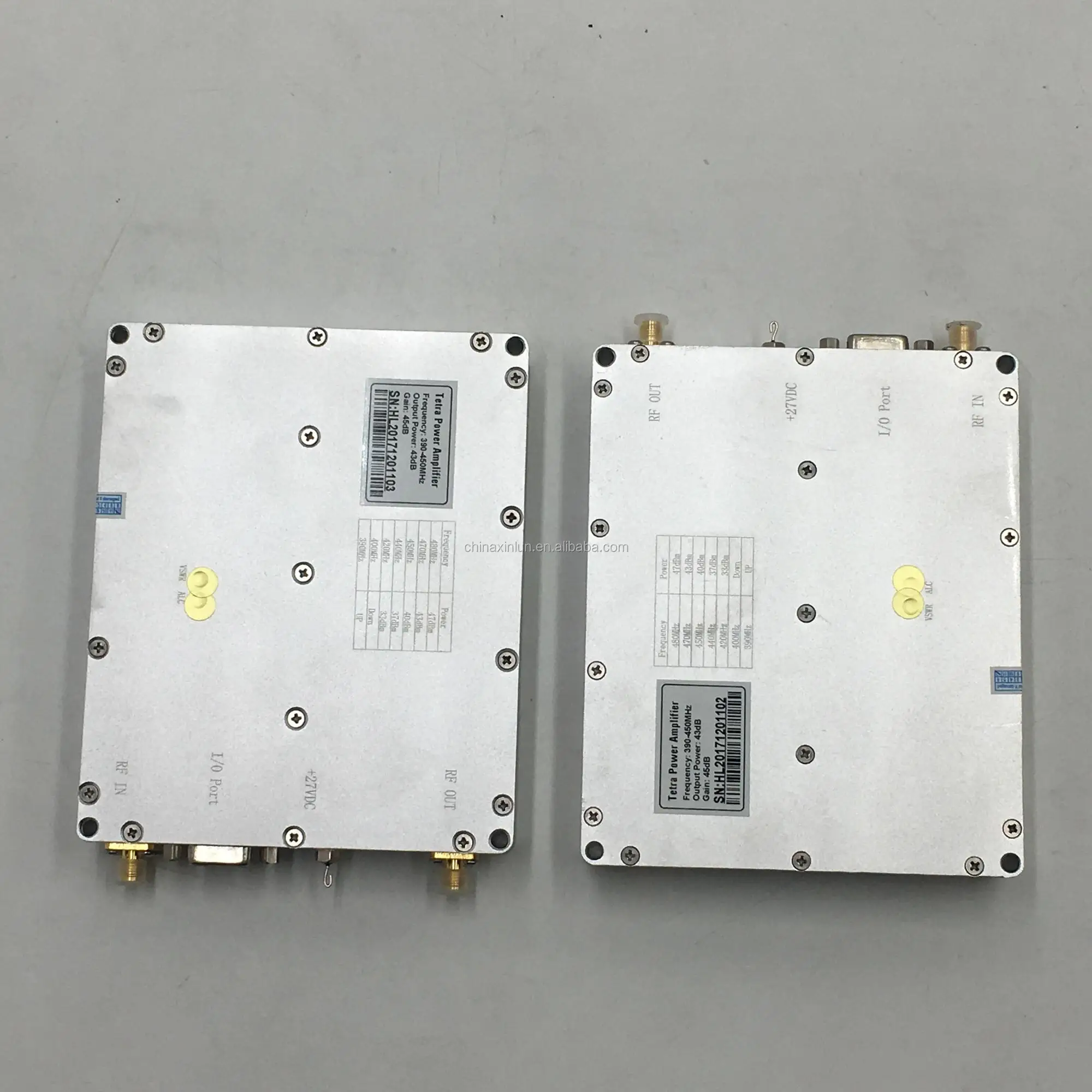

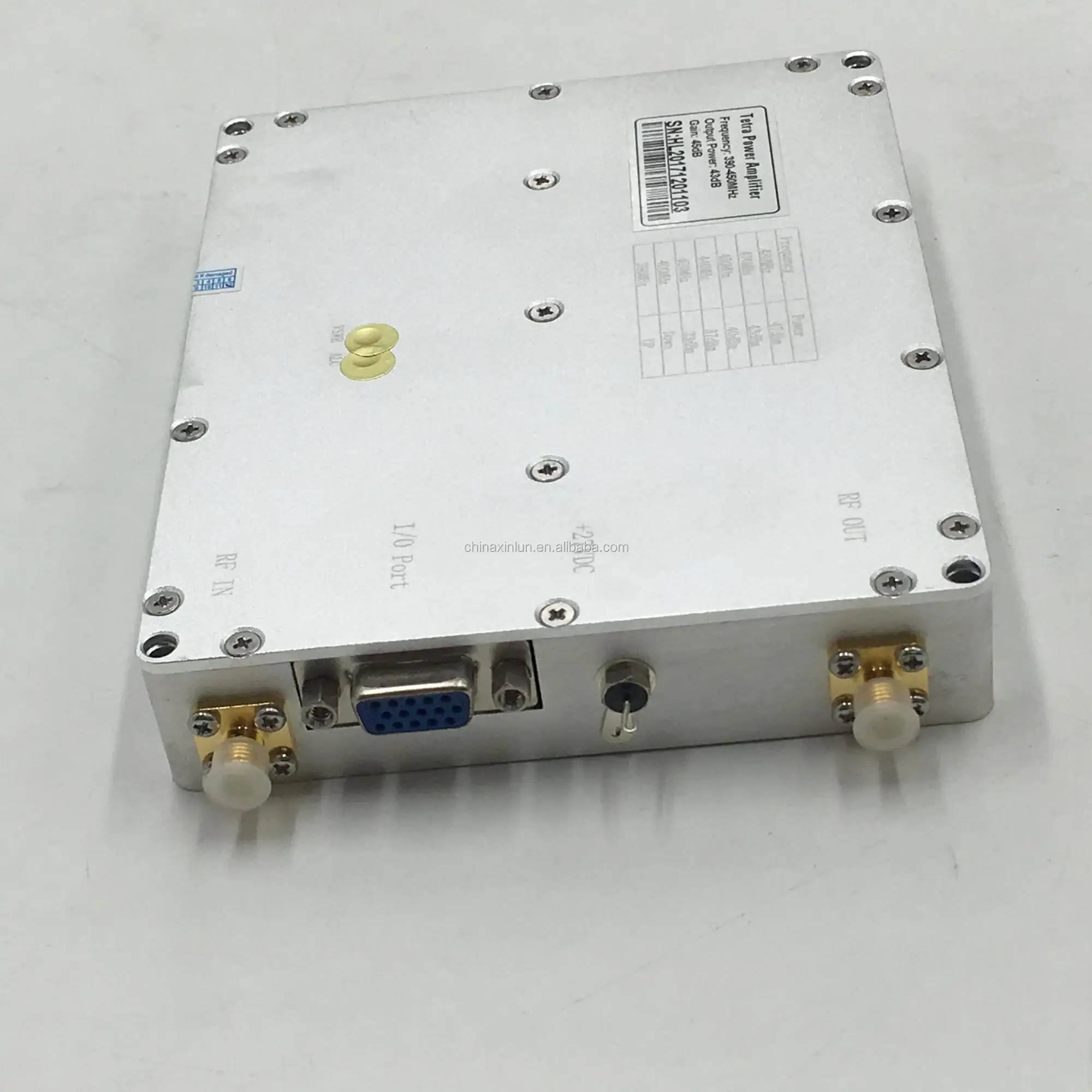

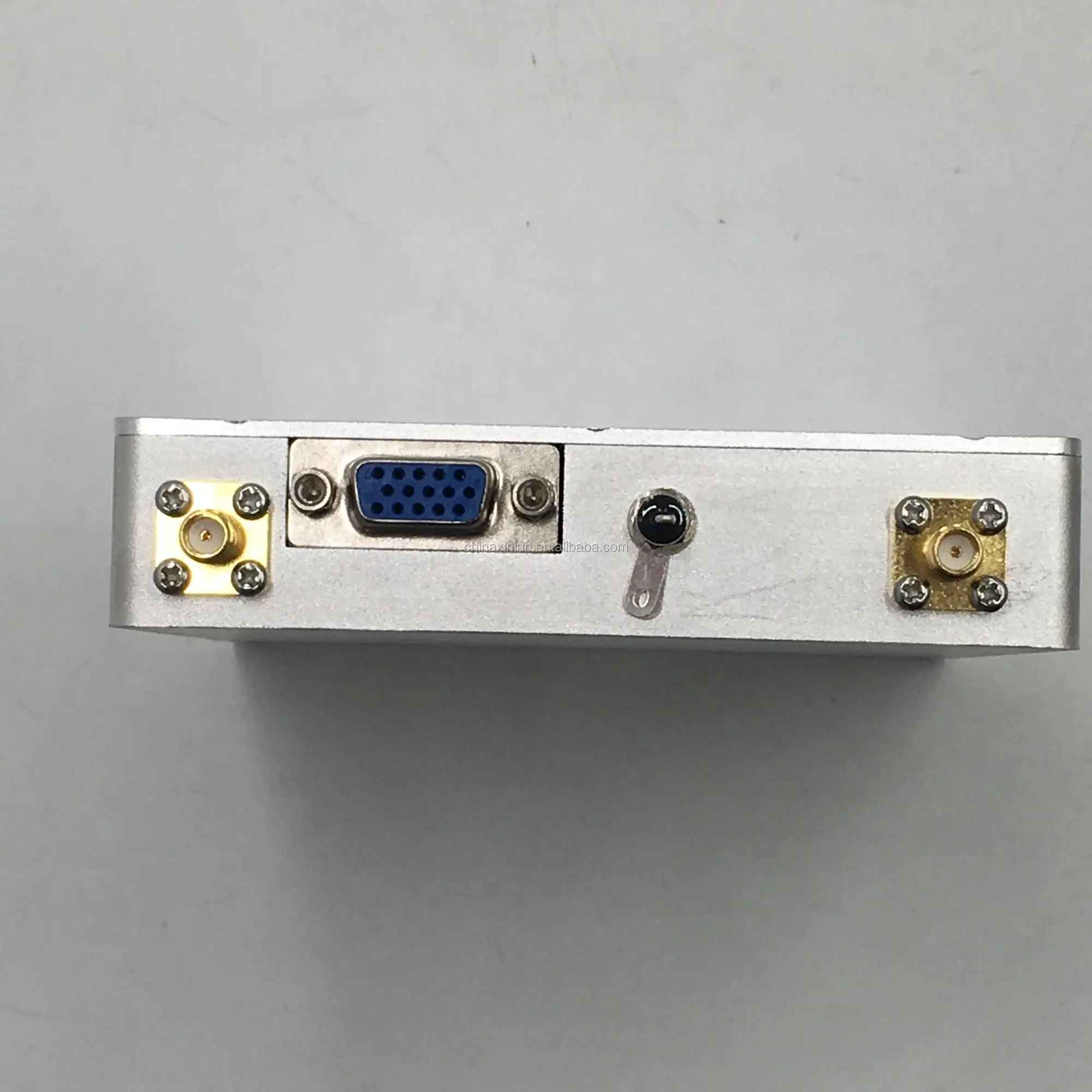

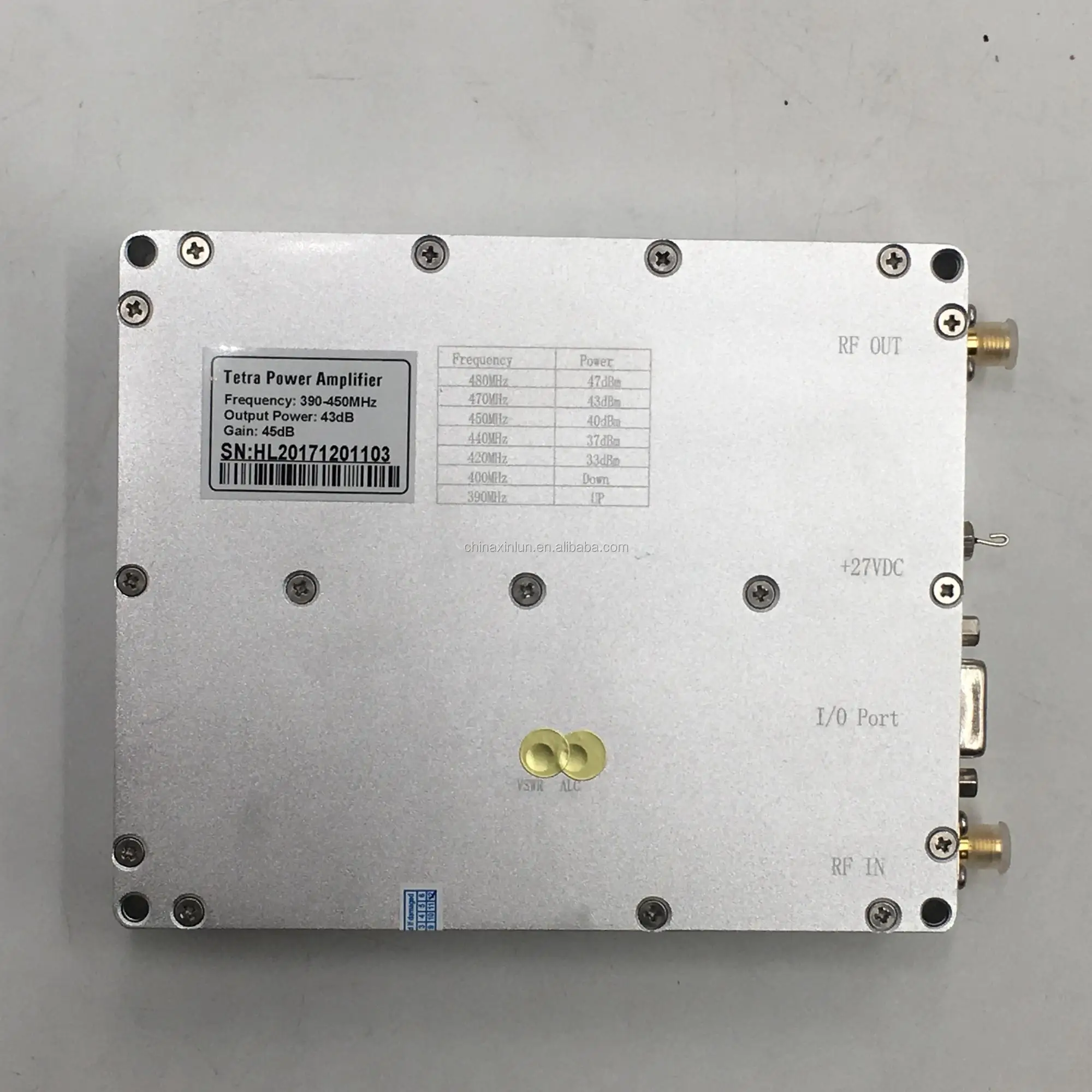

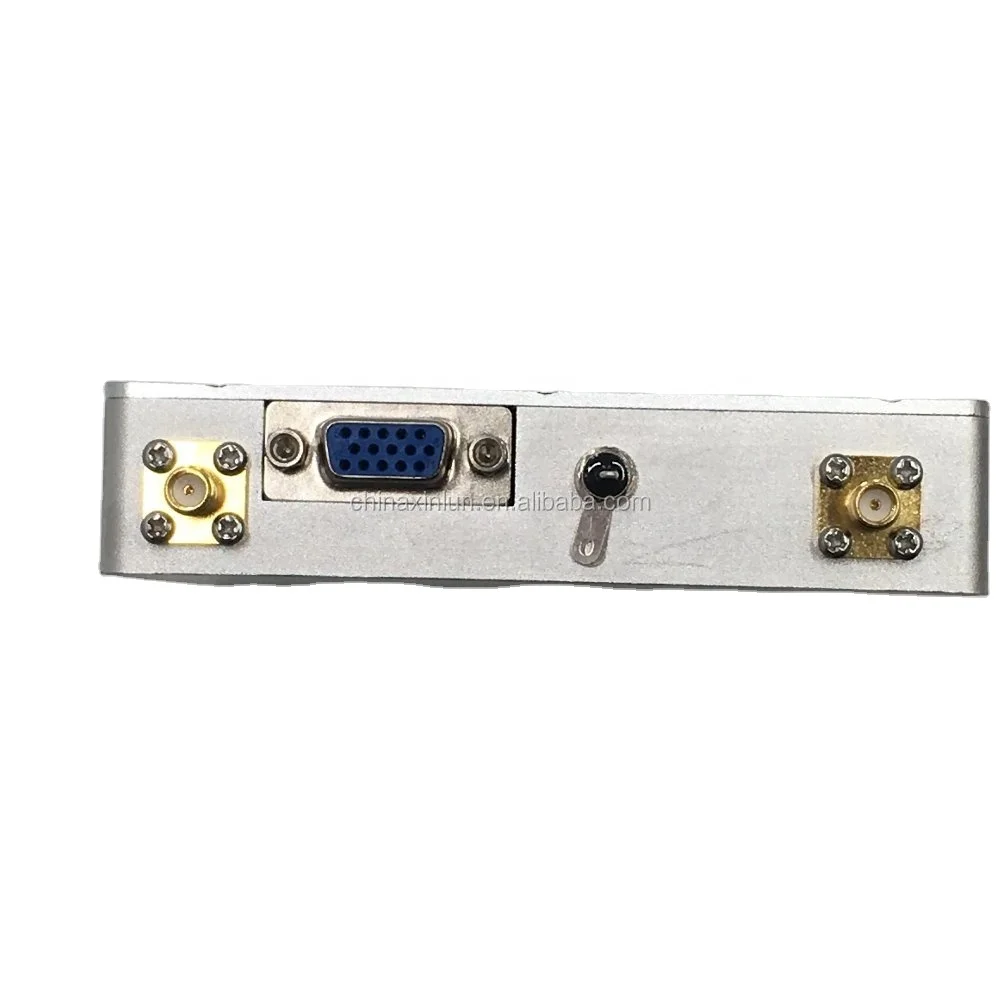

Detailed Images
