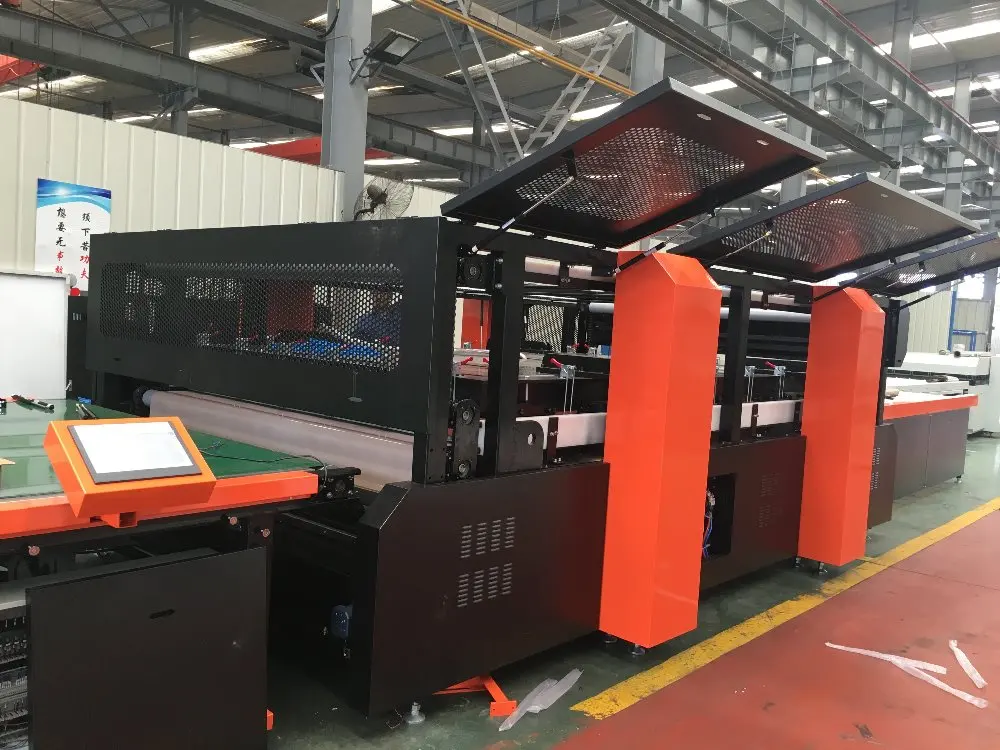

Сияющий 50 мВт полностью автоматическая панель солнечных батарей сборочный конвейер Бесплатная установка бесплатное обучение PV солнечная панель с завода производителя

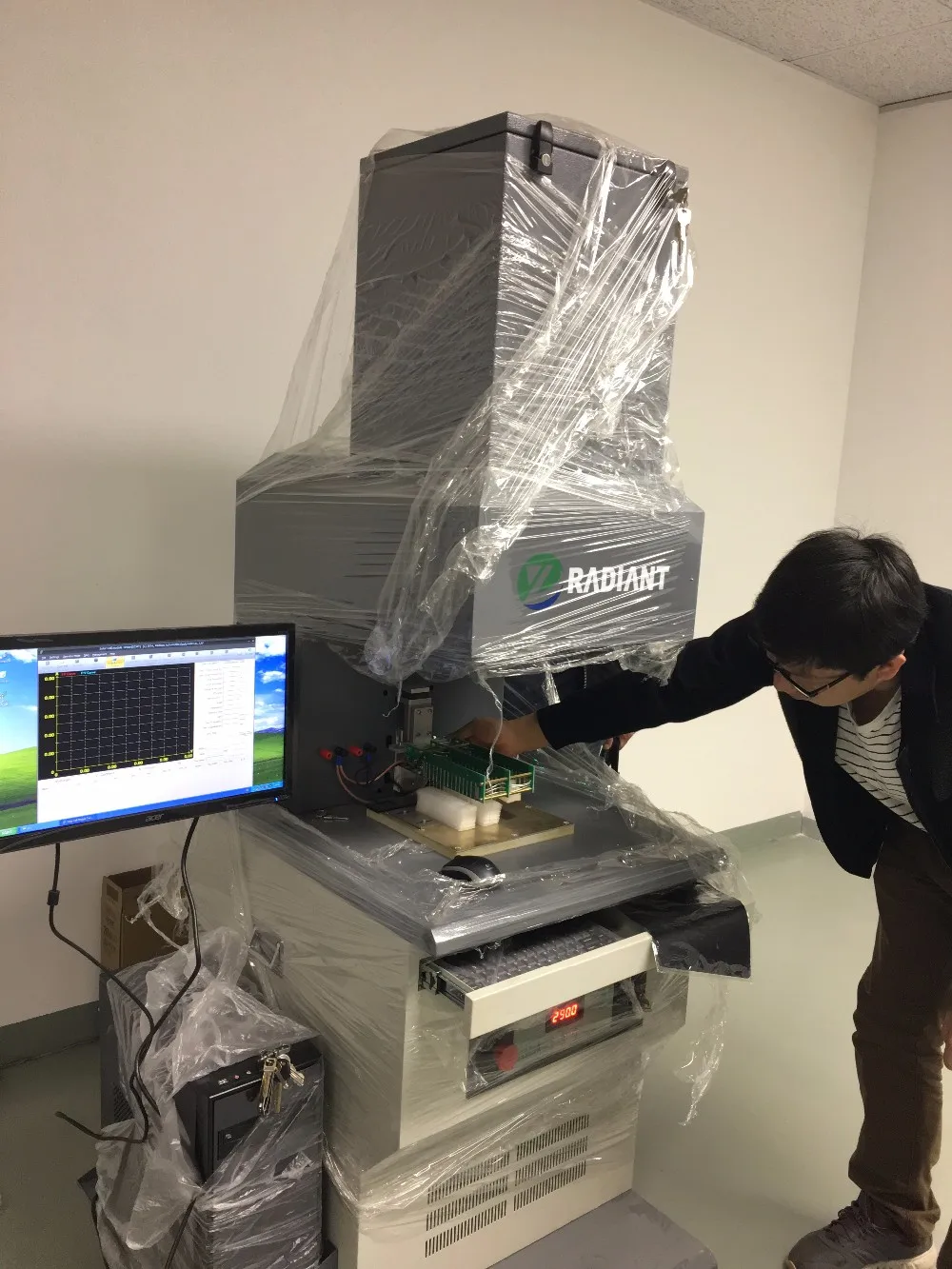

Solar cell tester(cell testing)

Solar Panel Manufacturing Equipment( solar panel machine for manufacturing solar panel)
1Mw ~50 MW turnkey Solar panel manufacturing line is a semi-automatic /Full automatic Line for the manufacturing of solar panels with high quality and efficiency.
This is a good solution for who wants to enter in the industry as a solar panels manufacturer with the strength of extreme flexibility of the line permits an easy, quick and cost competitive upgrade to higher levels of automation and capacities.

Fiber scribing machine(cell cutting)

Modulated frequency: 20- 80 kHz
Beam power: Adjustable, max 20W
Scribing speed: Adjustable,  max 200 mm/ s
Min scribing line width: 0.05 mm
Scribing area: 156mm × 156mm,125mm × 125mm,
CNC worktable accuracy: 0.01 mm
Power supply: 1-phase 220 VAC +/- 10%, 50 Hz (A voltage stabilizer might
be required to avoid irregular scribing quality caused by severe voltage fluctuation).

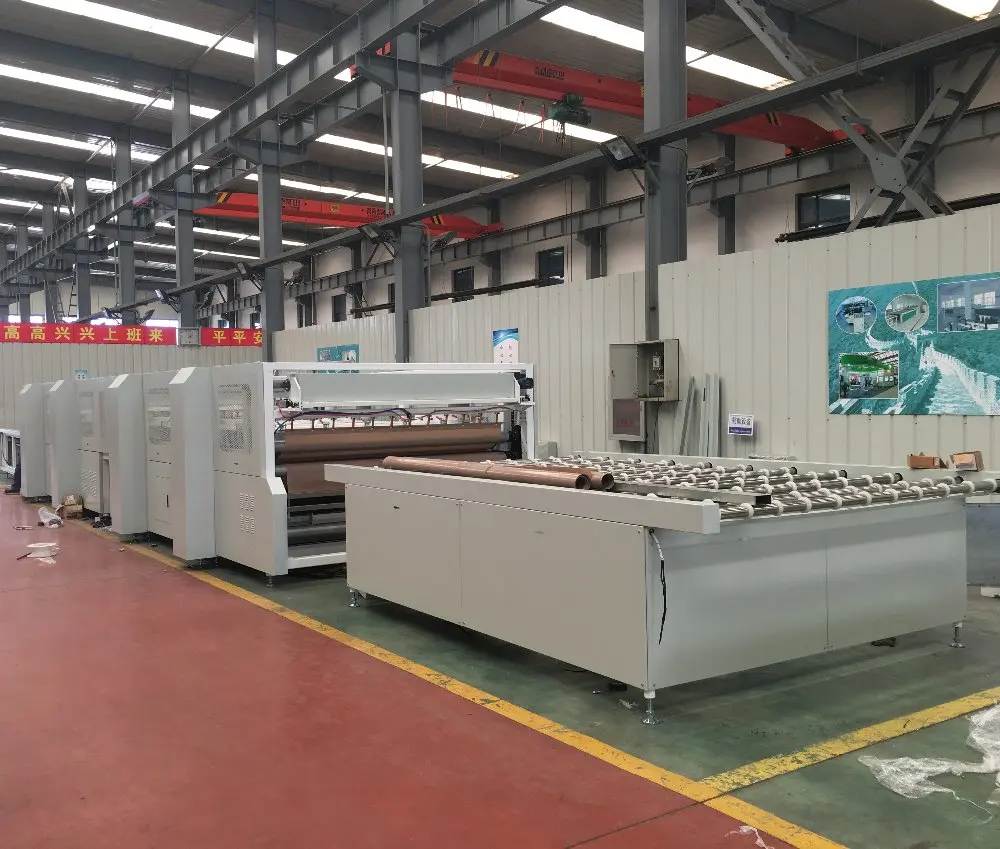

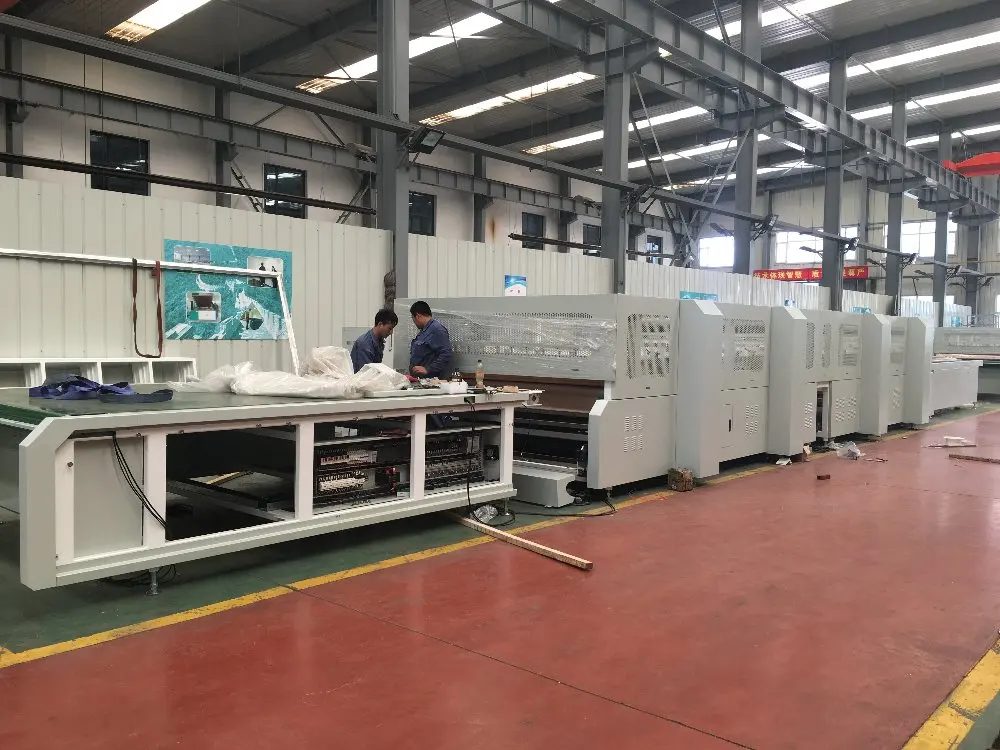

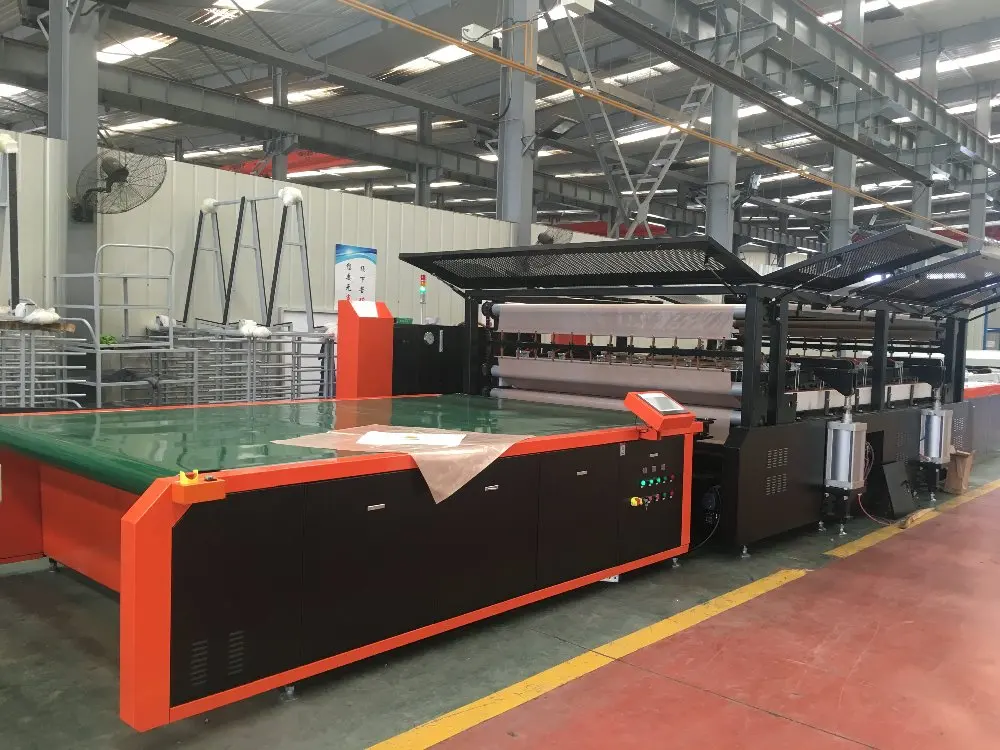

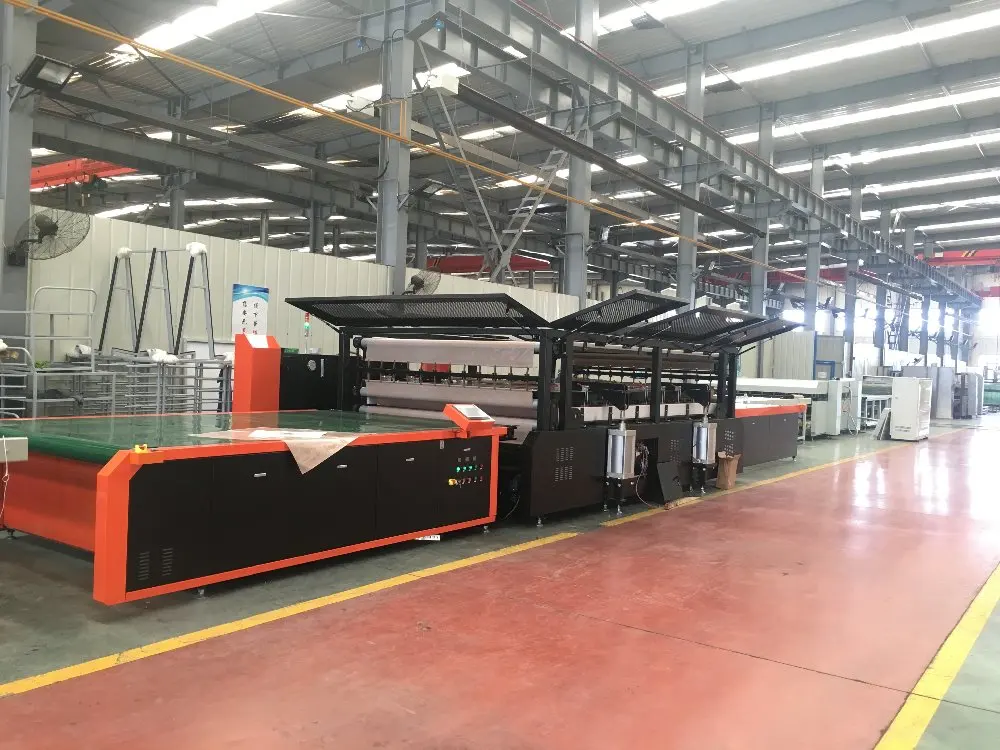

Solar panel laminator(solar panel lamination)

Model\tYDD - 2236\tLaminate area\t2200mm x 3600mm
Dimension \t12000mm ×3200mm ×1580mm\tWeight\t15T
Power supply\t380V 3 phase / 4wire\tPeak power\t75 Kw
Pumping speed\t70L/S\tWork power\t35 Kw
Control mode\tAutomatic/ Manual\tUltimate vacuum\t20 Pa
Heating mode\tSD320 Heat by oil\tTemperature control mode\tPID Control

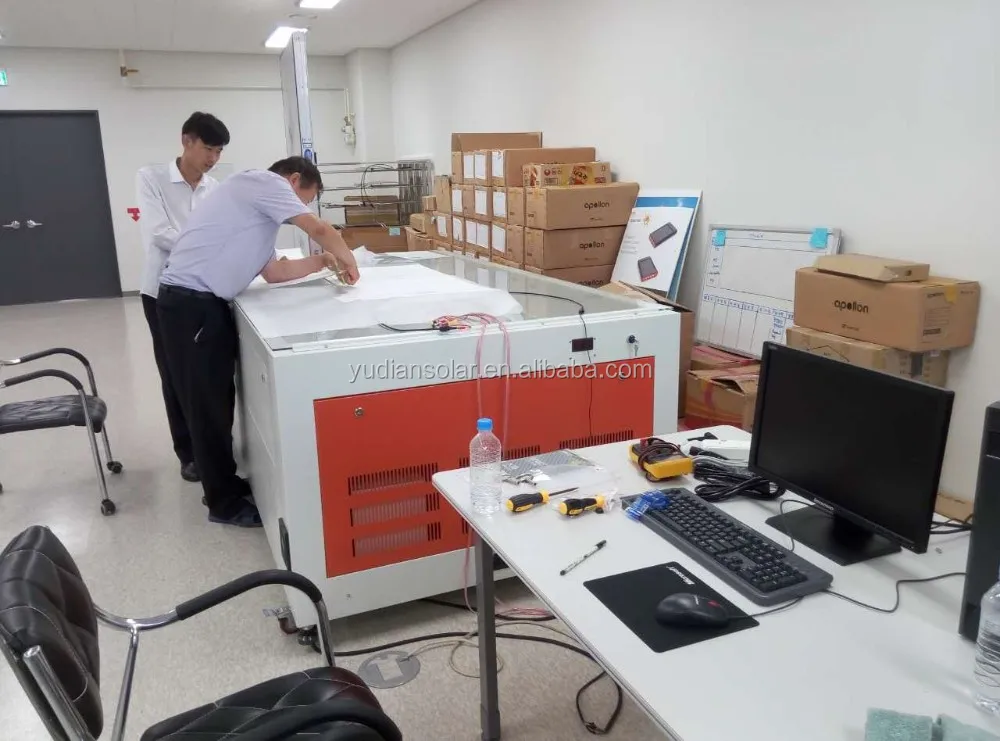

Sun simulator(solar panel testing)

Light Intensity\t700~1200W/M² continuous adjustable
Non-uniformity of Irradiation\t≤3%
Temporal Instability\tSTI≤3%; LTI≤3%
Consistency of Testing\t≤1%
Pulse Width of Single Flash\t10ms
Effective Testing Area\t2000mm×1000mm
Measuring Voltage\t0~100V (resolution 1mV)
Measuring Current\t0~20A ( resolution 1mA)

EL tester(test small crack before lamination)

Sensor type CMOS
Effectivepixel:6000×4000(big),4496×3000(middle),2992×2000(small)
Effective photosensitive area:23.5*15.6mm

Max temperature difference:Environment temperature-35℃
Exposure time:1/250—30s    ISO:100—6400

Input voltage: DC9V(DC201input) Safe range(8V-11.5V)

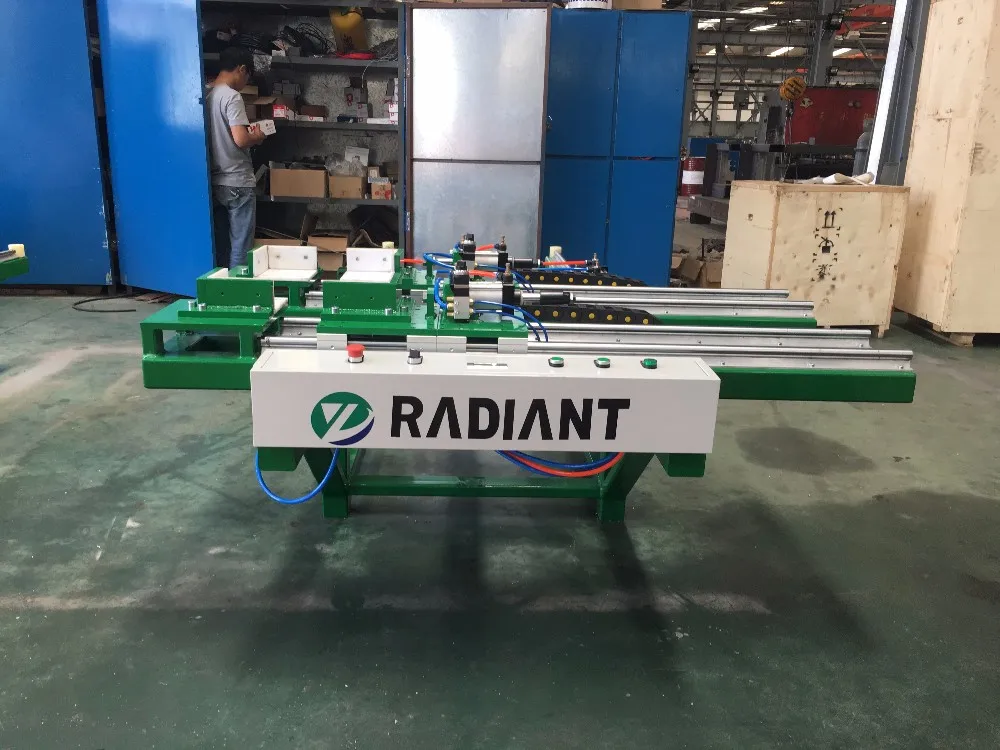

Aluminum framing machine(framing machine)

Air cylinder : Branded

Solenoid valve: Airtac Brand
High-pressure air tube: South Korea imported
Maximum framing size: 2100 * 1100mm
Minimum framing size: 300 *300 mm
Operating voltage: 220V/50Hz
Air source:0.7-0.8Mpa,Air flow:5L/min
Dimensions: 3000*1700*1000mm

Solar cell welding

Aluminum alloy frame 2.High Density working board with 2mm anti-static rubber blanket,4pieces of LED fluorescent lamp

Three working sites,including one site of stringer welding and two site of single welding

With air-bleed system,power socket comes in each working site.

 With tool kit,can be put soldering iron 6.Including 2sets of single heating plate and one set of stringer plate.

Lay up station(EVA,CELL,Backsheet lay up)

1.Aluminum alloy frame

2.18pieces of 300W halogen lamp,5pieces of auxiliary LED fluorescent lamp.

 3.Power:3P,5W 380V(2000W),Peak power:5.6KW 4.Testing voltage:0-100V current:0-10A

 5.Aluminum alloy frame can be adjusted(0-80),better appearance and quality.

 6.Finish current,voltage testing with faster operation.

Mirror inspection station

1.Aluminum alloy frame 2.Mirror can adjusted to ±30 3.Check Impurities and broken after cells laying up 4.Mirror reflection,faster to check unqualified cells.

EVA-TPT cutting station

1.Aluminum alloy frame with Feeding shaft,can cut EVA and also TPT.

 2.8mm glass working plat with 2M steel rule. 3.Flat working plat.

 4.Adjusted screws in feet part. 5.Panels are compression plate,Graduated scale in plate for convenient cutting size. 6.Sliding bearing to chose EVA/TPT,Flexibility is good,here is positioning device and cut EVA/TPT at the same time.

Tote cart

Every kinds of tote cart for solar panel,raw materail transferring
