Большой голубой фильтр для осадочной воды jumbo pp 10x4,5
- Category: Water Treatment Machinery >>>
- Supplier: Shanghai Minipore Industrial Co. Ltd.
Share on (60584401801):
Product Overview
Description
Product Description

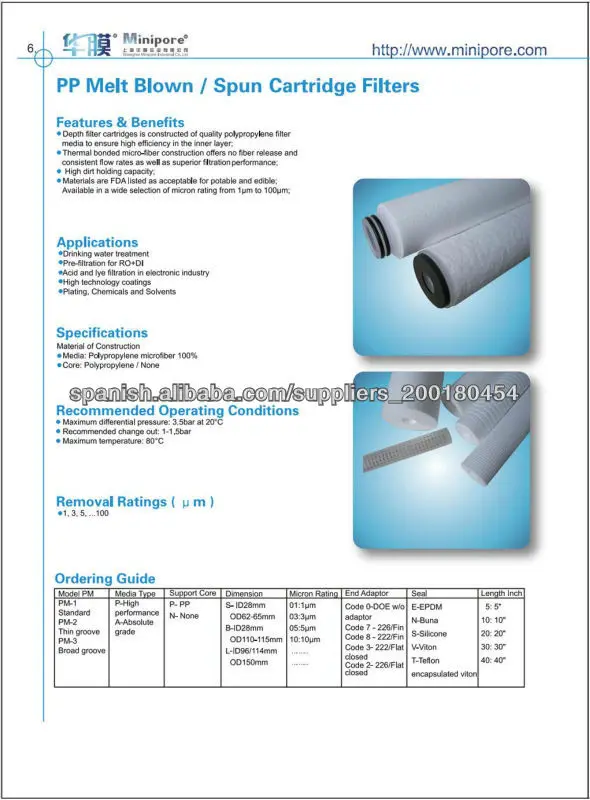

Nominal Rated PP Melt Blown / Spun Cartridge Filters
Features & Benefits
• Surface pore structure spreads water flow to reduce pressure drop
• Continuously gradient pore structure increases the capacity of dust holding, longer service life and high efficiency
• High strength and pressure resistance
• Micro-denier melt blown filtration fiber, high removal ratings
• 100% PP for compatibility with a wide range of process fluids
• Formed by thermal bond without use of any binders and adhesives
High performance pure polypropylene depth dual-gradient density filter media is under highly controlled manufacturing process which guarantees consistently reproducible filter performance. PM-series filters are comprised of an inner compact rated section for exceptional dirt-holding capability and the outstanding performance which meets the highest quality requirements are selected for critical filtration application.
Specification
Applications
• Drinking water treatment
• Pre-filtration for RO+DI
• Food and beverage
• Plating, Chemicals and Solvents
Specifications
• Material : 100% PP microfiber
• Micron rating: 1, 3, 5, 10, ... 100um
• OD. 62-65mm/110-115mm; ID. 28mm
• Length: 5", 10", 20", 30", 40", 50", 60"
Operating Conditions
• Maximum differential pressure: 4.1bar at 20℃; 2.1bar at 60℃; 1.1bar at 80℃
• Recommended change out: 2.0bar
• Maximum temperature: 80℃
Introduction
PM-Series
PM-Series cartridge is able to retain contaminants throughout the entire cross section of the filter. The density increases progressively from the exterior surface to the interior and "graded density" allows larger particles to be trapped near the surface while smaller particles penetrate the larger open areas to be trapped nearer the center of the filter in the smaller
Ordering Guide
Model PM | Media Type | Support Core | Dimension | Micron Rating | End Adaptor | Seal | Length Inch |
PM-1 Standard PM-2 Thin Groove PM-3 Broad Groove PM-4 Cavity Surface | P-High Performance A-Absolute Rate | P-pp N-none | S-ID28mm OD62-65mm B-ID28mm OD110-115mm L-ID96/114mm OD150mm | 01:1μm 03:3μm 05:5μm 10:10μm ...... ...... | Code 0-DOE w/o adaptor Code 7 - 226/Fin Code 8 - 222/Fin Code 3 - 222/Flat closed Code S - Spring Cap | E-EPDM N-Buna S-Silicone V-Viton | 5:5" 10:10" 20:20" 30:30" 40:40" 50:50" 60:60" |
Our Company
Company
Our company
Warehouse
Our warehouse
Shanghai Minipore Industrial CO.,LTD
Is a high-tech enterprise with the integration of research & development, production, application and distribution, since it started to research microporous membrane separation in filtration field in 1990’s, with many years of incessant development, MINIPORE has formed five product categories:
1.MF Series – All kinds of different material microporous membrane pleated precision filter cartridge and various depth filter cartridge;
2.UF Series – PP, PVC, PAN hollow fiber UF membrane ;
3.PP, PE, NMO liquid filter bag;
4.Industrial S/S cartridge & bag style filters, sanitary S/S cartridge & lenticular filters;
5.FRP tank and water distributor;
6.Household water purifier and filter housing;
7.Other water treatment accessories;
Other Filter Spare Parts (Flow meter, Pressure gauge, Pump, Conductivity meter ...)
Packing & Delivery
Packing Details : 25pcs/carton, 50pcs/carton
Delivery Details : 12 days after payment
1. Product production line
2. Prepare to packing
3. Packing product
4. Product in warehouse
5. Product in container
6. Container leave
Exhibition
AQUATECH CHINA , In Shanghai
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
