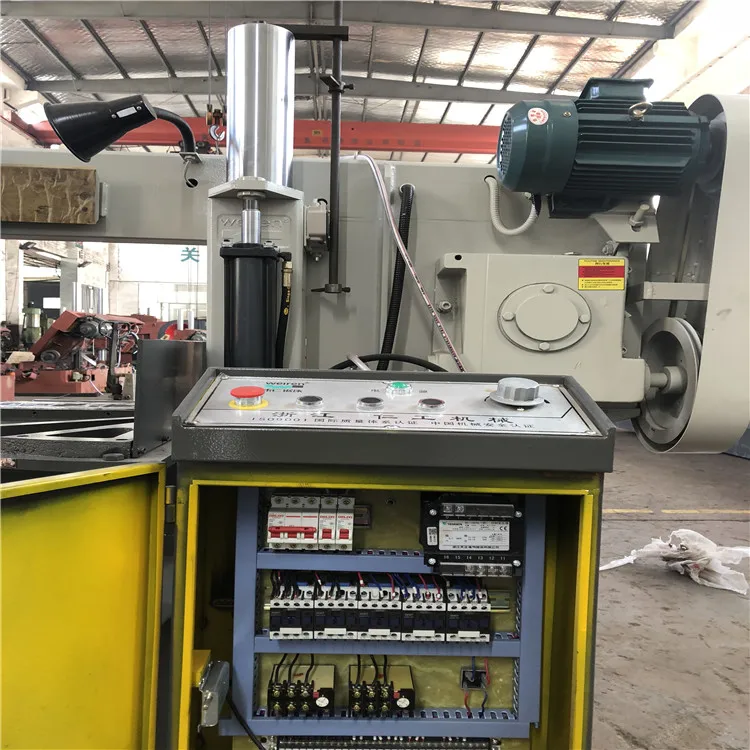

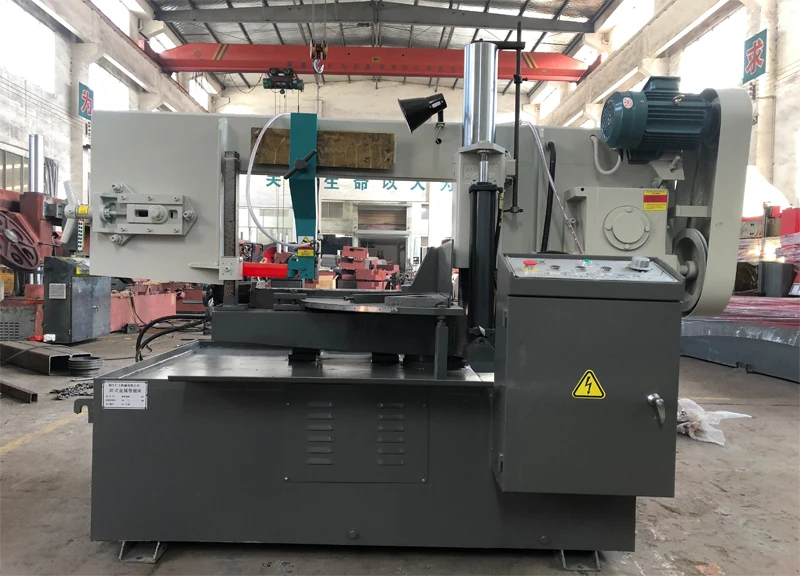

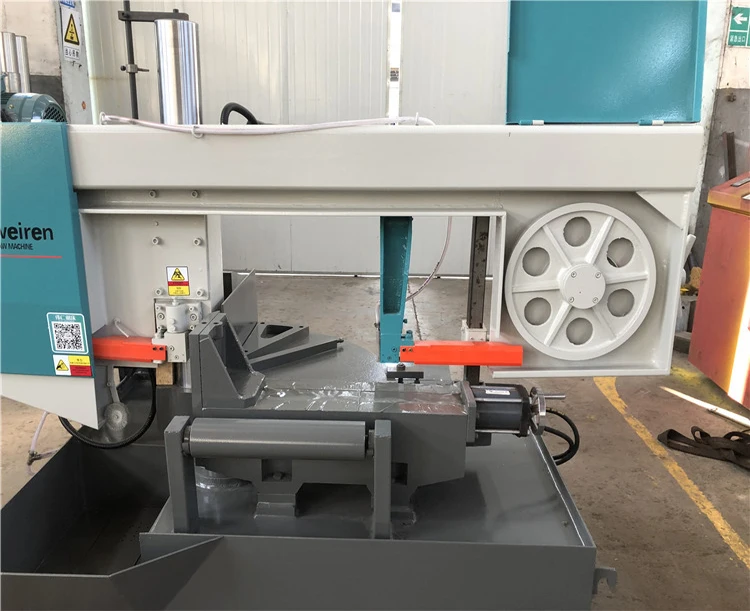

Horizontal Hydraulic Cylinder Metal Industrial Rotary Angle Band Saw Cutting Machine

Model

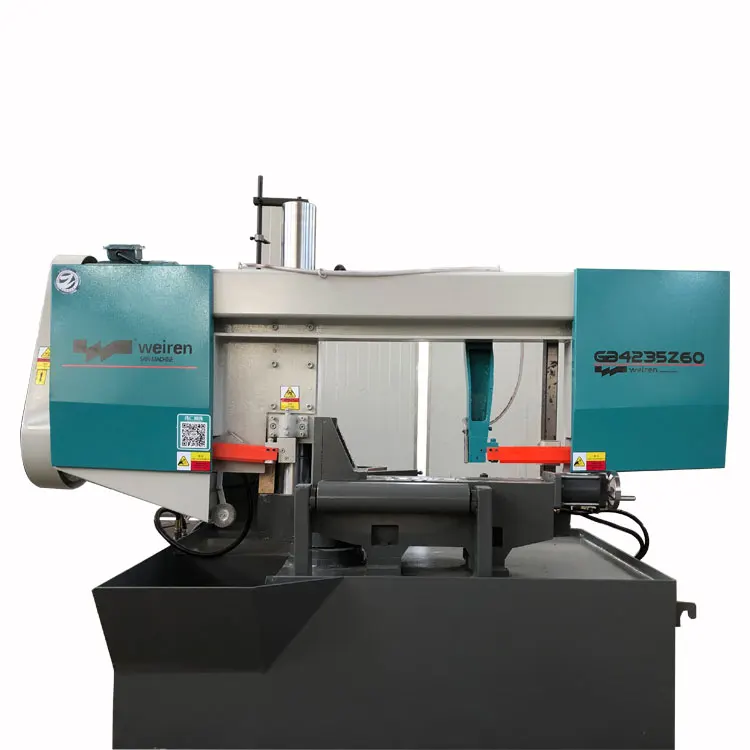

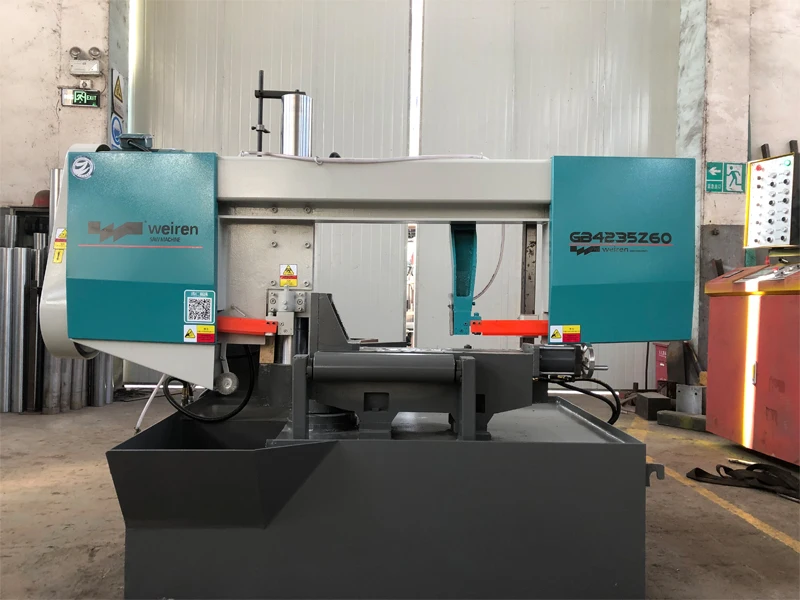

GB4235Z60 Band Saw

Max. Cutting Diameter

Round: 0°  350

mm

Square: 60°  220*220

              45°  350*350

mm

Blade Speed

20.29.58.83

m/min

Blade Size

1.1*34*4500

mm

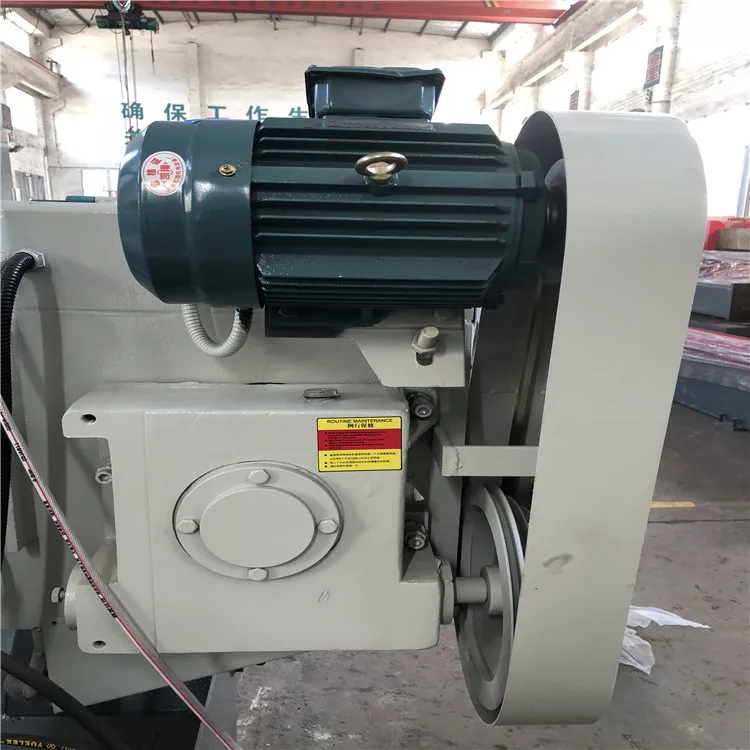

Motor Output

3

kw

Hydraulic Pressure

0.75 For Rotary Angle

kw

Coolant Pump

0.09 For Metal Cutting Machine

kw

Machine Size(L*W*H)

2100*1850*1630

mm

Vice clamping

Hydraulic

Blade tensioning form

Maunal

Feeding cut adjust way

Hydraulic

Feeding way

Manual

Hydraulic cooling way

Water cooling

Chip conveyor way

Manual

Voltage

380V 50HZ 3Phase
