Product Overview

Description


Product Description
Independent research and development,based on German technology

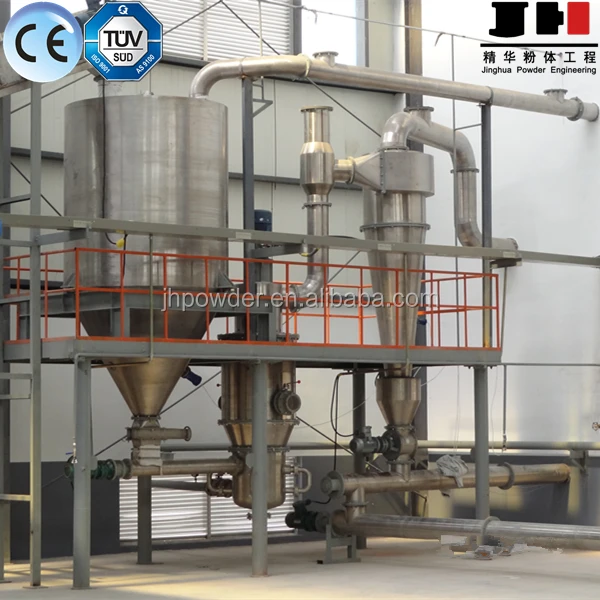

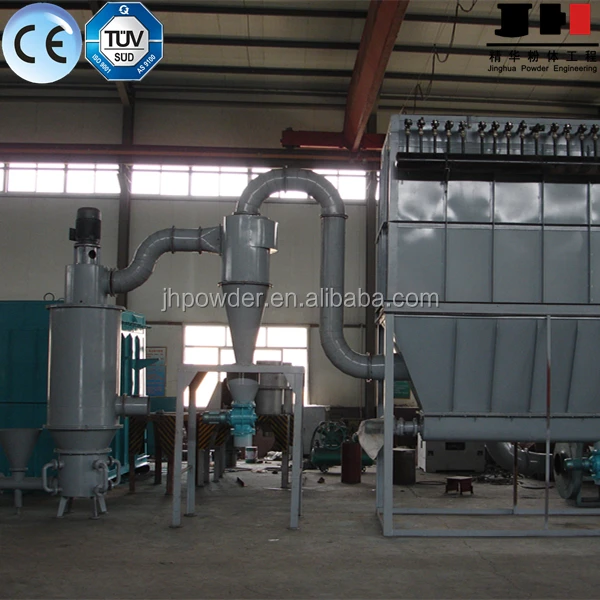

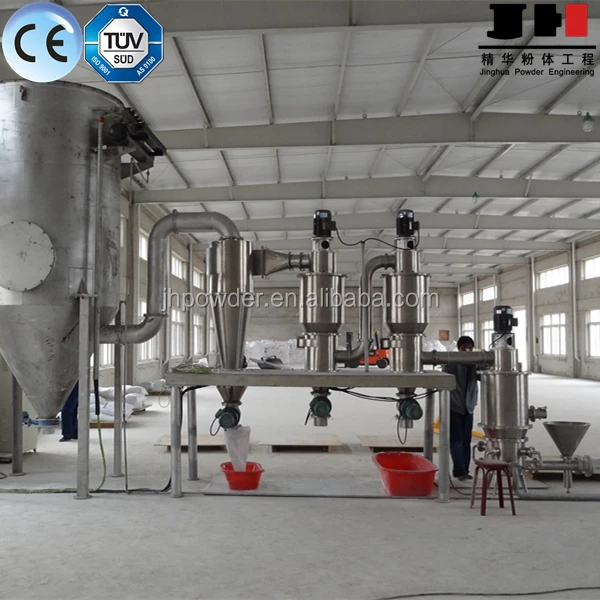

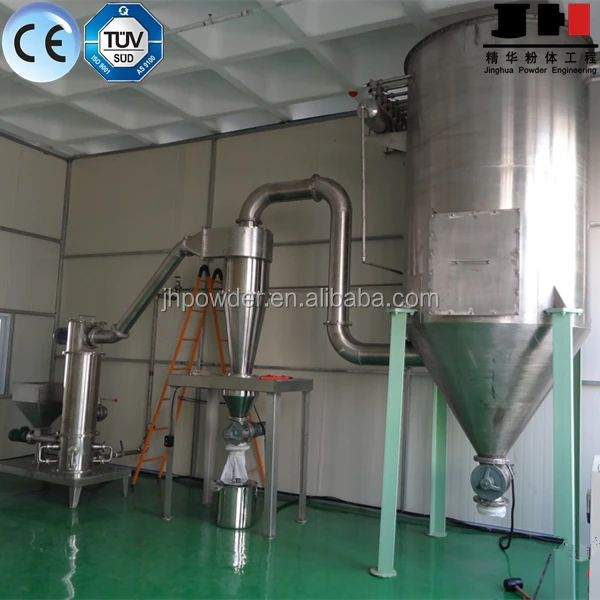

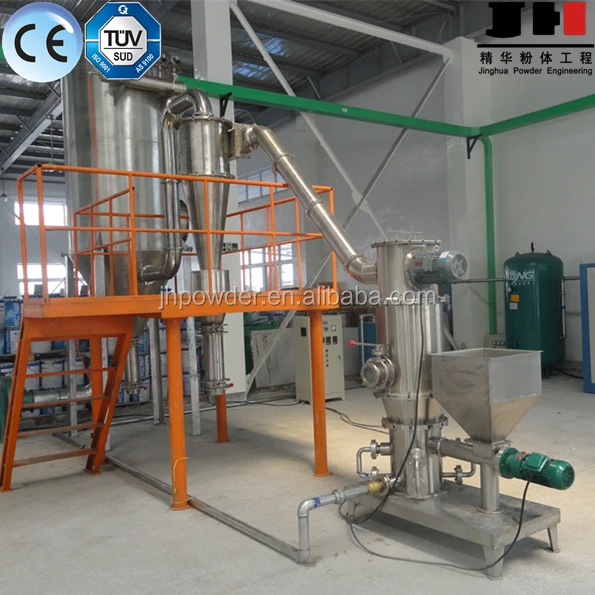

Jet mill

Working principle:
The dried compressed air is sprayed into the grinding chamber through Laval jet nozzle, the materials are crashed at the intersection of airflow , the powdered materials enter into the built–in classifying area with uprising airflow, under the action of centrifugal force from classifying wheel and draught fan, the oversized powder is re-pulverized and the qualified powder is collected by the cyclone and bag filter.
Can be combined with multistage air classifier to get different particle size at one time, the particle size distributed region is very narrow and centralized.

Feature:
1. Superfine and uniform particle size and fineness can be D97=2micron.
2. Build-in turbo classifying wheel is free of over crushing.
3. No heat ,suitable for grinding heat-sensitive and low-melting-point materials.
4. Free from impurity during processing.
5. No rotating device in grinding section, little abrasion and low noise.
6. Compact structure, easy installation and dismantlement
7. Heat-sensitive, inflammable and explosive materials can be ground with inert gases, which can be recycling use.
8. Controlled by PLC, automatic operation.

Application:
Chemicals, pharmaceutical, metallurgy, abrasives, non-metallic minerals, battery anode and cathode materials, talc, kaolin,quartz, graphite, flame retardant, ceramics, pigments and food additives, etc.

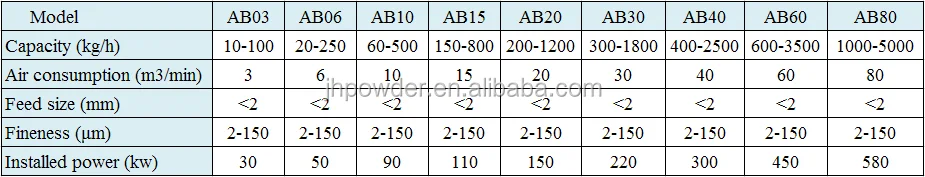

Technical Parameter
Process Flow Chart

1. Feeding system
2. Jet mill
3. Cyclone collector
4. Dust collector
5. Draught fan
6. Electrical control system


  7. Air compressor
  8. Air storage tank
  9. Rough filter
  10. Air cooling drier
  11. Precise filter


Our Service
1.To provide technical advisory services, 1:1 free trial for the customers.
2.Provide technical data,equipment floor diagram,space diagram, installation detailed drawing and electric system drawing,etc.
1.Offer equipment operation manual, installation drawing ,wiring drawing etc.
2.Provide installation guide, commissioning and training at site.
Our Company


Established in 1996, we are one professional manufacturer and exporter that is concerned with design ,development and productionof powder engineering equipment and technology, we are located in Weifang city, Shandong ,with convenient transportation access and nearby to Qing dao port.

Based on our well –equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we have received CE , ISO9001:2015 and ISO14001:2015 certificate.

We have a modern pilot plant equipped with classic complete equipment as well as lots of advanced test instruments including advanced particle size laser analyzer, and offer 1:1 industrial test for fine grinding and classifying materials before purchasing for customer.

Technical support and service:
International leading optimum solution.
Grinding and classifying test
Design, manufacture, turn-key project
Installation and commissioning, technical support, operator training, maintenance
