cameron type ram bop

Product Overview

Description

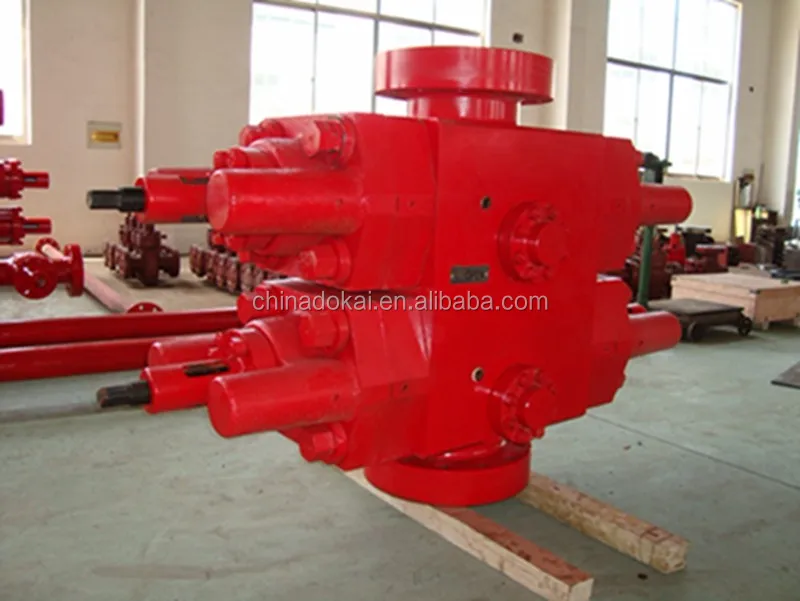

Cameron type ram BOP

The ram BOP can effectively control wellhead pressure to prevent blowout related accidents during drilling and workover operations.

Features

1.When there is a well string, the ram BOP can be coupled with a ram assembly to seal the annual space between the casing and tubing string;

2.When there is no well string, the ram BOP can be coupled with full sealing disc assembly to close the wellhead;

3.When there is a tight type damper control device and the situation is urgent, the ram BOP can be coupled with a shear ram cut tubing string in the well, to seal the entire mouth of the well.

4.In the event that the ram BOP has closed, sealing the well, it can be connected to the outlet side of the choke & choke manifold kill blowout to conduct well washing and other special operations.

5.Upper and lower connection: the upper flange, planted wire, clamp connection; the lower flange, planted, clamp wire connection.

Specifications

Rated working pressure (psi)	2000 - 15000
Nominal Diameter (in)	7 1/16 - 21 1/4
Working Media	Oil, gas, mud
Temperature Level	T20
Lock method	hydraulic and manual
Outlet Side Connection	flange, bolt connection
