All Purpose Industrial Spice Grinder

Product Overview

Description

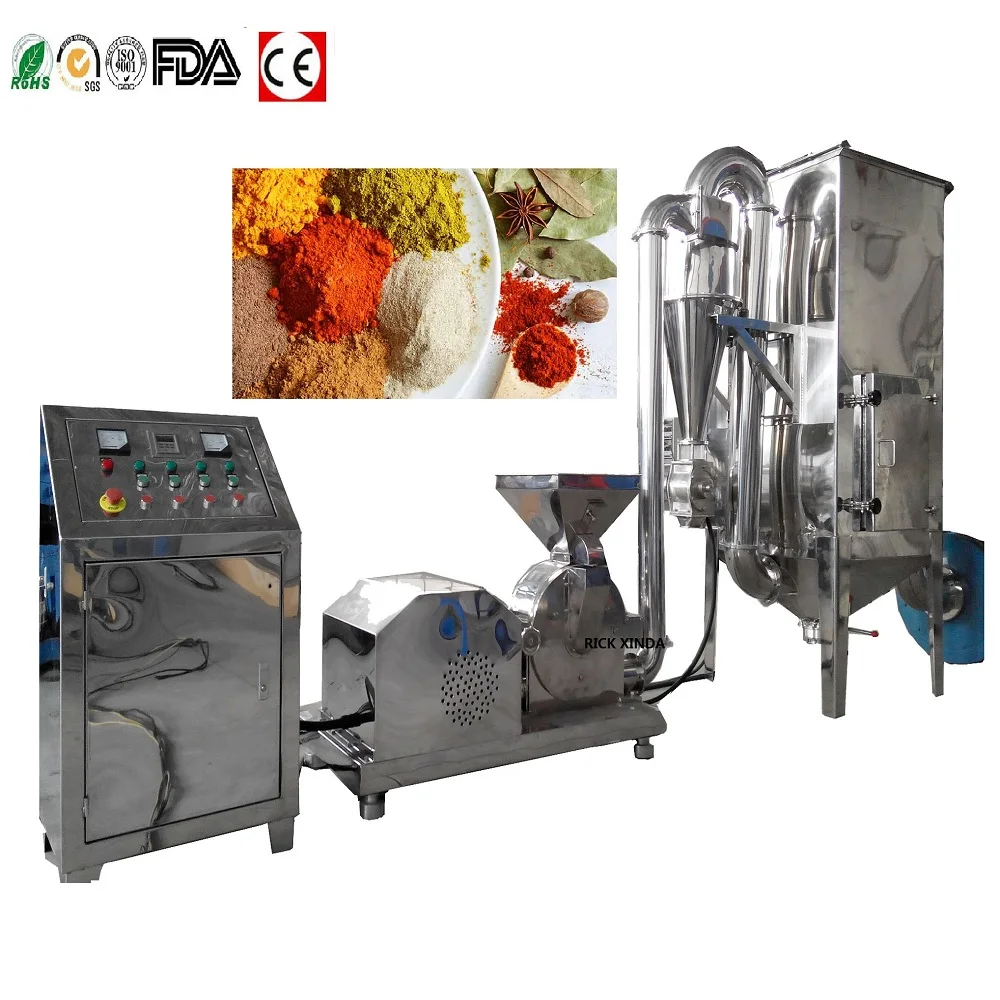

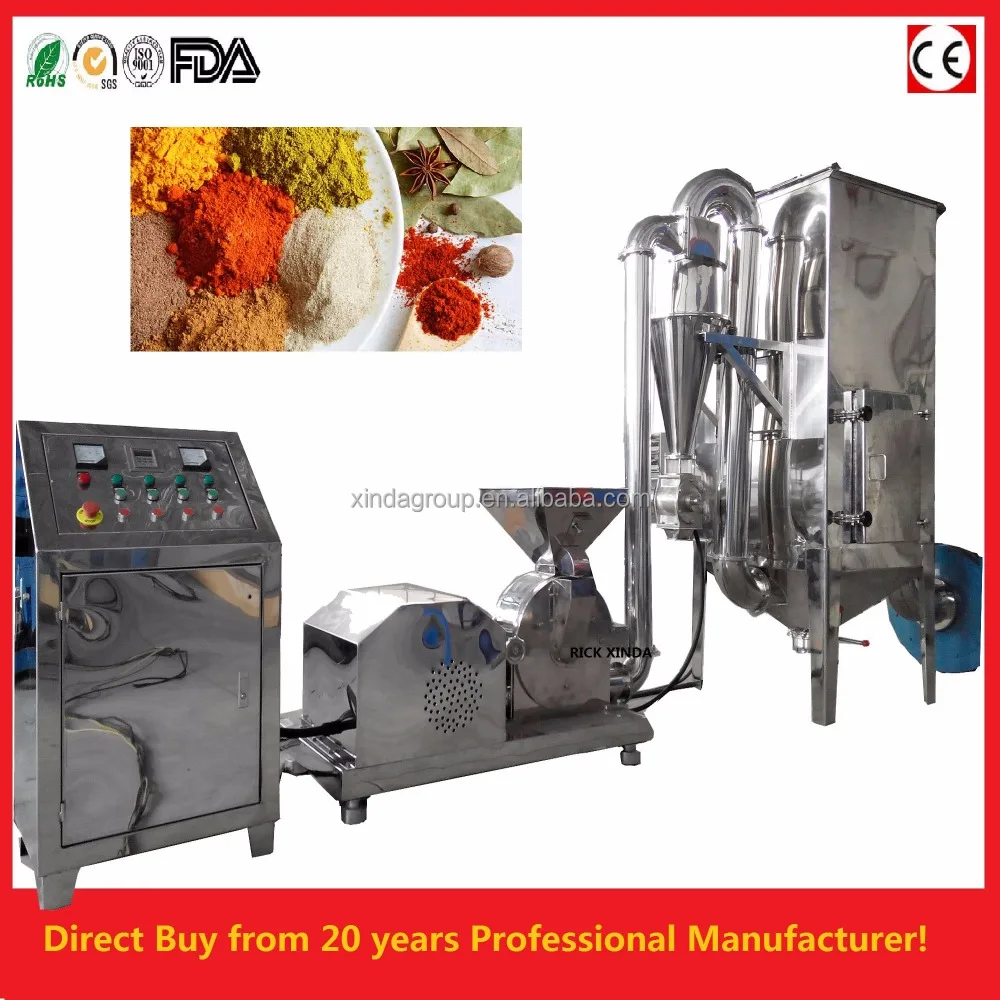

All Purpose Industrial Spice Grinder



Features:

1. Impuse Dust Cabinet

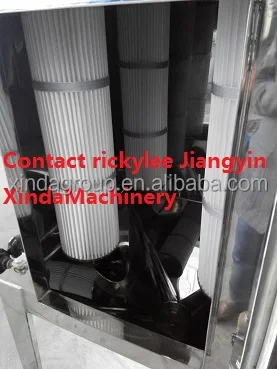

2. PU drum filters

3. Cyclone Collector for continous output

4. Rotary Valve to avoid dust emission at the discharging point.

5. Solid built in stainless steel sus304

6.Mirror Polished inside and outside.



Machine Introduction:

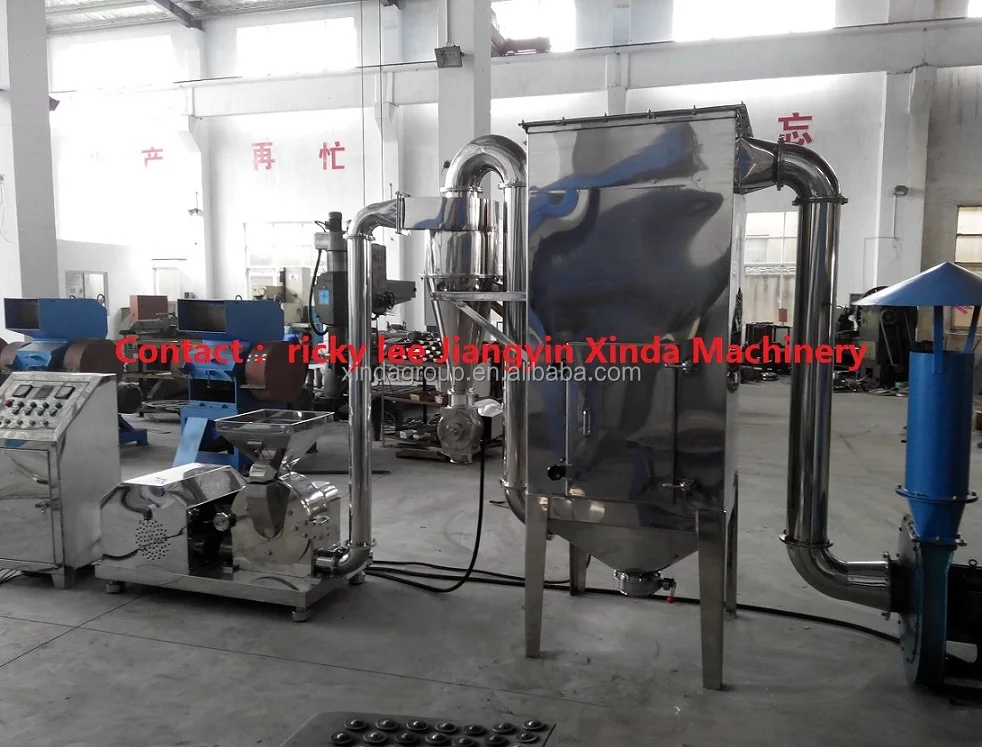

The machine uses the relative high speed movement between the rotary Turbo blades plate and the fixed  blades plate to impact, grind and crush target materials. The size of powder can be achieved by changing screens with different mesh sizes. Under air blower vacuum air pressure, the crushed powder will be led and collected and discharged continuously through cyclone air locker, while dust will be led into dust collecting room and filtered by cylinder filters inside, the dust can be reused. The machine has the features of easy structure, solid, stable running and good efficiency with water cooling jacket.


The whole machine is made of stainless steel sus304 with smooth inside mirror polished walls to avoid powder accumulation on the inside walls. Those pharmaceutical, chemical and food stuff products from the machine are in accordance with national requirement, achieving GMP standard.



Model	20C	30C	40C	60C
(kg/h)Capacity	20-200	50-350	80-600	120-800
(mm)Size of input granules	≤6	≤6	≤10	≤12
Fineness of products(Mesh)	12-120	12-120	12-120	12-120
(kw)Crush power	4	5.5	11	22
(kw)Dust Absorption power	2.2	3	4	5.5
(kg)Weight	580	900	1200	2000
(mm)Overall Size(L×W×H)	2800×850×2300	3200×850×2300	3500×900×2420	3850×1100×2480
