Product Overview
Description
Product Description
VLP1325/1530 Industry and Materials of CNC Plasma Cutting Machine
1.Welded lathe bed of thick profiled steel, more solid and stable.
2.Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath.
3.Advanced material inclined discharging design.
4.Support FASTCAM nesting software such as the standard G code path generated file can also be read by software conversion software such as AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
2.Perfect lathe table design, 10mm steel plates fixed on lathe table covered by cast sheath.
3.Advanced material inclined discharging design.
4.Support FASTCAM nesting software such as the standard G code path generated file can also be read by software conversion software such as AUTOCAD generated DXF formats. U disk exchange control system processing files, easy to operate.
5. Professional HVAC software CAMDUCT, have all the shapes of ducts
Detailed Images

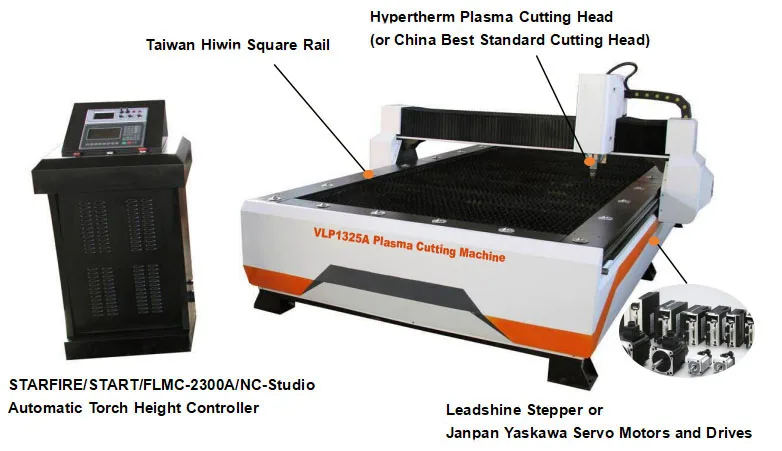

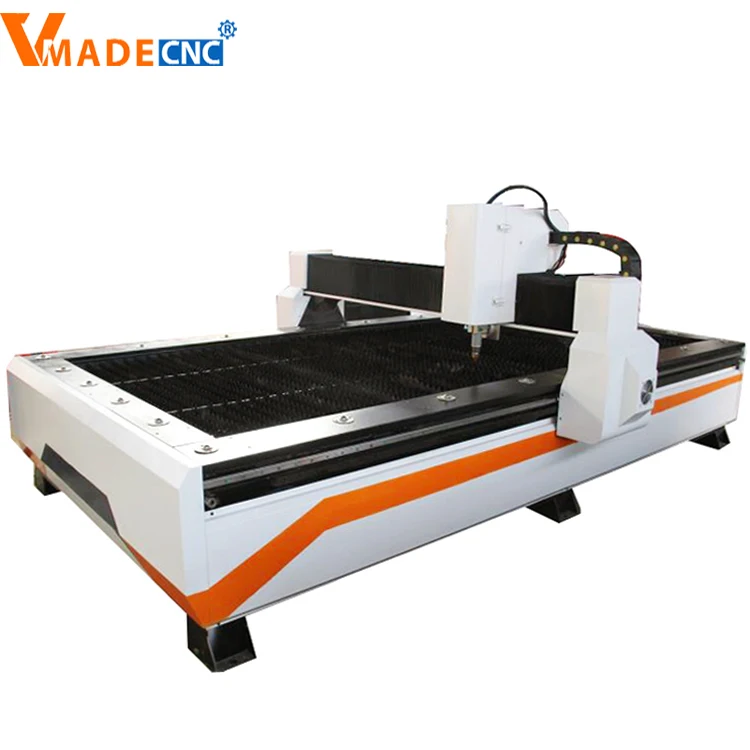

Machine Look
Cars, motorcycles, pressure vessels, chemical machinery, nuclear industry, general machinery, engineering machinery, steel structure, shipbuilding and other industries.
USA Hypertherm Cutting Torch
Option:water cooling can avoid the paste and roll edage by fast cutting speed for thin sheet , less than 2mm, then ensure the good cutting performance.
USA Hypertherm 65A power
the Max quality cutting can be 12mm sheet , its cutting thickness same as China HUAYUAN 100A power source.
Panasonic Servo Motors&Drivers
Original Japan Panasonic Servo Motors 400W for X,Y,Z Aixs.
Controller Panel
STARFIRE/START/FLMC-2300A/NC-Studio control system all is ok, Chinese /English /RUSSIAN/Spanish/French/Czech etc.version for choose.
Height Controller
HYDTHC-4H automatic torch height controller,the torch can up and down with automatic regarding the sheet radian.
Industry Guide Rail
China TAIWAN HIWIN P20 Guide Rail,Square rail to make machine higher precision faster cutting speed ,more better cutting performance.
Machine Table
The industry special saw blade machine table.Machine weight:1500Kg
Industrial oil filling system
The manual oil injection, it is can maintain machine cutting accuracy.
Product Paramenters
Model | Plasma Cutting Machine |
Working Size | 600*900mm,1200*1200mm,1300*2500mm,1500*3000mm,2000*4000mm |
Repeat positioning accuracy | +-0.05mm |
Traveling Speed | 0-24000rpm/min |
Cutting Speed | 10-15mm/min |
Transmission model | Gear Rack Drive |
Transmission System | X,Y Axis Taiwan Hiwin High-precision, Zaro Clearance increased, Linear guide+rack |
Operation System | START or DSP with USB Interface |
Drive | Stepper, Leadshine-Stepper,YASKAWA or Pansonic |
Plasma Power Supply | USA Hypertherm or China best HUAYUAN |
Cutting thickness | 0.1-30mm(different power cutting different thickness) |
Cutting type | Plasma/Oxy[-acetylene or Propane |
Input Voltage | 3 phase ,220V/380V+-10% |
Model of file transfer | USB Interface |
Guide Way | Imported square rail |
Table-board | Steel blade saw tooth mesa |
Straight line positioning precision | +-0.2mm/10m |
Straight line positioning precision | +-0.3mm/10m |
Environmental Temperature | -5~45℃ |
Humidity | <90% NO concreting |

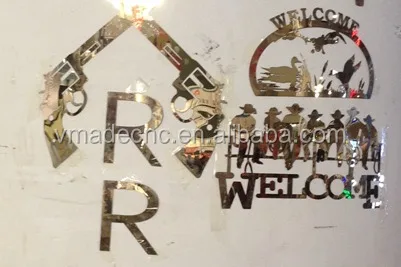

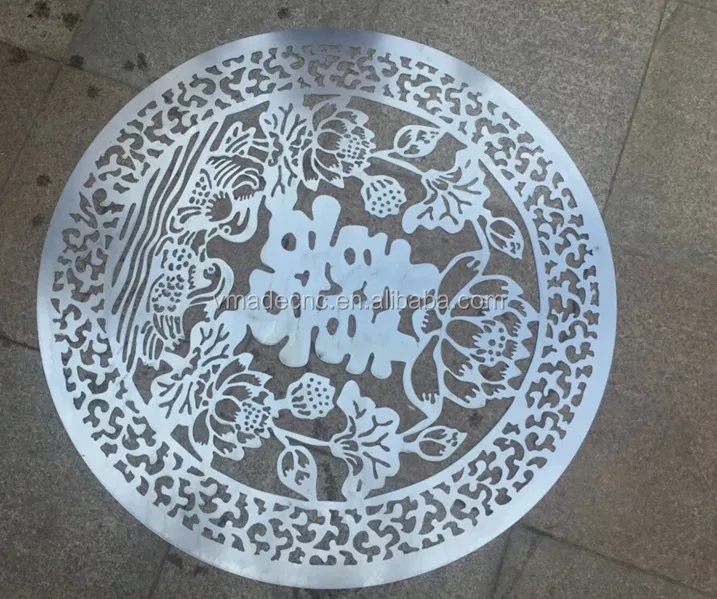

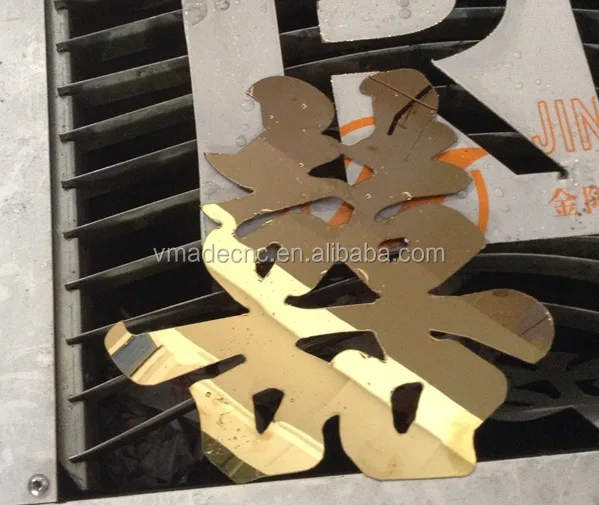

sample picture
Plasma Source Brand and Cutting Thickness
China HUAYUAN Source: | USA Hypertherm Source: |
63A(Max 5mm thickness matel plate) | 45A(Max 5mm SS,Aluminum.8mm CS.) |
100A(Max 6mm SS,Aluminum.12mm CS.) | 65A(Max 8mm SS,Aluminum.12mm CS.) |
120A(Max 10mm SS,Aluminum.18mm CS.) | 85A(Max 12mm SS,Aluminum.16mm CS.) |
160A(Max 15mm SS,Aluminum.25mm CS.) | 105A(Max 16mm SS,Aluminum.20mm CS.) |
200A(Max 20mm SS,Aluminum.30mm CS.) | 125A(Max 18mm SS,Aluminum.25mm CS.) |
Packing & Delivery
VLP-1325 model Packing Size:3300*2280*1750mm Weight:1100Kg
VLP-1530 model Packing Size:3900*2280*2220mm Weight:1700Kg
VLP-2060 model Packing Size:6800*2260*1700mm Weight:2000Kg
