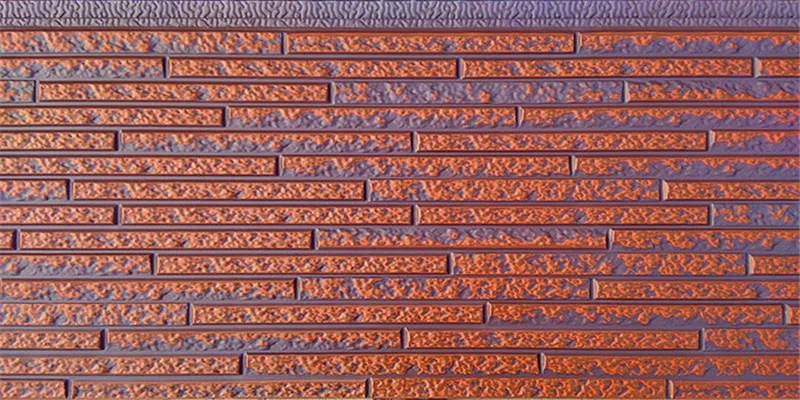

Pu sandwich wall panel machinery supply China

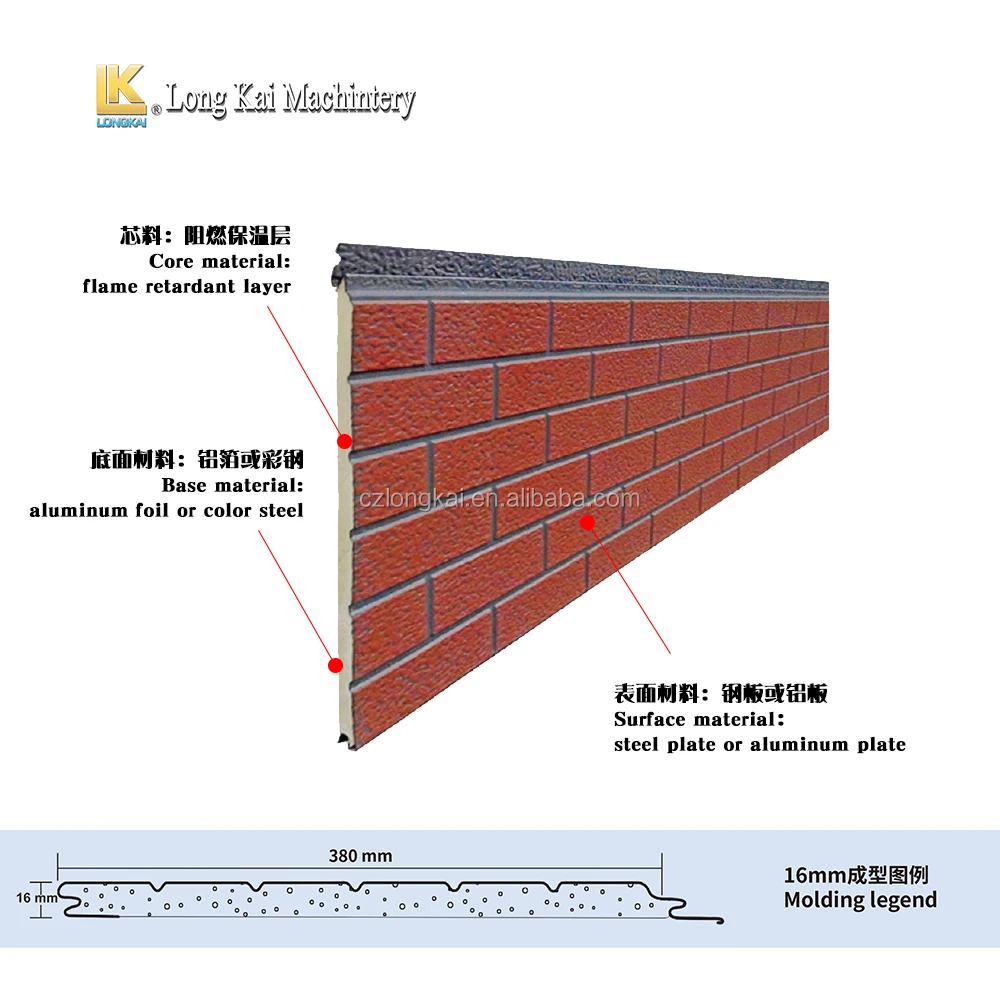

Specification of the panel

1. Panel width; 380mm

2. Panel thickness: 16mm

3. Panel length: 3800mm or by custom request

4. Production speed: 3-8m/min

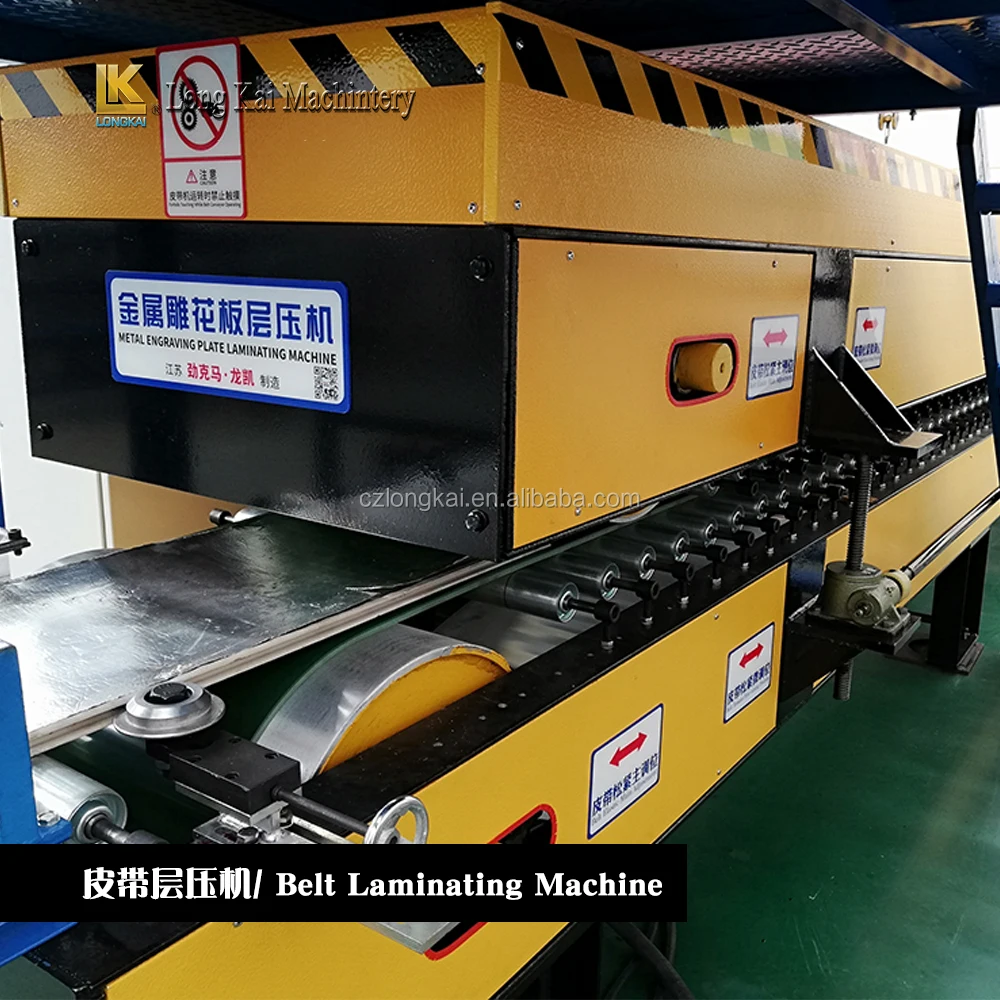

5. Length of belt laminator: 18-24m

6. Max temperatione of hot-air circulation: 65-70℃

7. Dimensions of the line: 60000x5000x3000mm(LxWxH)

8. Total power: 60Kw



The production process:

1. Uncoller machine

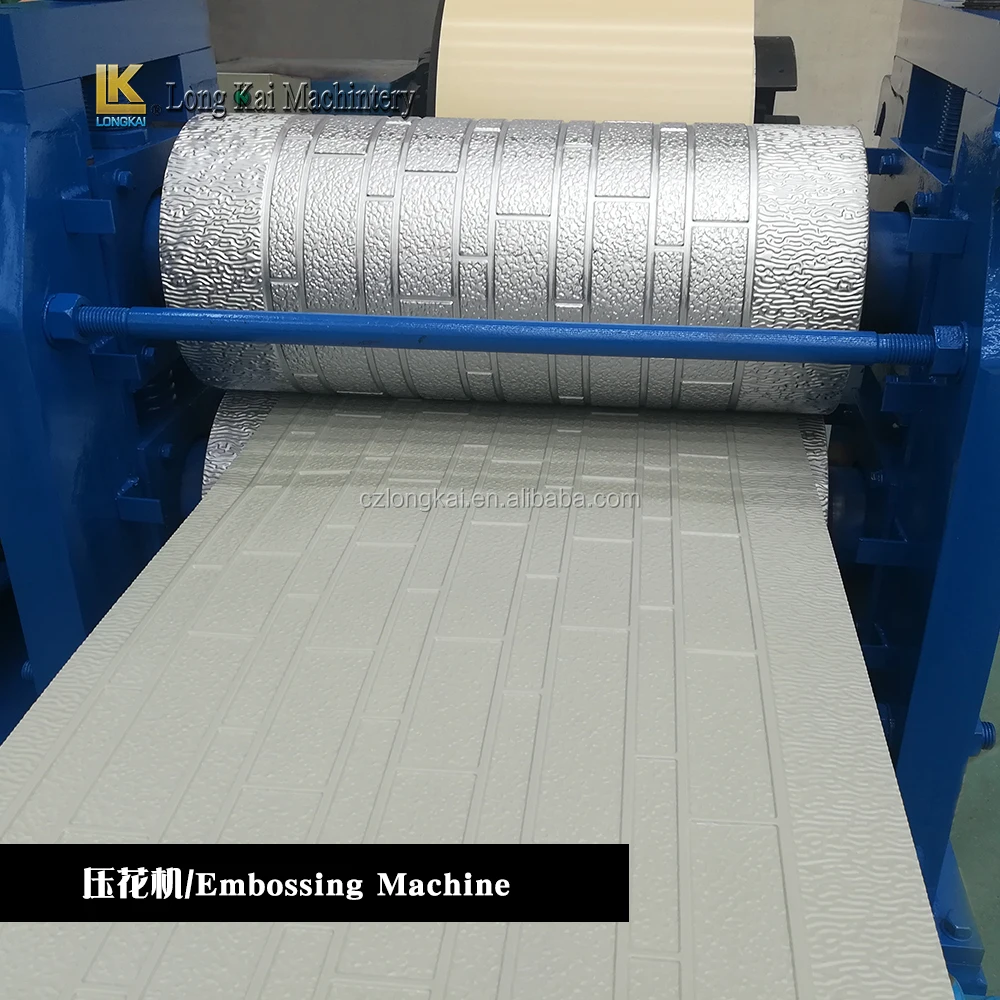

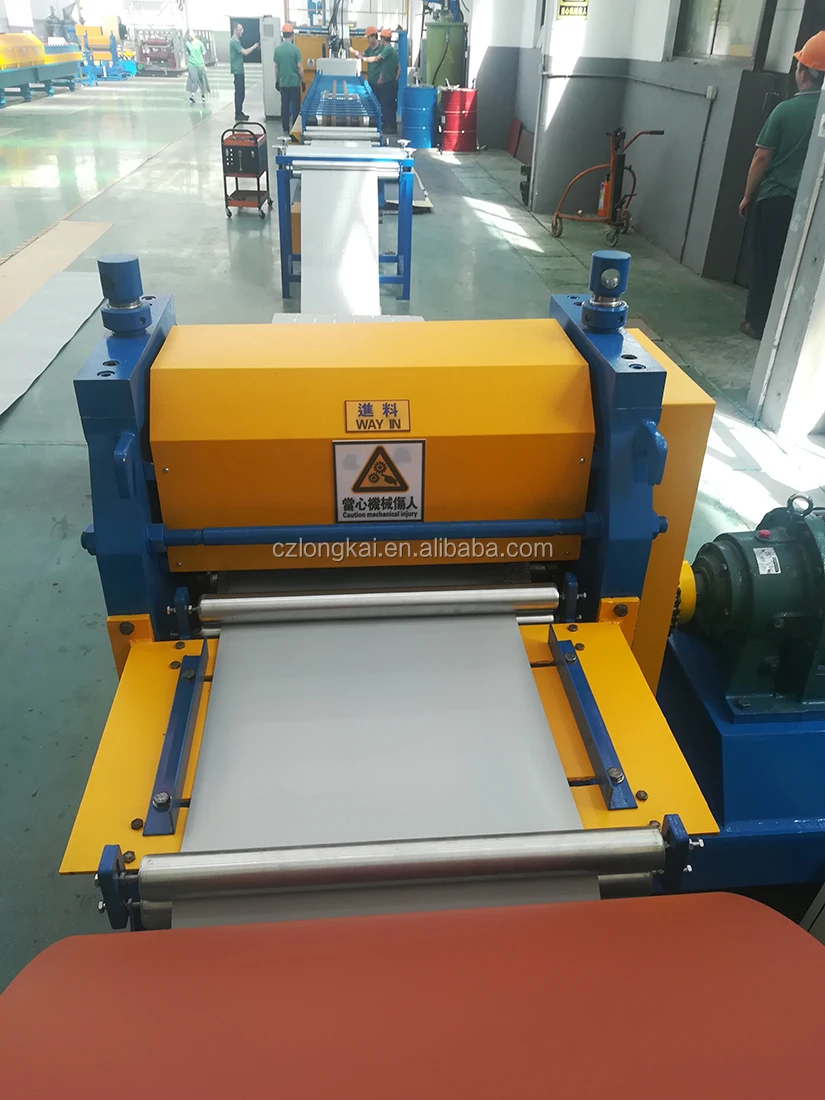

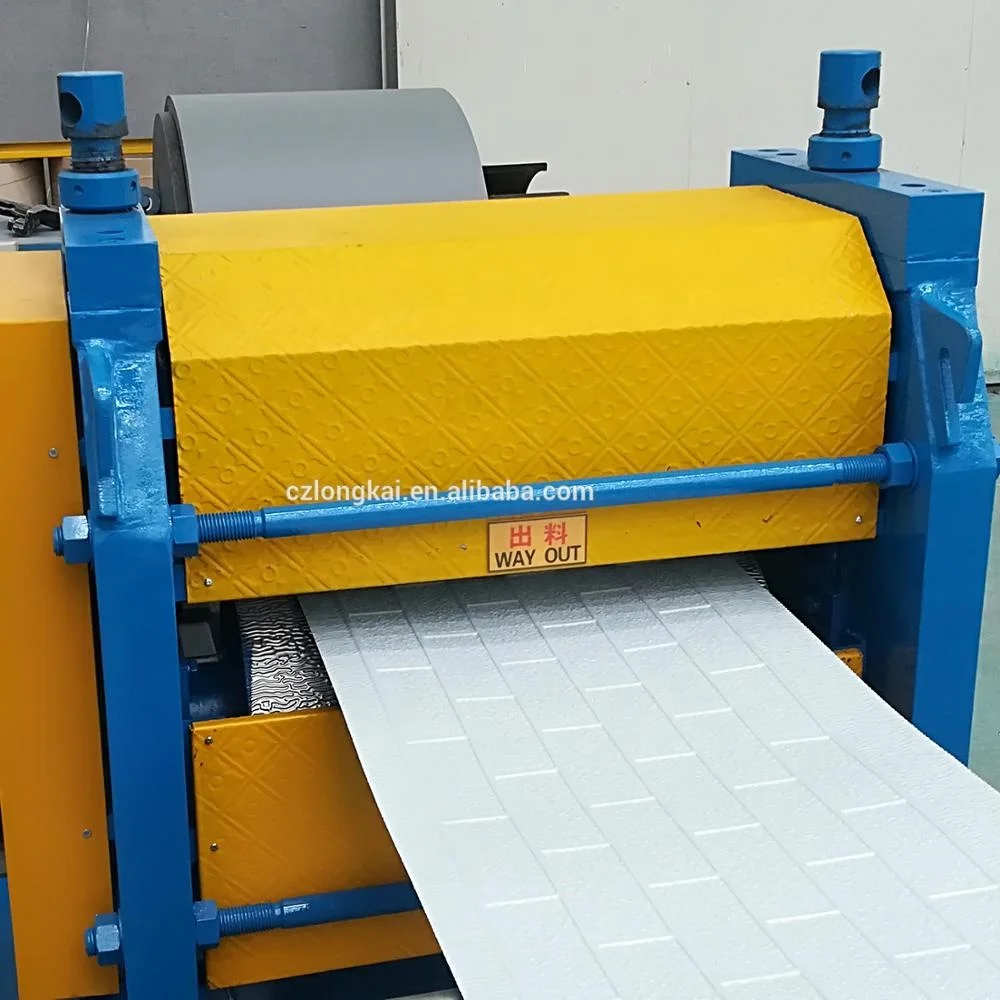

2. Embossing machine

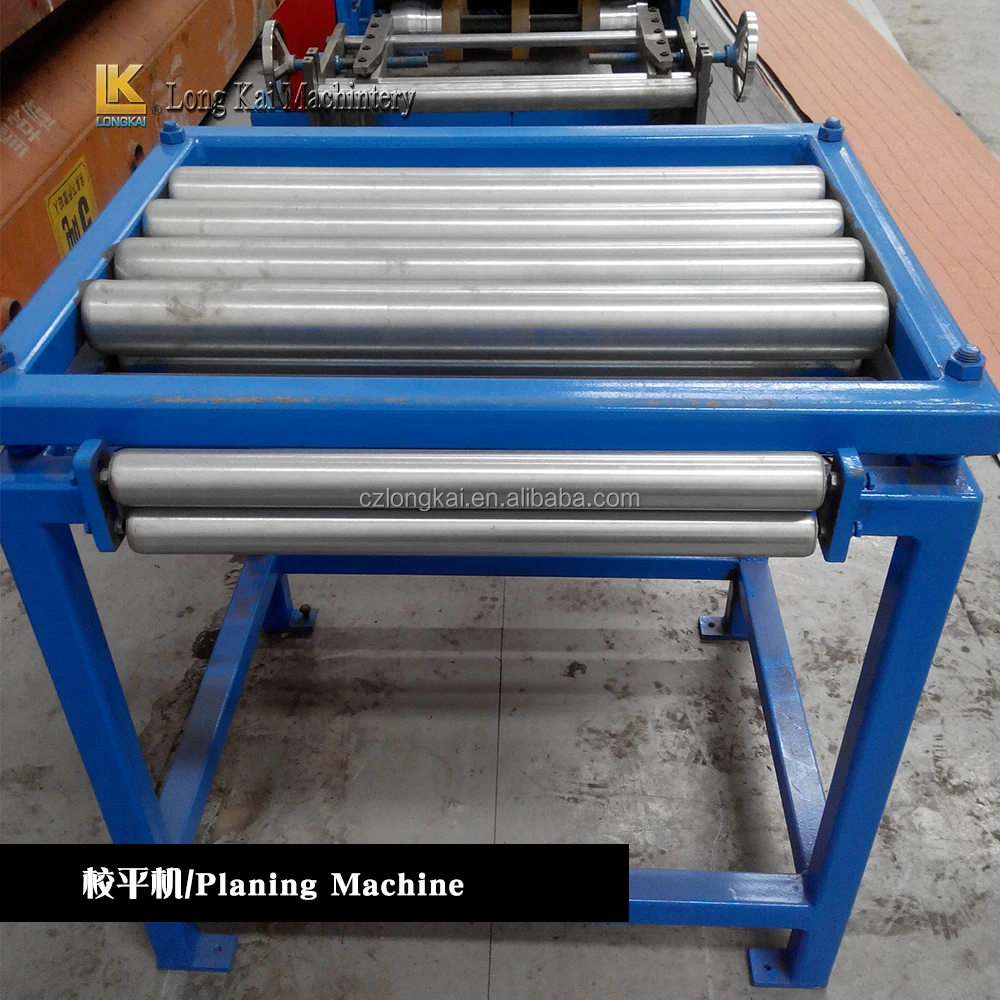

3. Level machine

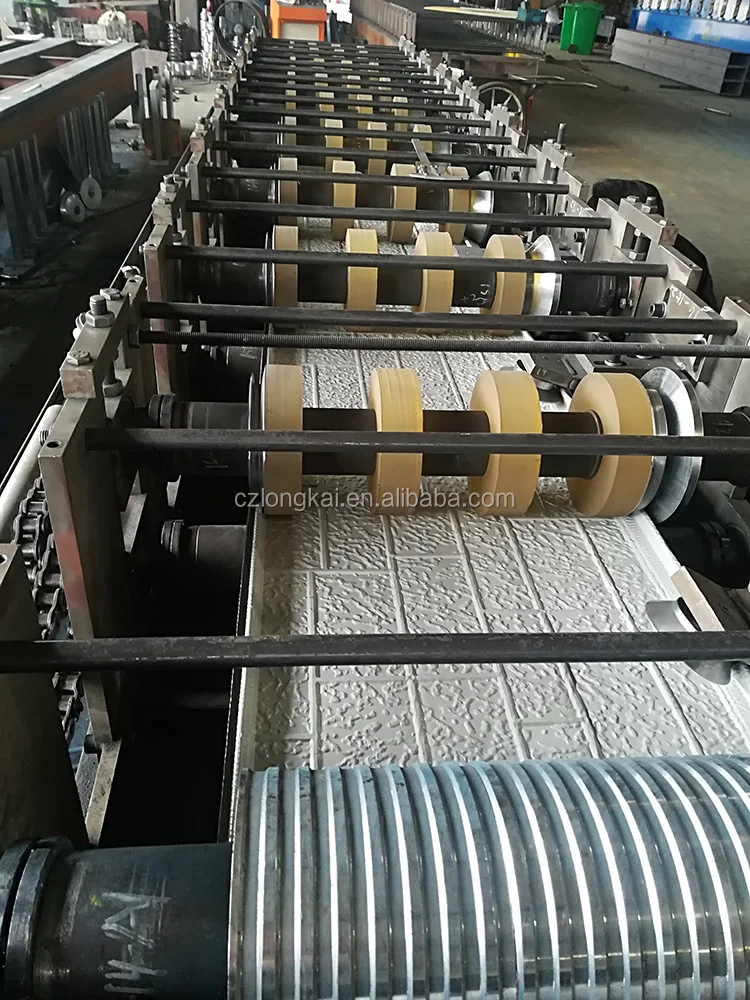

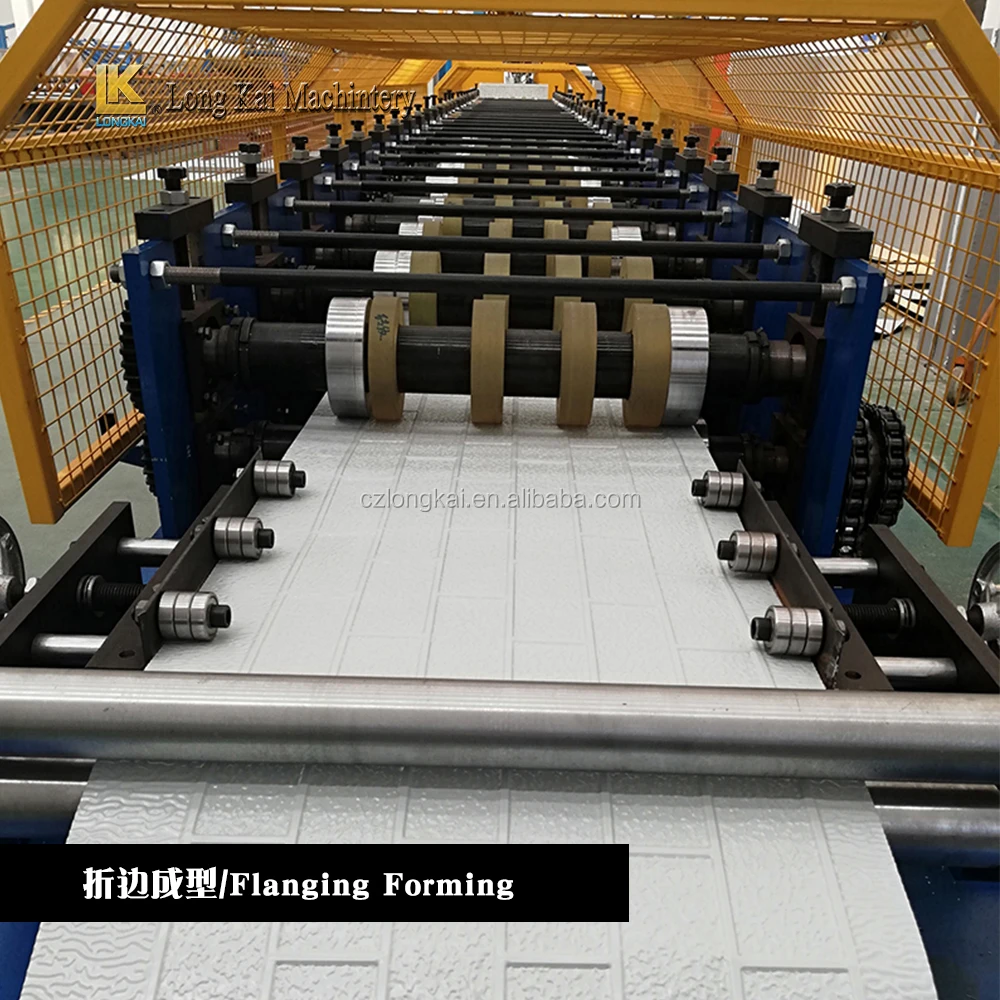

4. Roll forming machine

5. Pre-heat room

6. Soft substrate uncolling system

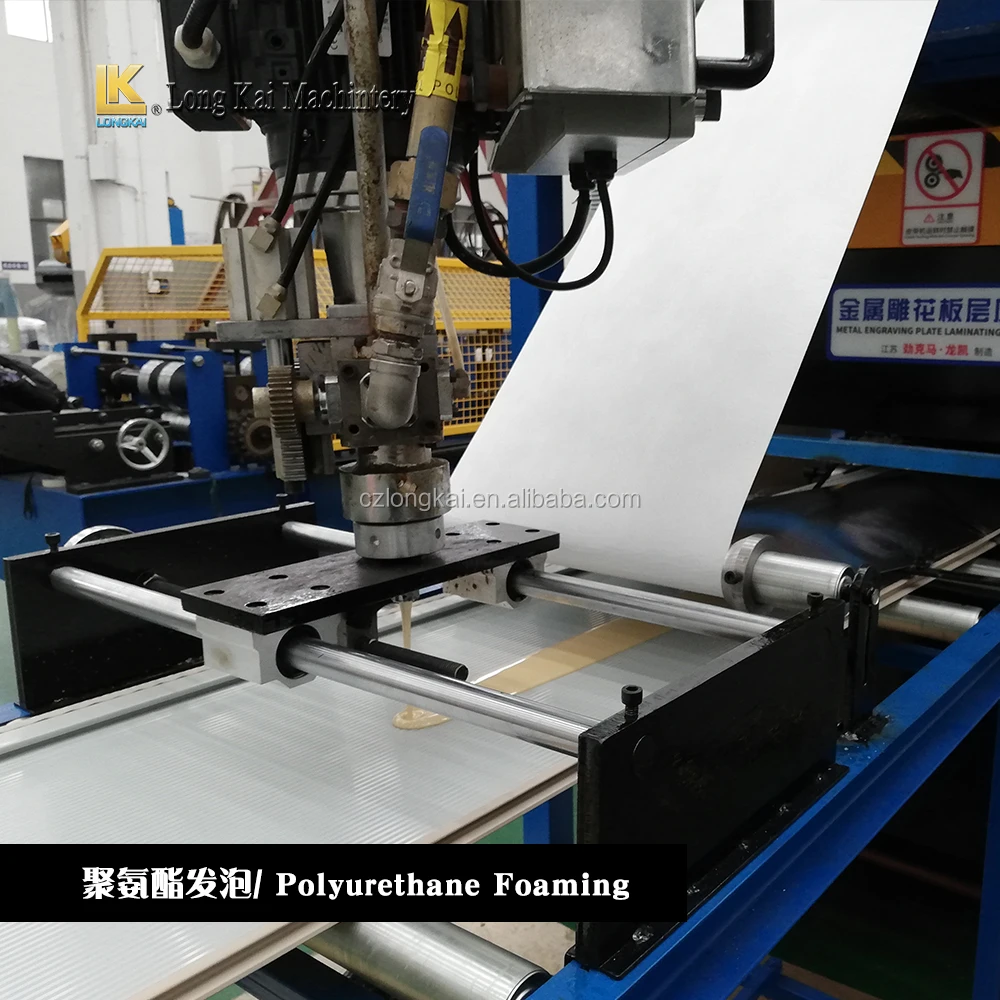

7. PU foaming machine

8. Double-belt conveyor

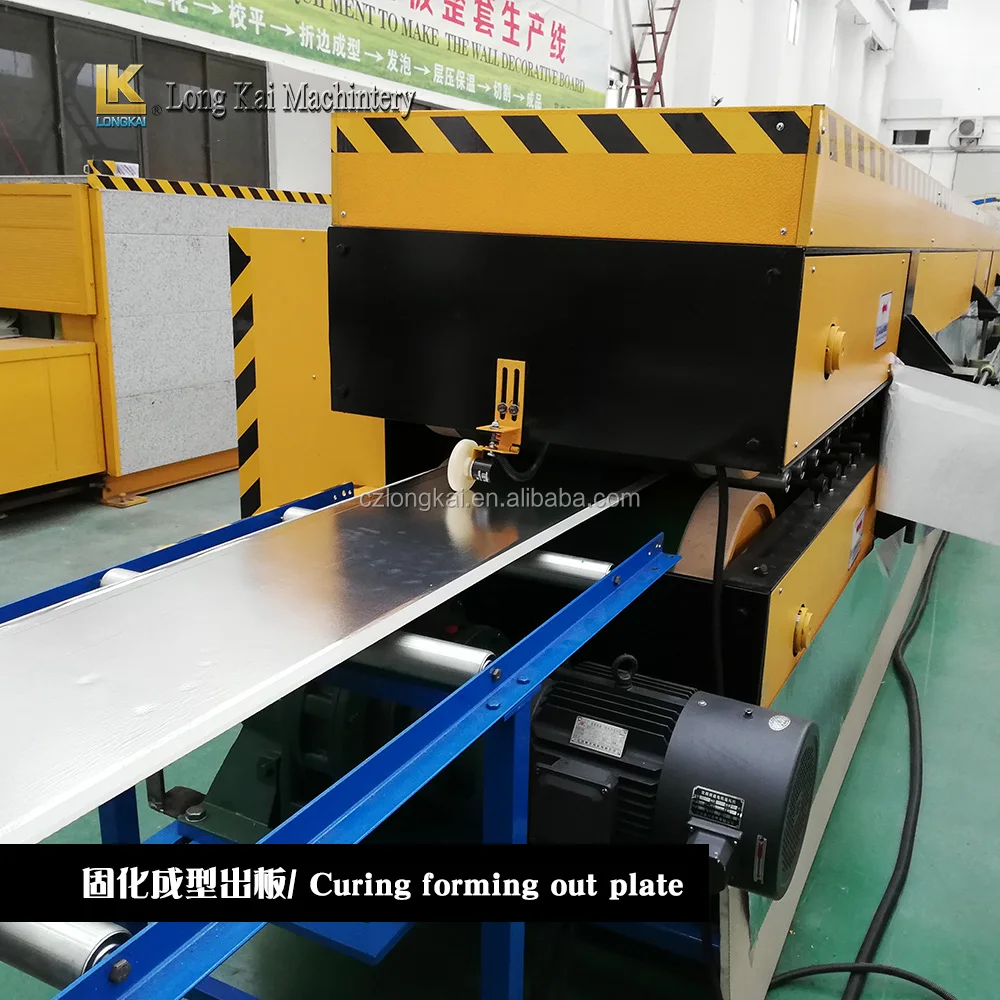

9. Saw cutting

10. Auto stacher

11. Wrapping machine
