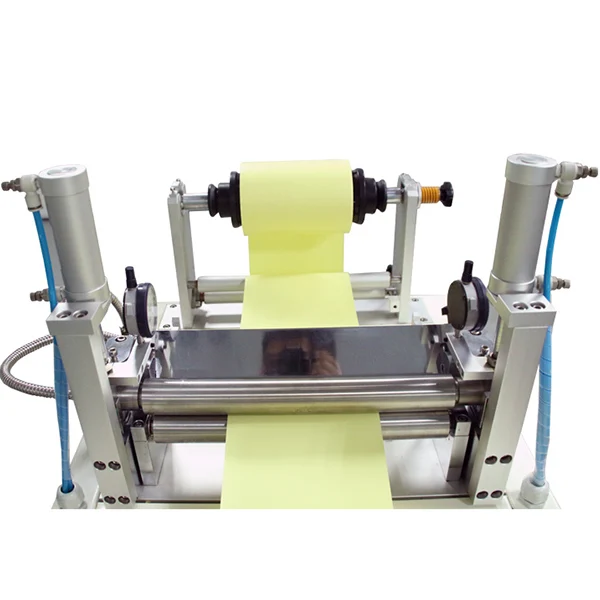

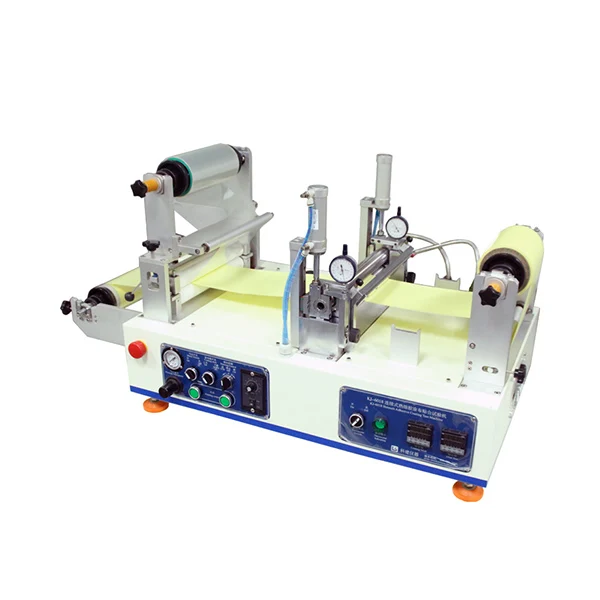

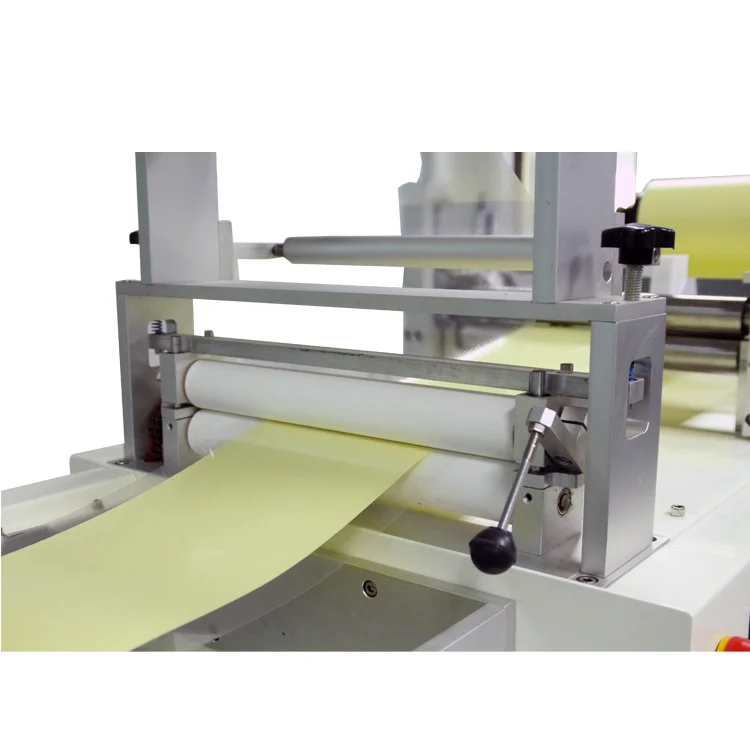

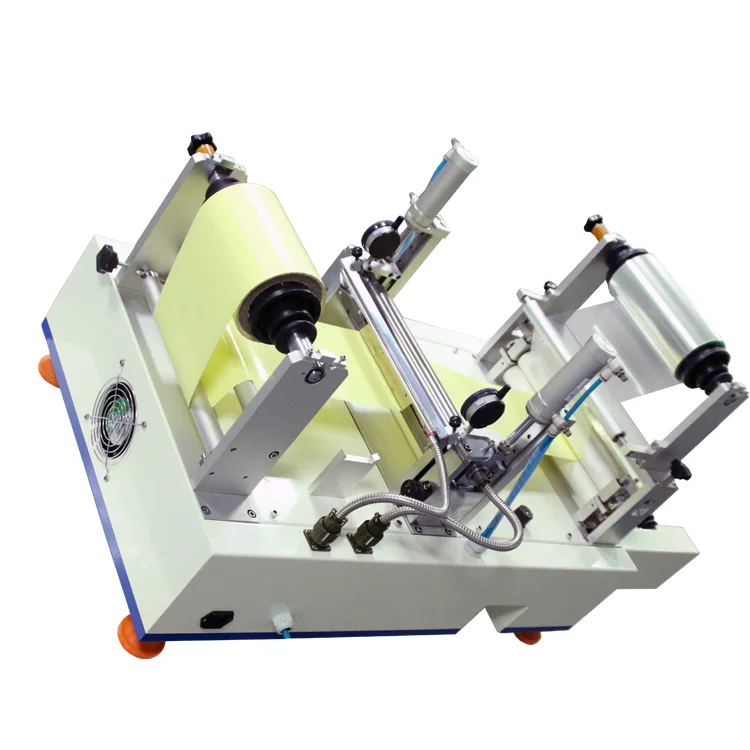

Lab Use For Making Samples Fabric Hot Melt Roller Laminated Spin Coater Machine (60590615077)

Share on:


Price:
Price in USD:Details

Quantity:


Product Overview

Description


Lab Used For Making Samples Fabric hot melt roller laminated spin coater machine



Product Description







     The Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied.





     Continuous coating proofing or small production of laboratory miniature hot melt adhesive coating and laminating machine. The hot-melt pressure sensitive adhesive can be directly coated on the heat-resistant substrate, or coated on the release paper and then applied to different surfaces, such as paper, plastic model metal film, etc. (50 μ m high temperature resistant PET film is recommended for the best experimental substrate).



Specification










































































Maximum operating temperature



200



The maximum coating width



200mm



the maximum width of the sheet



260mm



the maximum width of coating



160 mm



The coating length



unlimited



Coating speed



adjustable, max coating speed: 4.5m/min,


the most suitable speed is 1-2m/min,



Max capacity



150g



Minimum coating thickness



0.05mm



The maximum gap of total coating



500 μ m(base material thickness)



the optimum coating thickness



≥ 20 μ m



coating accuracy



 ±5 μ m



Dimension



150×518(Containing motor 720)×658mm(L*W*H)



Weight



about 120kg



Power source



1 phase, AC 220V,50HZ



Rate of power



1050W

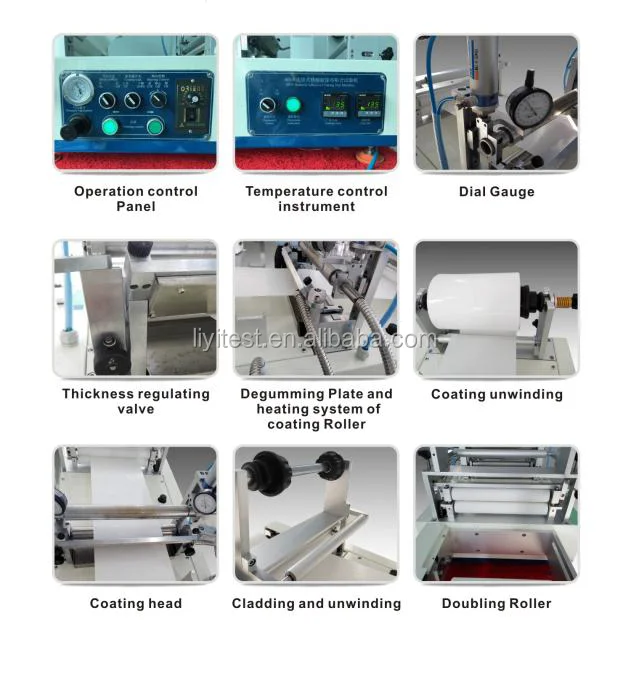

Product Effects










Features:


    1. The whole machine is assembled with high precision modular coating station structure.

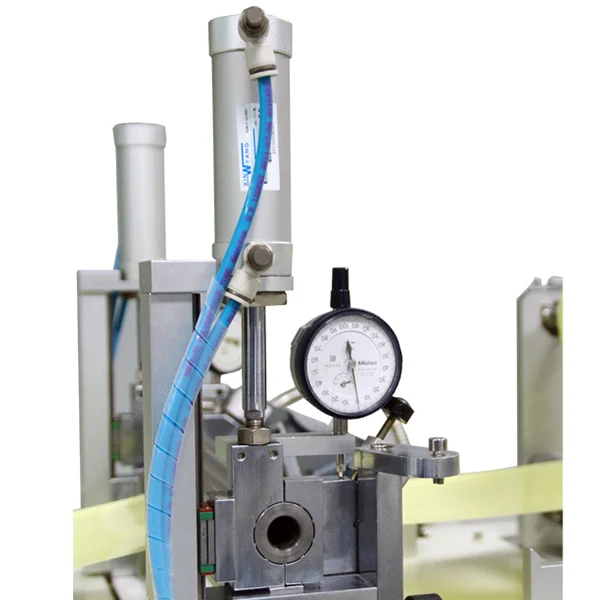

    2. High Precision PID temperature Control Mode of PT-100 on Rubber Wheel and Rubber Groove


    3.  Laminating speed and pressure are controllable


    4. Clean up is easily accomplished through quick, uncomplicated disassembly


    5. Generates sample laminates as long as needed


    6. Precision ground coating bars


    7.  Both coating bars and the back reservoir are heated independently


    8. Width of coating can be controlled by teflon insert side dams


    9.  Durable aluminum and steel construction means a long machine life with consistent performance


    10. Variable speed controller can be adjusted


    11. The coating clearance of the upper and lower rubber wheel is precisely fine-tuned to control the coating thickness.  After the thickness setting, can lock the rubber wheel indirectly, prevents the clearance change.


    12. The width of the coating is adjusted with two pieces of Teflon baffle in the rubber groove. Can be coated with unlimited length glue, automatic winding.


    13.The coated liner bar can be adjusted to control the roll tension


    14.The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect  to clean adhesive residue.
