1) Manual Decoiler ------- -------------------------------------------------------------------------- 1 set
2) Feeding And Leveling Device------------------------------------------------------------------- 1 set
3) Rolling Forming System-------------------------------------------------------------------------- 1set
4) Hydraulic Punching & Cutting------------------------------------------------------------------ 1 set
5) Product support frame--------------------------------------------------------------------------- 1 set
6) PLC Control System-------------------------------------------------------------------------------- 1 set
2. Machine Parameters
The weight of theMachine : 6.0T
The total demension of machine : (length)6.0m x (width)1.4m x (height)1.8m
1)Decoiler
(1)Decoiler Type: manual decoiler
(2)weight capacity of decoiler : 5.0T

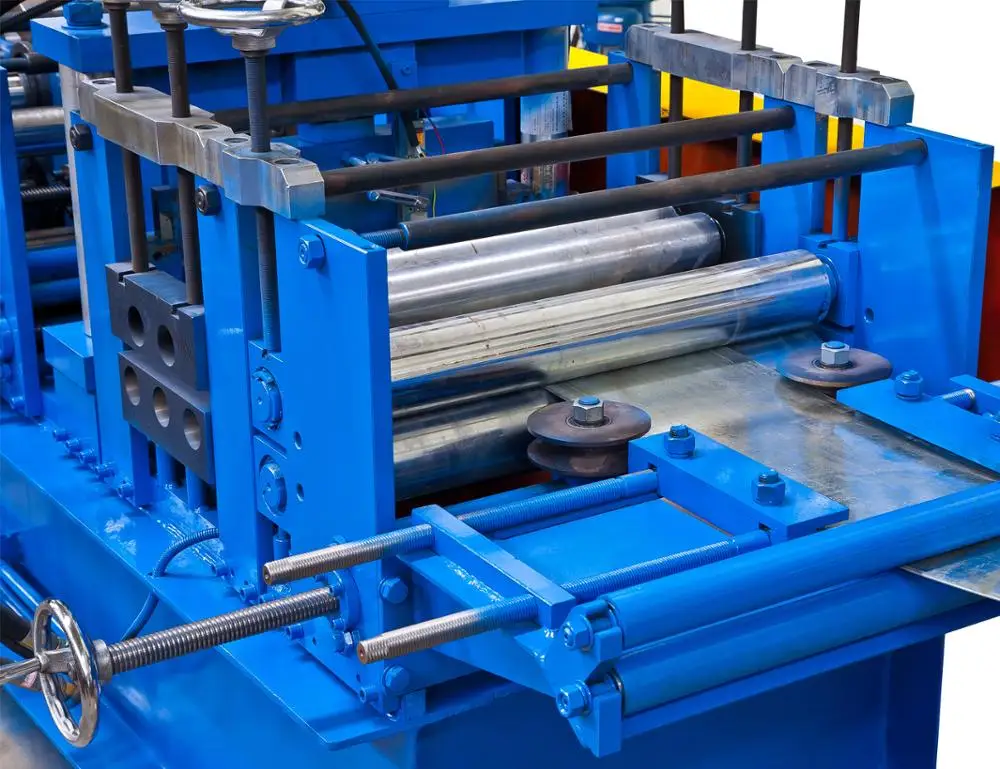

2)Feeding and Leveling Device
(1)It used for making the material flat before feeding into the roll forming machine

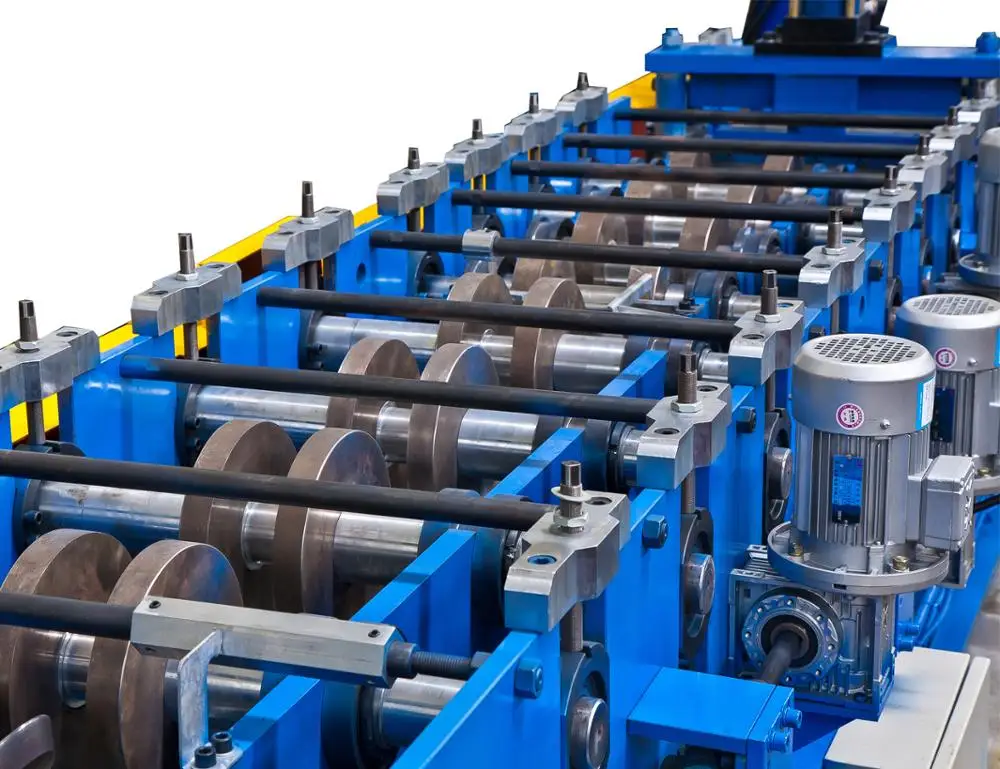

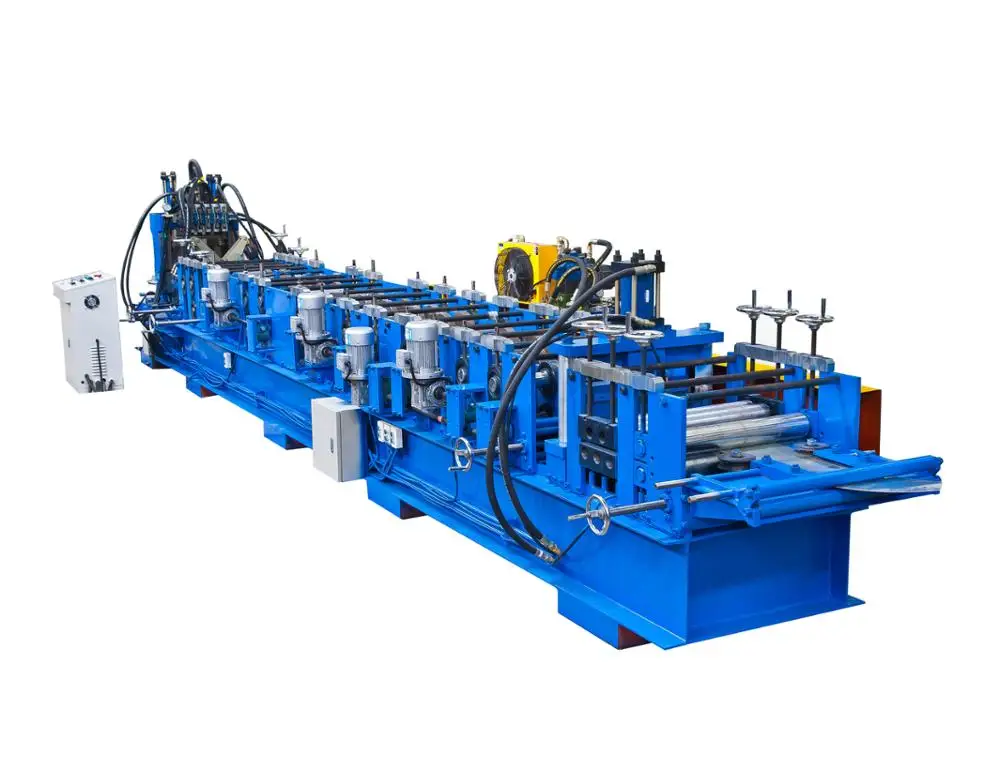

3) Rolling Forming System

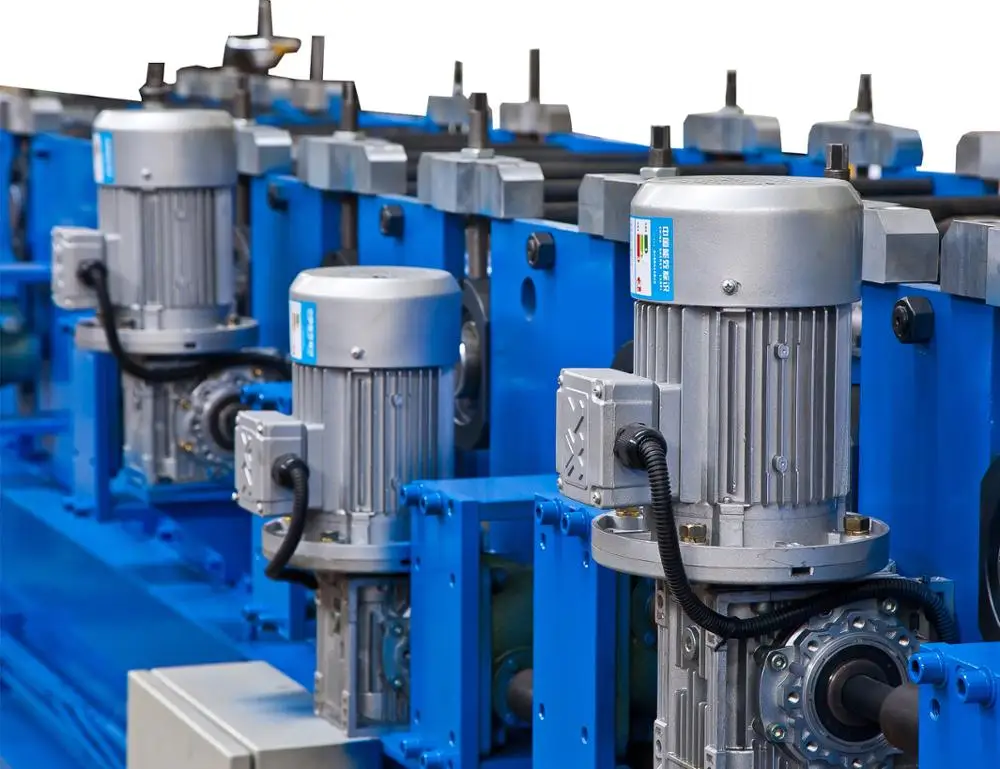

(1)main motor type: phase asynchronous motor(manufacturer: shanghai juema)
(2)motor power: 11KW
(3)speed of forming: 10-14.8m/min
(4)material of roller : GCr15
(5)13 groups rollers
(6)material of main shaft: 40Cr (The main shaft have the high frequency grinding &heat Treatment and the surface of shaft is chroming)
(7) diameter of main shaft: ø70mm

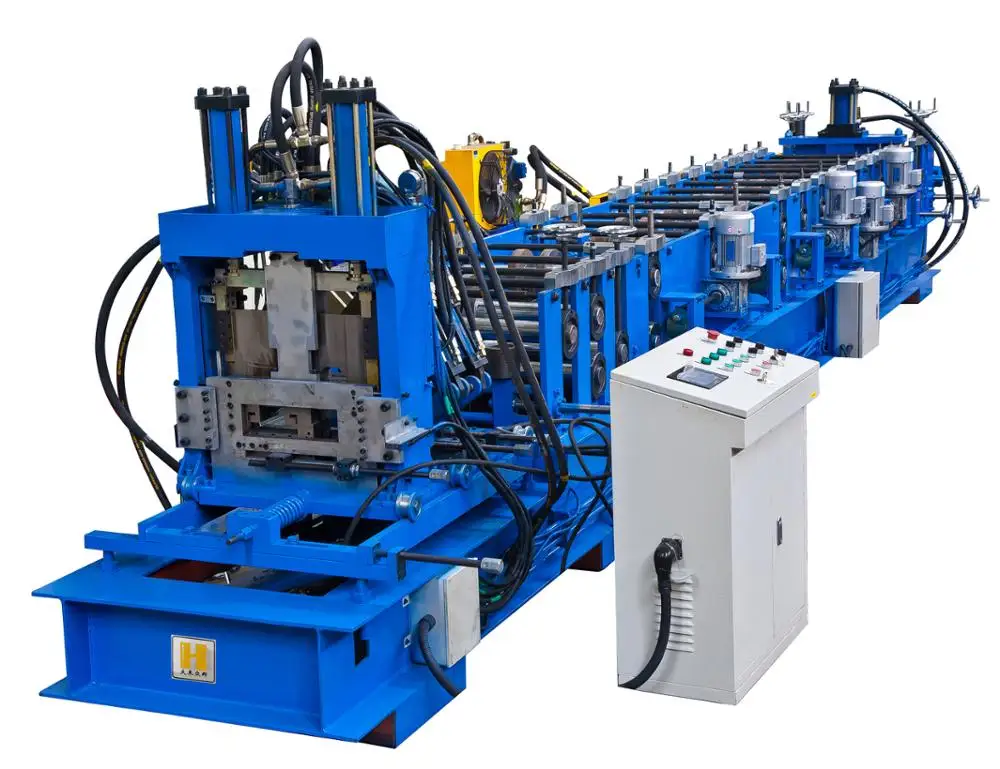

4) Hydraulic Punching & Cutting
(1)Punching Type: Hydraulic Punching
(2)Cutting type: Hydraulic cutting(C80-220 use a specification shearing tool and C220-300 use a specification shearing tool. we have the patent technology)
(3)Cutting material: Cr12 Cr12MoV Cr12(total three blades)
(4) Hydraulic motor power: 5.5KW
(5) Hydraulic Pressure: 16Mpa
5) PLC Control System
(1) Control the quantity &punching length& cutting length automatically
(2) Voltage: 380V, 3 Phase 50Hz
(3) Size of PLC Control Board: 700mm(L)x1000mm(H)x300mm(W)
(4) PLC manufacturer: Japan panasonic
(5) Solenoid valve: Beijing hade
(6) Oilhydrauliccylinder: yuci
(7) Oil pipeline: parkers
(8) Touch Screen manufacturer: Japan panasonic
(9) Encoder: Omron
(10) frequency converter:Japan panasonic
6)Product support frame
(1)The length of product support frame : 6m
Manual Decoiler→Feed And Leveling Device→Hydraulic Punching &Cutting→Rolling Forming System→Product Support Frame
