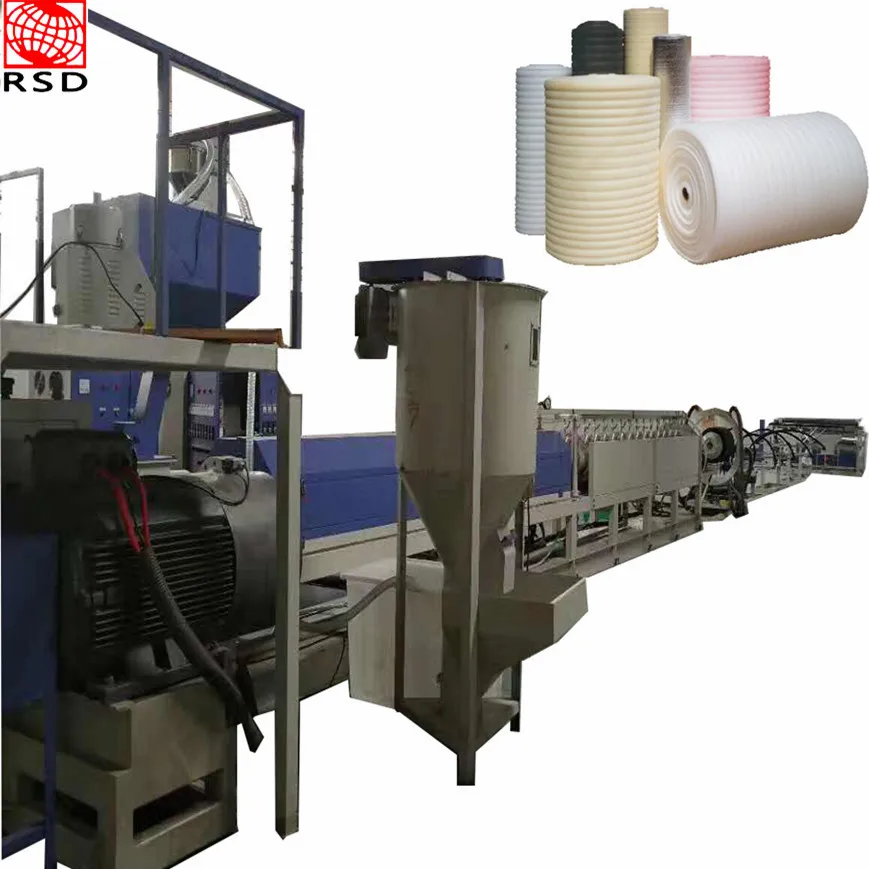

The whole equipment of EPE foam machine line provides a series of equipment including pearl cotton foam, laminating and compounding, and EPE recycling, which will recycle the scrap produced in production for production.
* V.F driving for speed regulation. Tandem screw with independent heating zones to insure easy operation, easy trouble shooting, precise heating and curing. * OMRON temperature control system. Stable and reliable. * Circulation water cooling. (Water tower, user to add)
* The head employed automatic screen exchange system (with a hydraulic station) to save time and reduce wastage. About 30% may be saved.
* Mold pressure control employed digital display and a septum pressure gage. The two systems insure stable top sheet quality. * Winder may overturn automatically. With meter counter for length pre-setting. Winding width is adjustable. * High foaming times. Imported temperature control system
Size Information
Size Chart of This Design
Model
90
105
120
150
170
180
200
220
Screw Diameter
(mm)
90
105
120
150
170
180
200
220
Screw L/D (mm)
55:1
55:1
55:1
55:1
55:1
55:1
55:1
55:1
Production(kg/hr)
80-120
100-150
120-180
250-300
300-400
300-480
350-700
460-800
Product thickness
(mm)
0.5-3.5
0.5-6
0.75-7.5
2-10
2.5-13
3-16
3-20
4-25
Product width(mm)
800-1200
800-1500
900-1700
1000-
1900
1000-2200
1000-
2500
1000-
3000
1000-3200
Foaming efficiency
20-47
20-47
20-47
20-47
20-47
20-47
20-47
20-47
Cooling way
Air cooling and water cooling
Power consumpt-ion(kw)
30
35
50
75
100
120
150
180
Screw RPM
20-80
20-80
20-80
20-80
20-80
20-80
20-80
20-80
Dimension(mm)
22000
*2300
*2200
25000*2500*2200
27000
*2500
*2200
32000
*2800
*2800
32000
*2800
*2800
35000
*3000
*2800
35000
*3500
*2800
40000
*4000
*2800
Weight(T)
5.5
6
9
11
15
18
20
22
Detailed Images
Air charging system
Make the machine run more safely, save the machine use cost

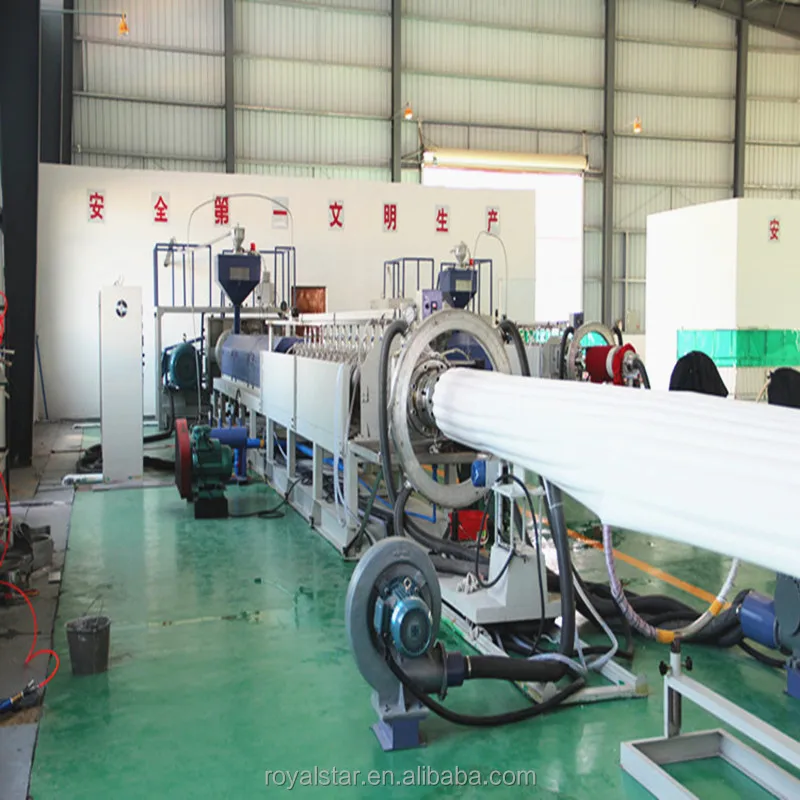

Double foam die head
Make the machine run more smoothly, the product is lighter, the density is more uniform
APPLICATION
Pearl cotton (EPE), also known as pearl cloth, foam cloth.By LDPE materials after high foaming molding, belongs to the environmental protection packaging materials, renewable.Is mainly used in electronics, electrical appliances, technology products,ceramic products, plastic products, clocks and watches products, lighting products, glass products, computer products,packaging,furniture, etc.Main function is to shock, dust, moisture proof, prevent grind,prevent galling,appearance beautiful,colour and lustre is moving.Can make all sorts of color according to customer's requirements, all kinds of thickness of the sheet,bags.Can also add the corresponding percentage of antistatic agent, make customer product from electrostatic hazards.
Related Products
After Sales Service
Within 12 months after completing the install and testing.
All life time support maintenance but need pay charge for needed parts, phone support and technical support is free, if an engineer need to be dispatched, the buyer should be pay for the engineer travel and accommodation fee.
Company Introduction
Shenzhen royalstar mechanical equipment co., LTD., founded in 1987, locats in shenzhen citY which is near to HongKong.It specialies in producing aeries of PE foam products making machine.
Our equipment sells well in domestic market, and sets of exports exported to Russia, the Middle East, Africa, southeast Asia and South America and many other countries, by domestic and foreign customers.Since its establishment, the company has continuously developed and innovated, widely absorbed user's opinions, actively improved product quality and after-sales service, and won the support and trust of the majority of new and old customers. At present, royalstar company has our own production base in Dongguan City .We sincerely hope to join hands with customers at home and abroad to create a better tomorrow!
Packing & Delivery
Customers
Exhibition show
FAQ
Q: Are you trading company or manufacturer ? A: We are factory.
Q: How long is your delivery time? A: Within 45days after the seller receives the down payment.
Q: What is your terms of payment ? A: Payment terms After the Contract has been signed by both parties, the buyer shall Pay the 30% of the total amount within a week by telegraphic transfer (T/T). testing in the seller factory and before shipment, the balance of the total amount must be paid by T/T.
