ЧПУ тандемный стальной листогибочный пресс
- Category: Press Brake >>>
- Supplier: Jiangsu Tewei Machine Tool Manufacturing Co. Ltd.
Share on (60591952761):
Product Overview
Description
Product Description

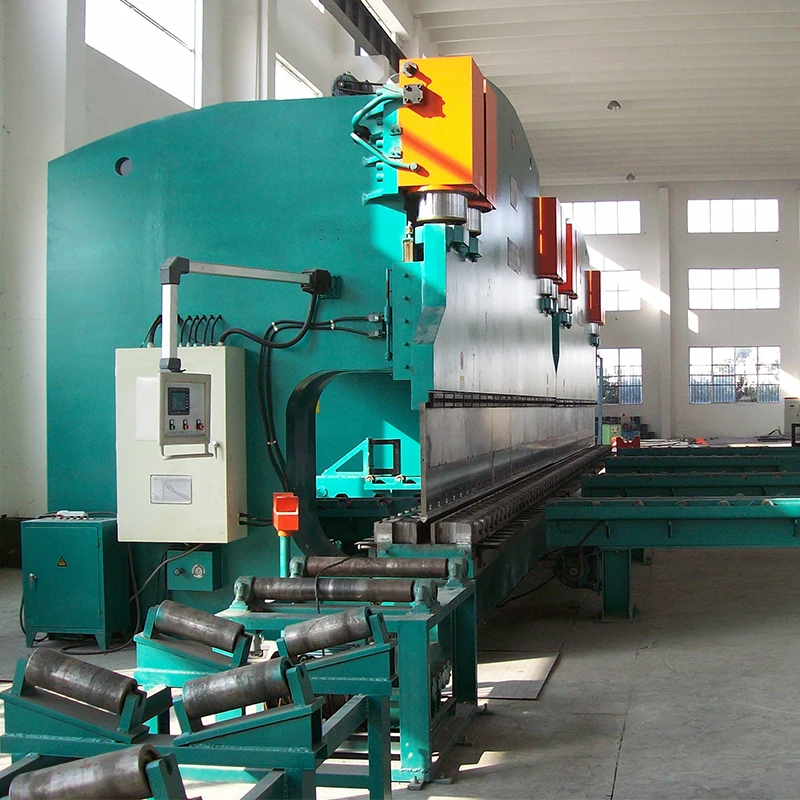

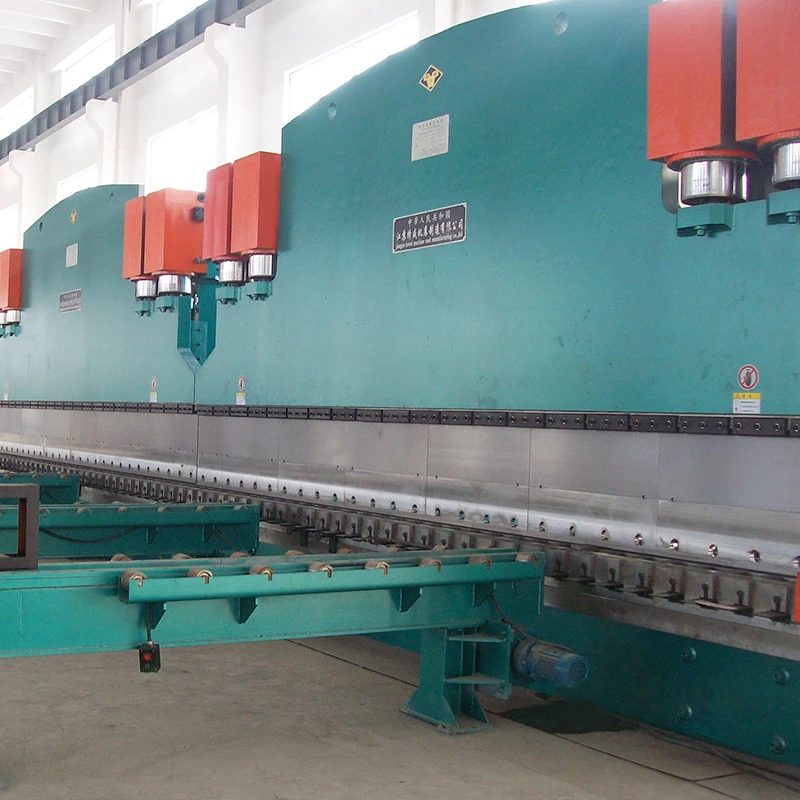

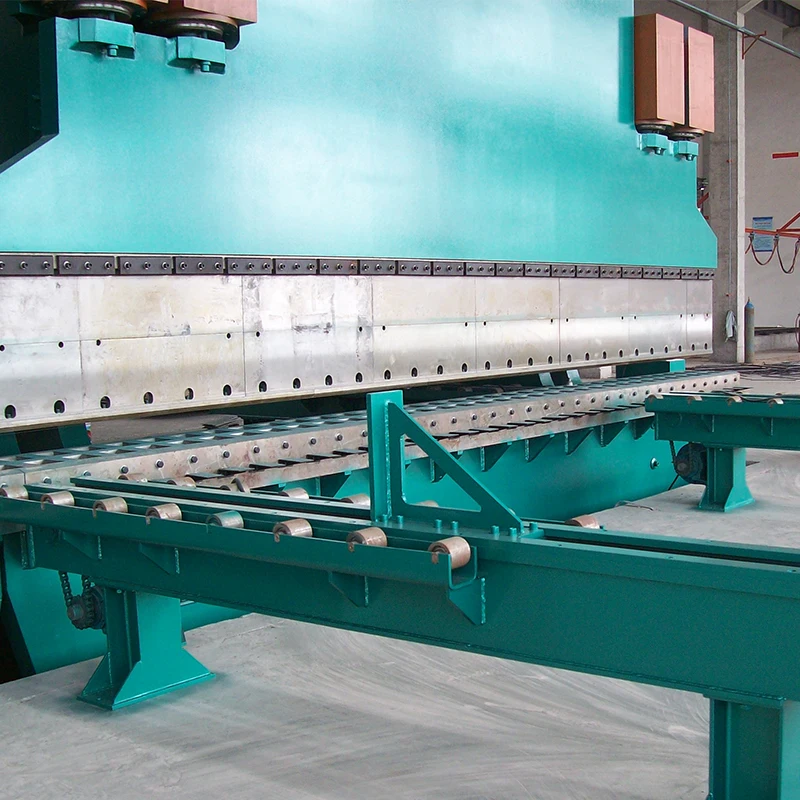

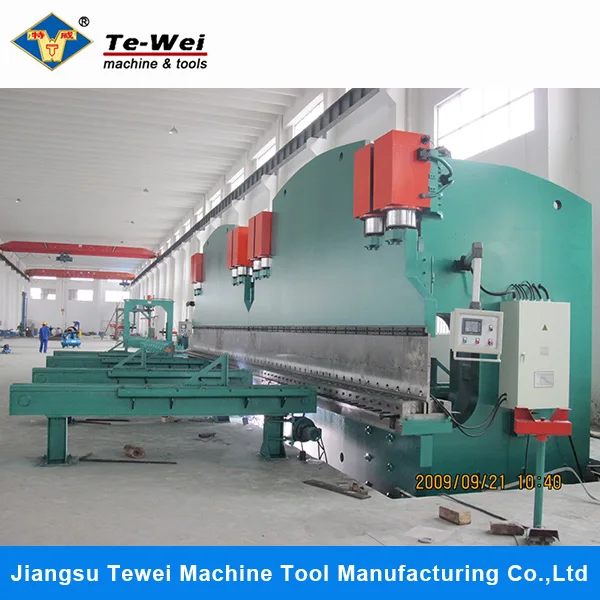

2-WE67K CNC Tandem Press Brake

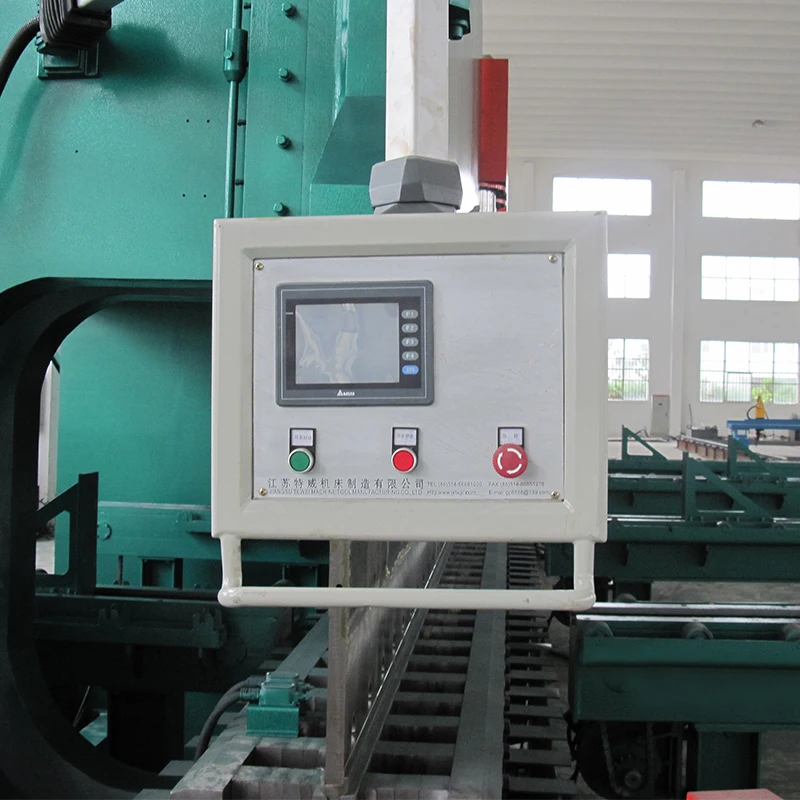

1.DELEM CNC system
2.BOSCH servo hydraulic system
3.With optical scale
4.Upper and lower dies
1.DELEM CNC system
2.BOSCH servo hydraulic system
3.With optical scale
4.Upper and lower dies
Designing, verifying and installation of this machine is according to
Standards hereinafter:
1.GB17120-1997 press brake safty technic condition
2.ZBJ620006.10-88 press brake noise limited
3.JB/T 2257.1-92 press brake safty technic condition
4.GB/T 14349-93 press brake precision
Standards hereinafter:
1.GB17120-1997 press brake safty technic condition
2.ZBJ620006.10-88 press brake noise limited
3.JB/T 2257.1-92 press brake safty technic condition
4.GB/T 14349-93 press brake precision
■ Standard Holland DELEM cnc system
■ Germany BOSCH high performance servo hydraulic system to control synchronization
■ Both sides with optical scale to detect synchronization position feedback
■ One set of upper and lower dies
Main imported parts
■CNC system: Holland DELEM DA52
■Hydraulic system: Germany BOSCH
■Scales: Germany
■High pressure axis piston pump: Domestic famous brand
■Tubing connector: Zhejiang
■CNC system: Holland DELEM DA52
■Hydraulic system: Germany BOSCH
■Scales: Germany
■High pressure axis piston pump: Domestic famous brand
■Tubing connector: Zhejiang
■Seals: Japan
Specification
SN | NAME | UNIT | VALUE | ||
1 | Nominal Pressure | KN | 2*3000 | ||
2 | Bending Length | mm | 2*6000 | ||
3 | Column Gaps | mm | 4400 | ||
4 | Slide Stroke | mm | 250 | ||
5 | Max Opening Height | mm | 770 | ||
6 | Throat Depth | mm | 650 | ||
7 | Table Width | mm | 460 | ||
8 | Bend Thickness 16Mn | mm | 10（σ≤490N/M²） | ||
9 | Sllider Moving Speed | Idle Load | mm /s | ≥90 | |
10 | Working | mm /s | 8 | ||
11 | Return | mm /s | ≥70 | ||
12 | Main Motor Power | KW | 2*22 | ||
13 | Size（L×W×H） | mm | 2 x 7000x2450x4380 | ||
14 | Weight | kg | 2*35000 | ||
15 | Machine Precision | Slider Epeatability | mm | ≤0.02 | |
16 | Slider Positioning Accuracy | mm | ≤0.02 | ||
17 | Workpiece Straightness | mm | 0.75 / m | ||
18 | Bending Angle Error | ′ | <45/m | ||
19 | Grating Resolution | mm | 0.005 | ||

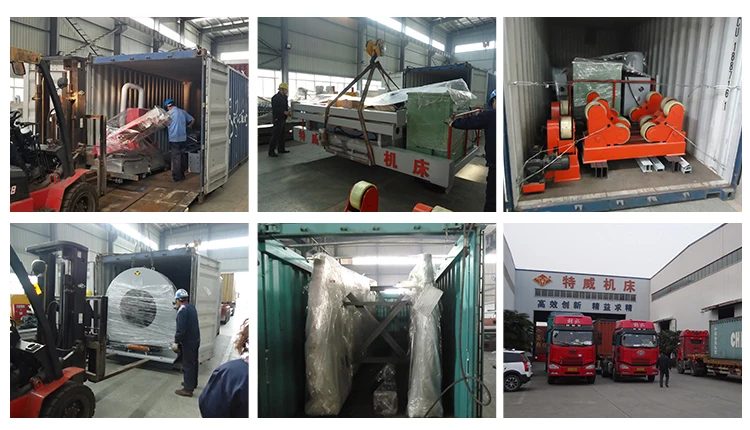

Packing & Delivery
Packaging: Normal packing
Shipping: From Shanghai port
Shipping: From Shanghai port
Company Profile
Established in 1992, Jiangsu Tewei Machine Tool Manufacturing Co.,Ltd is a professional manufacturer and exporter that is concerned with the design, development and production of the whole set of pole production line. We are located in Yangzhou City Jiangsu Province, with convenient transportation access. All of our products comply with international quality standards and are greatly appreciated in a variety of different marks throughout the world.
We have over 120 employees, boast an annual sales figure that exceeds USD 17million and currently export 1:4 of our production worldwide. Our well-quipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching
Indonesia, Turkey, Russia, Australia, Vietnam, Kazakhstan, India etc.
If you are interested, please feel free to contact us.
We have over 120 employees, boast an annual sales figure that exceeds USD 17million and currently export 1:4 of our production worldwide. Our well-quipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction.
As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching
Indonesia, Turkey, Russia, Australia, Vietnam, Kazakhstan, India etc.
If you are interested, please feel free to contact us.
Quality and services
1.The course of designing, producing and selling are performed according to iso 9001.
2.Our company can suplly study , installation and provide parts and repairing service all of the life.
3.Free training and take charge of the adjusting.
4.When equipment arrived, do well of the after service on time,reply in 6 hours and arrive to user ends in three work days.
2.Our company can suplly study , installation and provide parts and repairing service all of the life.
3.Free training and take charge of the adjusting.
4.When equipment arrived, do well of the after service on time,reply in 6 hours and arrive to user ends in three work days.
FAQ
Q: Are you a factory or trading company ?
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide free installation and commissioning, also free training.
A: We are a factory with export licence.
Q: Where is your factory located ? How can I visit your company ?
A: In Yangzhou City, Jiangsu Province, China. There is airport in our city, about half an hour's drive. And our factory is near
Nanjing and Shanghai. Transportation is very convenient.
Q: If I want to start a light pole factory, can I get a whole machine line from you ?
A: Yes, we can make the whole light pole production line.
Q: What is your machine price level ?
A: Price is reasonable with good quality.
Q: What is your machine warranty ?
A: One year.
Q: Is engineer available to provide service abroad ?
A: Yes, we will provide free installation and commissioning, also free training.
