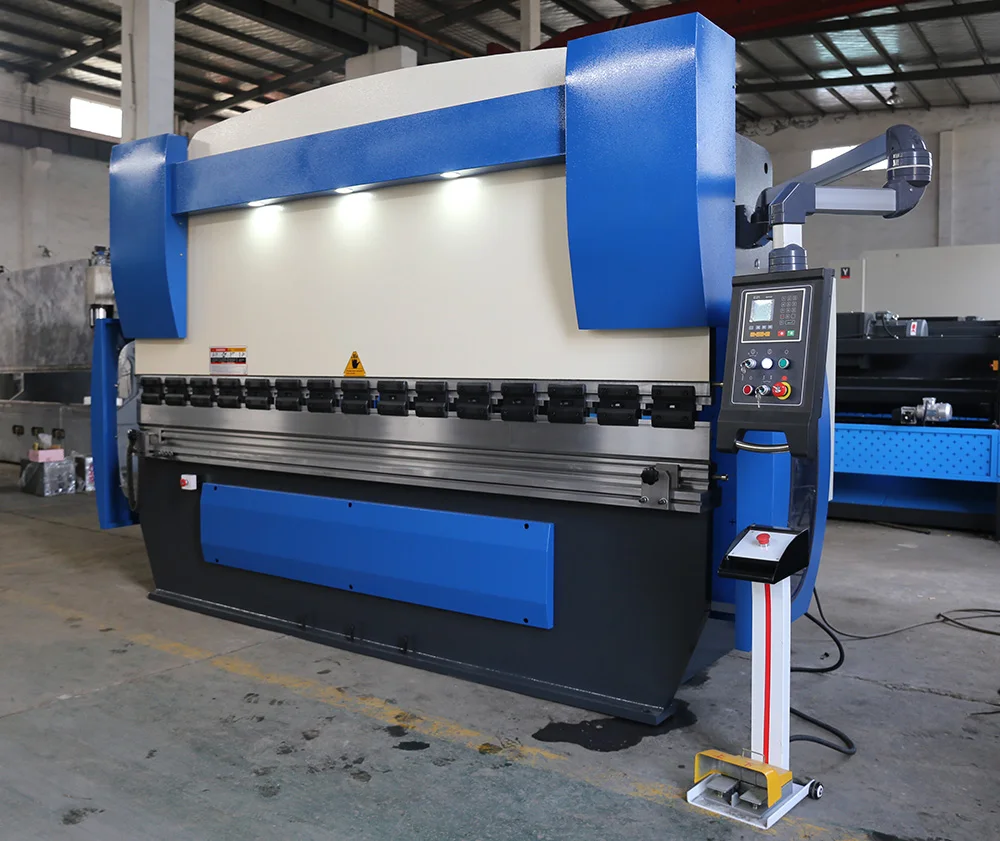

WC67K 100T/3200 листогибочный пресс, гидравлический листогибочный станок, гидравлический листогибочный пресс с ЧПУ с контроллером E21
- Category: Press Brake >>>
- Supplier: Maanshan Durmapress Machinery Technology Co. Ltd.
Share on (62194356384):
Product Overview
Description
Products Description
Standard Equipment :
• Total steel welded structure and stress elimination by vibration
• High mechanical strength and strong rigidity
• Ram stroke hydraulic approaching downward,stable and reliable
• DA53T can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning
• Wedge compensation on top punch clamping
• Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision
• 2 Sliding front sheet support arms mounted onto T slot of the bed
• Segmented 88° top blade
• Solid one block four face multi V die
• Approved stable and reliable hydraulics
• Stop fingers with milscale for plate bending machine
• High mechanical strength and strong rigidity
• Ram stroke hydraulic approaching downward,stable and reliable
• DA53T can control the movement of ram stroke and backgauge,achieving efficient and highly precise positioning
• Wedge compensation on top punch clamping
• Simplified top blades clamping with micro-adjustment wedges,for easy operation and high precision
• 2 Sliding front sheet support arms mounted onto T slot of the bed
• Segmented 88° top blade
• Solid one block four face multi V die
• Approved stable and reliable hydraulics
• Stop fingers with milscale for plate bending machine

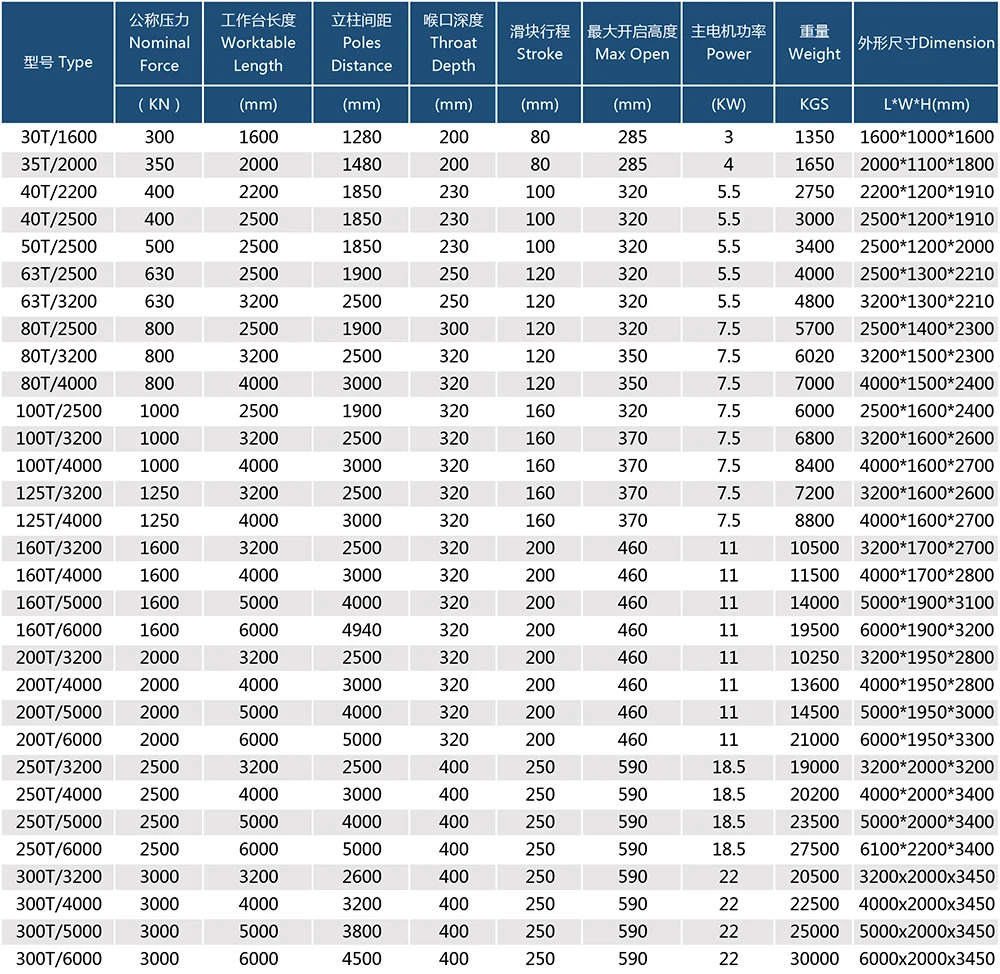

Model | WC67K 100T 3200 |
Normal Pressure | 1000KN |
Worktable Length | 3200MM |
Distance between holes | 2600MM |
Depth of throat | 350MM |
Ram Travel | 150MM |
Max opening height | 400MM |
Main Power | 7.5KW |
Overall dimension | 3740*1650*2355 |
Weight | 6500KGS |
Details Images

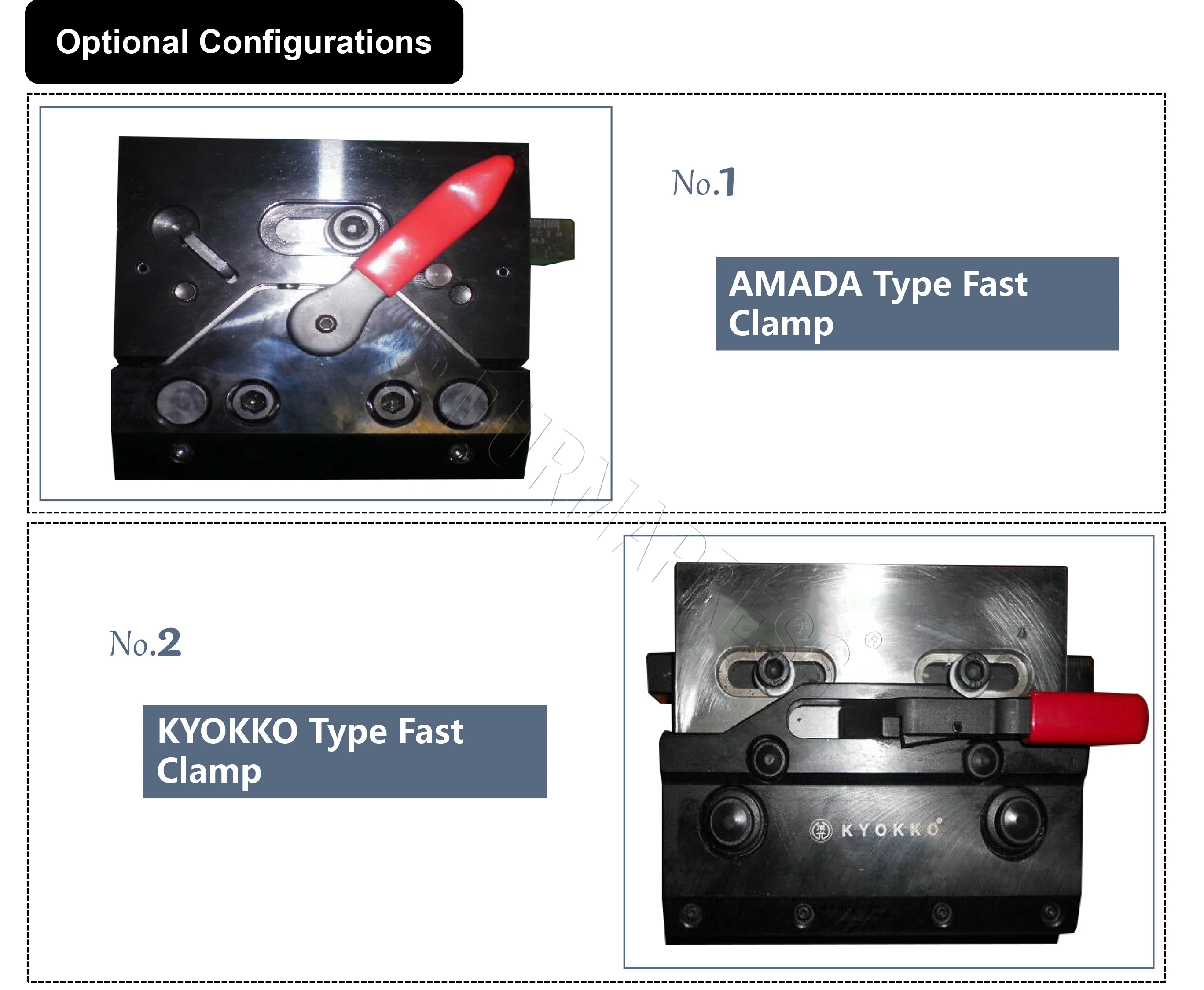

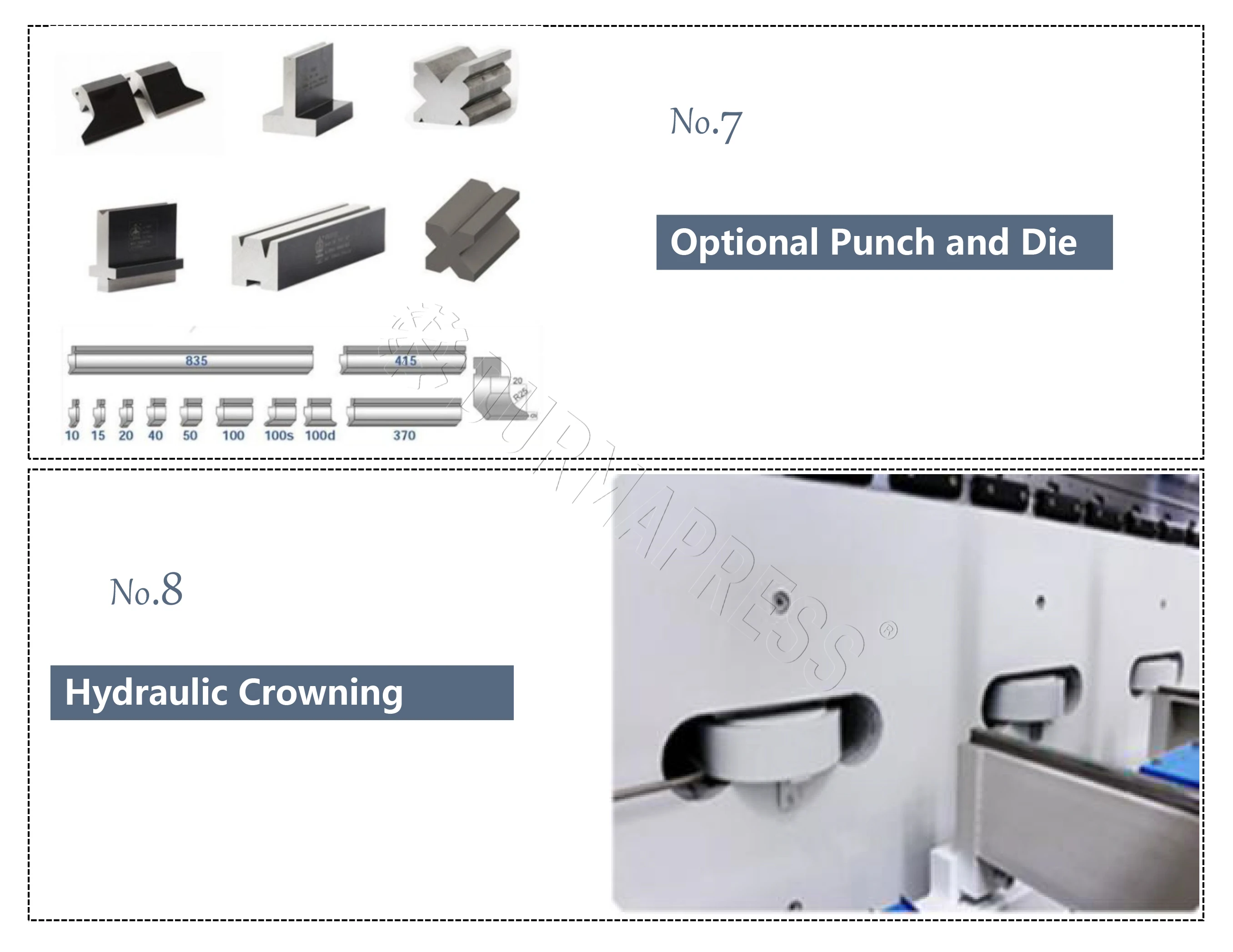

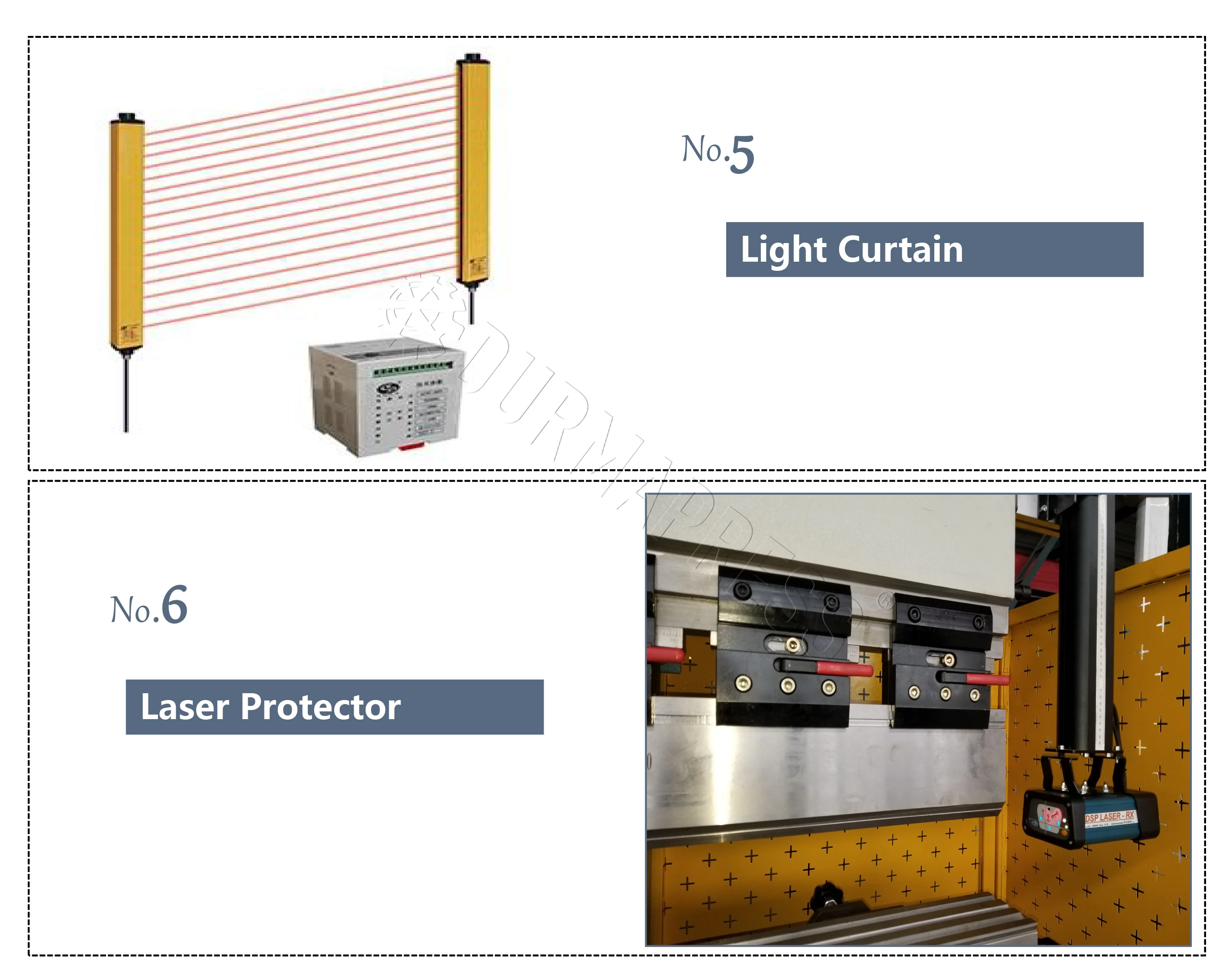

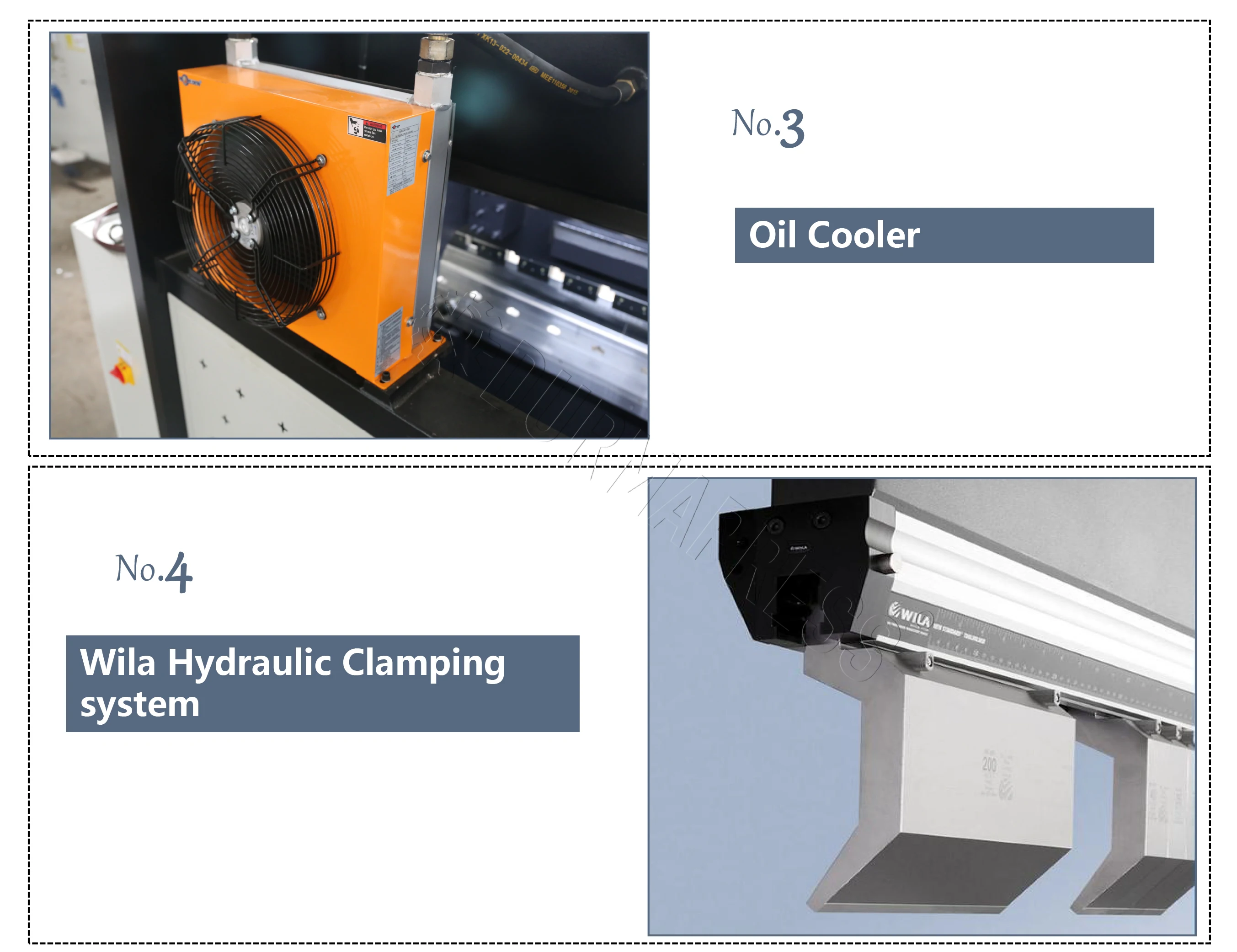

Optional Configuration
Company Information
Certifications
Packing & Shipping
FAQ
Q: How to get a accurate quotation from us ?
A:Prvide us the details of material , such as metal thickness and width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
A:Prvide us the details of material , such as metal thickness and width .
Q:Can you do OEM service ?
A:Yes, we can. your design is accepted , your own logo can be used on the machine.
Q:What's the shipping cost from china to your country ?
A:We can send machine to your port or door address by sea or airplane. please kindly tell us your nearest port or address with postcode. we have reliable shipping agent to insure the safe convenient and time delivery.
Q:Do you accept LC payment ?
A:Yes, normally our payment is 30%+70% T/T ,LC payment is also acceptable
Q:How to operate this machine ?
A:Video line of our factory or we send you the moive directly.
Q:Do you offer teaching & training ?
A:Training at supplier's plant
