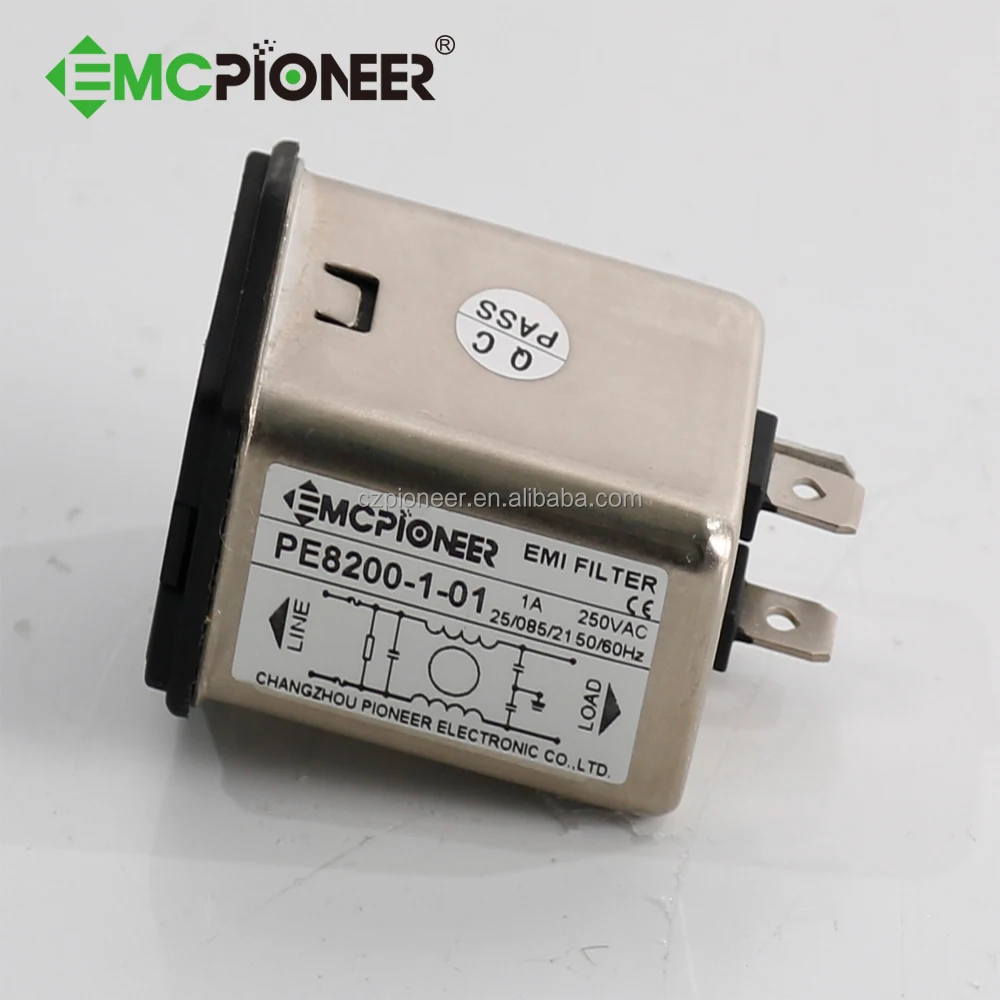

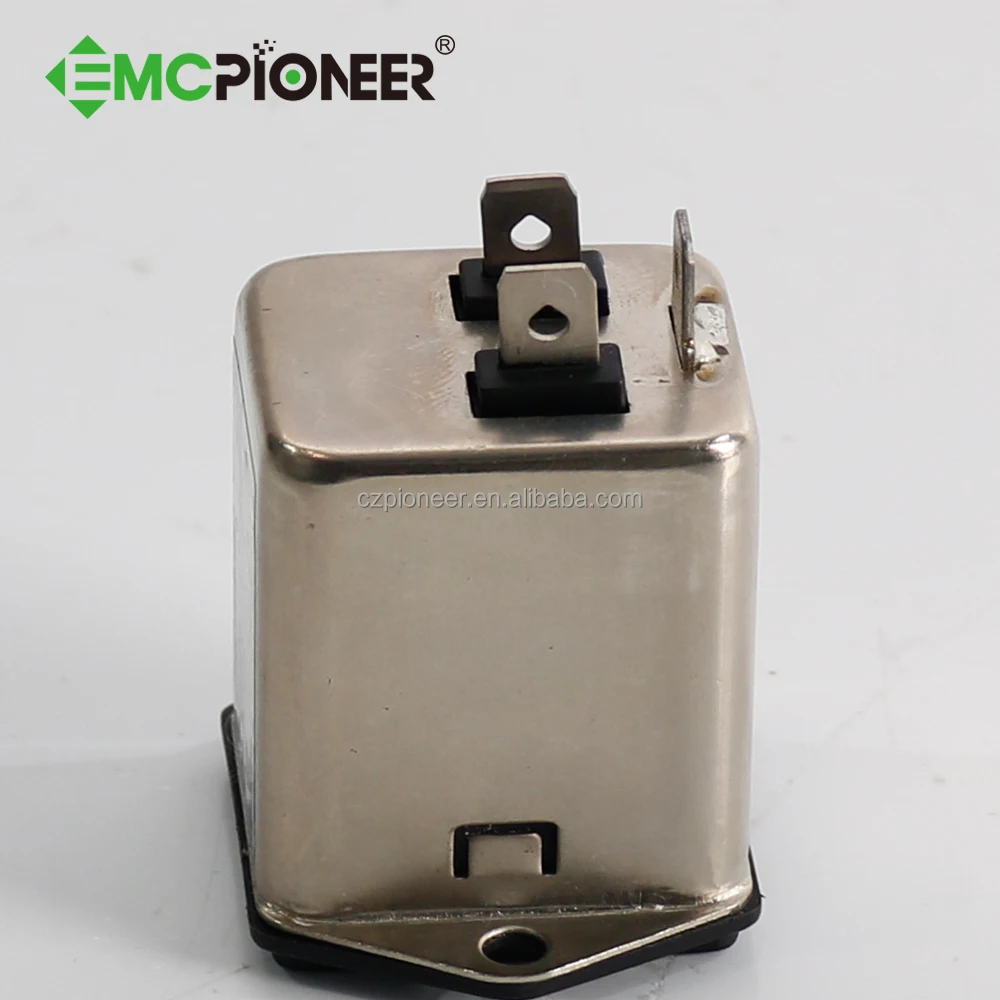

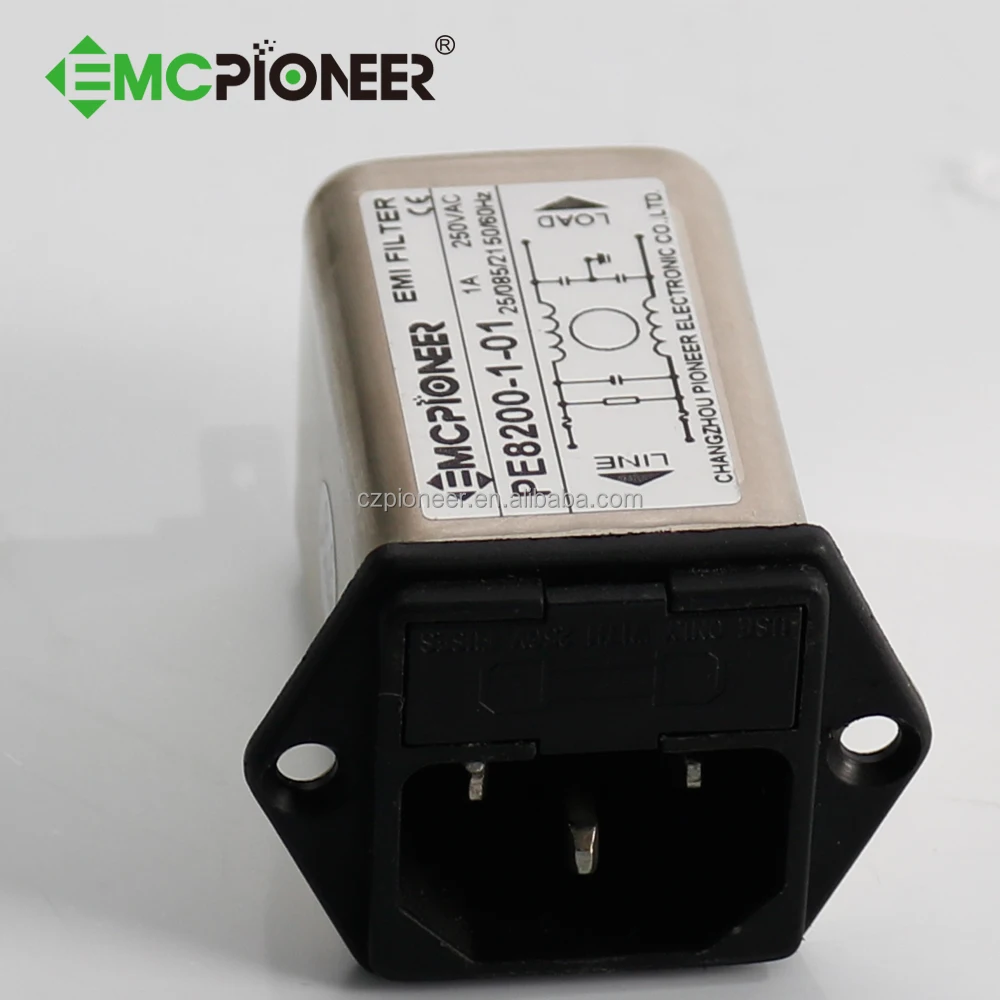

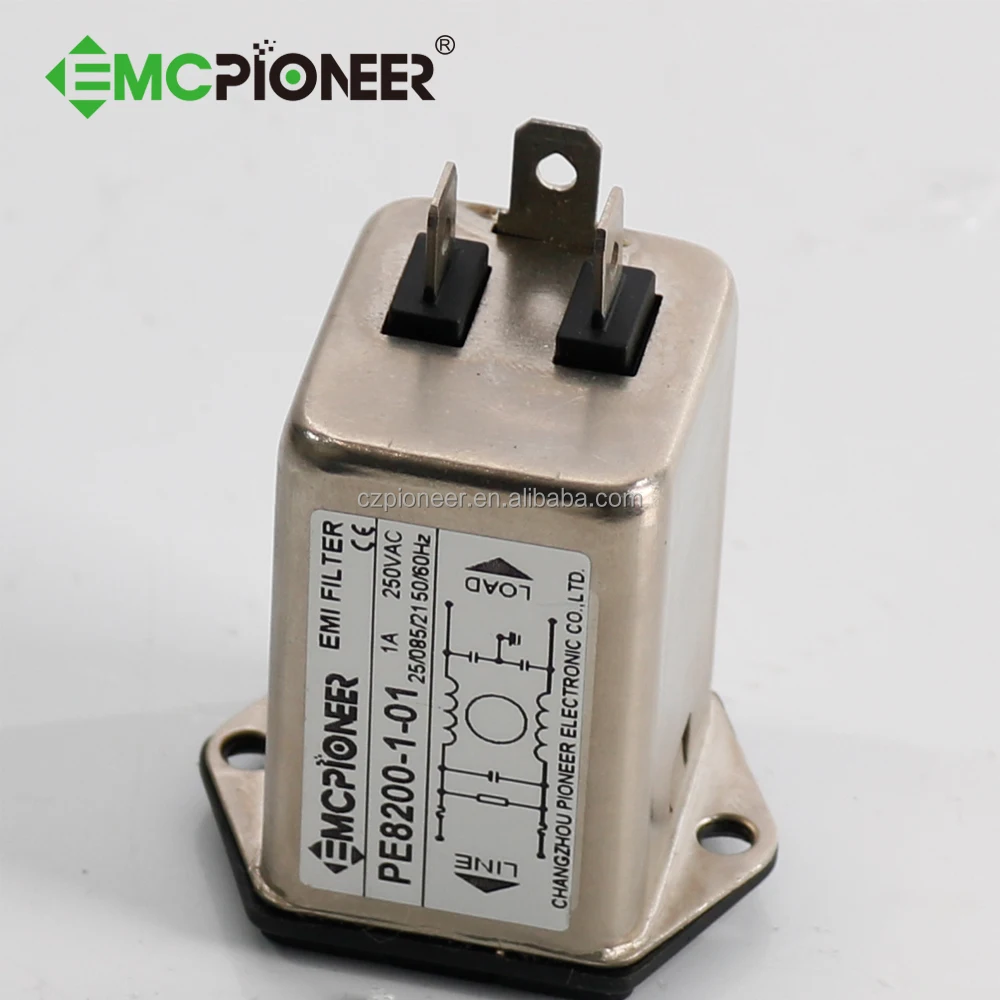

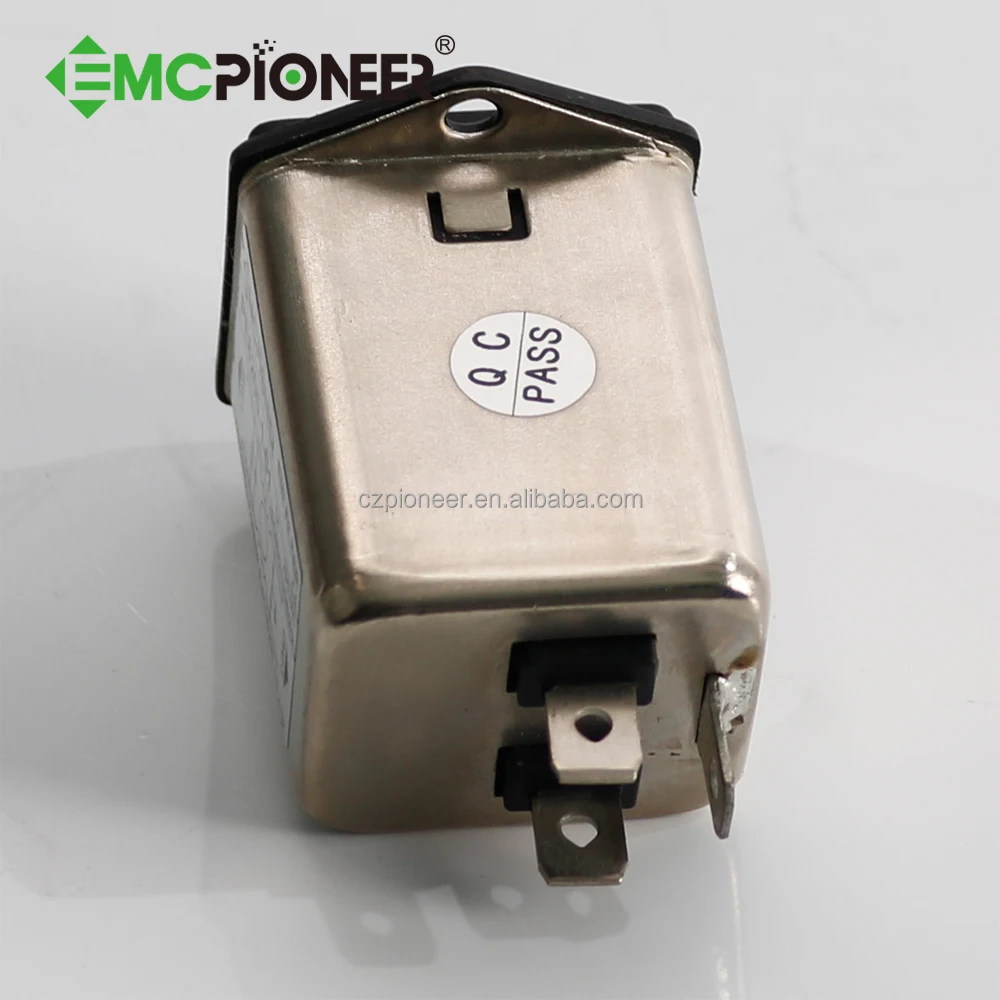

Medical appliance AC socket EMI power entry module filter 6A 10A 220V
Product Description
Description
| the PE8100 power entry module combines an IEC inlet,mains filter with excellent filter attenuation |
| and fuses in a small form factor |
| exceptional conducted attenuation performance,based on chokes with high saturation resistance and |
| therm behavior |
| rated currents up to 10a |
| for one or two fuses |
| high perfoamance-to-price ration |
Typical Application
1.Single-phase power supplies,swich-mode power supplies
2.Test and measurement equipment
3.Portable electrical and electronic equipment
4.EDP and office equipment
5.Medical equipment
Specification
Product Name | AC Socket Filter With Fuse Holder |
Model | PE8200-1-01 |
Rated Voltage : | 120 / 250VAC |
Rated Current | 1A~10A |
Operating Frequency | 50/60Hz |
Mounting type | faston/wire mounting |
Temperature range | 25/085/21 |
Test Voltage(1 min) | Line to Ground :2000VAC |
Line to Line :1450VDC |
Pictures

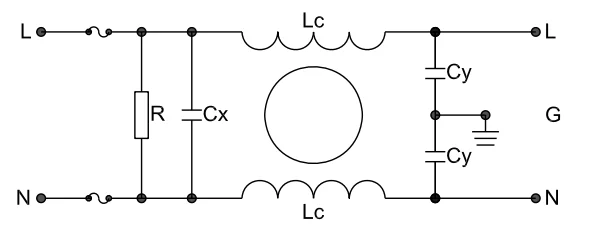

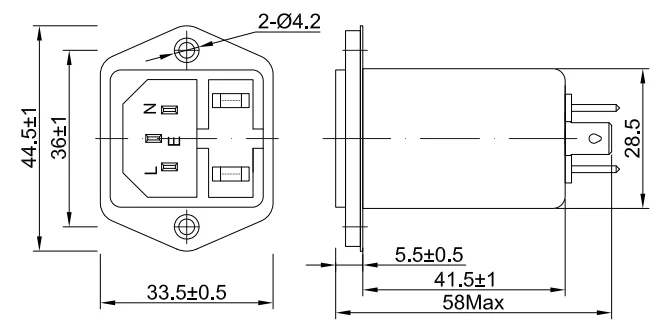

IEC EMI Filter Dimension and Schematic:
PE8100/8200 EMI filter Selection Table
Filter | Rated Current (A) | Rated Voltage (V) | Leakage Current(mA) | Fuse Holder |
PE8100-1-01 | 1 | 120/250 | 0.5 | 1 |
PE8100-3-01 | 3 | 120/250 | 0.5 | 1 |
PE8100-6-01 | 6 | 120/250 | 0.5 | 1 |
PE8100-10-01 | 10 | 120/250 | 0.5 | 1 |
PE8200-1-01 | 1 | 120/250 | 0.5 | 2 |
PE8200-3-01 | 3 | 120/250 | 0.5 | 2 |
PE8200-6-01 | 6 | 120/250 | 0.5 | 2 |
PE8200-10-01 | 10 | 120/250 | 0.5 | 2 |
IEC Filter Similar Products:

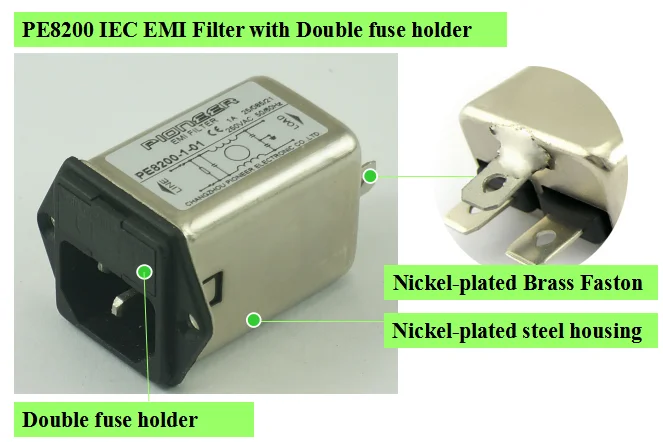

PE8100 IEC Mains Filter With Fuse Holder:

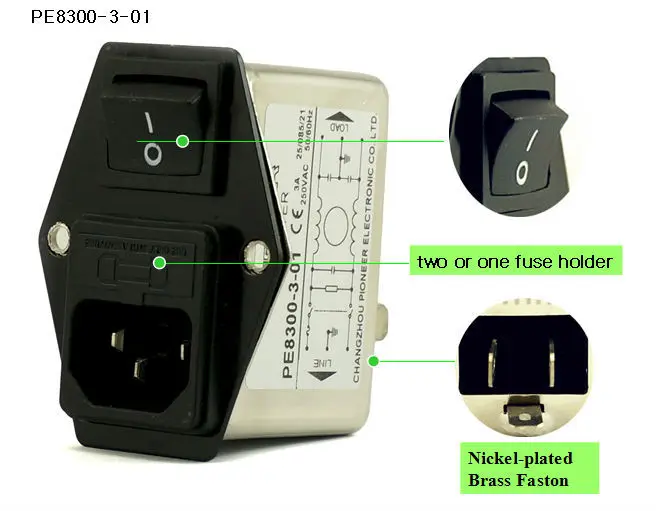

Holder: PE8600 IEC Filter With on/off Switch

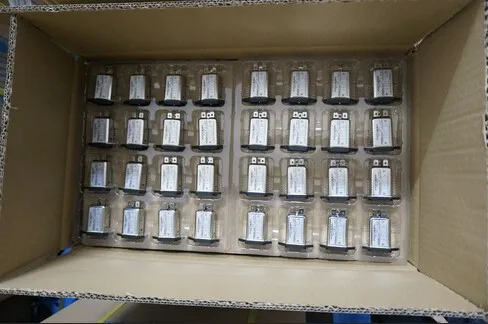

IEC Filter Packing Detail:
1.Packing using Plastic blister.
2.Every IEC Filter packaged Individually , More Safer.
3.5-layer corrugated Carton, More secure.
Our Services
Before-sale:
1.All inquires will be replied with 8 hours. 7D/24H service,Please feel free to contact us with
Email/TM/Skype.
2.Strong technical team and Professional sales.
3.Customized packaging is acceptable.
4.Welcom customers from all the world to visit our factory.
After-sale:
1.All emi filter will be tested and adjusted before shipping.
2.After receiving the products,Any question we will try our best to solve.

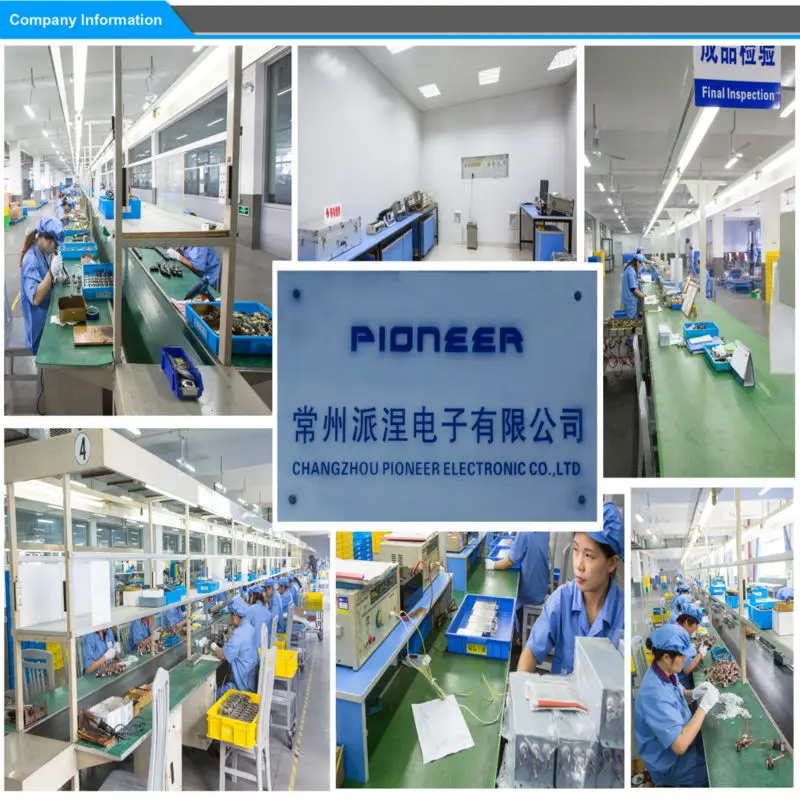

Company Information
Our company is one of the leading professional manufacturer in the electro magnetic compatibility
(EMC) field.
FAQ
1. Q : How do I pay for my purchase order?
A : We can accept following payment method: T/T, L/C, D/A, D/P, and we also can accept
Westernunion,Paypal.If you want another payment please contact us.
2. Q : Is there a tracking number for my item?
A: Yes, of course. We usually ship your goods by EMS, DHL, Fedex, UPS, TNT with online track,
you can view the ship status on website.
3. Q : Could you do OEM for us?
A:Sure,we accept OEM order,please provide us the label picture.
