Product Overview
Description
Product Description

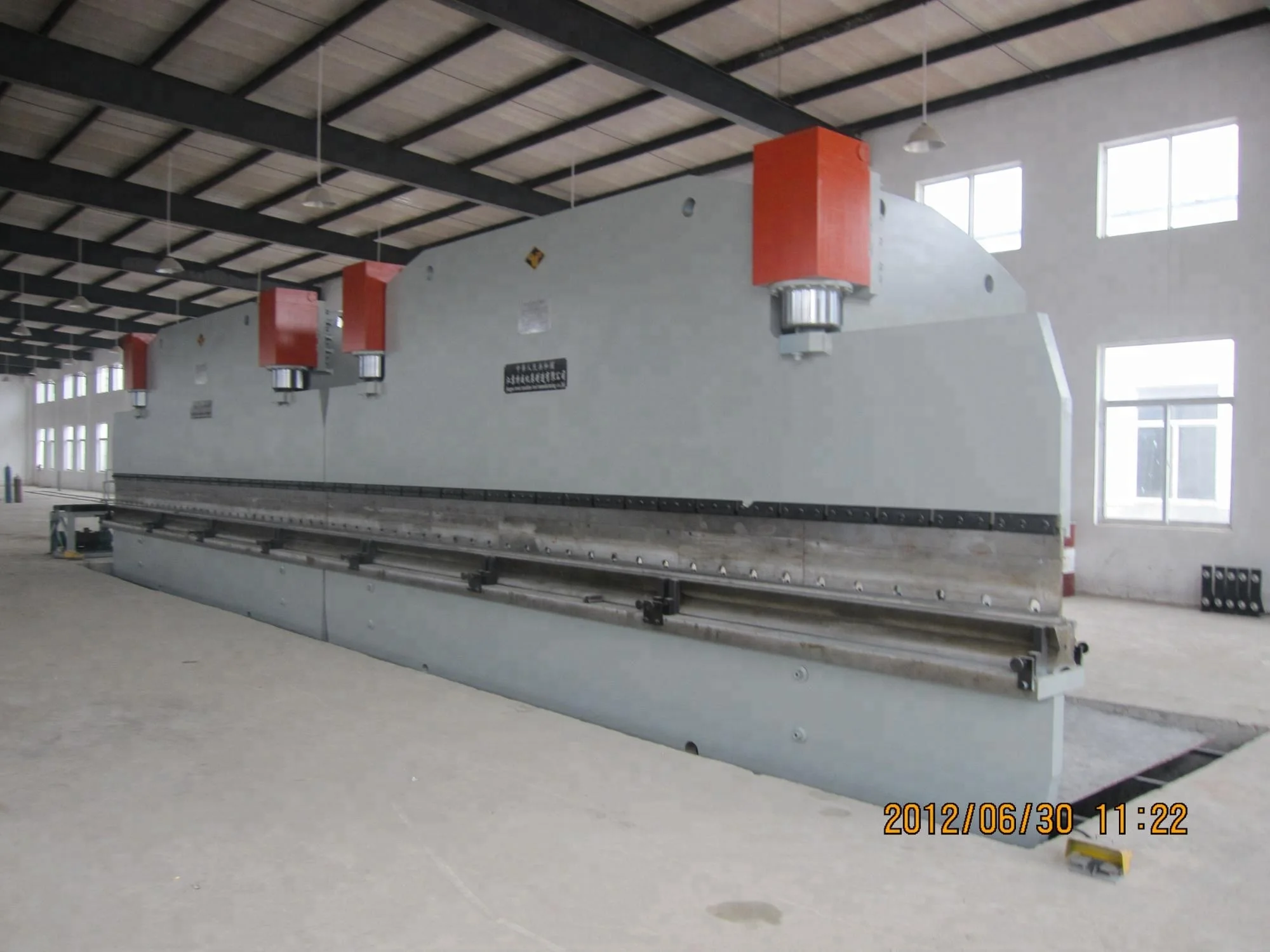

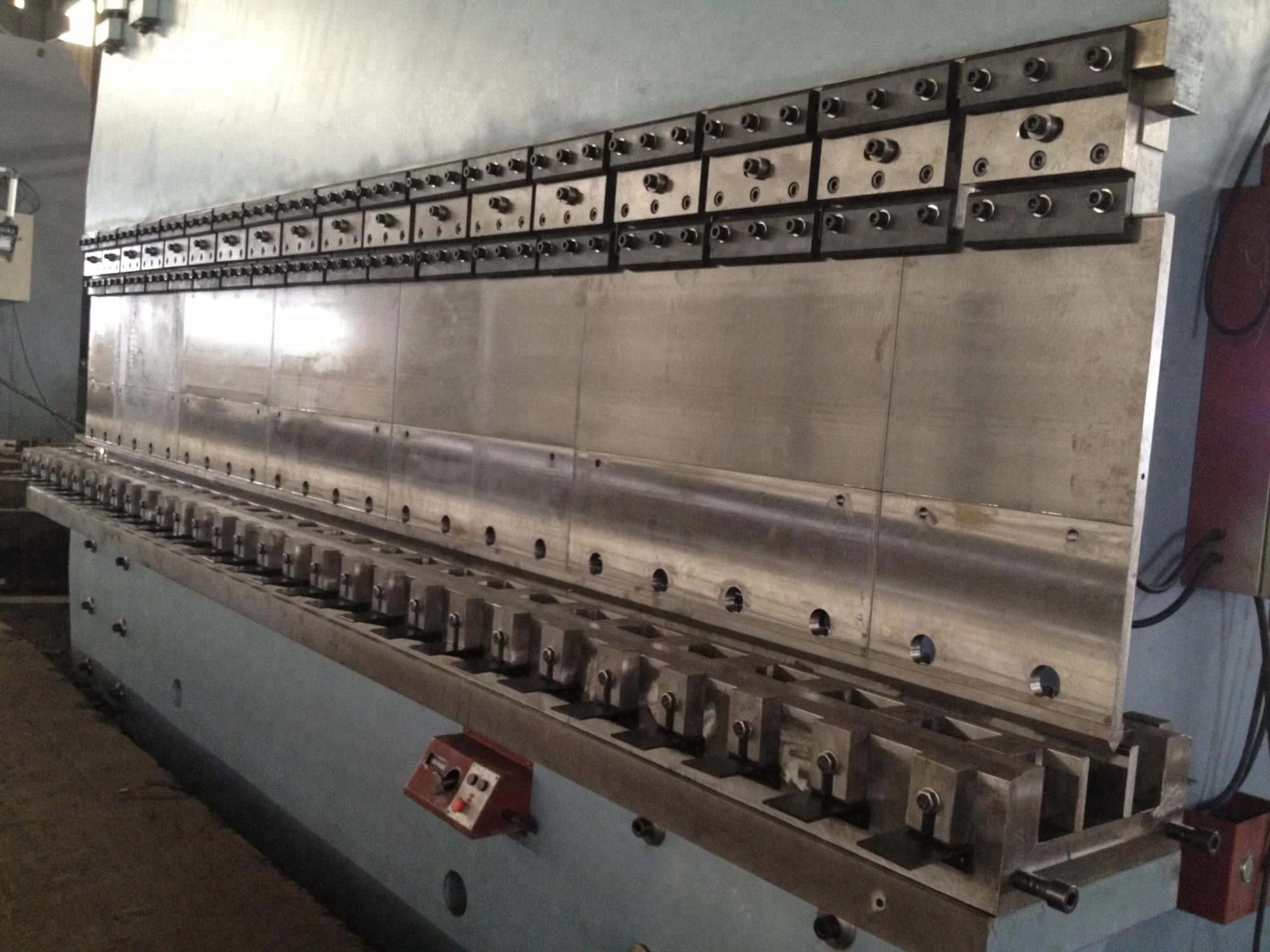

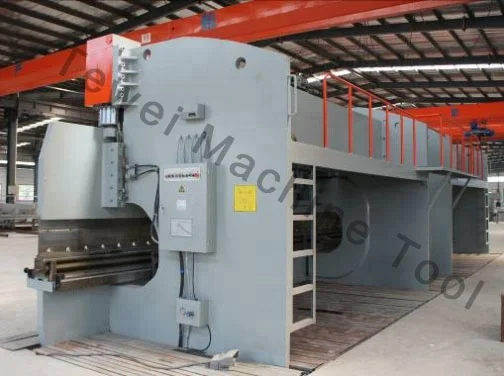

This machine was combined by two sets of 300 tons press brake. Tandem achieve synchronization working. Single machine was combined by worktable ram and right and left wall board. Wall board adopt assemble structure due to the transportation. The rack has enough rigidity. Two cylinders install to the right and left wall board, Under the effect of electric operation system, drive the slider running down. On slide there is upper dies, When upper and lower dies touch workpieces, System raise pressure, form the workpieces. Use different dies, Under different bending, Can get the different types of workpieces. The quality is reliable and stable.
Specification
Technique Parameters Of Machine
SN | Description | Value | Unit | ||
1 | Nominal Pressure | 2*3000 | KN | ||
2 | Length Of Worktable | 2*6000 | MM | ||
3 | Max Slider Stroke | 250 | MM | ||
4 | Max Opening Height | 770 | MM | ||
5 | Throat Depth | 650 | MM | ||
6 | Power | 2*22 | KW | ||
7 | Figure | L | 12000(Tandem) | MM | |
W | 2300 | MM | |||
H | 4800 | MM | |||
8 | Gross Weight | 72000 | KG | ||
Major Spare Parts Suppliers
SN | Name | Spec. | Qty | Suppliers |
1 | Oil Pump | 25 Above Capacity | 2sets | Shanghai Qigao Pump |
2 | Motor | 22KW | 2sets | Siemens Beider |
3 | Adjustable Motor | 1.1KW | 4sets | Siemens Beider |
4 | Sealing | Full Sets | 2sets | Japan |
5 | Electric Components | 2sets | Schneider | |
6 | Hydraulic Oil | 46# Anti-Wear Hydraulic Fluid | 12barrel | Shanghai(By Users) |
7 | Hydraulic Valve Stack | Professional System | 2sets | Home Made |
8 | Cylinder Of Press Brake | Professional Cylinders | 2sets | Home Made |

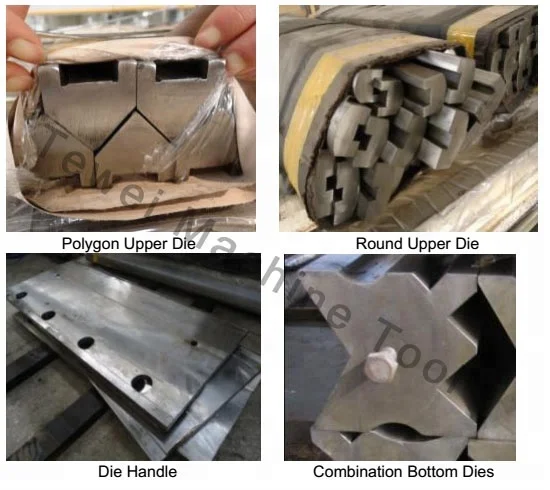

Dies
Polygon Upper Die
Round Upper Die
Die Handle
Combination Bottom Dies
Certifications
Customer Photos
