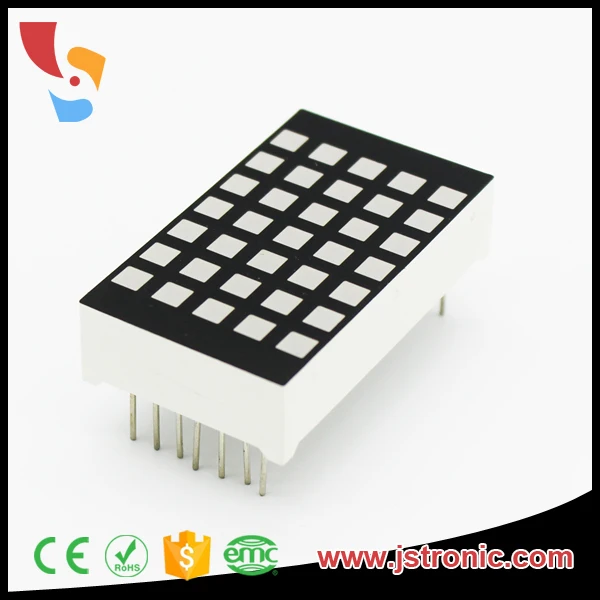

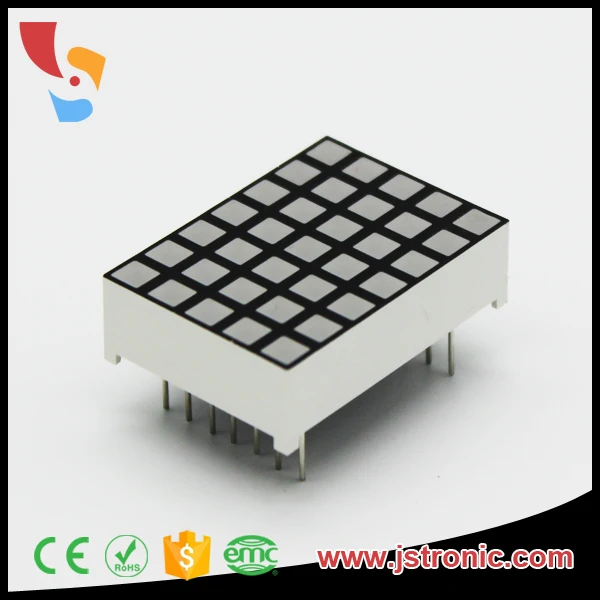

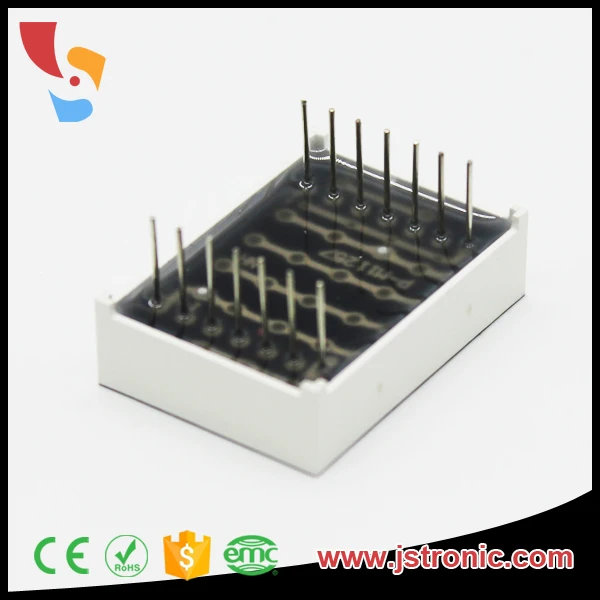

Ultra bright 5x7 square transparent led dot matrix 7*5 display

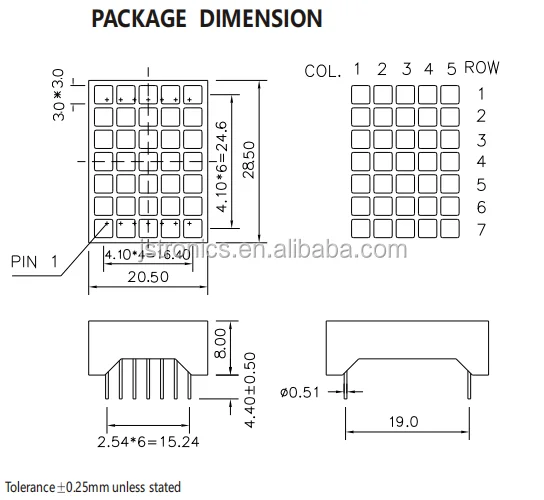

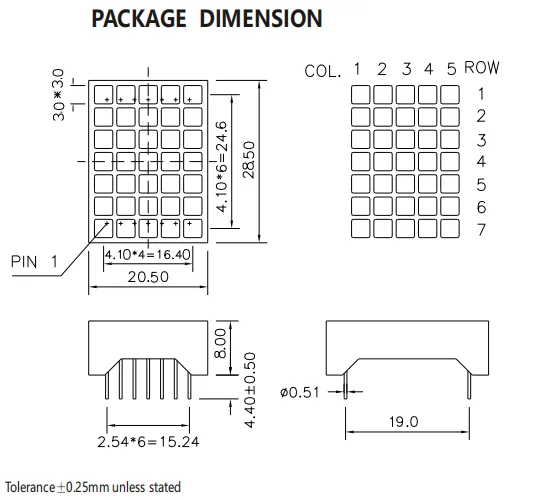

5x7 square led transparent dot matrix dimension
Product Description
*Ultra dot intensity
*Wide viewing angle
*Range of colors
*Gray or black face White segment
*RoHS compliant

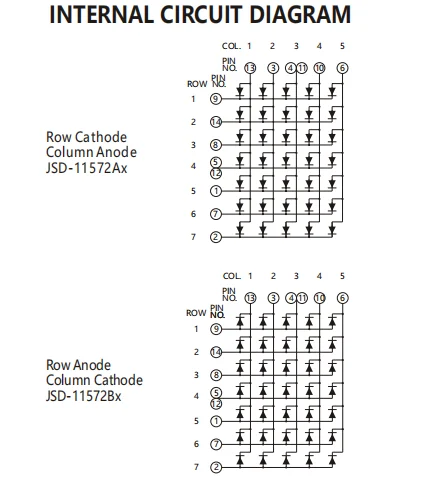

7x5 square led dot matrix display
Electro/Optical Characteristics If=20mA Ta=25 C
Part Number | EMITTED COLOR | Peak Wavelength (mn) | Vf(V) | Iv(mcd) | |||
Com Cathode | Common Anode | Type | Max | Min | Typ | ||
JSD-11571AUR | JSD-11571BUR | AlGaInP/GaAs Super red | 630 | 2.0 | 2.5 | 10 | 20 |
JSD-11571AUE | JSD-11571BUE | AlGaInP/GaAs Ultra | 625 | 2.0 | 2.5 | 40 | 80 |
JSD-11571AUA | JSD-11571BUA | AlGaInP/GaAs Ultra Amber | 605 | 2.0 | 2.5 | 40 | 60 |
JSD-11571AUY | JSD-11571BUY | AlGaInP/GaAs Ultra Yellow | 590 | 2.0 | 2.5 | 40 | 60 |
JSD-11571AUG | JSD-11571BUG | AlGaInP/GaAs Yellow Green | 574 | 2.0 | 2.5 | 10 | 15 |
JSD-11571APG | JSD-11571BPG | InGaN/Sic Pure Green | 525 | 3.2 | 3.8 | 150 | 200 |
JSD-11571AUB | JSD-11571BUB | InGaN/Sic Ultra Blue | 470 | 3.2 | 3.8 | 40 | 50 |
JSD-11571AUW | JSD-11571BUW | InGaN/Sic Ultra White | x-0.31/y-0.31 | 3.2 | 3.8 | 200 | 400 |
7x5 square led dot matrix display
Absolute Maximum Ratings at Ta=25℃
Characteristic | Symbol | UR | UE | UA | UY | UG | PG | UB | UW | Unit |
Pulse Forward Current Per Seg. | IFP | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 | mA |
DC Forward Current Per Seg | IF | 30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | mA |
Reverse Current Per Seg. | IR | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | uA |
Power Dissipation | PD | 36 | 40 | 42 | 42 | 44 | 66 | 66 | 66 | mA |
Operation Temperature | TOPR | -40 to +80 | ℃ | |||||||
Storage Temperature | TSTG | -40 to +85 | ℃ | |||||||
Lead Soldering Temperature |
| 260 | ℃ | |||||||
Products Details Picture
Dot-matrix 8x 8 array, standard size or customized sizes
Dot size: 1.9mm
Sizes: 1.9 (0.7), 3.3 (1.3), 4.8 (1.9), 5.8 (2.3) or 10mm (4 inches) height and more customized sizes
Could be single red, green, amber and white for your option and also could be dual-color red and green
Common anode or cathode for your choice
Black or gray face
High-intensity and reliability
Excellent segment uniformity
Industrial standard size
RoHS Directive-compliant
Applications: indoor LED display and LED sign, elevator/lift, advertising display, bank screen, bus, train station and airport displays, LED moving message sign, LED strip display, LED clock display and other different display areas of equipment machines
