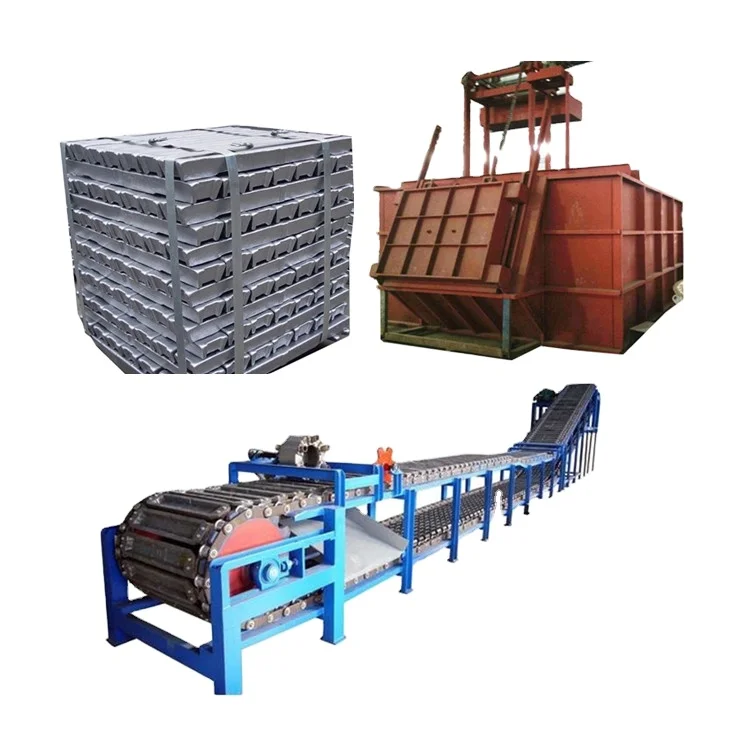

Aluminum Ingot Production Line With Automatic
- Category: Metal Casting Machinery >>>
- Supplier: Nantong Zhenhuan Trade Co. Ltd.
Share on (60594740259):
Product Overview
Description
Aluminum ingot making machine
I Usage
This production line is used for producing aluminum alloy ingots.
One production line is 40 tons per day, 12000tons per year (300days).
If capacity is 50000 tons per year, it needs 4 sets of production line.
II 20 TONS rectangULAR aluminum melting furnace
Usage
This machine is used for melting nonferrous metals (aluminum).
Main technical parameters
Name | Data |
Furnace type | Rectangular stationary type |
Capacity | More than 20 tons |
Max. depth of aluminum water | About 650mm |
Number of furnace door | 1 |
Door operation | Power driven |
Max. temperature | 900℃ |
Normal operation temperature | 720-800℃ |
Al water discharge type | Manual |
Discharge hole diameter | About 500mm |
4 Fireproofing
Name | Material type | Thickness |
Furnace wall (furnace tank which touch liquid) | High-alumina brick, Grade I | 230mm |
Impermeable and insulating layer | 330mm | |
Steel plate (A3) | 8mm | |
Total thickness of furnace wall | 568mm | |
Furnace wall (out of touch liquid) | High-alumina brick, Grade III | 230mm |
Impermeable and insulating layer | 330mm | |
Steel plate (A3) | 8mm | |
Total thickness of furnace wall | 568mm | |
Furnace bottom | High-alumina brick, Grade I | 230mm |
Impermeable and insulating layer | 280mm | |
Steel plate (A3) | 10mm | |
Total thickness of furnace bottom | 520mm | |
Furnace top | Fire brick | 230mm |
Insulating castable | 150mm | |
Aluminum silicate fiberboard | 50mm | |
Body frame channel steel | 12# channel steel | |
Total thickness of furnace top | 550mm |

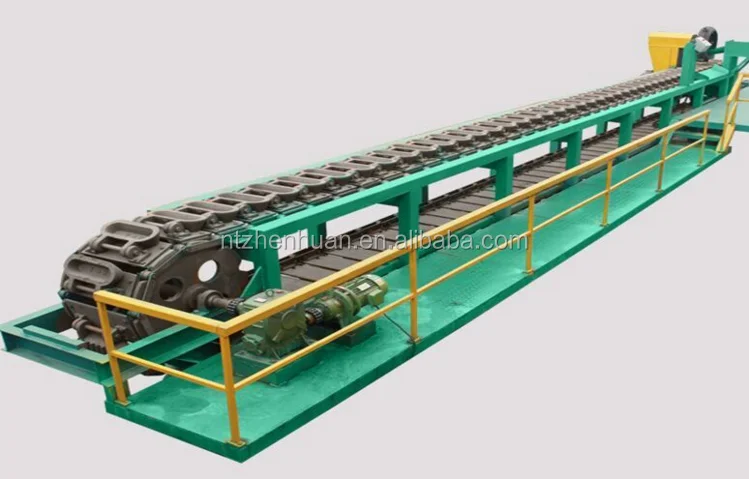

III Chain type aluminum alloy ingot casting machine
1 Usage
This machine is used for casting aluminum alloy ingot with continuous.
2 Main technical parameters
Name | Data |
Machine dimension | 20 x 1 x 2m (L,W, H) |
Ingot take off type | Single pneumatic hammer |
Power | 7.5kW, frequency motor |
Scraping belt pitch | 152.4mm |
Number of ingot die | 262pcs, High-Mn heat resisting iron |
Distribution parts | High-Mn heat resisting iron, 8 pcs nozzles |
Output | 4-6 seconds per ingot |
Cooling type | Water and air cooling |

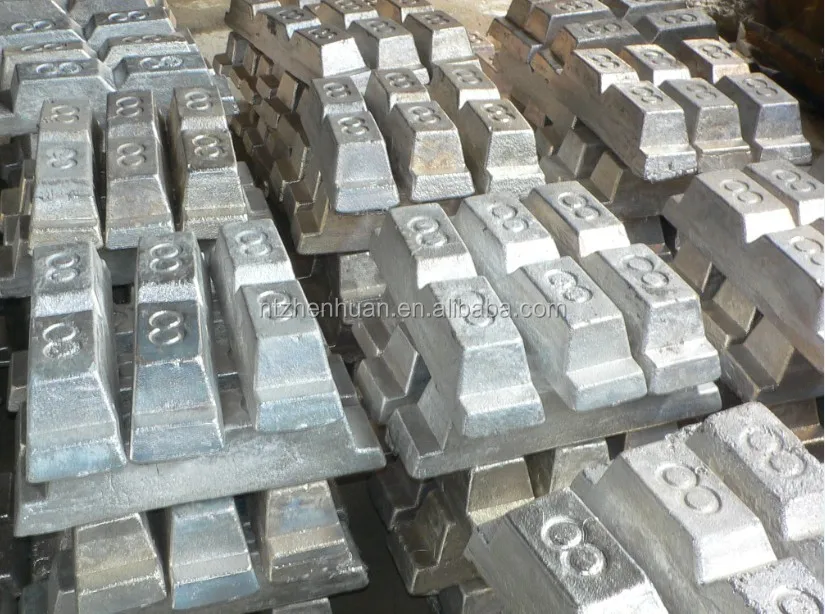

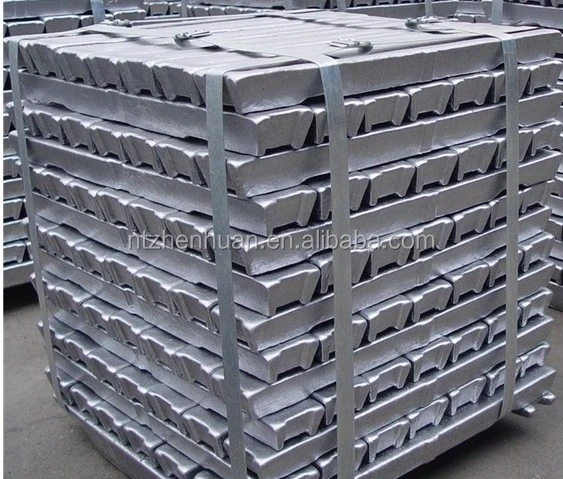

Weight of each ingot | About 6kg |
Air supply pressure | 0.63Mpa |
IV STacker Unit
Name | Data |
Power | 1.5kW |
Lifting height | 150mm |
Lifting weight | 100kg |
Rotation angle | 0 , 90 degree |
Moving speed for trolley | About 14m/min |
Number of ingot for moving | 7pcs/each time |

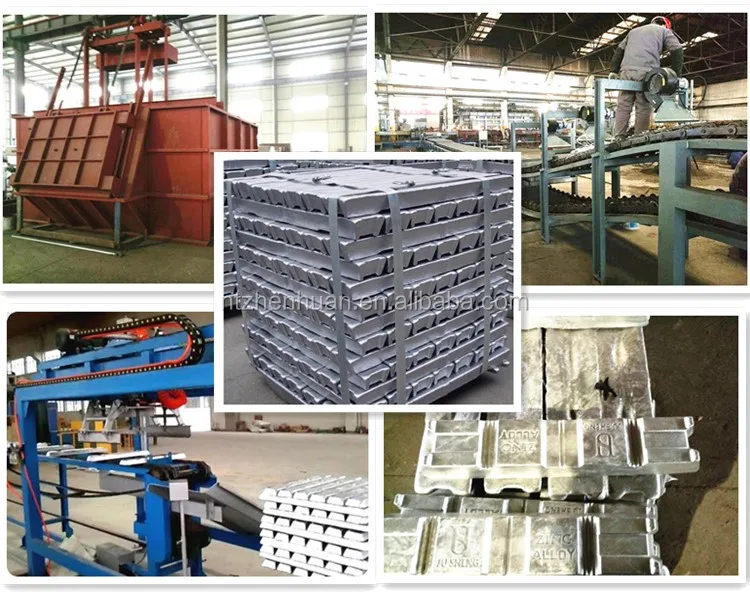

We can provide whole production line for aluminium alloy ingot
