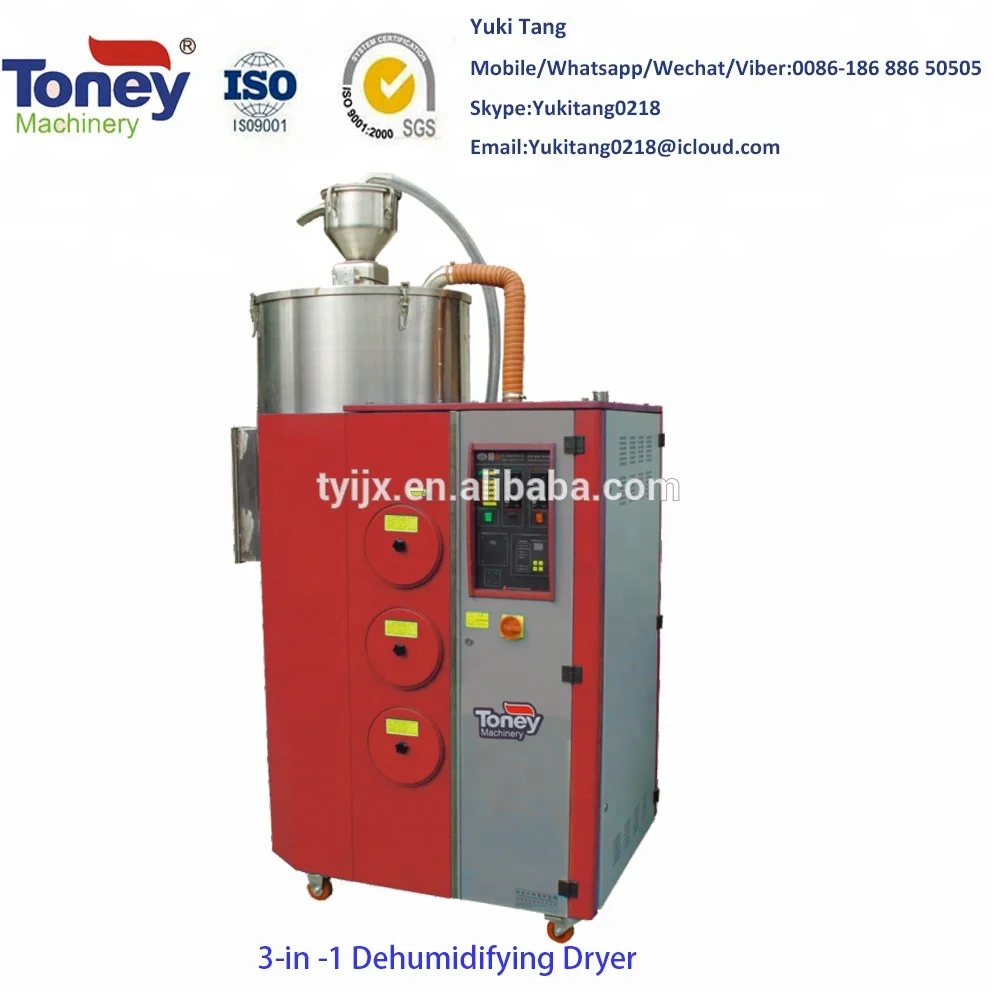

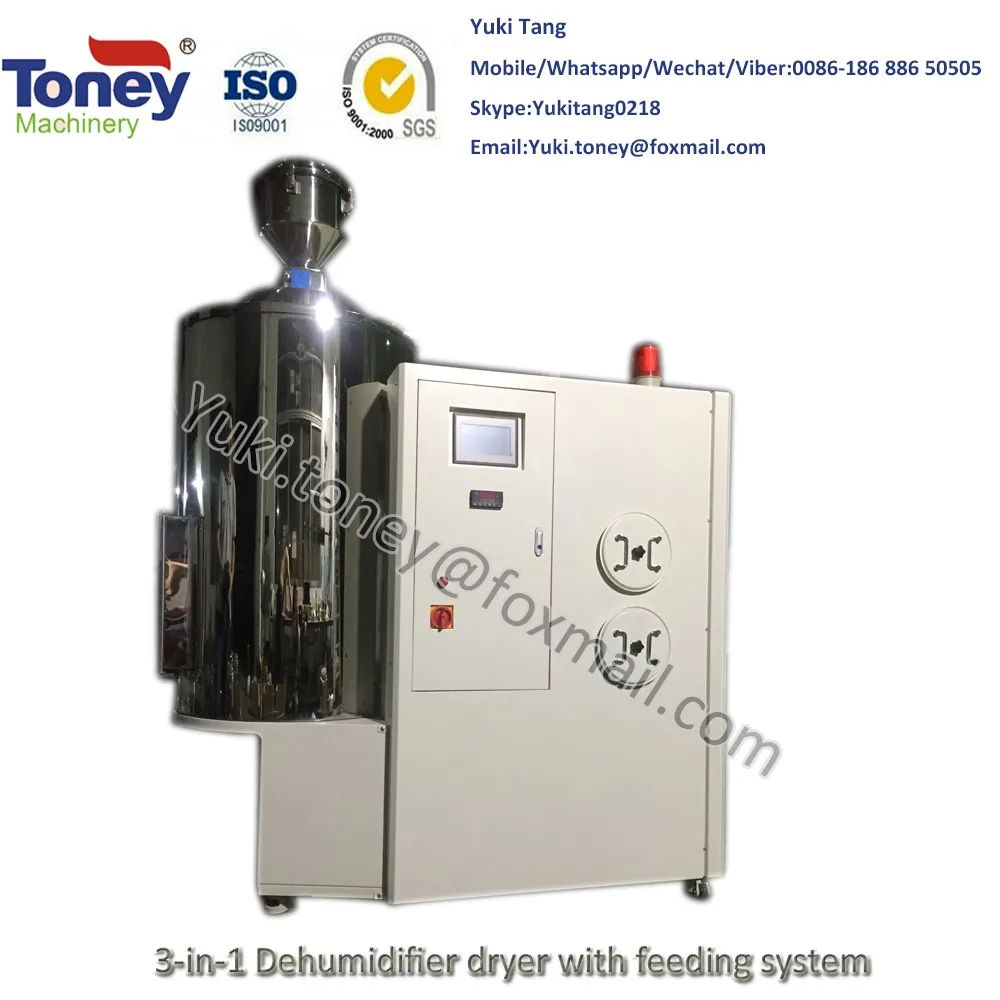

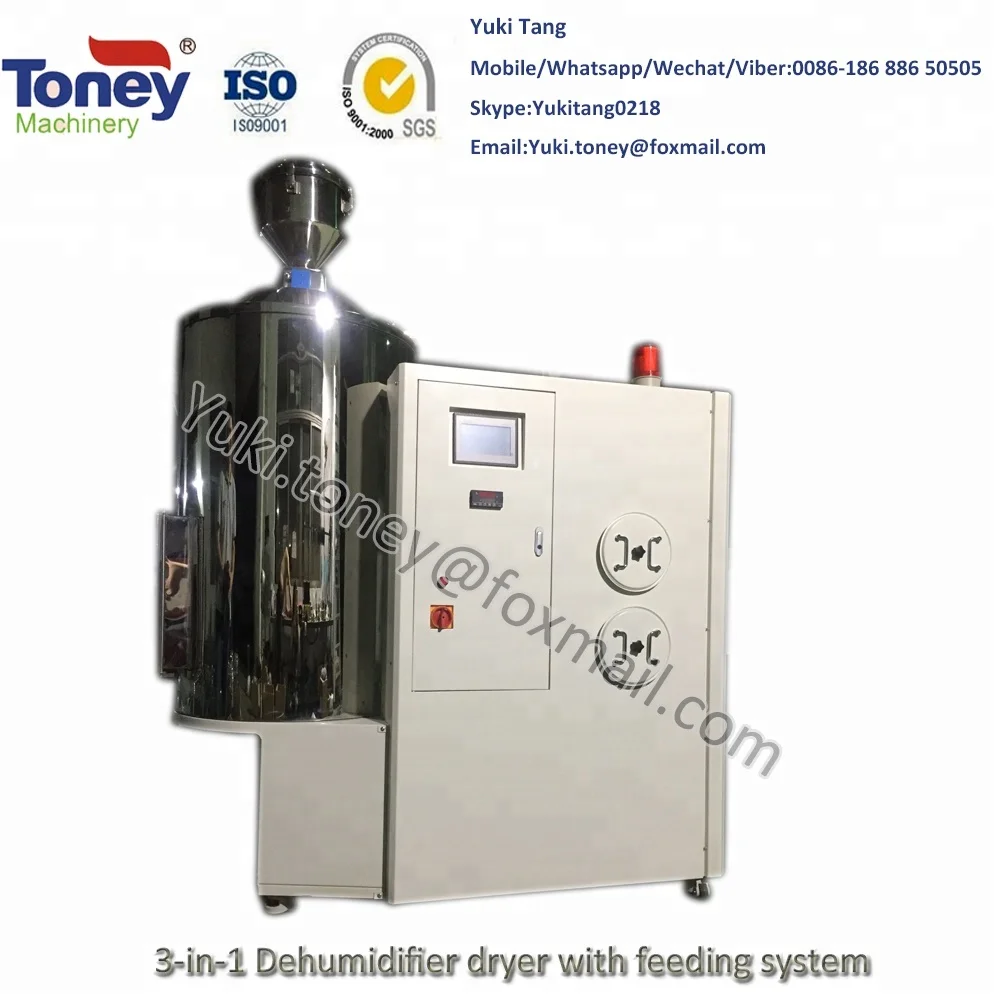

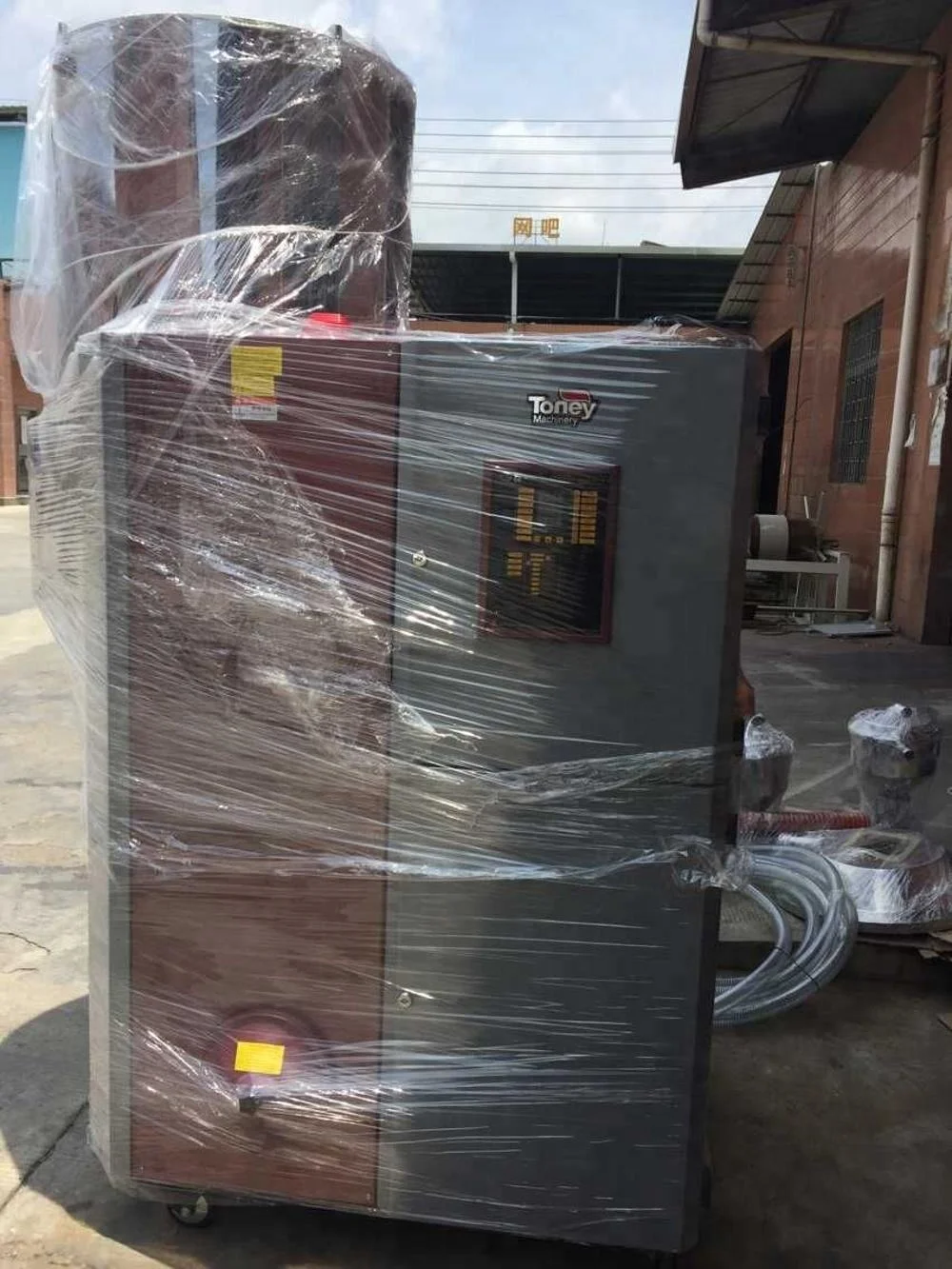

Plastic dehumidifier dryer loader

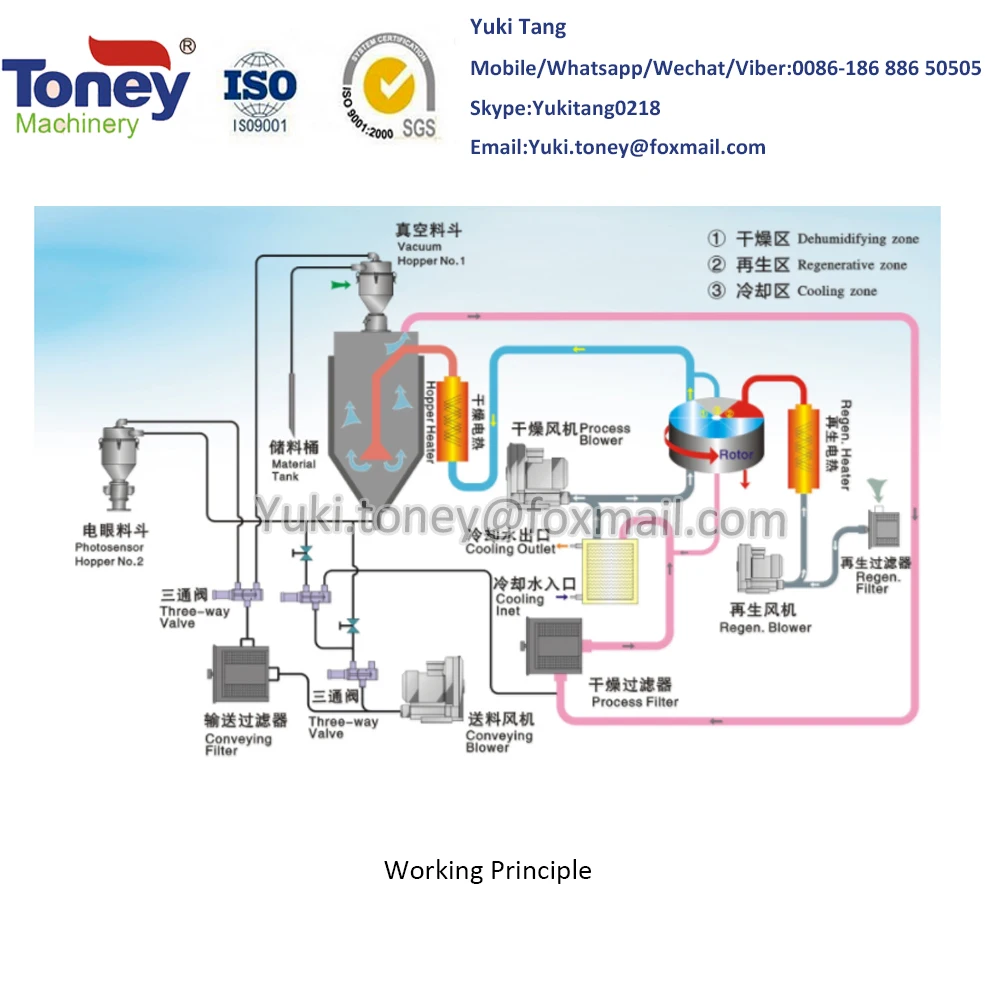

3 in 1 dehumidifying dryer energy-efficient type compact dryers simplify the design of system which reduces power consumption. It combines conventional hot air drying and two-stage conveying functions into a compact unit, It is suitable for drying engineering plastics which a certain requirement for moisture content such as ABS,PC,PE,PVC and PU, It takes advantage of heatless regenerative device and offers stable low dew-point dried air, can dry material more easily.

SPECIFICATIONS FOR 25 TON CRAWLER EXCAVATOR
Engine	Engine model	TYC3-300/200
	Power supply	380V/50Hz/3phase	Can be customized
	Function	Plastic material Drying	Automatic feeding
Main performance parameters	Hopper capacity	KG	300
	Air capacity	m/hr	200
	Blower power	KW	2.2
More detail parameters	Heater capacity	KW	15
	Vacuum hopper capacity	L	12
	Sensor hopper capacity	L	12
	Pipe diameter	inch	1.5
	Dimensions	mm	1350*790*200

Main Features Of Dehumidifying Dryer

1) Honeycomb dessicant wheel (Japan)

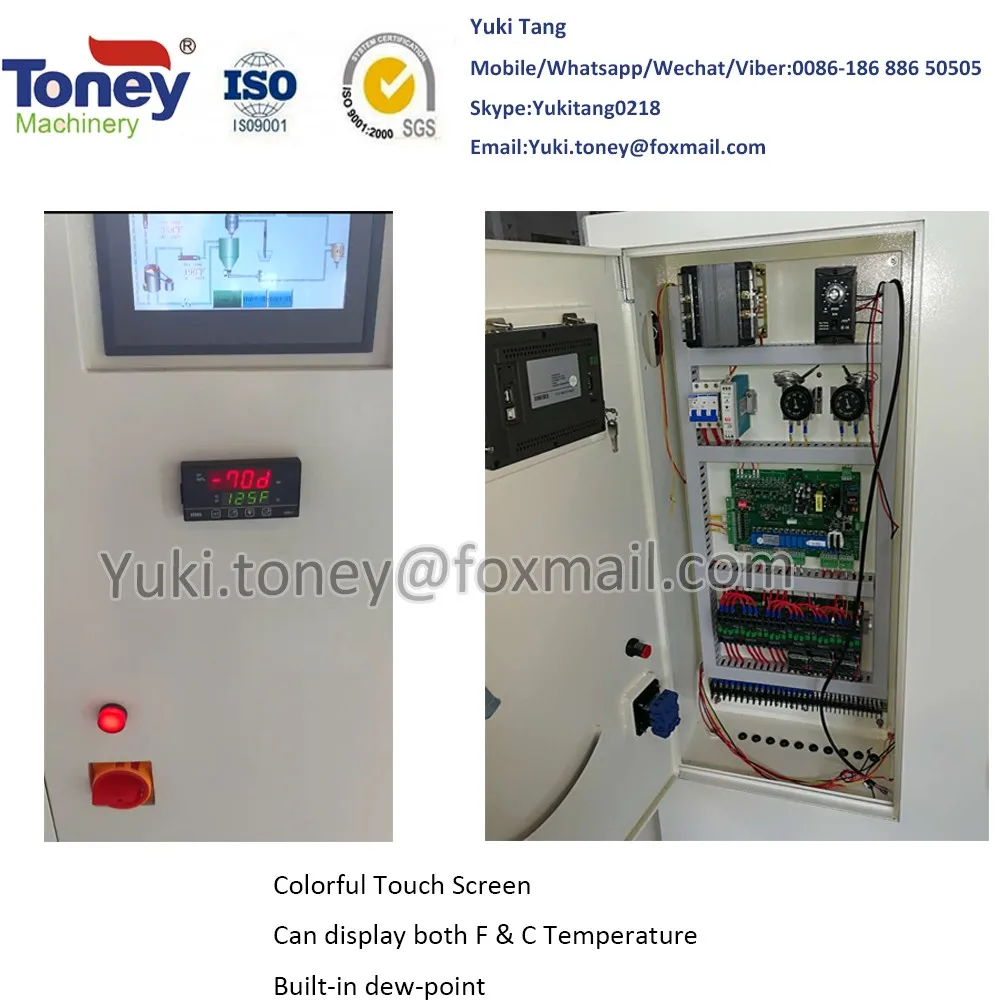

2)  Touch screen control

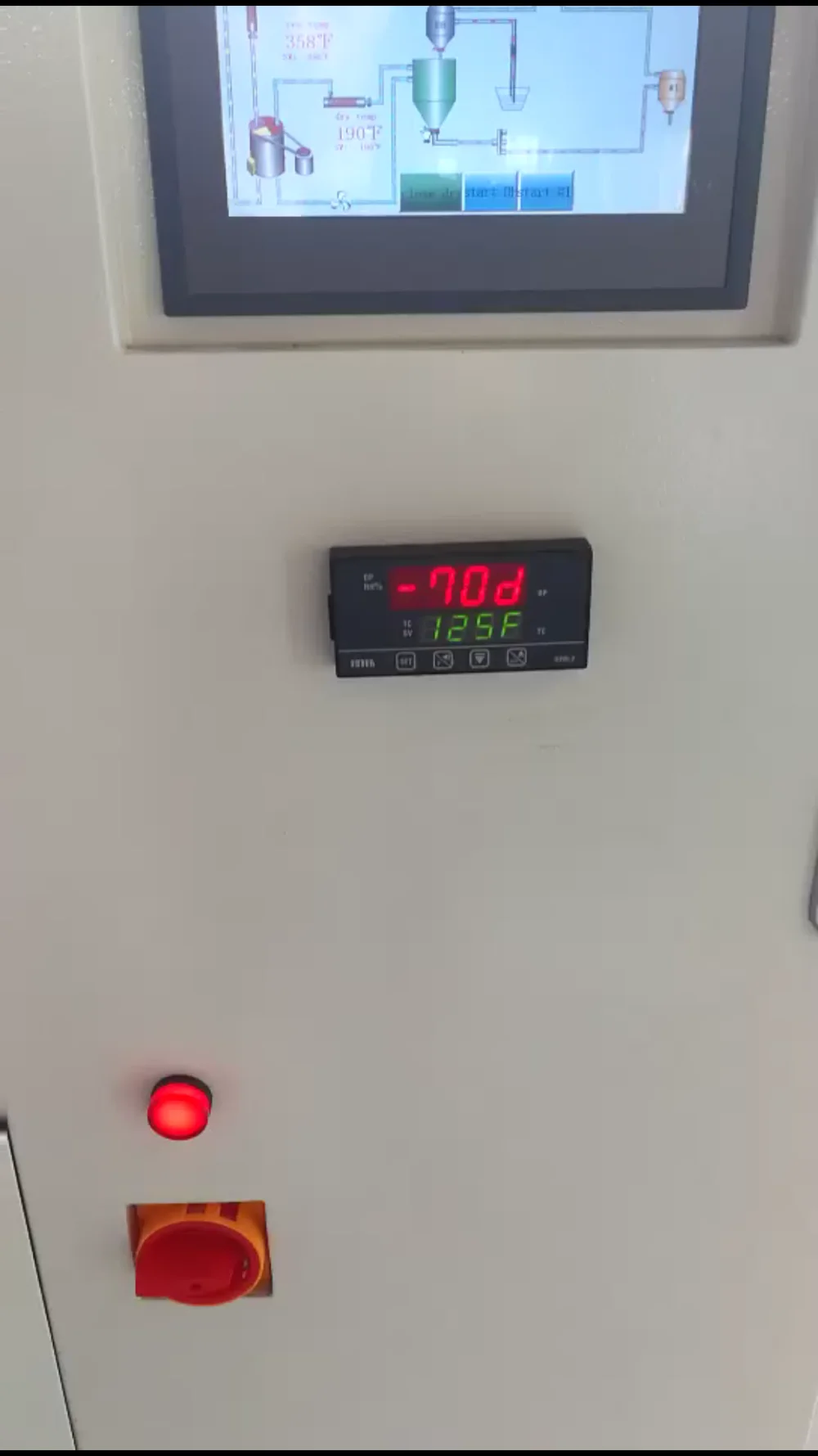

3)  Dew point monitor

4)  Closed loop conveying system W/2 receivers.

5)  Stainless steel hopper

6) Easy clean filters

7) Pneumatic discharge chute for easy material change

8) Accurate P.I.D temperature control

9) 24 hour timer

10) Motor overload and phase reversal protection

11) Dew point as low as -70

Certifications

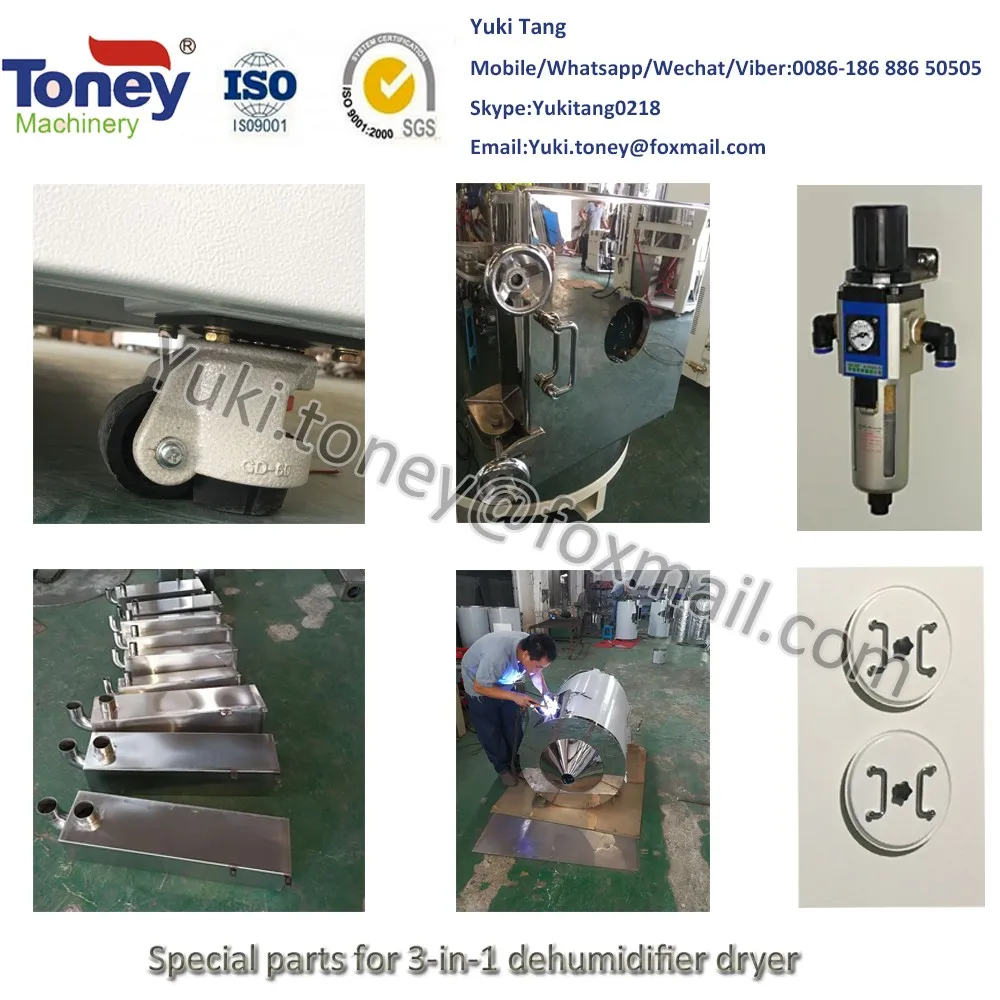

Detailed Images

Machine Parts

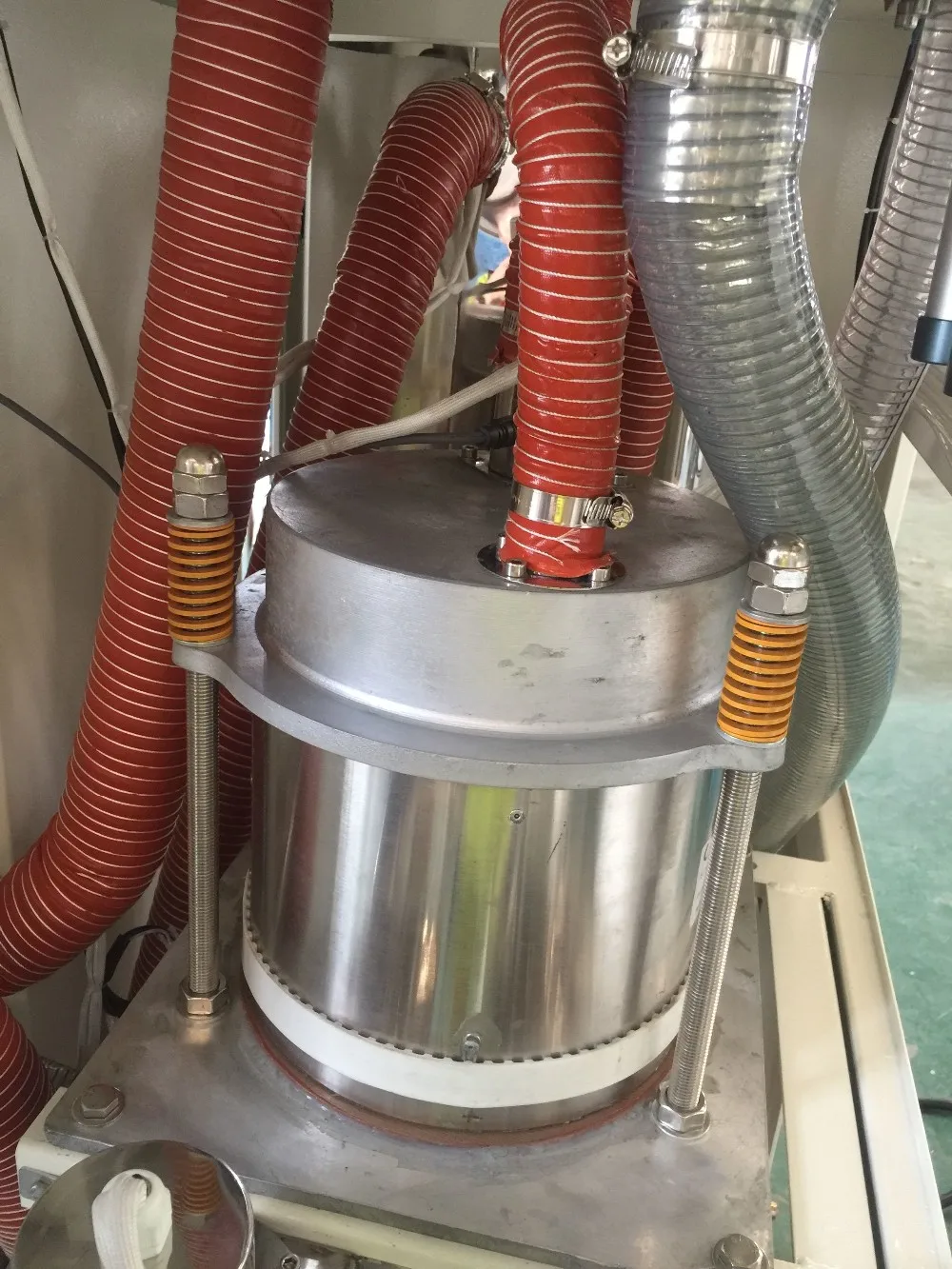

Name: Honeycomb dessicant wheel

Brand:  NJS

Original: Japan

What are the advantages of honeycomb dehumidifying rotor:

1. Stable dew point

Stable dew point below -40 degrees to improves the instability of dew point curve of the particles filter type dehumidifier and particles filter rotor type dehumidifier

2. No pollution, ensure plastic quality



3.Large absorption surface, least pressure loss.

Machine Parts

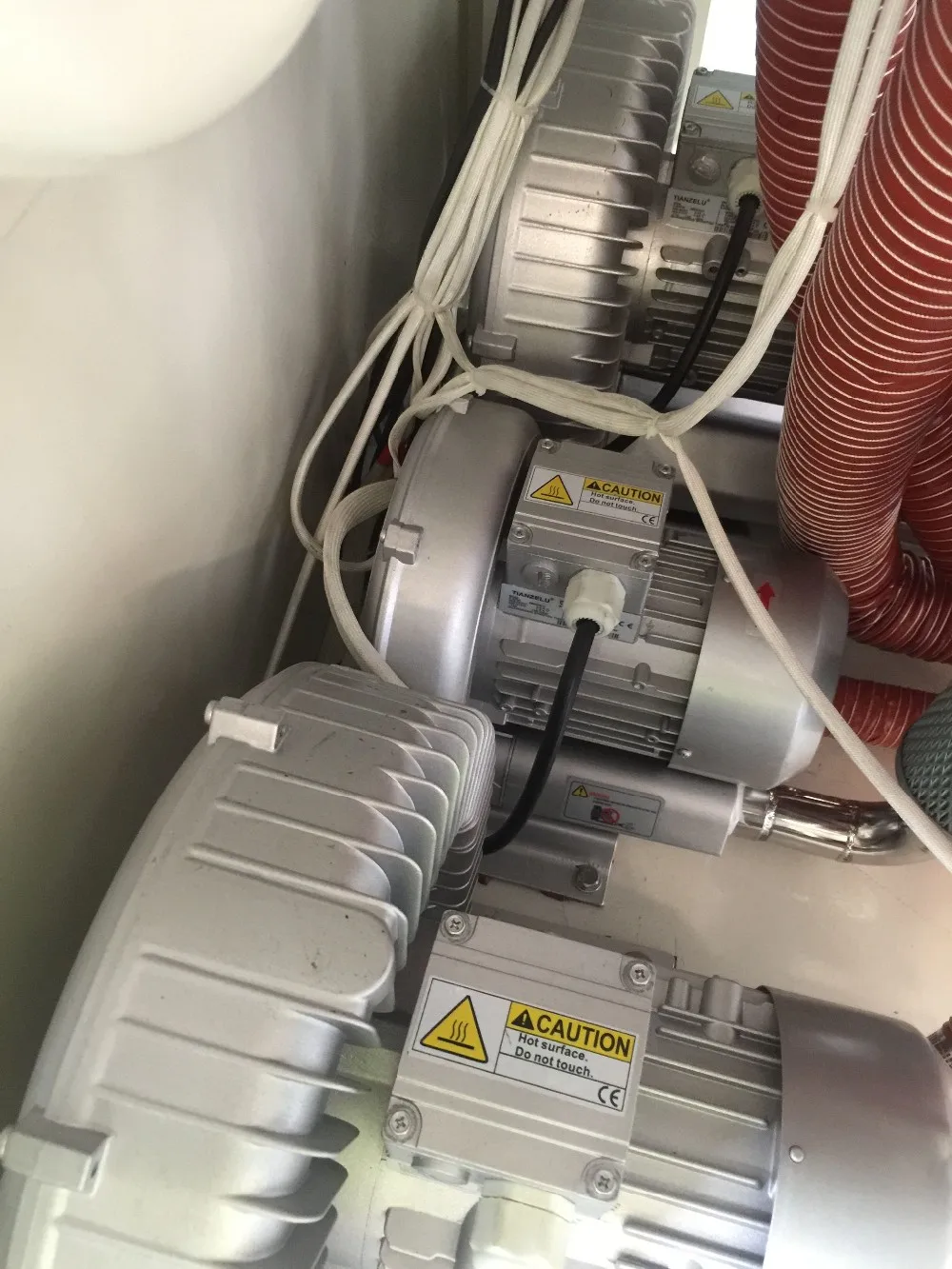

Name: Blower
Brand: DF
Original: Taiwan
High pressure and low noise

Main Part

Name: Dewpoint monitor
Brand: FOTEK
Original: Taiwan
Display the accuracy dew point

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	1905*1220*2095mm
Weight	280kg
Packaging Details	The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.

Related Products

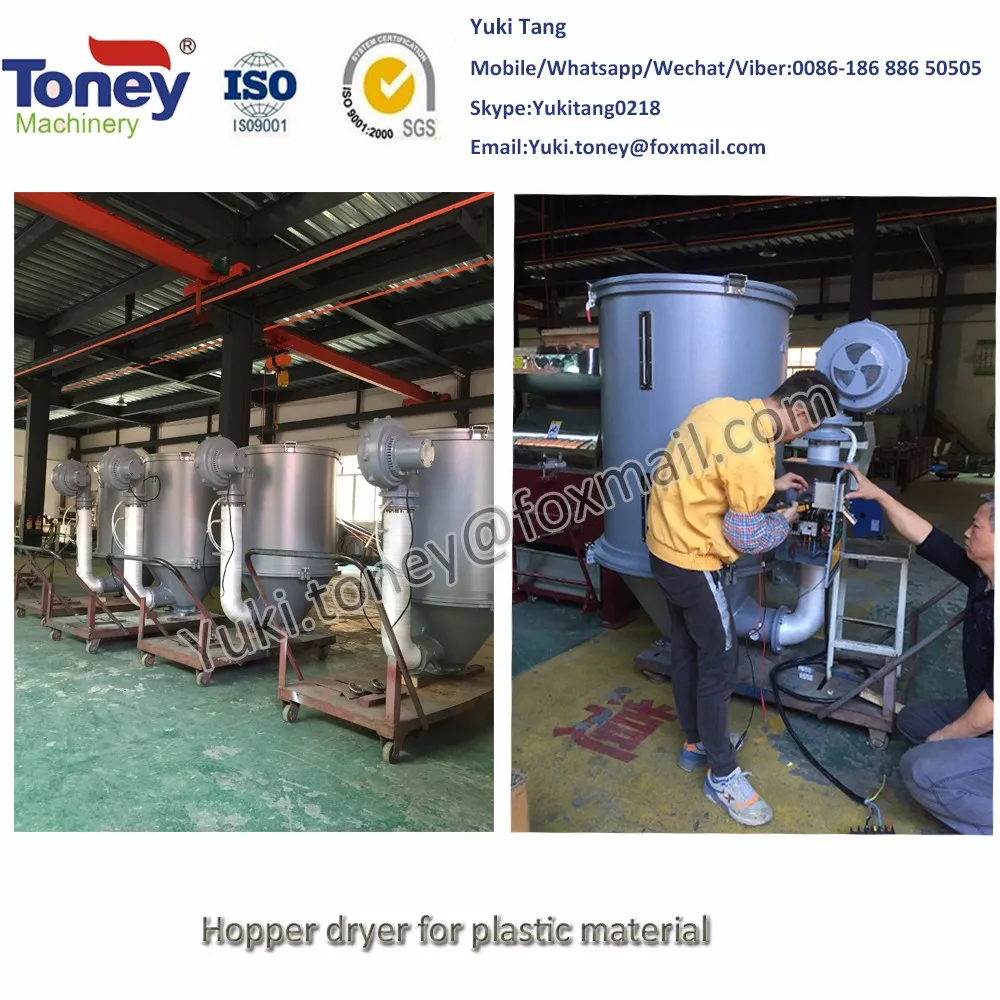

Hopper dryer for injection molding machine

#91.8% Response Rate

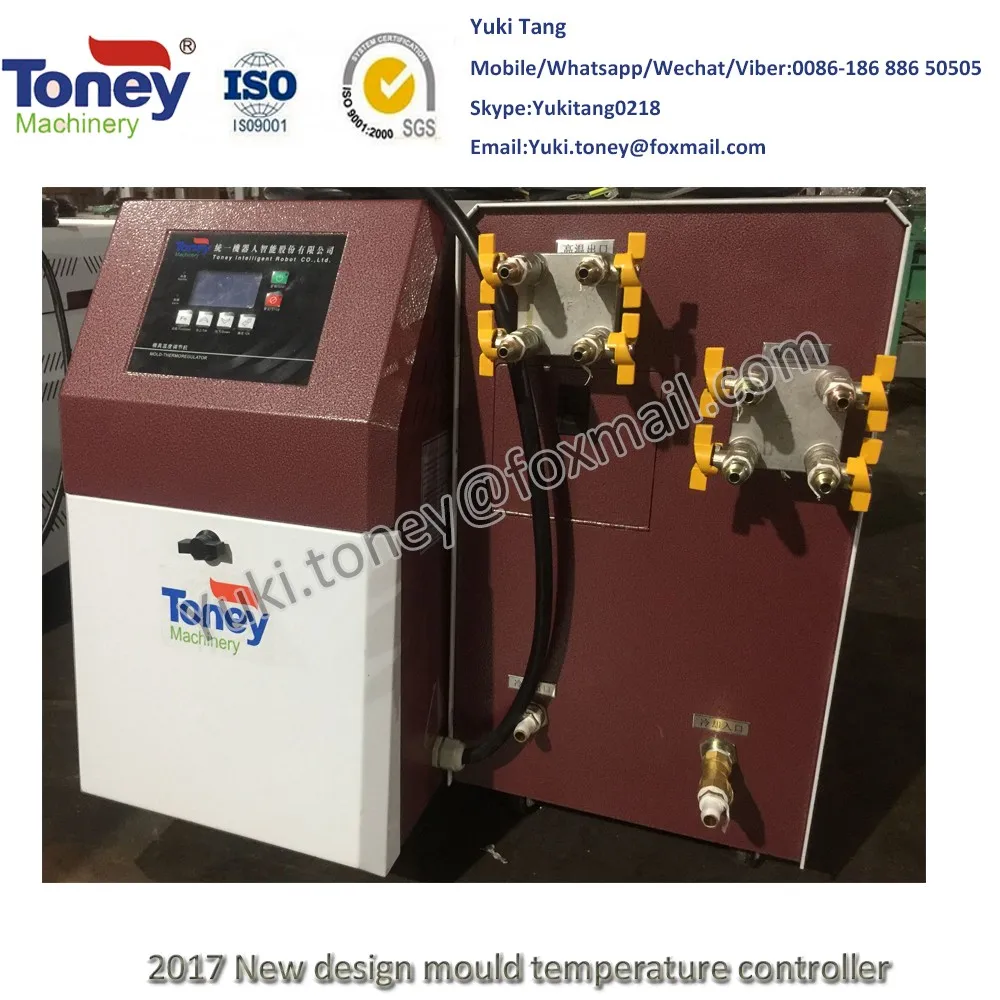

Mold temperature controller
