Mini spray dryer for detergent /spray drying equipment stainless steel egg powder making spray drying machine
- Category: Spray Drying Equipment >>>
- Supplier: TEFIC BIOTECH CO . LIMITED
Share on (60596271832):
Product Overview
Description
2L Mini spray dryer manufacturer
Technical parameters of 2L mini spray dryer
| Model | TF-S2L |
| Max capacity | 1500-2000ml/h |
| Temperature range of Inlet air | 40°C -300°C |
| Temperature range of outlet air | 40°C -140°C |
| Precision of temperature | ± 1 °C |
| Dryer time | 1.0-1.5 S |
| Speed of squirt pump | 50-2000ml/h |
| Spray system | Two- fluid nozzle (0.75/1.0/1.5/2.0/2.5mm) |
| Spray direction | downwards co-current |
| Total power | 7KW 220V |
| Heat source | Electric |
| Air compressor | Built-in oil-free air compressor |
| Dried powder restoring rate | ≥95% |
| Net weight | 140kg |
| Overall dimension | 940*850*1500mm |

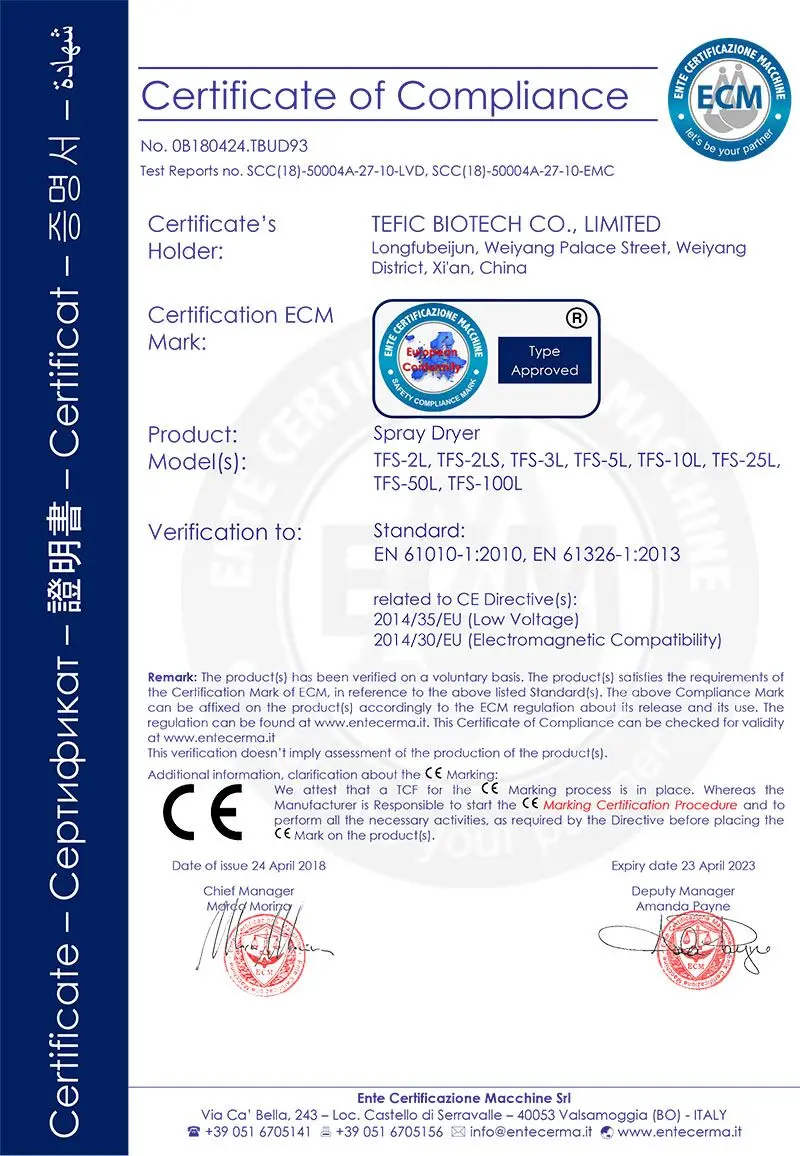

TEFIC spray drying machine passed CE certification, quality is guaranteed
TFIC mini spray drying machine detailed description:
TEFIC's spray dryer 's volume, temperature, voltage, material, etc. can be customized according to your actual needs, our company with strong design capabilities.
TEFIC's lab scale spray drying machine are widely used in universities, research institutes, food and pharmaceutical companies' laboratories to produce micro-particle powders, which have wide spectrum applicability to all solutions such as emulsions and suspensions.
TEFIC mini spray drying machine features:
1) All components of the whole lab scale spray drying machine are integrally formed, anti-corrosion, easy to clean, special casters made it easy to move
2) Original imported material nozzle for higher processing efficiency
3) large LCD color touch screen and parameter process real-time display, fully automatic plus manual operation mode
4) Rich display and adjustable parameters: inlet air temperature, outlet air temperature, peristaltic pump speed, fan speed, and needle frequency
5) Intuitive and user-friendly operation:
This lab scale spray drying machine can be started by one button. after setting the spray process parameters, the temperature reaches the predetermined temperature. the peristaltic pump can start by itself, and the stop operation can be safely shut down with one button.
Freely switch from automatic state to manual state to modify parameters
6) Shutdown protection function: just press the stop button when shutting down, the fan will stop after cooling down, protectn machine will not be burnt due to misoperation (forced off the fan).
7) Easily cope with sticky materials: TEFIC lab scale spray drying machine equipped with a nozzle cleaner (passing needle), which will automatically clear when the nozzle is blocked, and the frequency of the needle can be adjusted automatically.

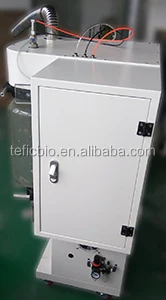

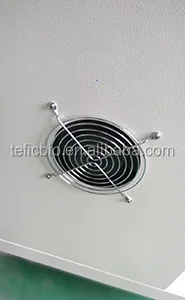

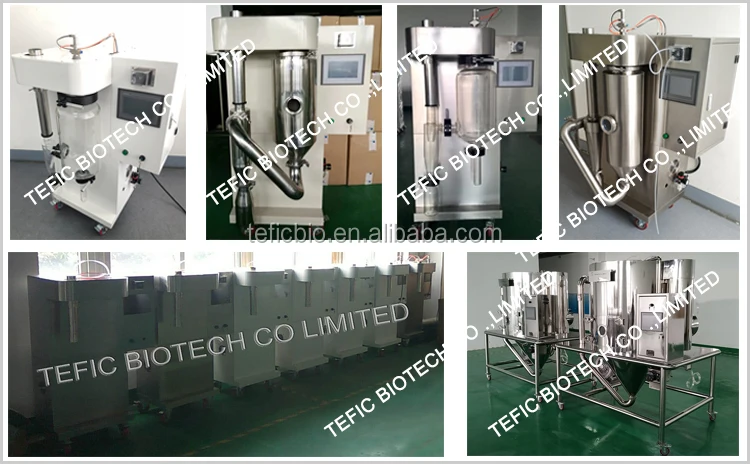

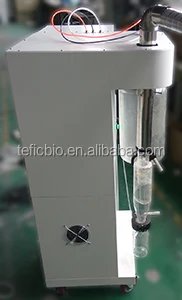

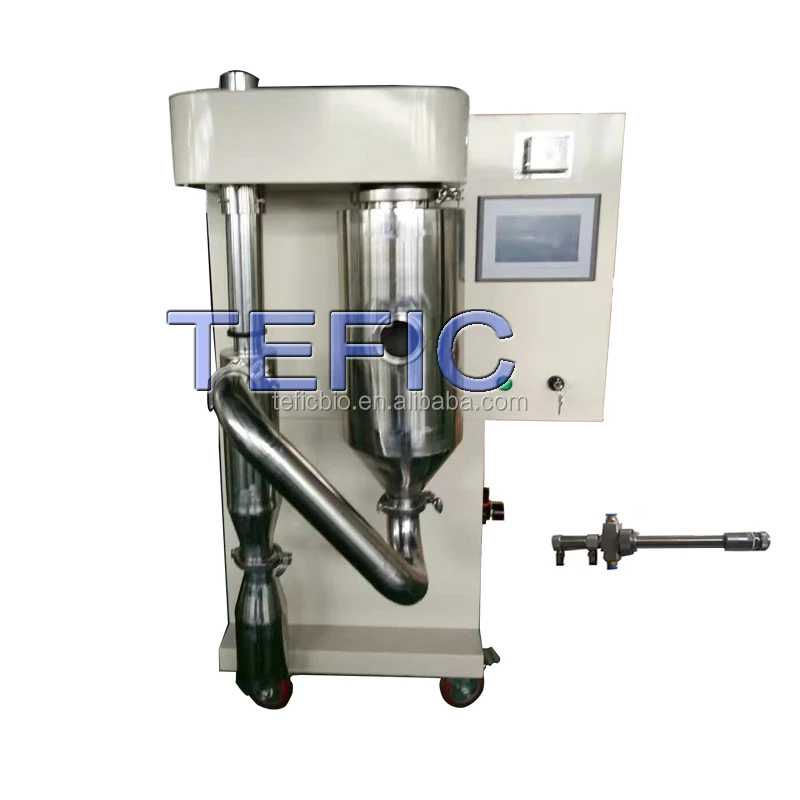

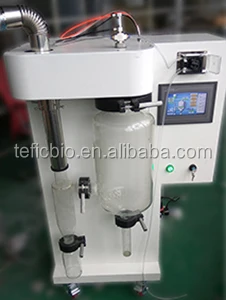

TEFIC mini spray dryer actual pictures

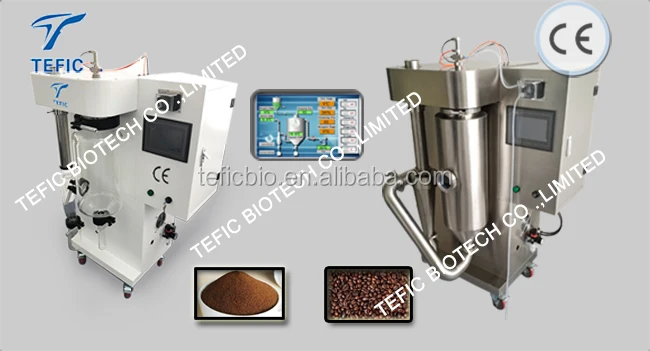

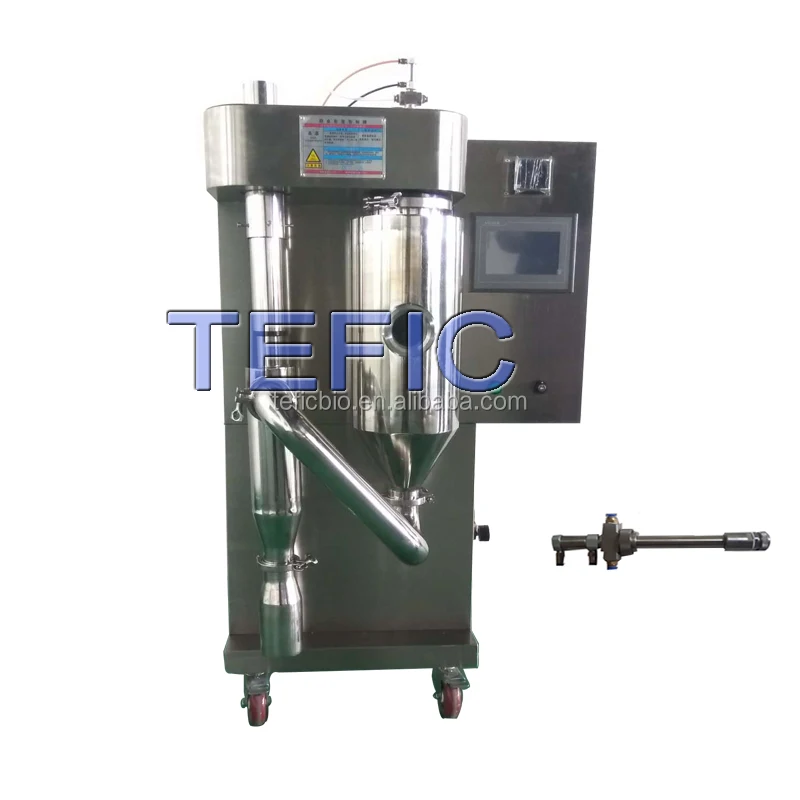

Except standard type spray dryer equipment, TEFIC also supply full stainless steel 2L/hour spray dryer equipment

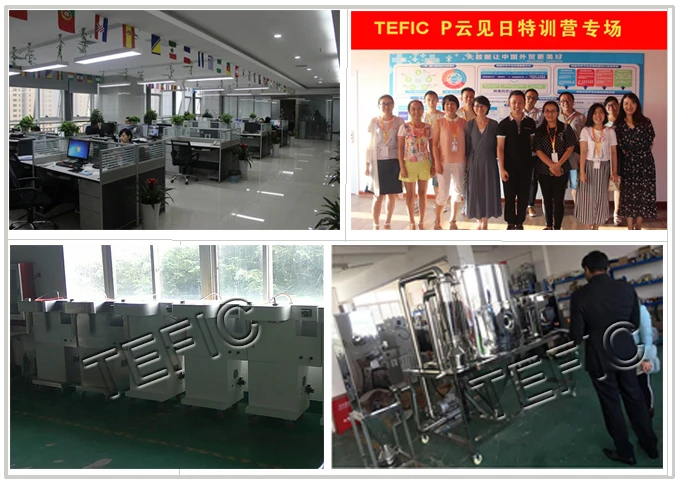

TEFIC spray dryer workshop

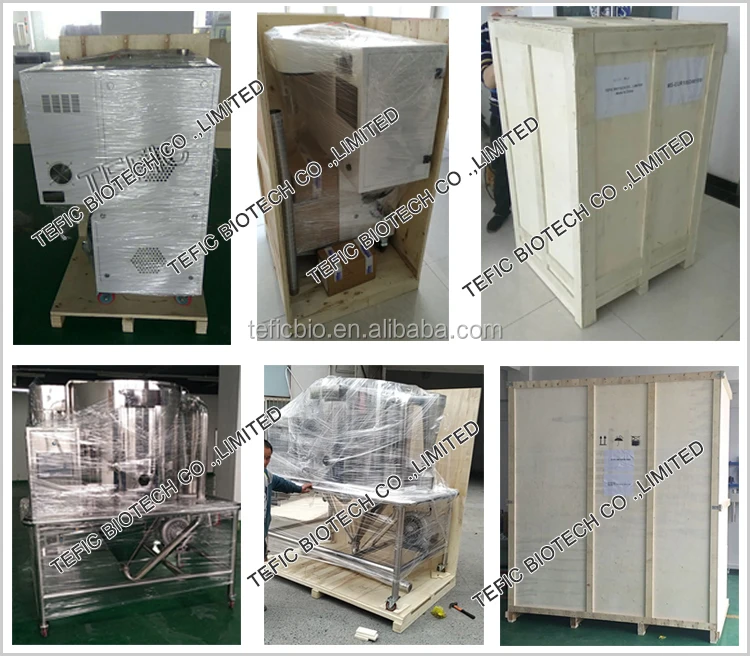

TEFIC spray dryer paking
About Us:
Our customer
FAQ
1 Q: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
2 Q: Can I ask for special designs about your furnace?
A: Yes.
3 Q: What about the spary dryer delivery time?
A: Normally 3 days after receiving your payment or based on order Qty and production schedule.
4 Q: What about the guarantee period?
A: 12 months.
5 Q: What about the Minimum Order Quantity?
A: The MOQ is 1 Pcs
6.Q: How to Contact Us?
A: Give us your raw material,your master (general plot) plan,your capacity,your budget,and your other requirement.
