Wall Mounted Cabinet Media Cabinet, Telecommunicatiion Cabinet Flush Mount Enclosure
- Category: Network Cabinets >>>
- Supplier: Ningbo Hi-Tech Zone Webit Telecommunication Equipments Co. Ltd.
Share on (60596857141):
Product Overview
Description

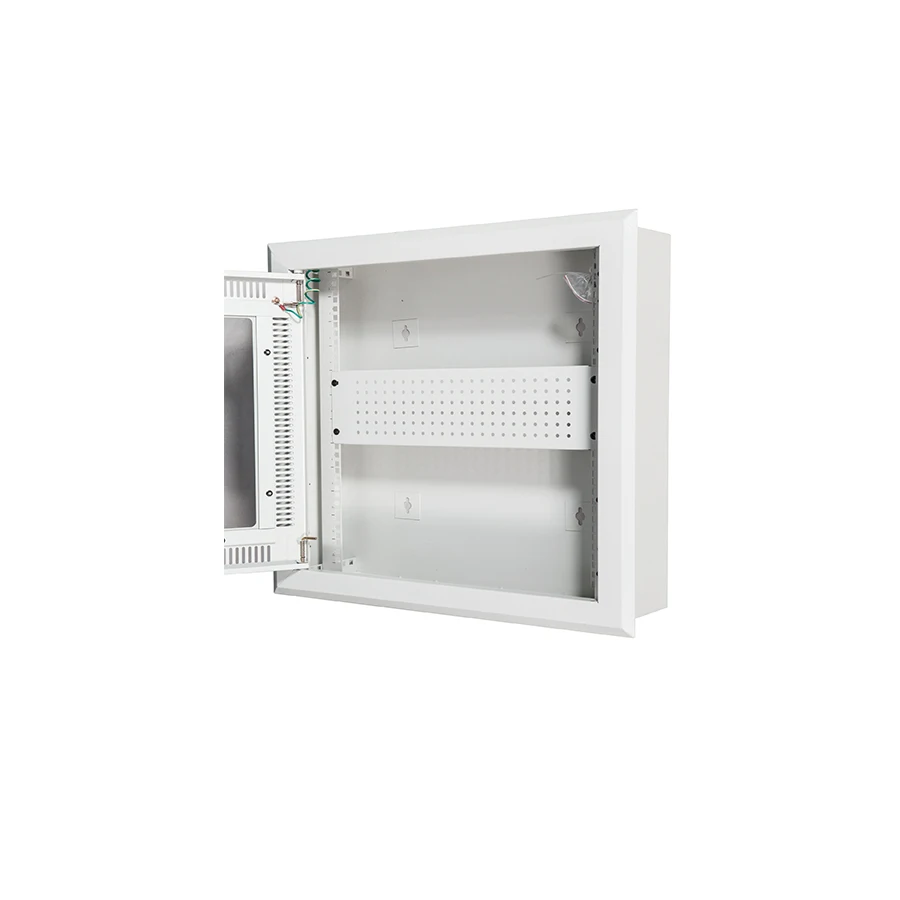

Embedded Type Wall Mounting glass door Data Cabinet
WB-FTxxxx3NG cabinet is intended for installation FTTH systems.

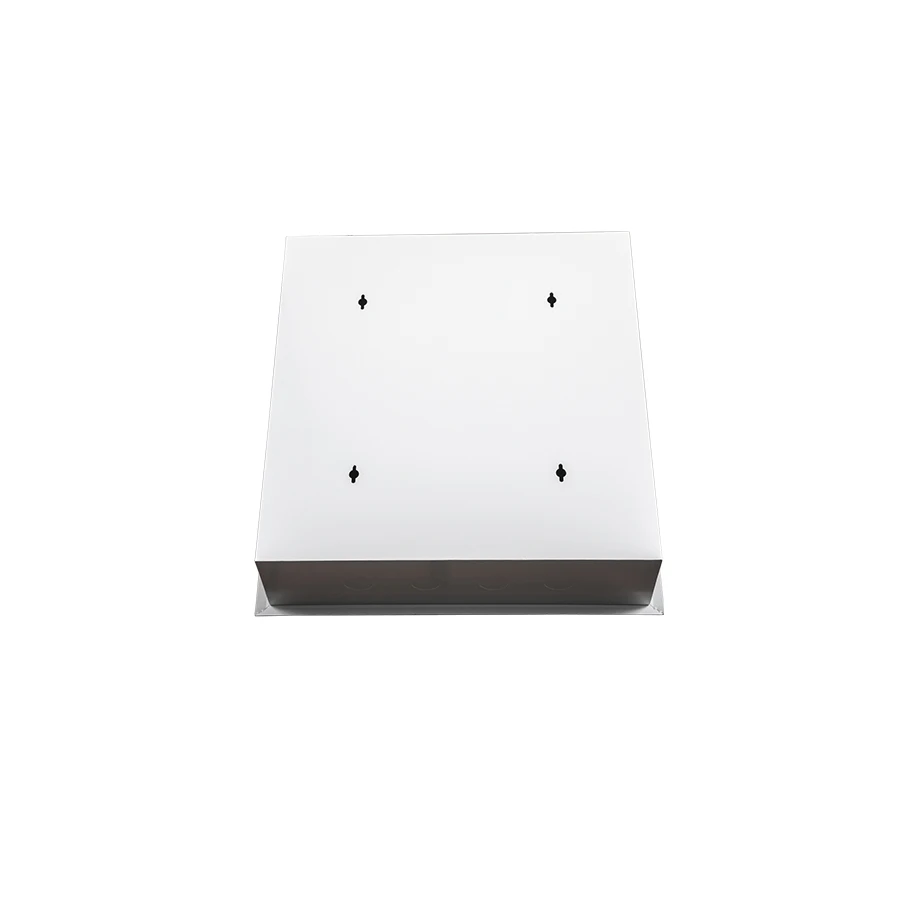

Wall mounting welding structure - support 19" rack mountable devices max up to 30KG.
Front & back door earthing.
120-300 mm depth options

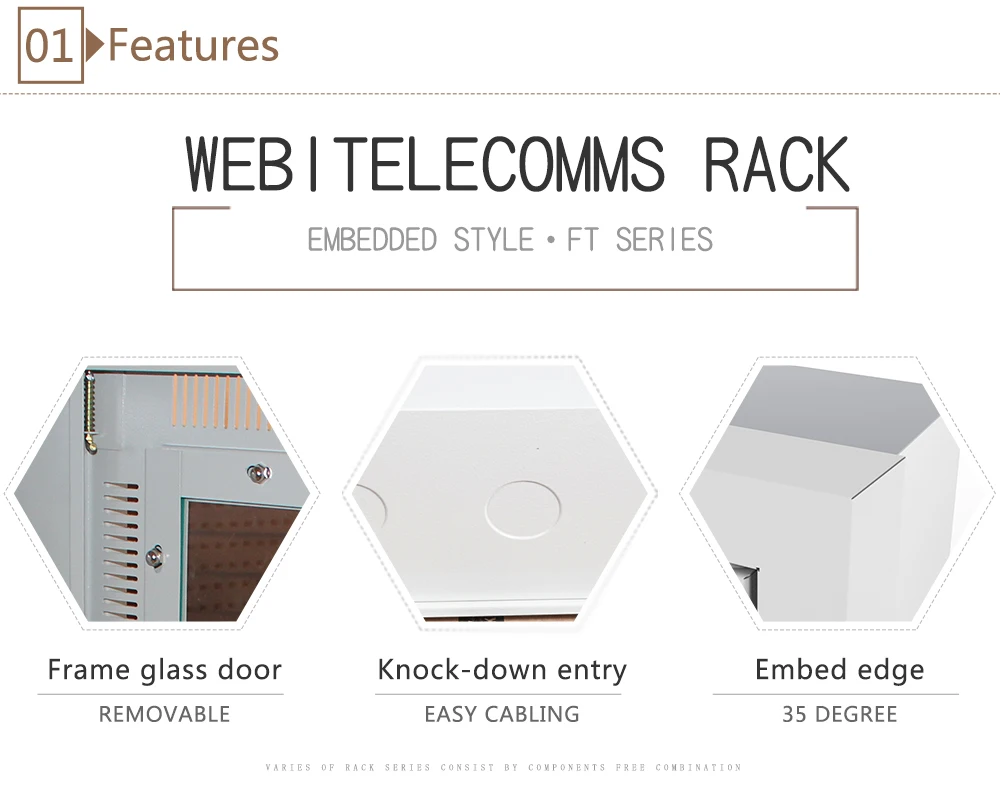

Features

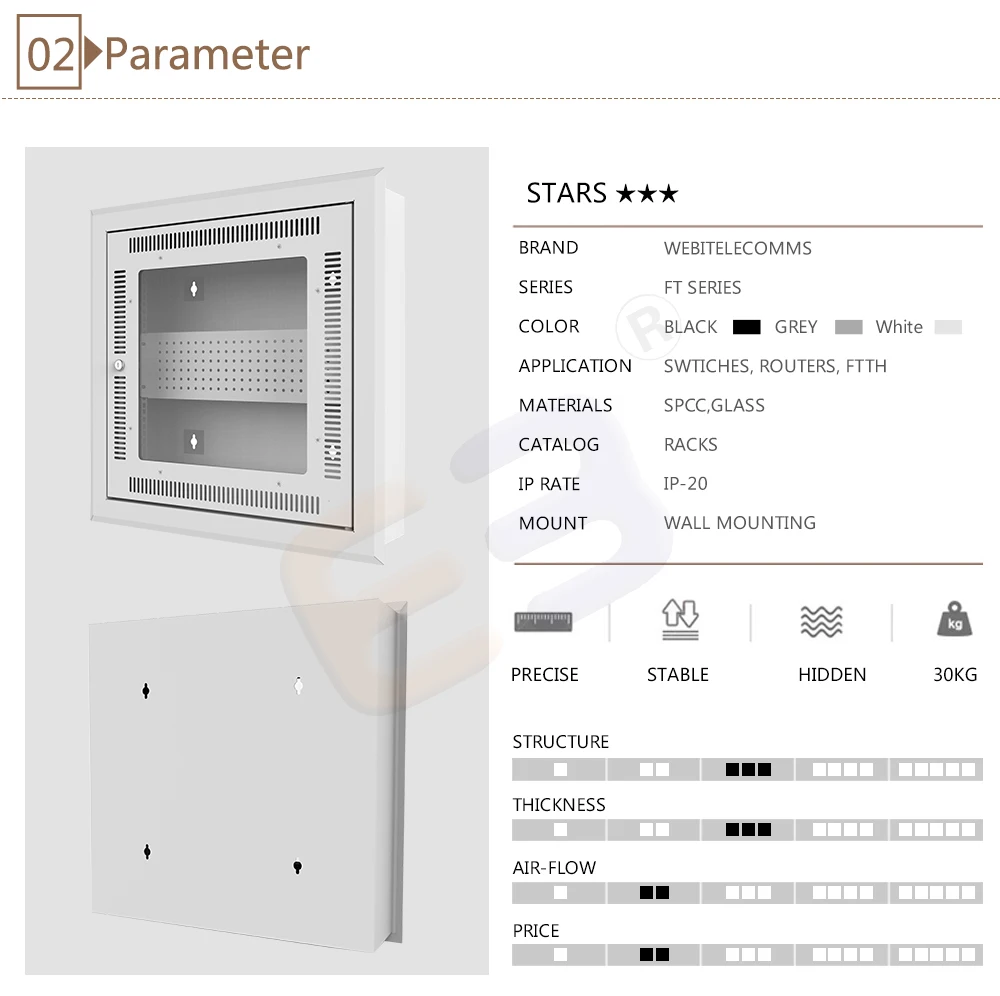

Parameter

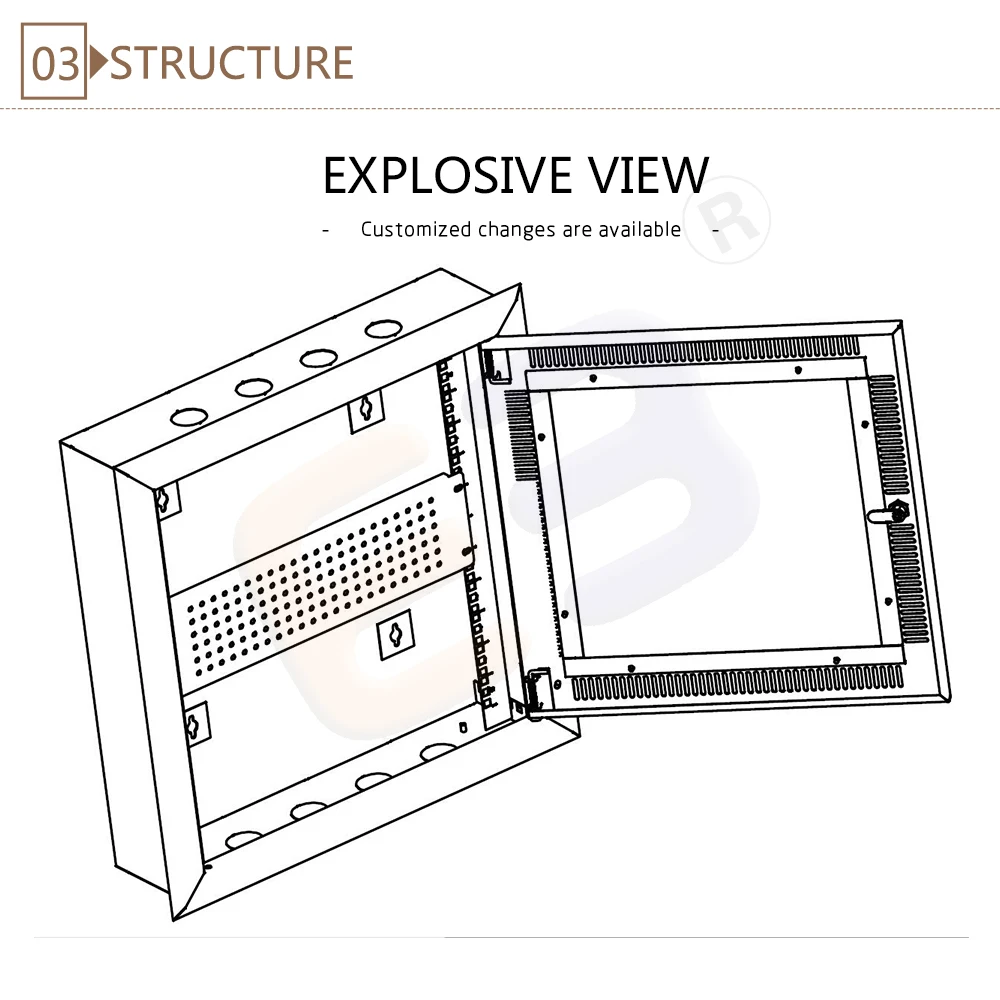

Structure
| NO. | Component | Qty | Unit | Materials | Treatment | Note |
| 1 | Frame body | 1 | Piece | 1.0mm SPCC steel | Powder coated | |

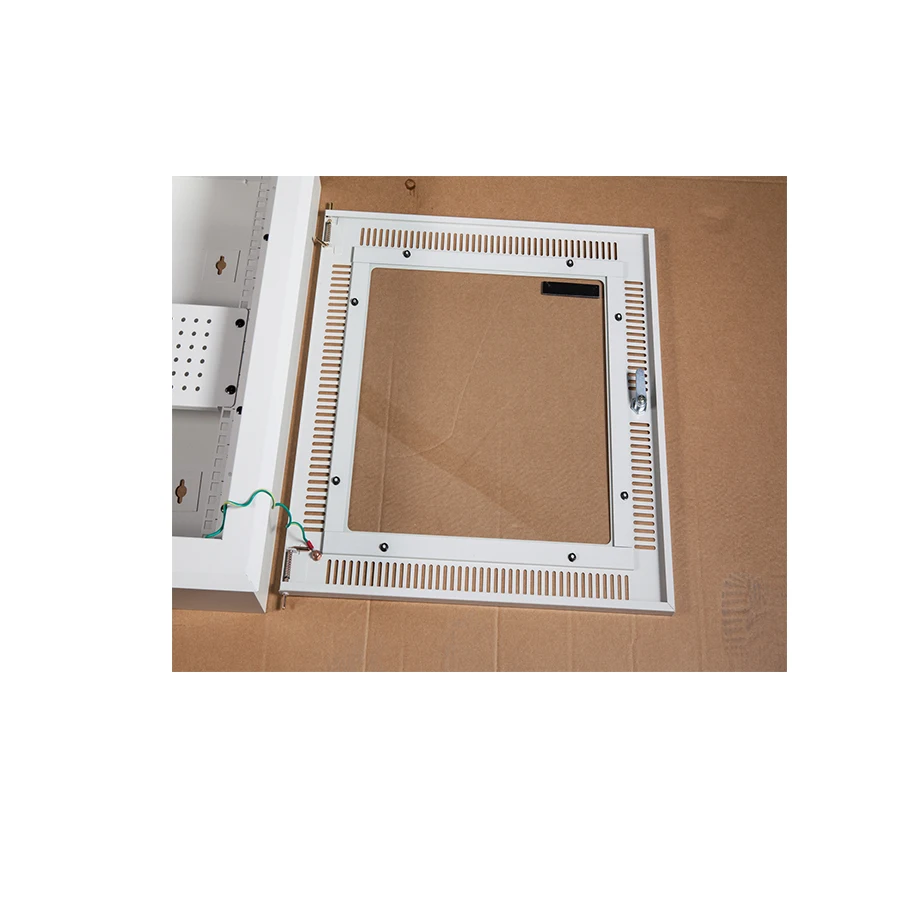

| 2 | Front door | 1 | Piece | 1.0mm SPCC steel 5.0mm tempered glass | Powder coated | Vented frame |

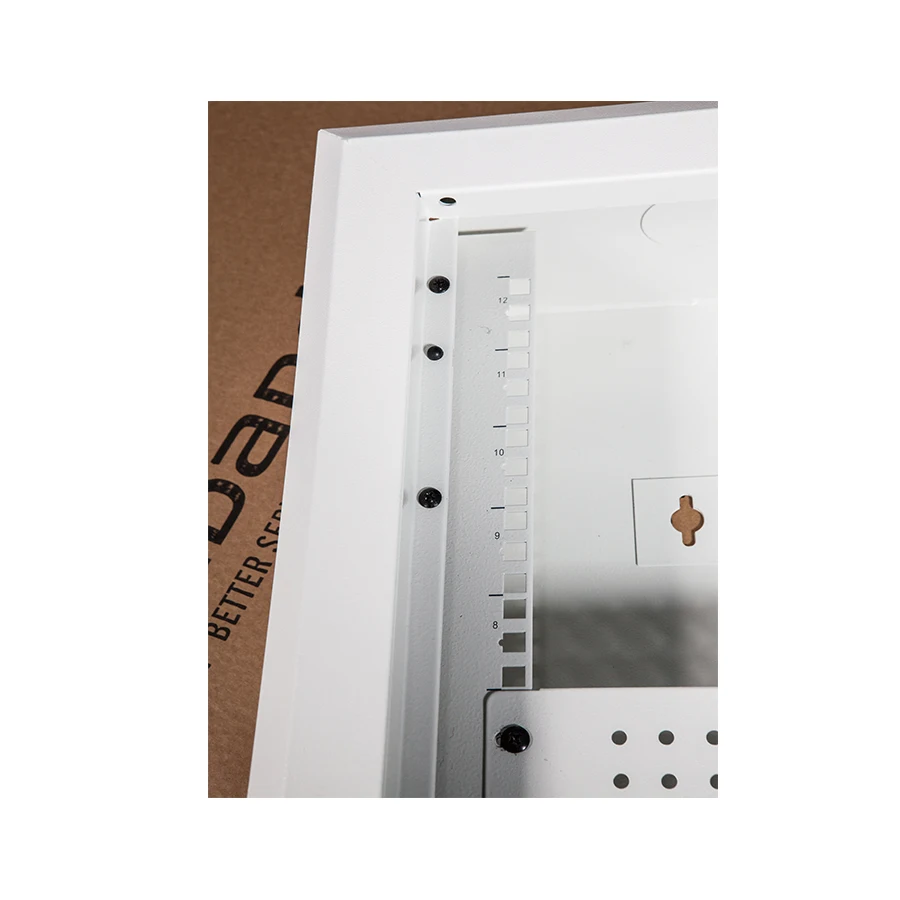

| 3 | Mounting profile | 2 | Piece | 1.5mm SPCC steel | Powder coated | Optional GE |
| 4 | Lock | 1 | Set | Zinc-alloy cam lock | - | |
| 5 | Earthing cable | 1 | Piece | 30 cm length Y/G cable | - | |

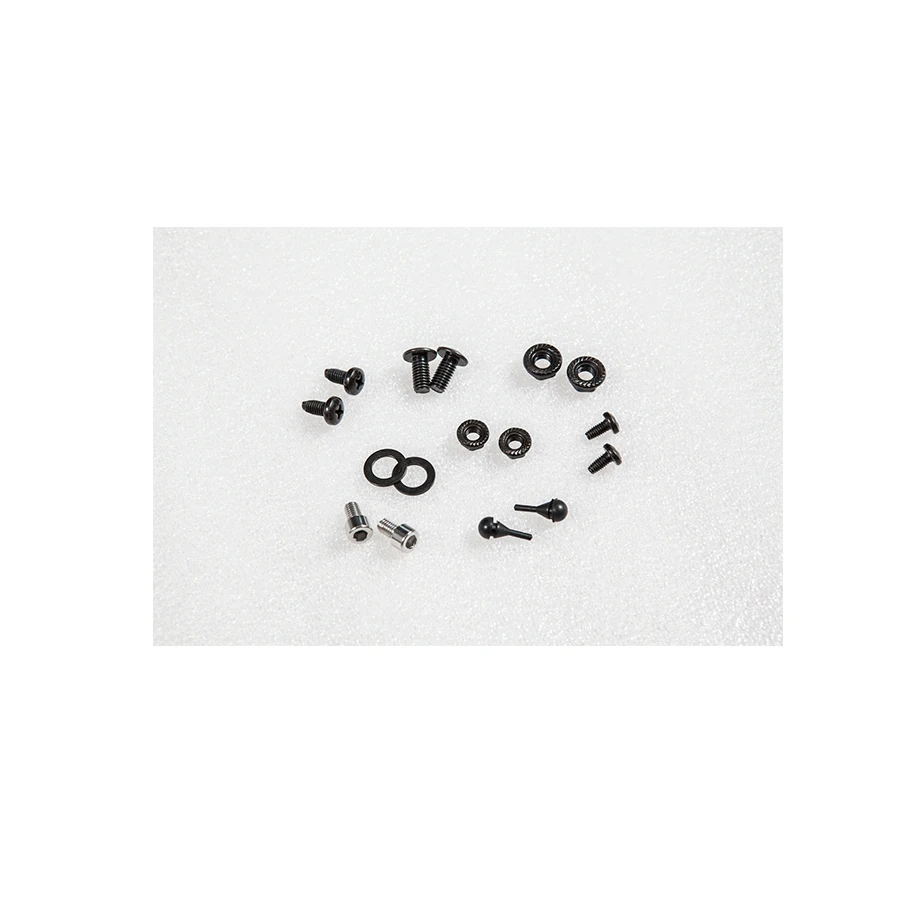

| 6 | M6 caged nuts & screw | 10 | Set | 56Mn steel | Zinc plated |
Packing
About us
Our factory
Certifications
FAQ
Q: If Webitelecomms offer OEM service?
A: Yes .
Q: What is the payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: Usuall 30 days after receiving deposit or original L/C.
Q: What certificates do you have?
A: We have CE, RoHs ,ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q. Which port do you often use when export?
A: Ningbo / Shanghai Port, or as customer request.
Q.Can I order with special size ?
A.: Sure no problem, Customized size is very welcome.
Q.What about the warranty
A.:Normally 2 years warranty , working under normal environment; (excluding man-made damage or neutral disaster)
