Product Overview

Description

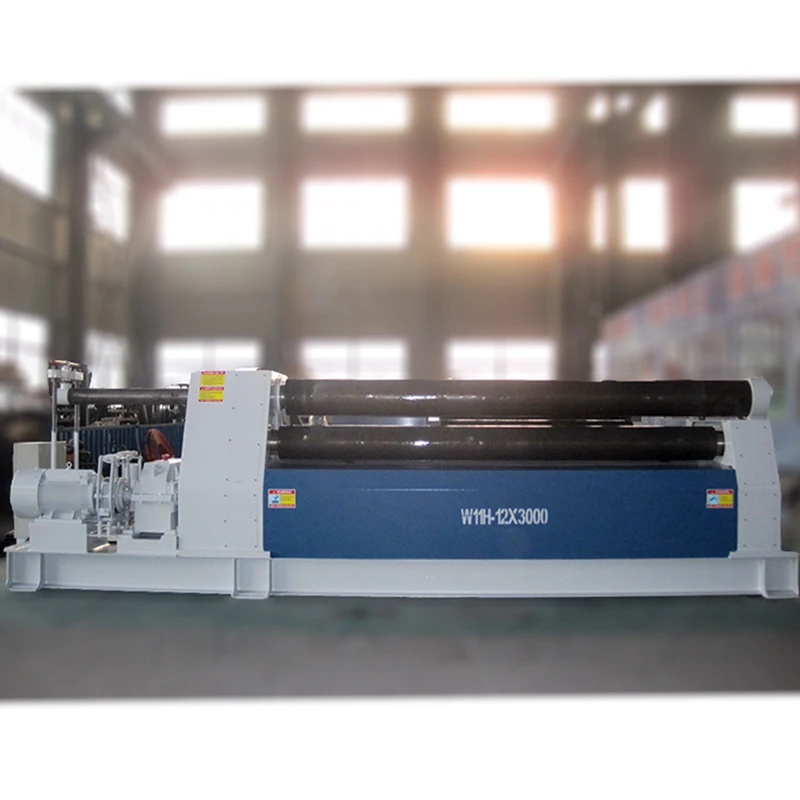

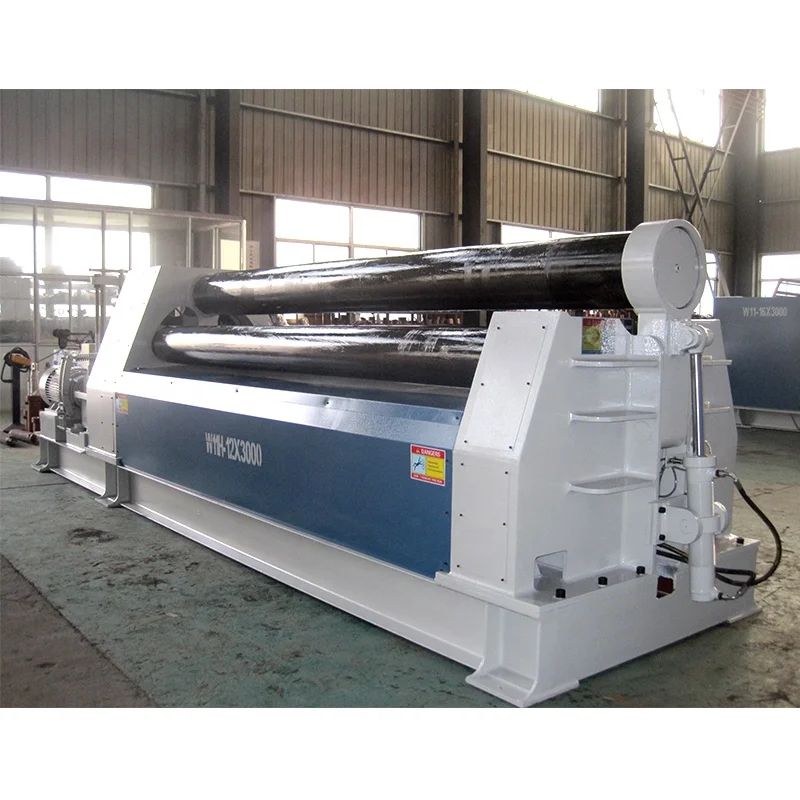

Hydraulic and symmetric 3 rolls plate bending machine with pre-bending function

It's suitable for thickness from 3mm up to 30mm,useful length is from 2000mm up to 4000mm.

Feature:

Electric motor makes top roller rise

Bottom roller always moves in orbital way with help of hydraulic pistons

Hydraulic drop end contributes to remove work-piece easily

High quality hardened rolls

Useful movable control panel



Technical parameters in detail model max.bending thickness(mm) pre-bending thickness(mm) max.bending width(mm) yield limit(Mpa) top roller diameter(mm) bottom roller diameter(mm) main power(kw) W11H-6*3000 6 5 3000 245 210 210 7.5 W11H-8*3000 8 6.5 3000 245 230 230 11 W11H-10*3000 10 8 3000 245 270 270 11 W11H-12*3000 12 10 3000 245 300 300 11 W11H-16*3000 16 13 3000 245 330 330 15 W11H-20*3000 20 16 3000 245 360 360 18.5 W11H-30*3000 30 25 3000 245 420 420 30

Spare parts brand:

NO.	Main Machine part	Technical Requirement
1	Working roller	Material	42 CrMo
		Techniques	Forging piece go through rough machining then quenching and tempering treatment at HB241~280
			Finish turning then medium frequency quenching of surface at HRC40-45
2	Side Frame and Chassis	Material	Q235
		Techniques	Side Roller Lift Cylinder Material for 45# forgings, quenching and tempering heat treatment HB217-255.
			Fixed and tipping side frame and chassis are welding pieces of steel plate

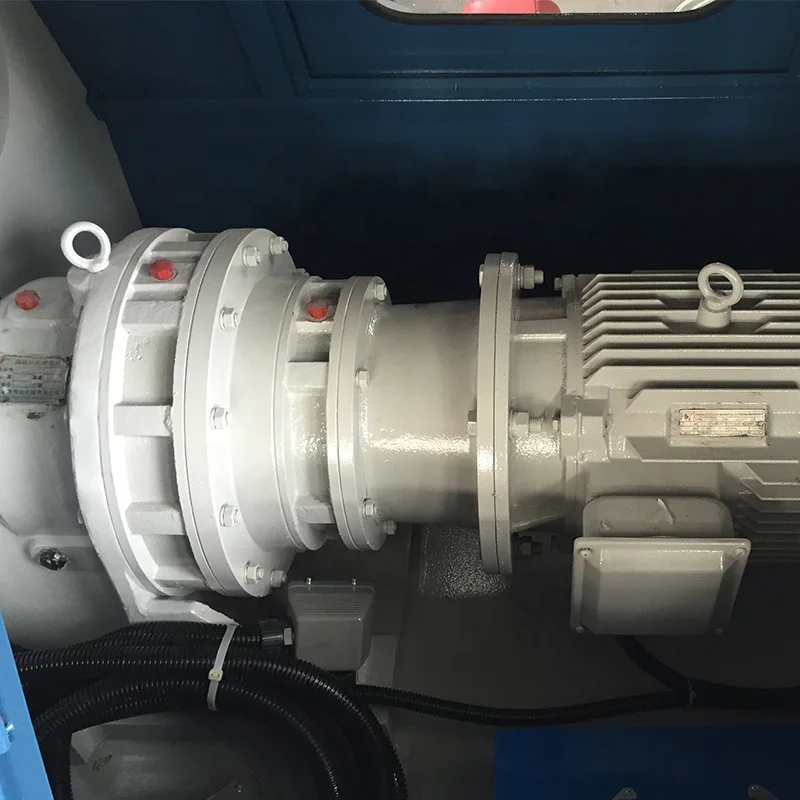

3	Drive Device	Motor	Lichao,Shanghai

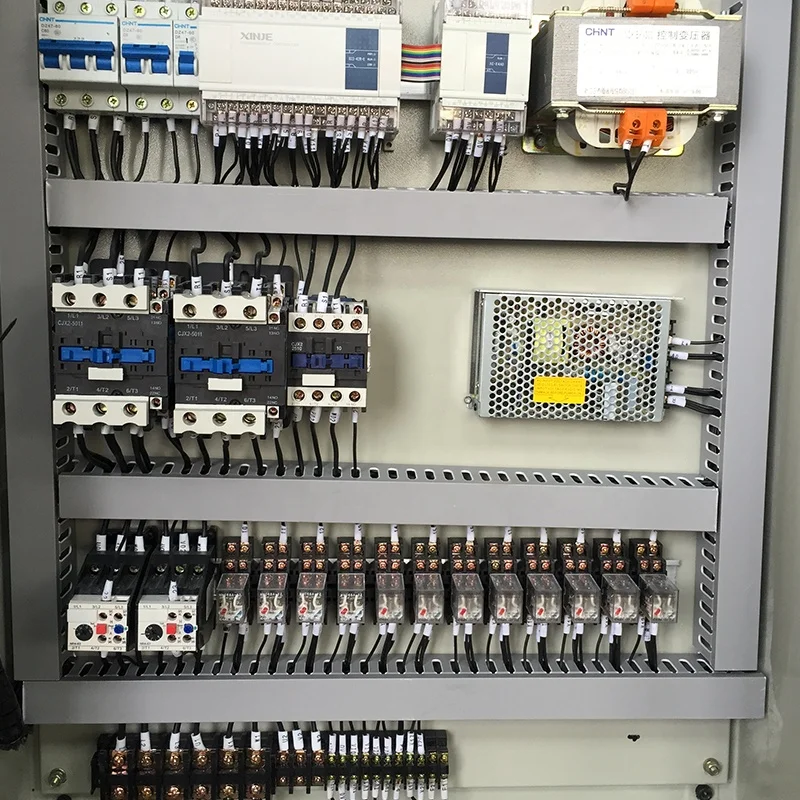

4	Main Electric parts		Siemens,Germany

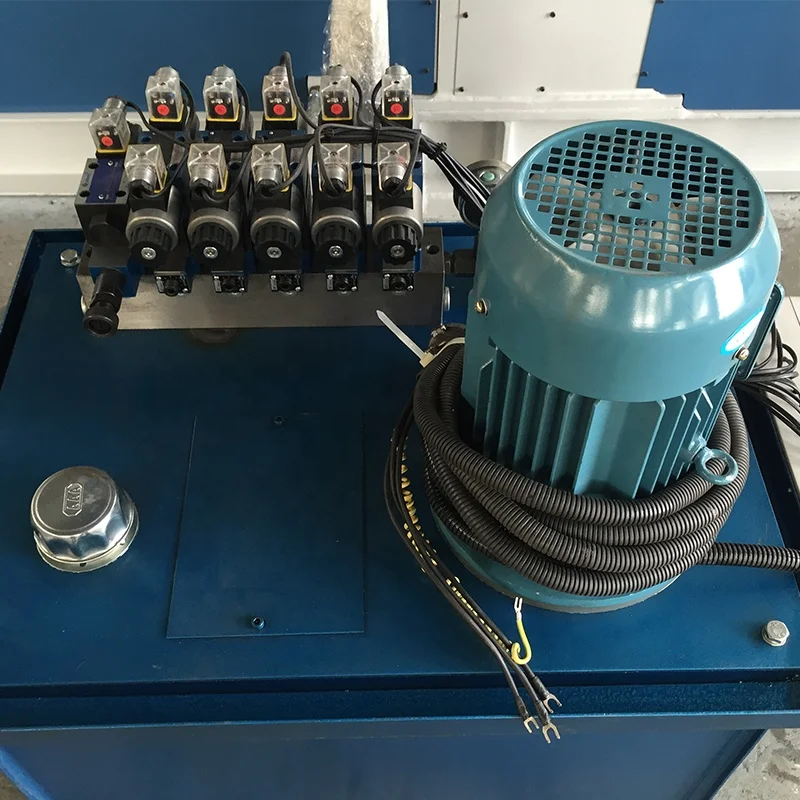

5	Hydraulic System	Pump Station	ChangYuan,China Options: Sunny,USA
		Valve	Yuken,Japan
6	Touch screen	Xinjie from China
7.	Sealings	Nok from Japan
8.	Bearing	WFD
9.	PLC Encoder	Omron from Japan



1.How do I order a product from you?

If any problems occur with our products or you are in need of assistance.Please send email or call us via telephone.We will reply as quickly as possible.

We offer OEM and ODM services.

2.Terms of payment

1) T/T 30% prepayment,70% balance before shipment

2) L/C at sight

3.How about your machine quality

Yeshun is a mature brand in China. Through our over ten years research in technology, our design including detailed structure and sercurity and precision have been enhanced greatly, and can match all the CE standard or more strict standard. Where there are our machines, there are good reputation and terminal users' satisfaction.

4.Condition for returns and refunds

If the machine does not match your requirements as set by the contract,and still doesn’t meet your requirement even after improvements,you can choose a sales return and refund.

Please click here>>>Contact us or send an inquiry for more factory prices,shipping and discounts.
