Product Overview

Description


Product Description

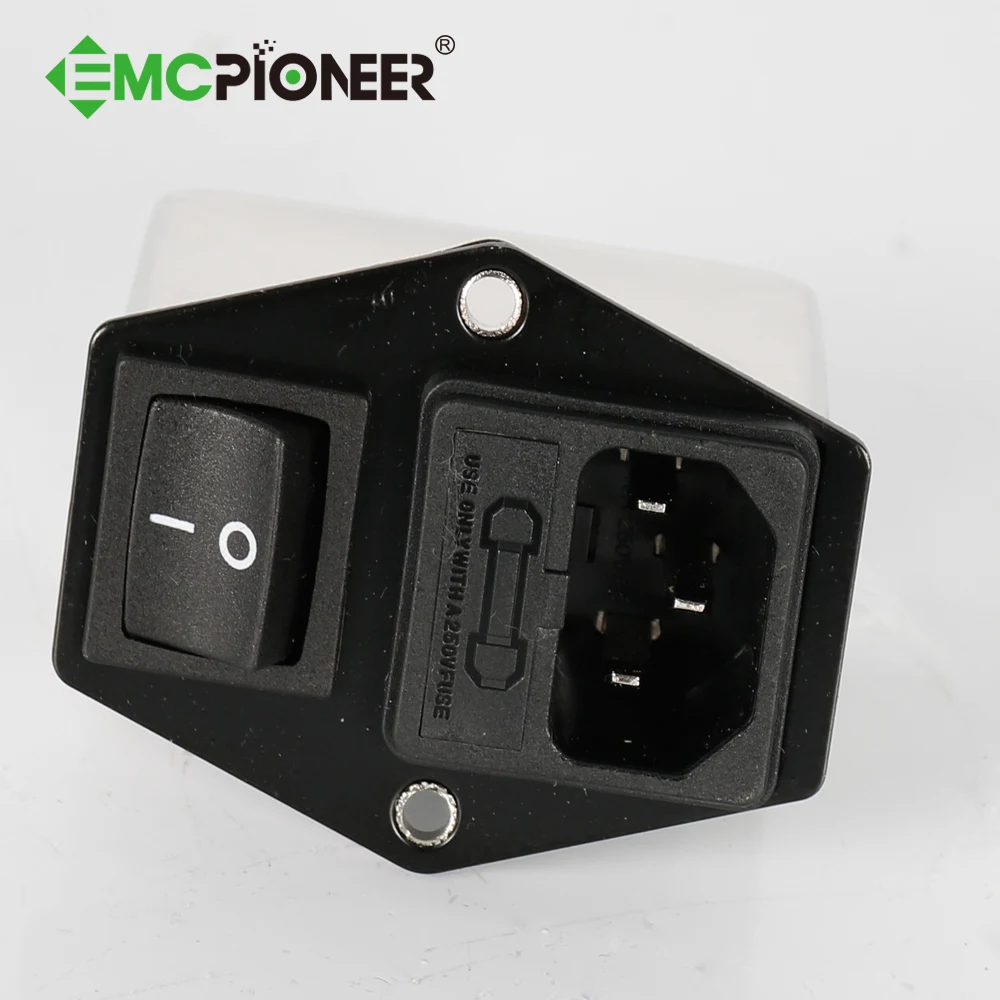

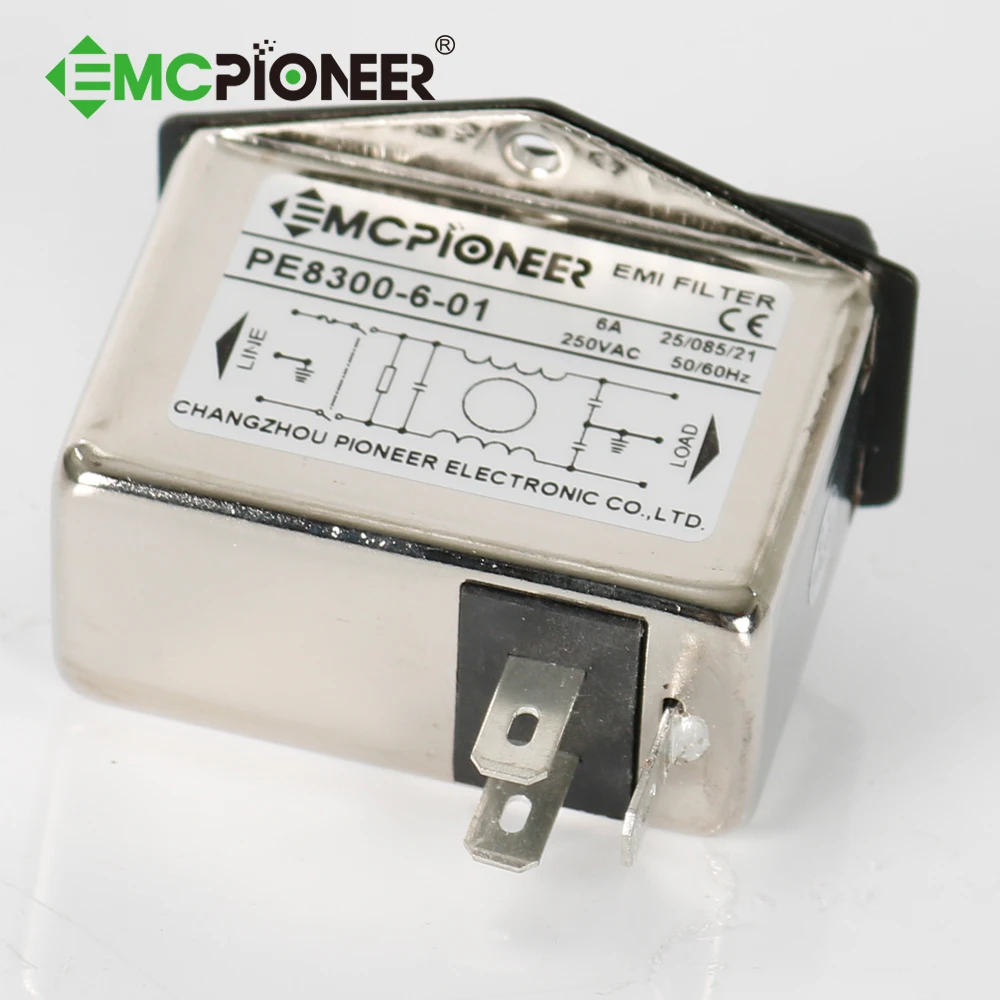

noise filter RF filter with socket and switch PE8300-6-01 6A 120/250VAC



                            Description

       The emi Filter PE8300/8400 power entry module combines an IEC inlet,mains filter       with single or dualfuse holder and a 2-pole rocker switch in a

     small form factor.

High conducted attenuation performance ,based on chokes with high saturation resistance and excellent thermal behavior.

Rated currents up to 10A

Rear/front or snap-in mouting

Single or dual-fuse holder,available for fuses  Φ5x20mm

2-pole rocker switch

     Optional medical version(B type)
      Snap-in versions(S type)
      Custom-specific versions are available on request.

                      Typical Application



      Single-phase power supplies, switch-mode power supplies

EDP and office equipment

Portable electrical and electronic equipment

Test and measurement equipment

Consumer goods

Medical equipment

                           Specification

Product Name

Power Entry Module filter

Model

PE8300-6-01

Rated Voltage

120/250VAC

Rated Current

1A~35A

Operating Frequency

50/60Hz

Temperature range

HPF 25/085/21

Test Voltage(1 min)

Line to Ground :2000VAC

Line to Line :1450VDC

                               Pictures

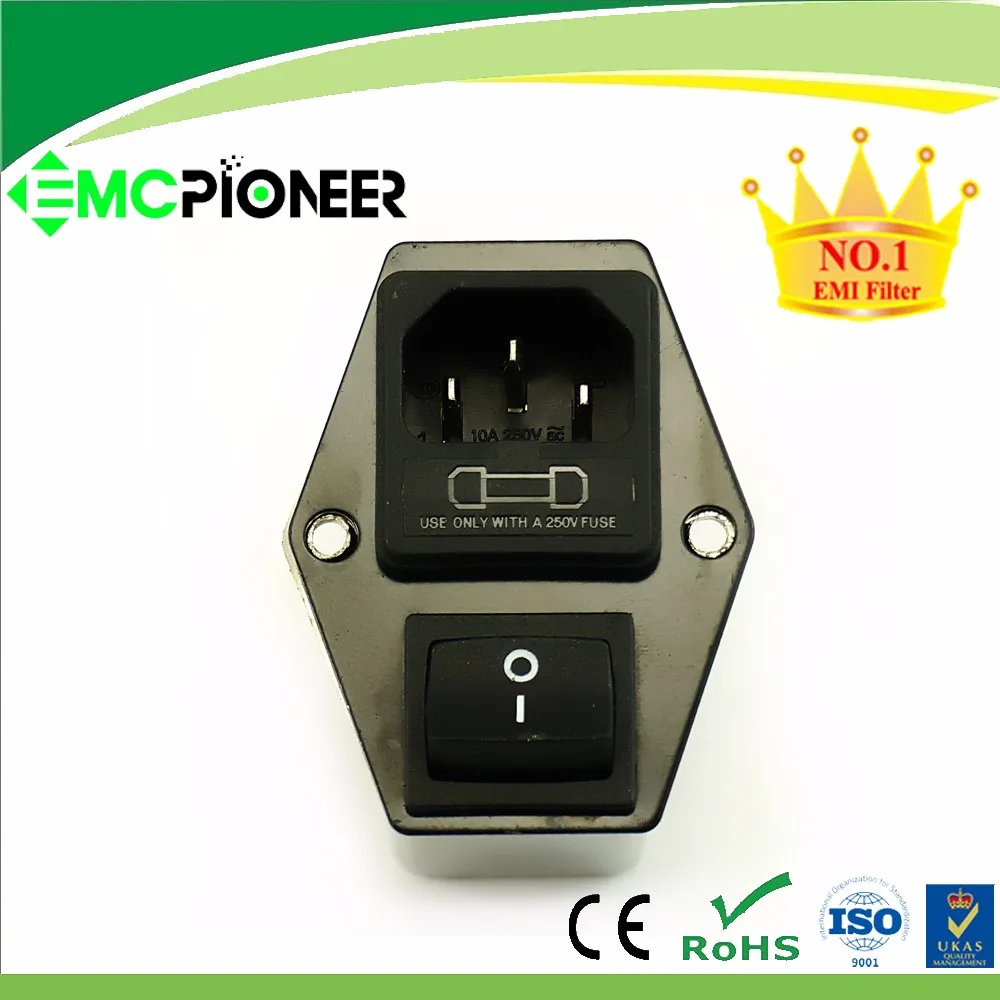

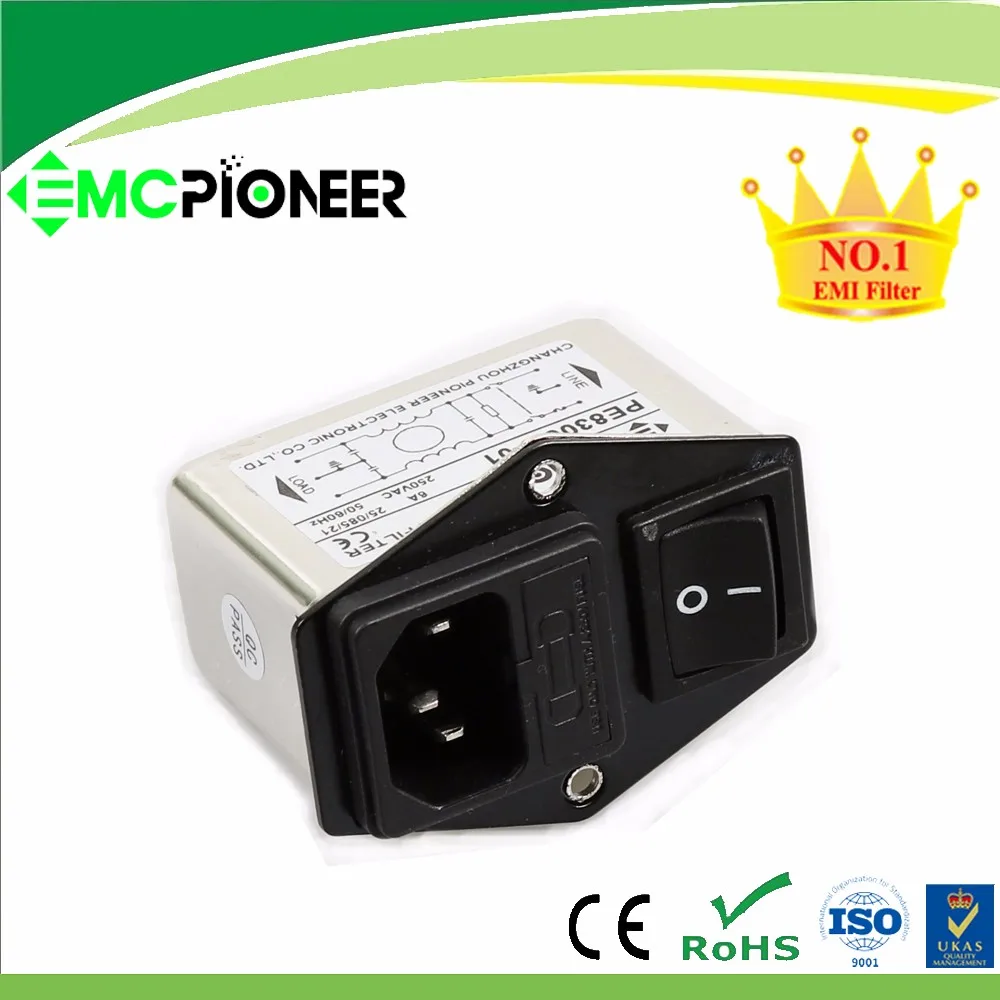

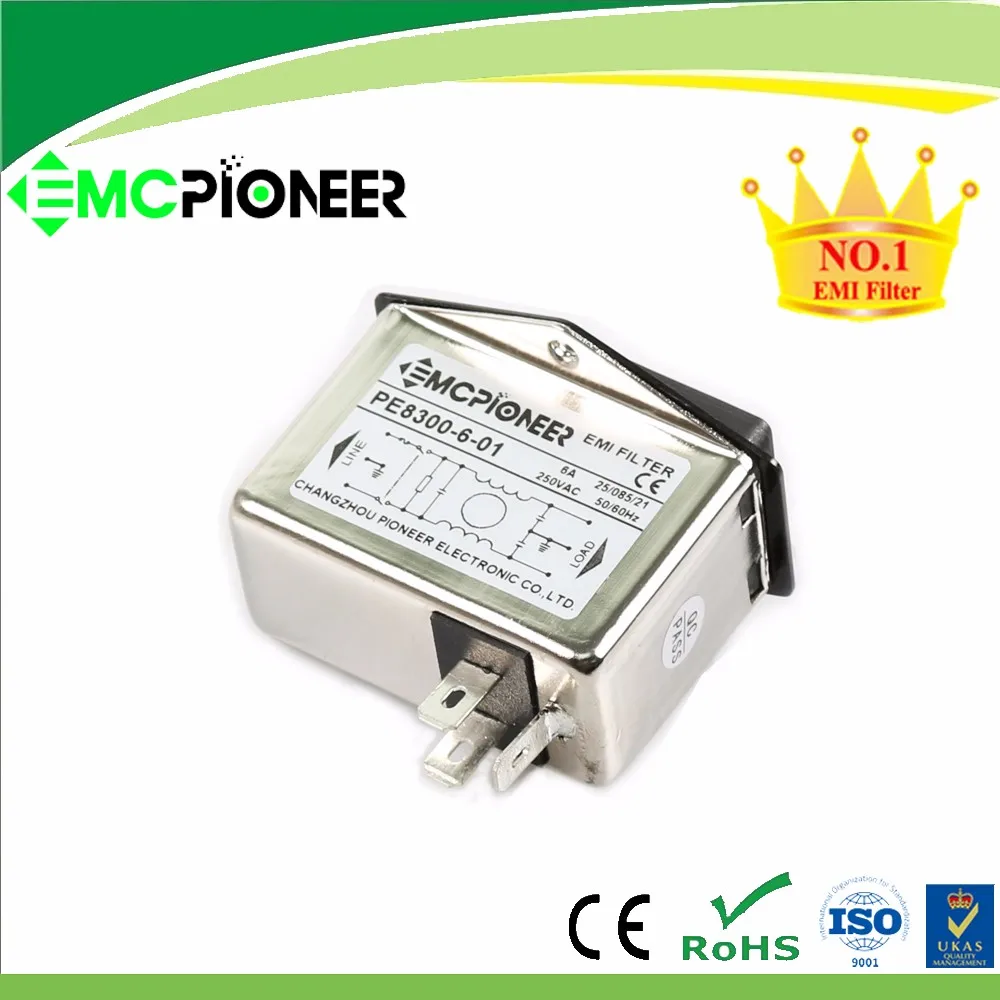

  IEC PE8300-6-01(5)IEC PE8300-6-01(7)IEC PE8300-6-01(2)

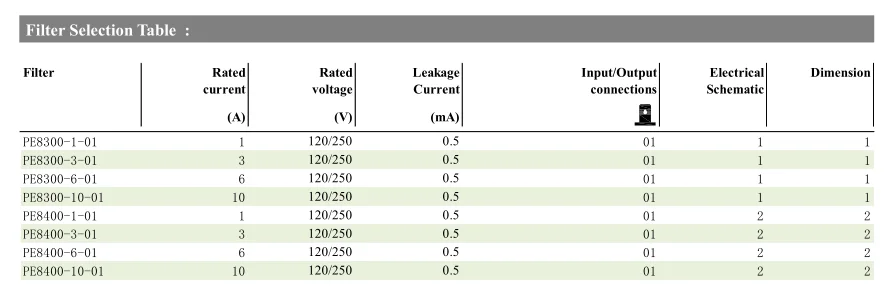

PE8300 emi filter Selection Table

PE8300 series slection

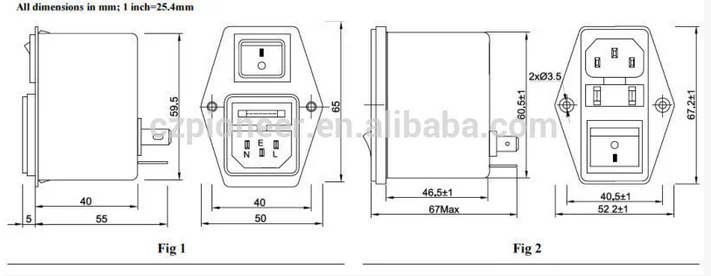

         Outline Drawing and Dimensions

 PE8300
