Precision Hydraulic Brake 12 Inch Cnc Indexing Head 4th Axis Turntable VMC850 Milling Machine Center Rotary Table
- Category: Table >>>
- Supplier: Dongguan Mihong Mechanical Hardware Co. Ltd.
Share on (60601573967):
Product Overview
Description
Product Description

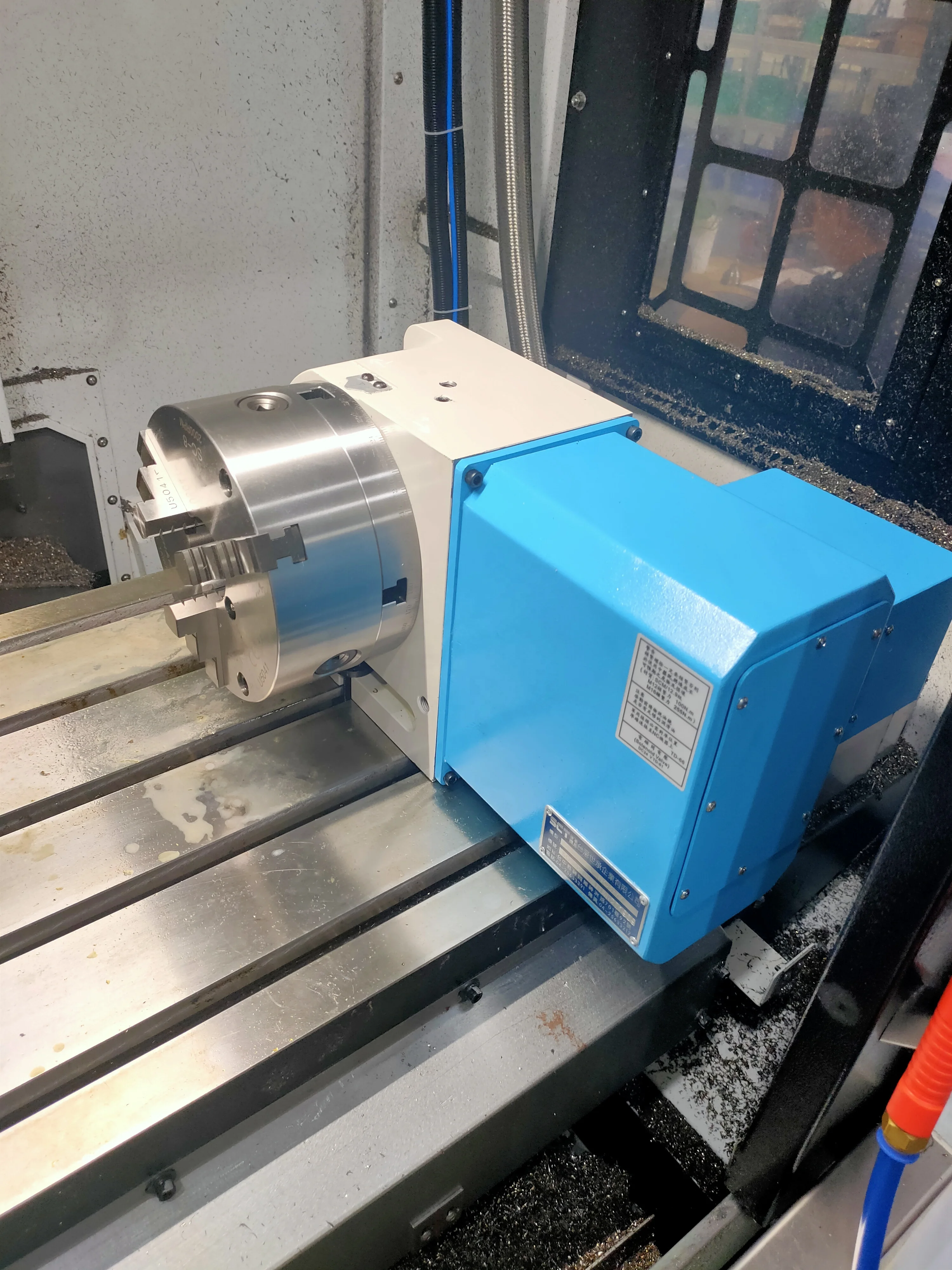

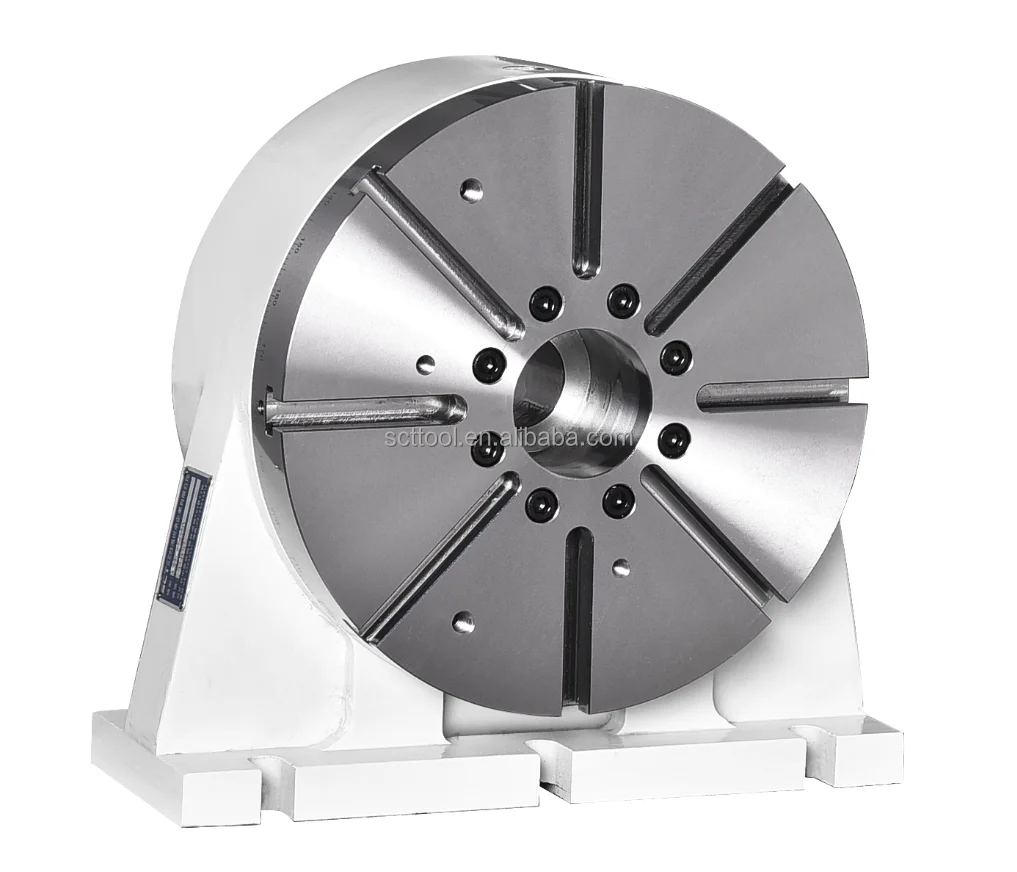

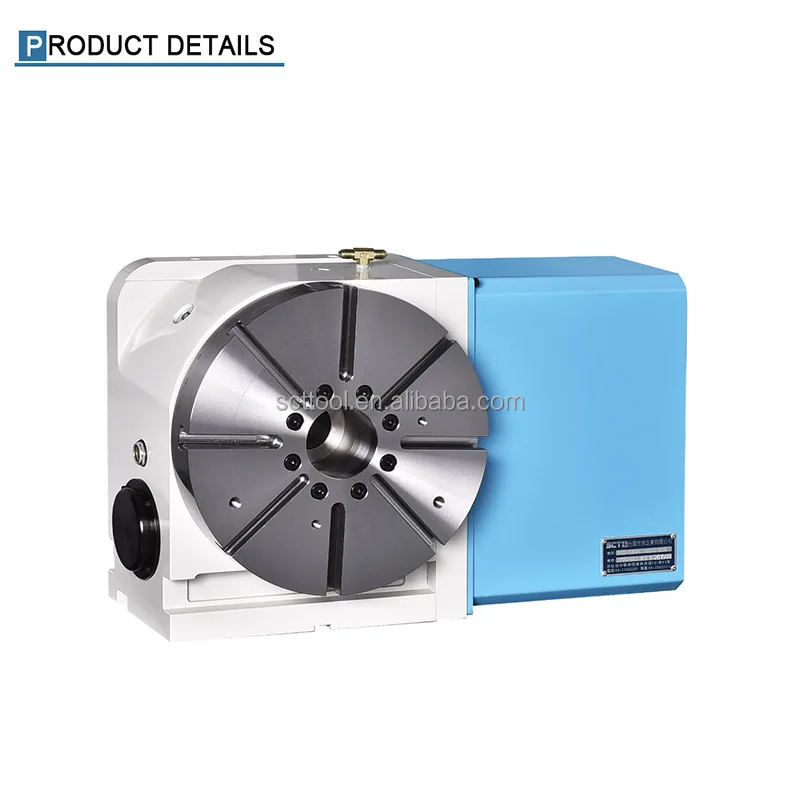

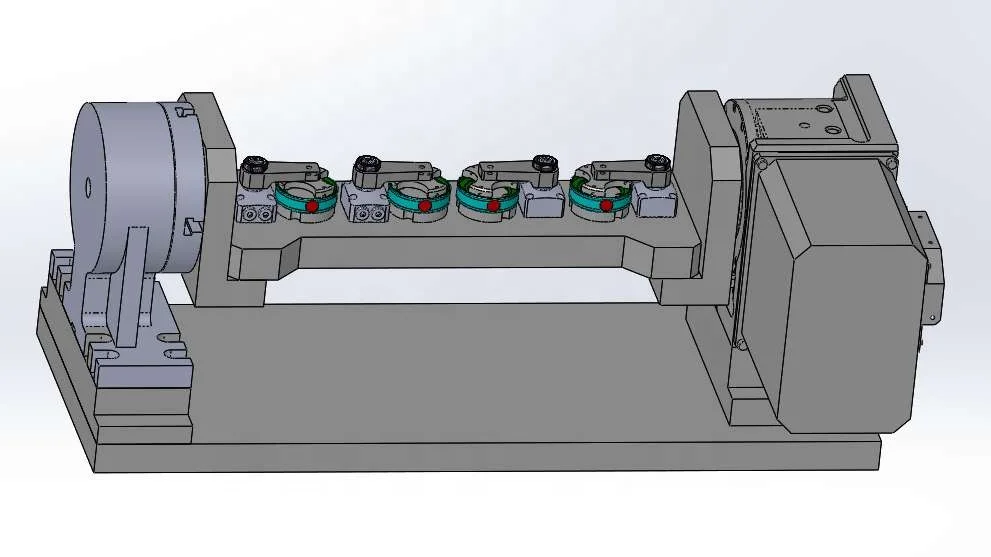

Precision Hydraulic Brake 12 Inch Cnc Indexing Head 4th Axis Turntable VMC850 Milling Machine Center Rotary Table
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine,
turbine with aluminum bronze alloy,ensure the transmission positioning in high
precision accuracy.
2. Three-piece clutch gear for precise positioning accuracy,ensure the work
table’s stability.
3.The vertical and horizontal can interchangeable.
Specification:
The Disc diameter | 320mm |
The disc spindle center hole | 75H7mm |
The disc spindle center through hole | 50mm |
Level placement height | 370mm |
Center height | 210mm |
T-slot width of the rotary shaft disc | 14H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 35(hydraulic) kg/cm2 |
The mini angle of equal division | 5 degree |
Total gears rate | 1/144 |
Max speed of the rotary disc | 3000 RPM 16.6 |
4000 rpm X | |
Division precision | ±4” |
G.W weight | 160kg |
Product Overviews
Warranty
1.Warranty: Non-human damage, one year guaranteed period.
2.Shipment: goods by send by sea or by express based on
customers request.
Our Services
1. Our company is a manufacture of NC rotary table ,tool holder ,cnc machines ,we can
supply technical support for these products without charge .
All tool holder and nc rotary precesion parts were made in taiwan factory,no need to
worry about the quality.
2. About the nc rotary table :
<1>. Before place an order of the nc rotary table ,please let us know your machine
center work table size,brand,system,wire case position,so we can supply the right

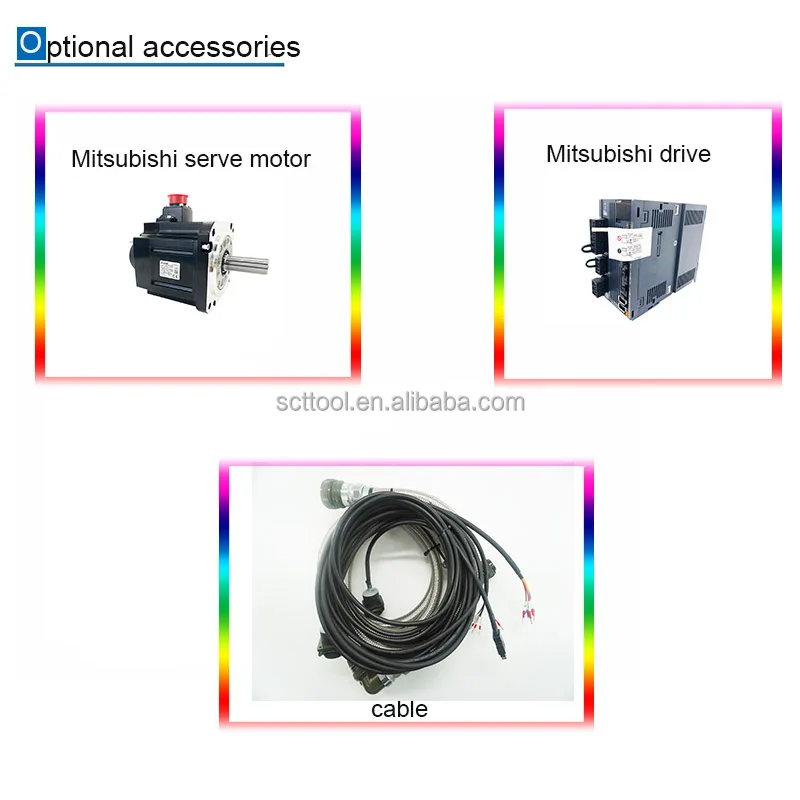

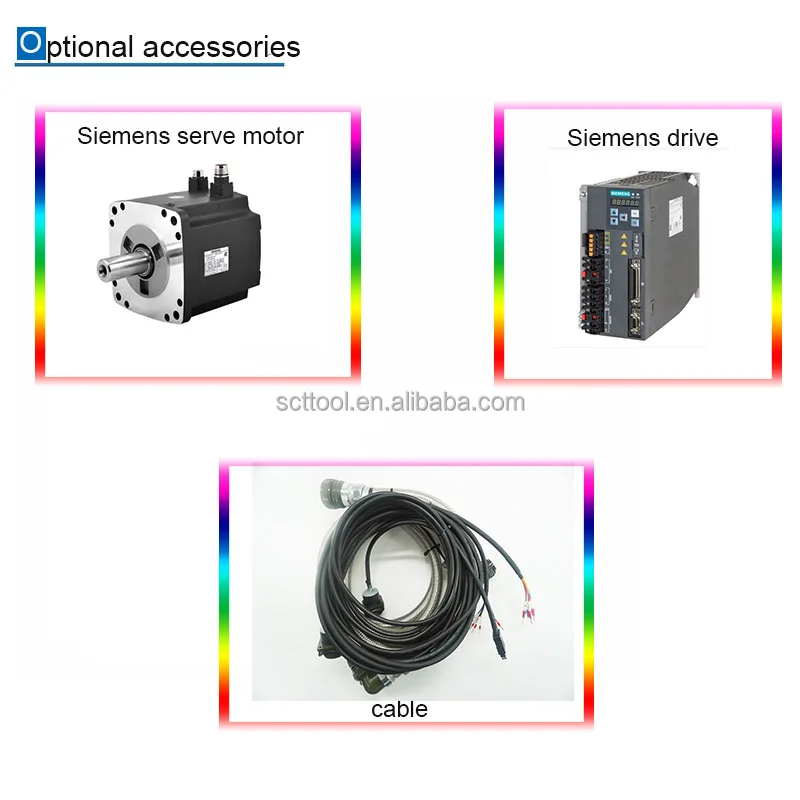

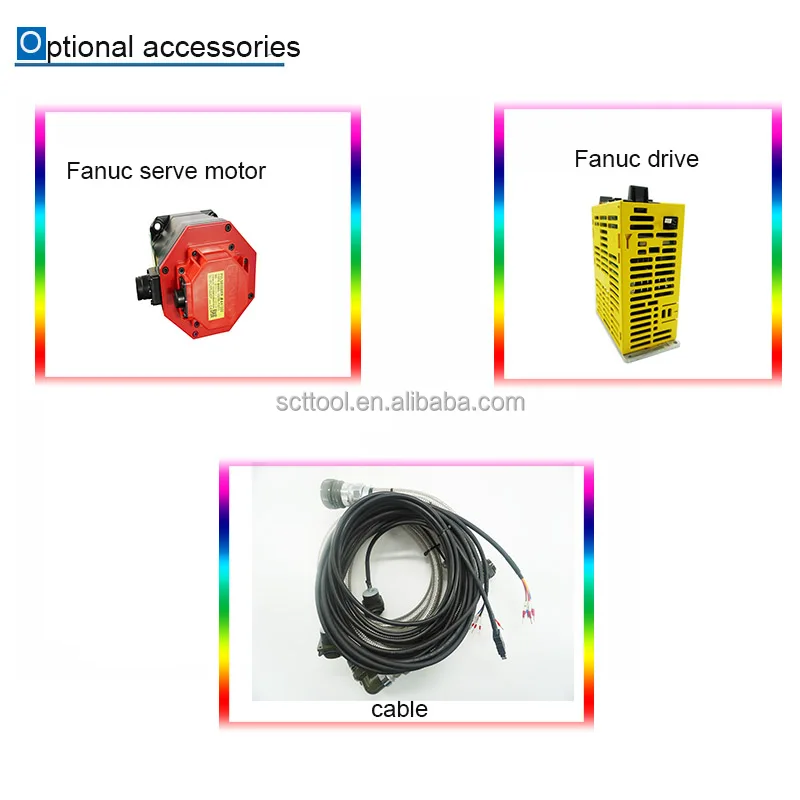

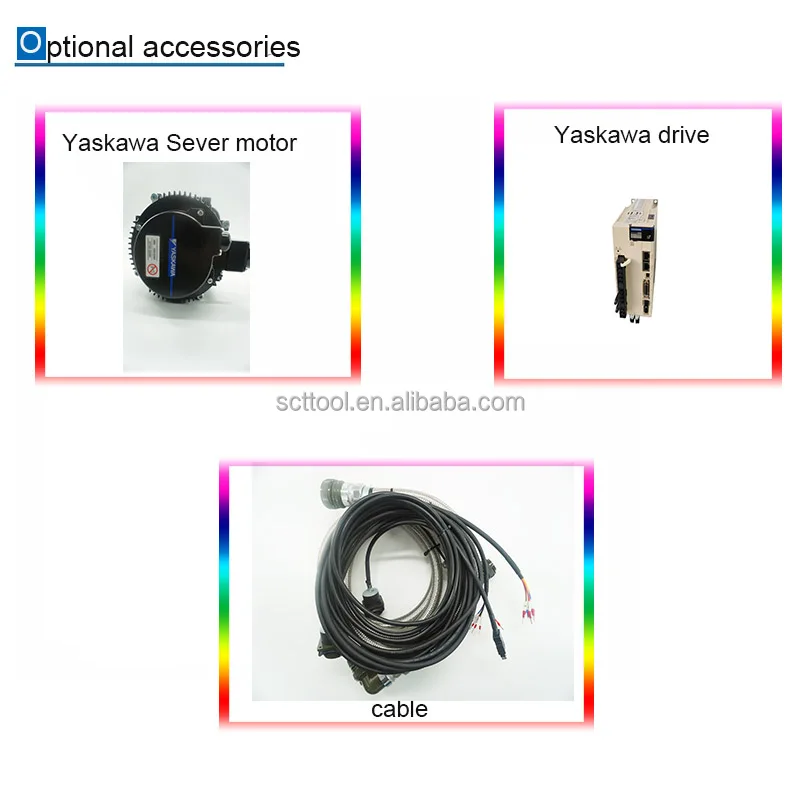

cnc rotary table with serve motor ,drive and cable etc .
<2>. About the tool holder ,we can supply tool holder specification before customers place order .
