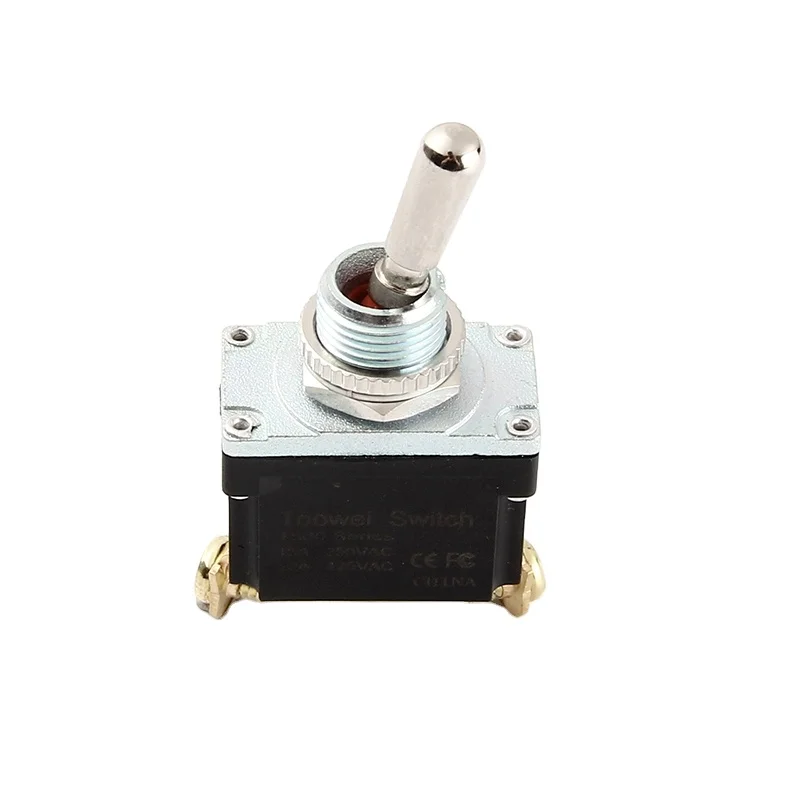

Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch
Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch
Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch
Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch
Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch

Toowei (on)off(on) miniatute 3 pins screw terminal momentary toggle switch

Share on (60601647743):


Price:$1.76 - $2.20

Quantity:


Product Overview

Description


Product Description
T500 series toggle switch is suitable for 50Hz/60Hz. This switch is used as the switching mode and reset mode in the circuit. The terminal block has screws, quick-connect terminals and soldering terminals. The waterproof level reaches IP67 with dustproof, waterproof and oil proof functions.
Specification
Model Name
T501MW
Waterproof Grade
IP67
Pole code
Single group
Function code
(ON)-OFF-(ON)
Terminal form
Screw terminal
color
Black
Base material
DuPont nylon

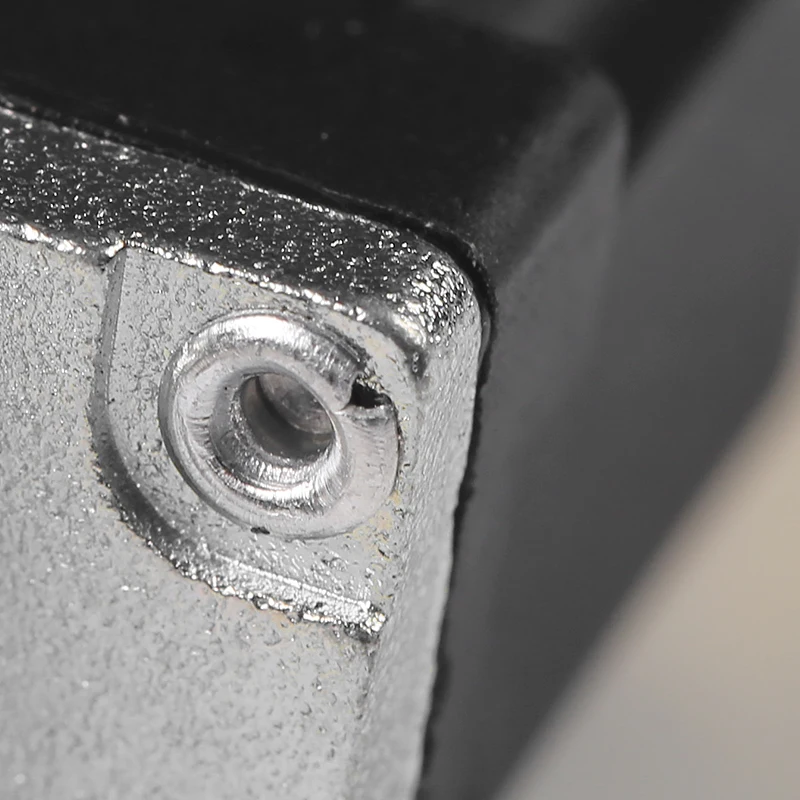

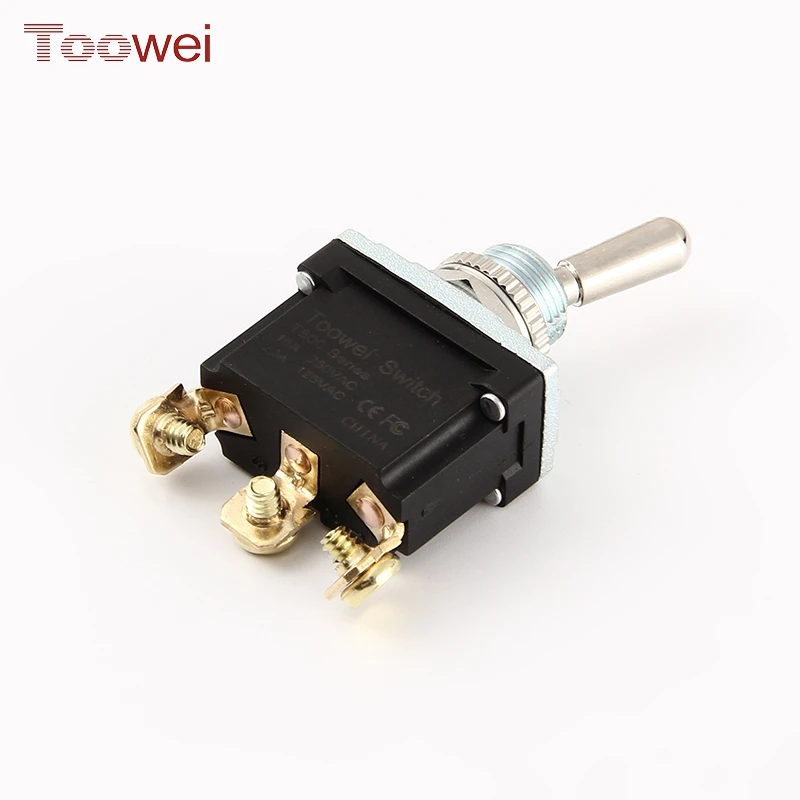

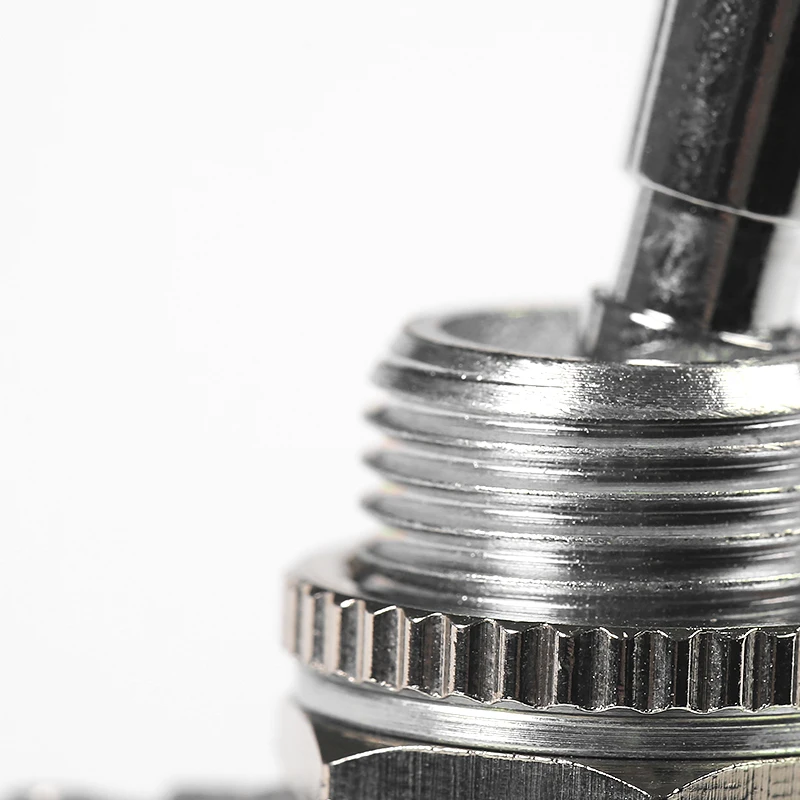

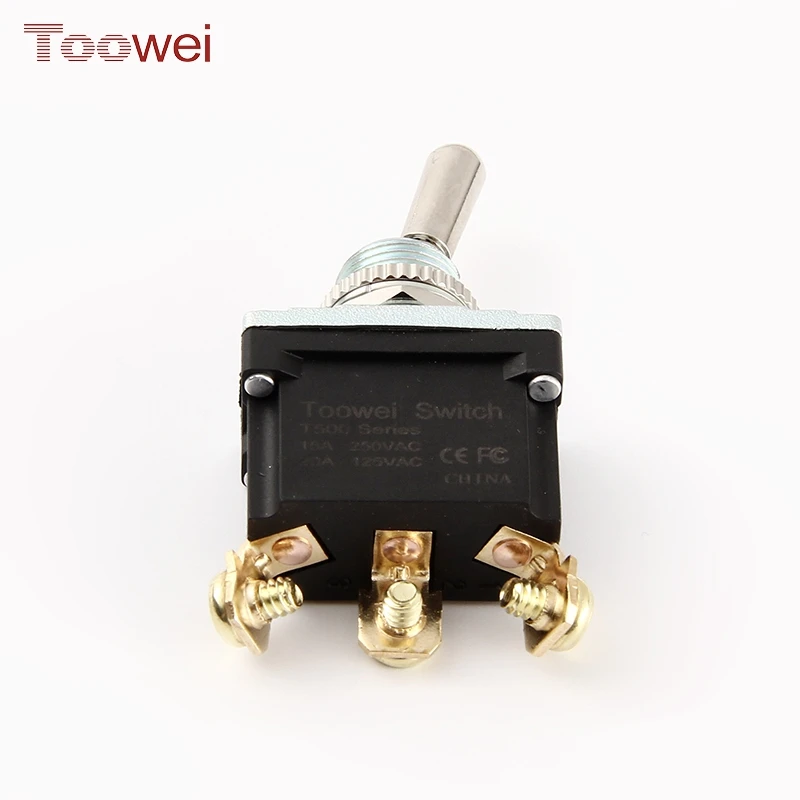

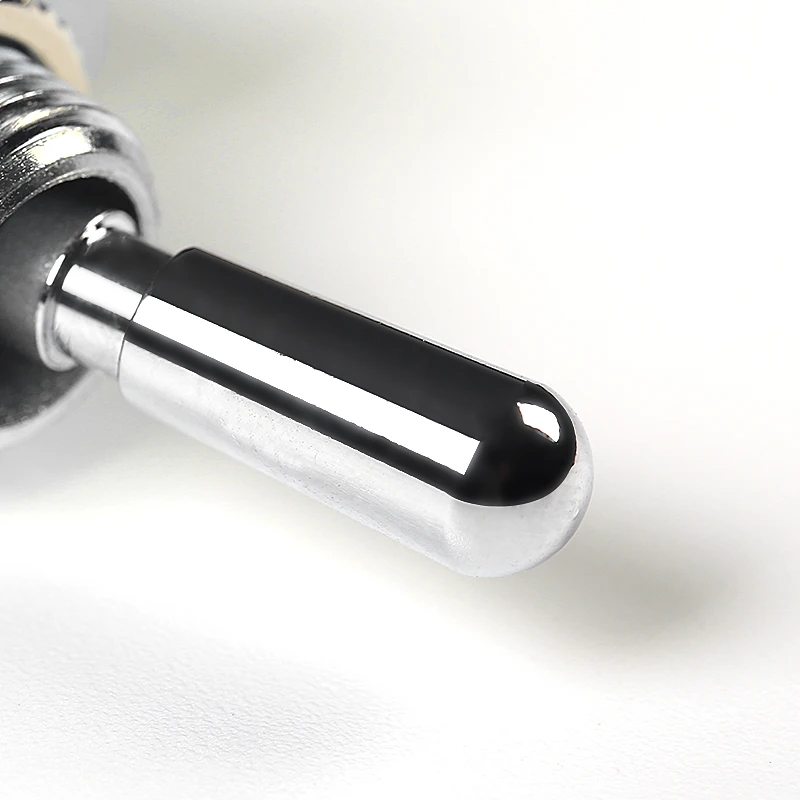

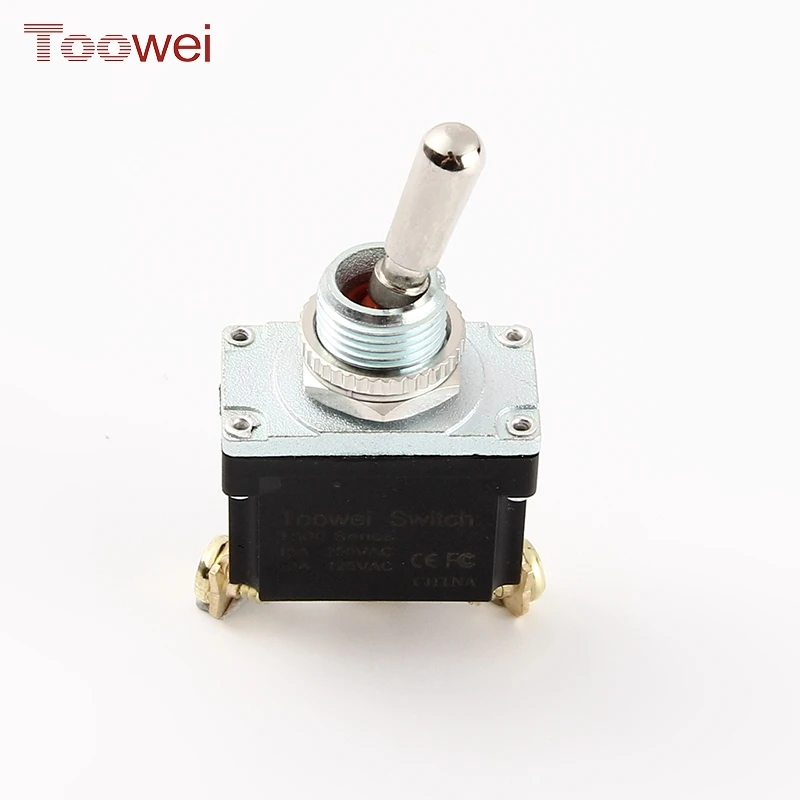

Product Pictures

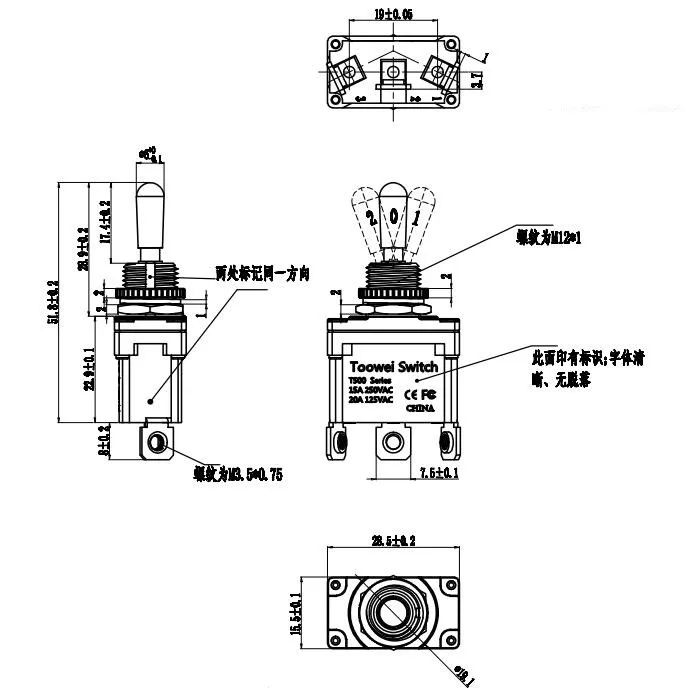

Technical parameters
Technical parameters
1. Rating Value: 15A 250VAC/20A 125VAC
2. Operating Force: 8N-24N
3. Ambient temperature: -25℃~+85℃
4. Withstand voltage： 1500VAC 50/60hz
Leakage current：5mA
5. Insulation resistance ≥100mΩ
6. Electrical life： 20,000 times
Mechanical life: 50,000 times
7. Humidity： below 85% RH
8. Terminal form : Soldering terminal
Solderable soldering iron: 345±5° 1~2S
Solder resistance soldering iron：345±5° 3~5S
9. Protection degree: IP67
