Price:$4,600.00 - $4,700.00

Quantity:


Product Overview

Description


Product Description

Wall Panel Machine  technical parameters(function and configuration)

Compared to the market with type mechanical forming time can save more than 40% of the 3 d leather wall panel machine
Compared to the market of the same type machines yuanju save more than 40% of the molding time
Compared to the market of the same type machines yuanju save energy more than 30%
Compared to the market of the same type machines yuanju save more than 30% of the raw materials
Compared to the market of the same type machines yuanju products can reach more than 99% classy article

Can provide production technology free of charge and training 3d wall panel machine manufacturer

Power supply voltage: 220/380 v , power: 2 kw mechanical volume for appearance: H1800MM* D800* L2200  and weight is about: 600 kg use pneumatic pressure: 2-7 mpa

\t
YUANJU Wall Panel Machine  Compared with other mechanical advantage
\t
\t
YUANJU  Wall Panel Machine
\t
Other factory machinery functions
\t
Machinel output analysis of the effect of product difference
\t

1
\t
Machinery with supercharged pressure cylinders, pressure adjustable 1-3 ton, there are two stress functions, the pressure to make mechanical foaming materials will not leak at work, to produce products of edge horn neat, straight, to ensure easy installation in the future, absolutely won't appear round edge  Automatic constant temperature for 2-3 minutes out of a finished product, the efficiency higher, 30% higher than the similar mechanical efficiency, save material 30%
\t
Maximum pressure 1 t other factories, and some factory is mechanical lever principle, not the function of the secondary compression
\t
When the mechanical pressure was not enough, after filling PU polyurethane material, under the condition of the foaming materials will produce certain foaming force, make the machine and mold not good fit edges produce leakage foaming materials have high bad product, lever principle of machinery is also uneven pressure constant, mechanical strength can use foaming ratio is large, short contract time    less dosage of PU polyurethane materials (2-3 minute  forming),  mechanical strength to   use little  foaming ratio, long materials of the foaming materials (4-6 minutes molding)  on the shelves for hours after the mold or ten several hours to finalize the design   poor effect
\t
2
\t
Machine equipped with panasonic vacuum automatic management system, no external pipeline, vacuum system integration, solve the vacuum pipe long vexed brain
\t
Other are external vacuum system or unworthy vacuum system
\t
Pipe external interface will appear too much in the production process will produce vacuum leak, or because the pipe is too long and vacuum should not good in machinery, and higher power loss, increase the cost of production
\t
3
\t
 Machine equipped with PVC sheet positioning function, solve the artificial placed PVC plank is inaccurate and product edge distance is not the same ills
\t
Other factory machinery basic don't have the PVC sheet positioning function, is after filling PU polyurethane material, to PVC plate is placed by hand
\t
Artificial placed PVC board, PVC board cannot accurately and mould coincide, to produce a product that can produce four when look from the front side is not equal to the distance, assuming you the edge of the edge standard is 4 mm, you make the products to the edge of the up and down or so, may be on the left side of the edge is 5 mm, on the right side is 3 mm, so that the installation up is very ugly,Then there is the artificial placed PVC board will appear after a foaming material injection foaming, staff placed PCV plate speed too slow, polyurethane foam materials hold up PVC sheet, PVC sheet placed uneven or does not reach the designated position, cannot produce qualified products
\t
4
\t
Sliding mesa design, mechanical filling PU foaming materials more convenient, equipped with leather positioning tension device, mechanical specifications for 300 * 600 mm1 work station, 400 * 400 mm 2 work station (can choose 400*400mm or 300*600mm)
\t
No sliding table design, basic it is fixed inside the machine, not completely within the scope of the operation of a man's hand
\t
There is no sliding table location there is no complete exposure situations in your line of sight is not good to see the situation of leather, it might even have you put in the front of the leather will appear all sorts of problems, no leather positioning device, such as leather is not flat, leather have good location, whether there is sundry, in the mold without sliding table mechanical leather positioning is not very accurate Injection material is not convenient
\t
5
\t
This machine has the function of the increasing pressure again, again increasing pressure time arbitrary adjustable, different 3 d wall panel soft package products of any can change the time, with vacuum time can produce to produce different effect of 3 d wall panel soft package products In order to improve product quality and product with high finished product protection
\t
No secondary compression function
\t
The function of the secondary compression: mechanical, after falling for polyurethane foam material in the mold cavity first after a certain time, mechanical pressure, again let polyurethane material better circulation before there is no pressure, good solve the material flow does not reach the designated position, the problem of adverse product, improve the quality of the products
\t
6
\t
Mechanical template for accurate PID automatic constant temperature, temperature arbitrary adjustable, actually only a difference of ± 1 ℃ temperature and set temperature, temperature can be adjusted according to different leather to want
\t
Some manufacturers have no heating thermostatic function
\t
Using temperature PID automatic sorting machine, the temperature will be more accurate, more intelligent and more save electricity, in the case of low ambient
\t
7
\t
Automatic exhaust function, can according to different products and products molding time adjusted automatically exhaust time, can also according to the different model shape and change the direction of the exhaust around (bottom)
\t
This function also have, only some of them are fixed cannot adjust
\t
Can't adjust the orientation of the exhaust, produces if mold has a high enough below wear leather, while not leather surface damage
\t
8
\t
Machine adopts panasonic electronic vacuum automatic management system, touch screen operation system, Chinese and English language compared, microcomputer control, operation more convenient, one-click mould replacement operation
\t
Vacuum by adopting the working style of mechanical pointer adjustment circuit adopts relays to control the way
\t
Vacuum is not accurate, failure rate is high, there is no way to fully automatic vacuum management, not integrated circuits, high mechanical failure rate
\t
9
\t
PVC board position can be adjusted according to the different mold, pressure cylinder down clearance adjustment
\t
Are manually put the PVC board, no down limit the function
\t
PVC board can't accurate positioning, product range distance of the horn side, no down limit will because plank material of different pressure and different crush plate (such as 8 mm PVC sheet, mechanical without this function may be pressed into 6 mm or thinner) seriously affect the quality of the product

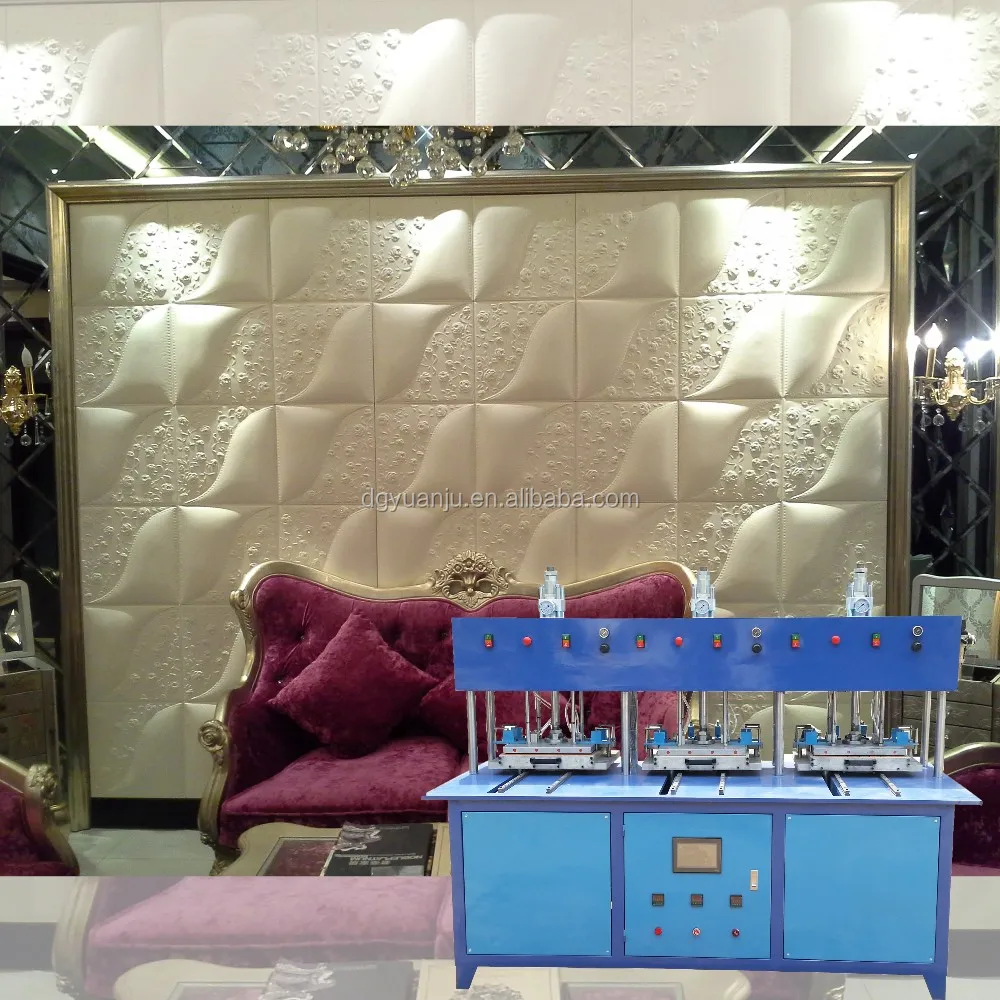

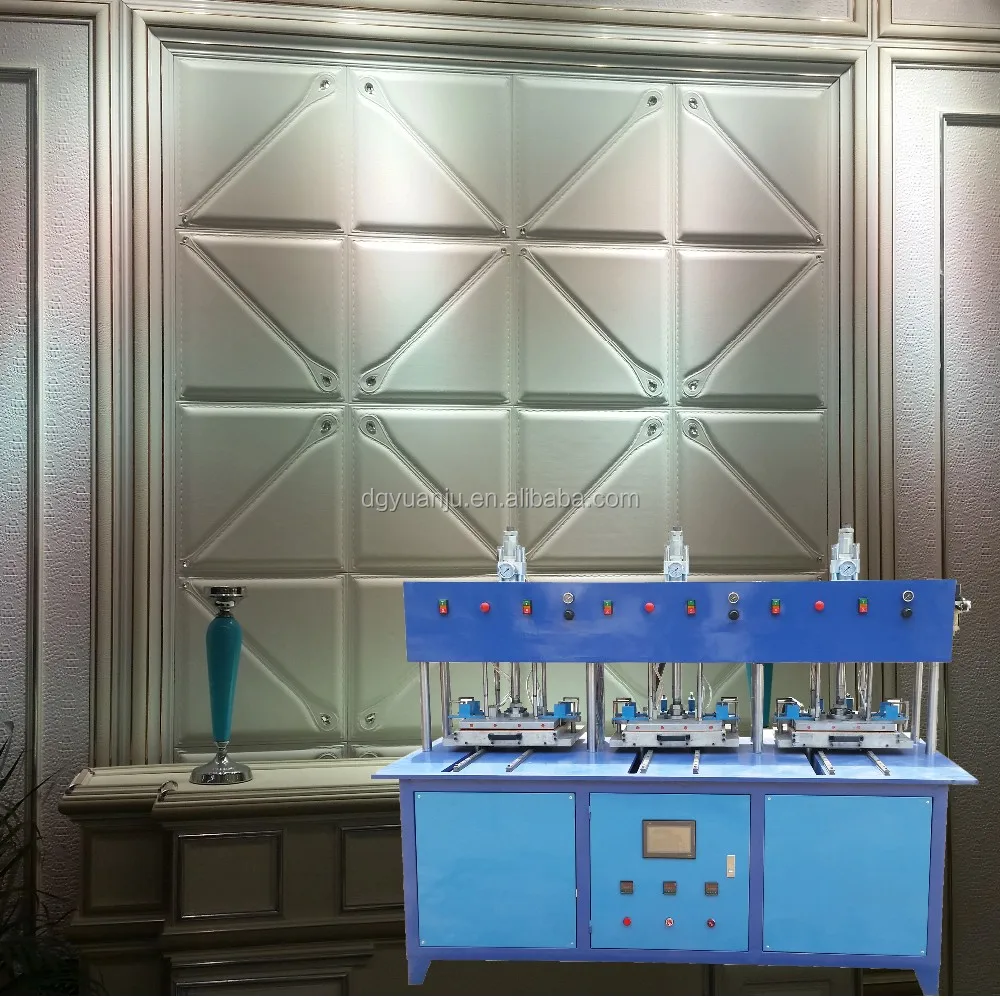

                                                                                      3 work table Wall Panel Machine

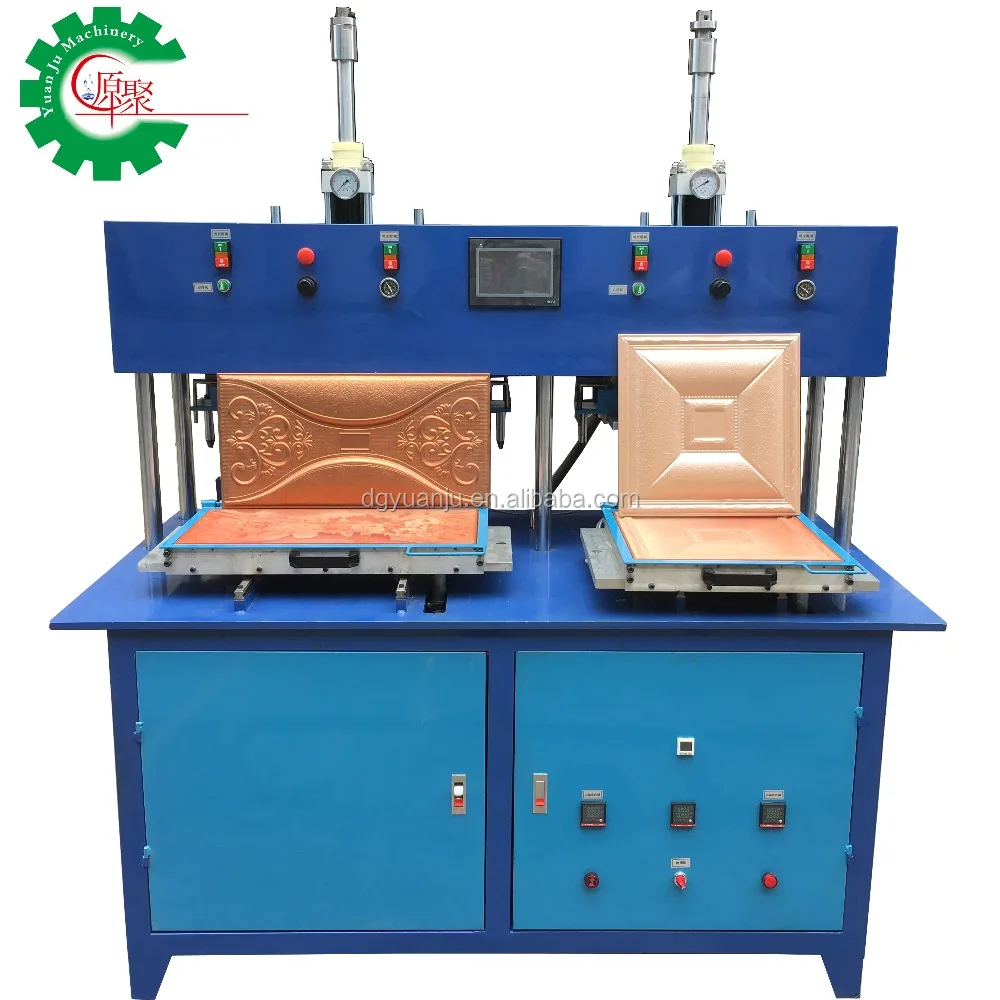

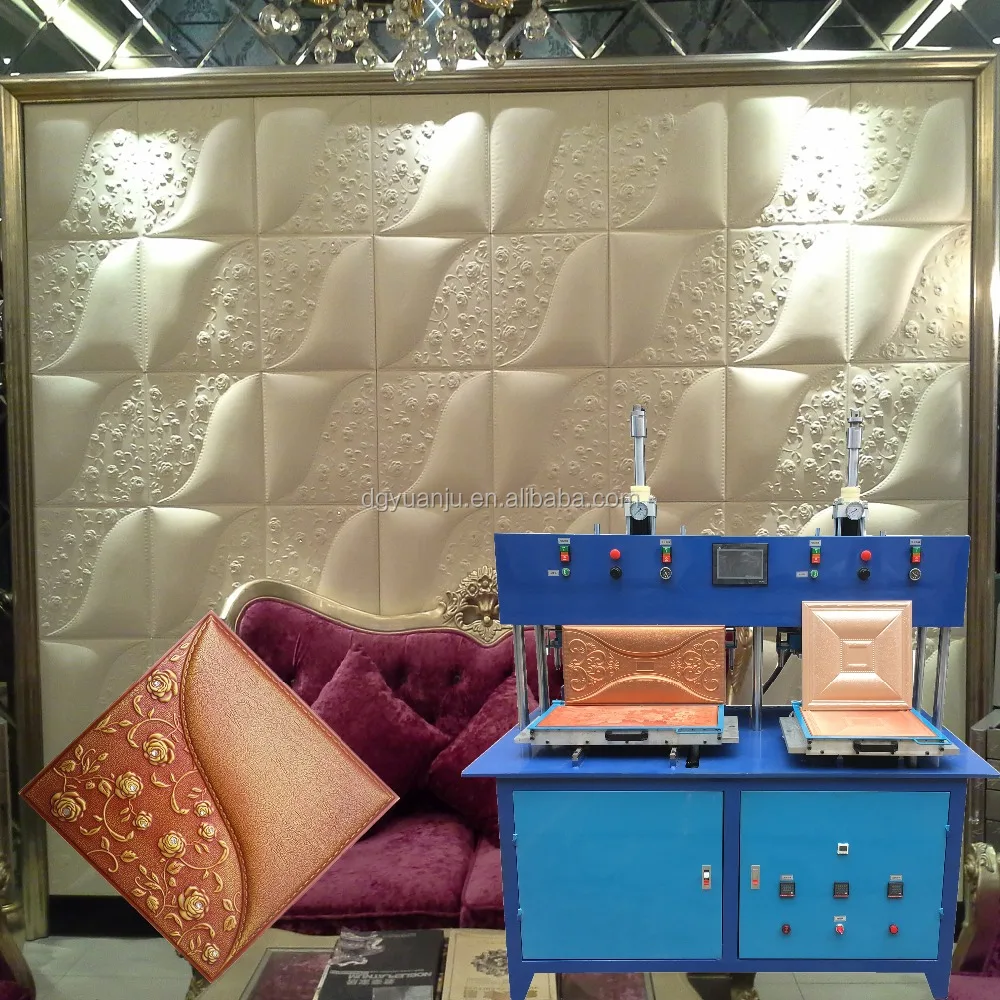

                                                     Automatic sealing side 2 work table Wall Panel Machine

Wall Panel Machine Main Features

1) Machine integration degree is high, easy in installation and debugging easily.
2) Adopting the advanced world famous brand components in pneumatic parts, electric parts and operation parts.
3) Use automatic supercharged pressure, material will not leak,make three-dimensional full production of products.
4) Running in a high automatization and intellectualization, and no pollution
5) Automatic vacuum, automatic exhaust,automatic constant temperature, PVC floor accurate positioning
6) Cooperate with other equipment and convenient connection. Multilingual touch-screen operation PLC integrated control

Detailed Images

Wall Panel Machine  Parts

Name:  Touch screen operation system

Brand: HCFA

Original: China

Domestic famous Touch screen, very stable performance, fast response speed, no bright spot.

Main Features

Name: RELAY
Brand: OMRON
Original: JAPAN
World famous electrical appliances manufacturers, stable performance, long service life

Machine Parts

Name: Stroke limiter
Can limit the decrease of mechanical position, prevent stress bedding face imprint, Can "according to the production of products to adjust the schedule of the specific position
Can be adjusted according to the thickness of the mould, and improve the percentage of finished product, not because the mould height and different pressure, produce the different thickness of the finished product

Main Features

Name: PVC floor precision positioner
Not because then there is the artificial placed PVC board will appear after a foaming material injection foaming, staff placed PCV plate speed too slow, polyurethane foam materials hold up PVC sheet, PVC sheet placed uneven or does not reach the designated position, cannot produce qualified products

Title goes here.

Name: panasonic Vacuum Automatic management system
Brand: Panasionc
Original: JAPAN

After vacuum automatic controller, set the vacuum pressure, vacuum pressure automatic control, to keep from began to take shape to the end of the molding machine internal vacuum pressure in the same state

Wall Panel Machine Machine Parts

Name: Temperature controller
Brand: WINPARK
Original: CHINA
Domestic famous Temperature controller, Powerful, accurate temperature control, low failure rate It is easy to operate simple

Product pictures

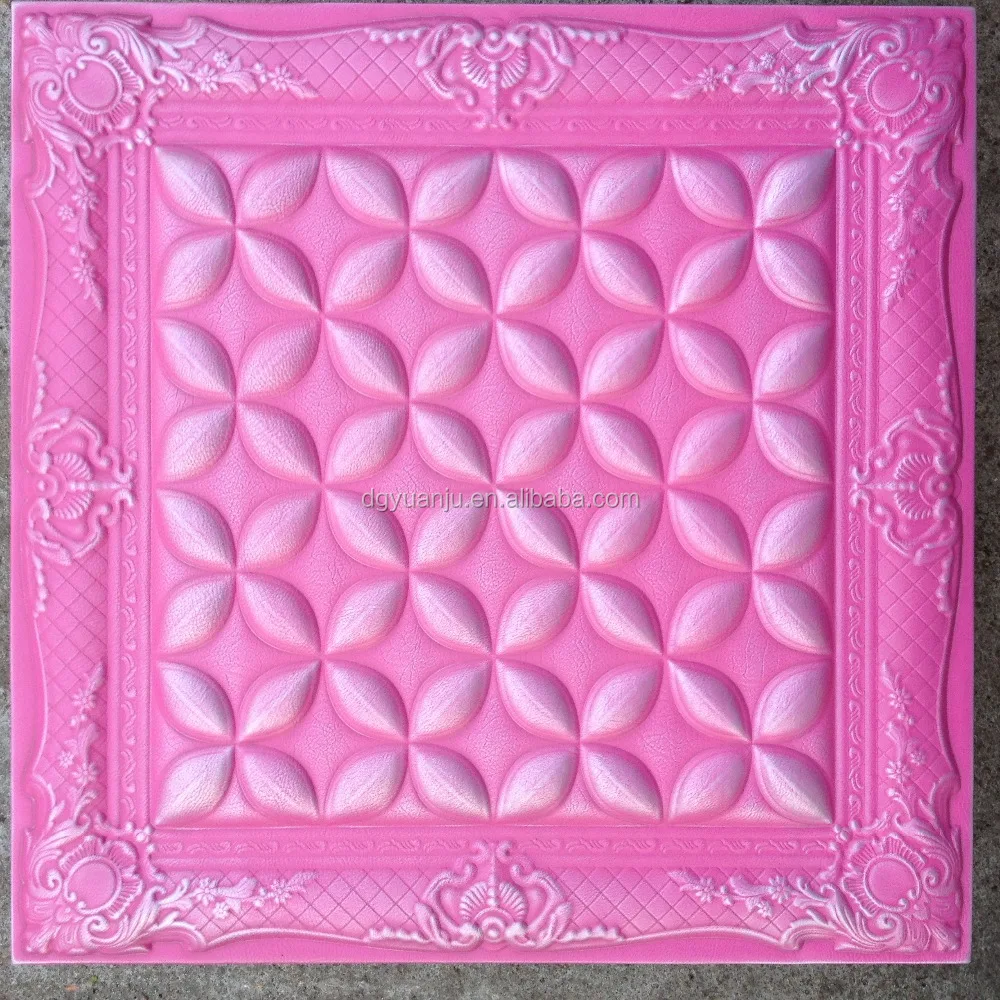

wall panel Features


1. Fire-Resistant and Pro-environment
2. Soundproof ,Eco-friendly, fireproof, moisture-proof, lightweight.
3. 3D and Embossed Design
4. Easy installation, Eco-friendly, fireproof, moisture-proof, lightweight.
5. Suitable for Interior wall, exterior wall and ceiling.
6. Easy to buy raw materials.
7. Simple technique and low cost of production, PU environmental protection material
8. Not easy to change color, natural leather texture, modern, retro effect, the pattern is clear
                                                                         Application
1. The background wall of TV, sofa, bed head background wall, vestibule, staircase, children’s room, study room etc
2.Building decoration for background walls of company image projection, conference room, teahouse,
all kinds of chain-store, Hotel beautiful 3d faux leather wall panels for home and restaurants, kindergarten.
3. Public space decoration for the walls of VIP Room of stations, dock, airport, background walls

Packing & Delivery
FAQ

Title goes here.

  Click to understand product production process Please contact us to learn more about production process and watch the video
1.What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
2.How about I had never buy product from China?
We will guide you step by step, we can help to calculate all the possible cost for you. Our shipping forwarder will also insist you on your port side.
3.When can I get the price?
We aim to quote within 24-48 hours after receiving your enquiry. If it is very urgent, please call us (+86-15692025263)or tell us in your email so that we will treat your enquiry as a priority.

4.Whether to provide technical

Yes,Our factory has a professional technical staff to provide you with professional technical training, until you can complete the whole process operation alone, to produce qualified 3d wall panel products

Our factory is China's first professional development and production of 3 d wall panel machine manufacturers, machine line which produce of wall plates compared with common molding wall panels made of high product fineness, corner flat which is easy to install. Can provide production technology free of charge and training, raw material supply and related supporting services
Our machine have tow kind of to make the effert : Machinery has a general effect of forming in one time finished mechanical machinery and high-end fine effect combinations by many set of machinery, whichi is also can be customized according to coustmer request , to make the the other size of Other specifications of the machinery.
Our factory has a professional technical staff to provide you with professional technical training, until you can complete the whole process operation alone, to produce qualified 3d wall panel products ,

If you need we can also send engineers to your overseas countries to provide technical training for you,

We are welcome to visit our factory, to learn more about the fine high-end 3D leather wall panels and general 3D leather wall panels distinguishes.
MOB : +86-15999808788

TEL:+86-769-85599610

QQ: 1120041750

 Whatsapp: +86- 15999808788   WeChat:15999808788
Viber: +86-15692025263  Skype:hu.yan22
wall panel machine Contact address:no. 14 ChenWuqigu west road Houjie town ,dongguan city, guangdong province of China
